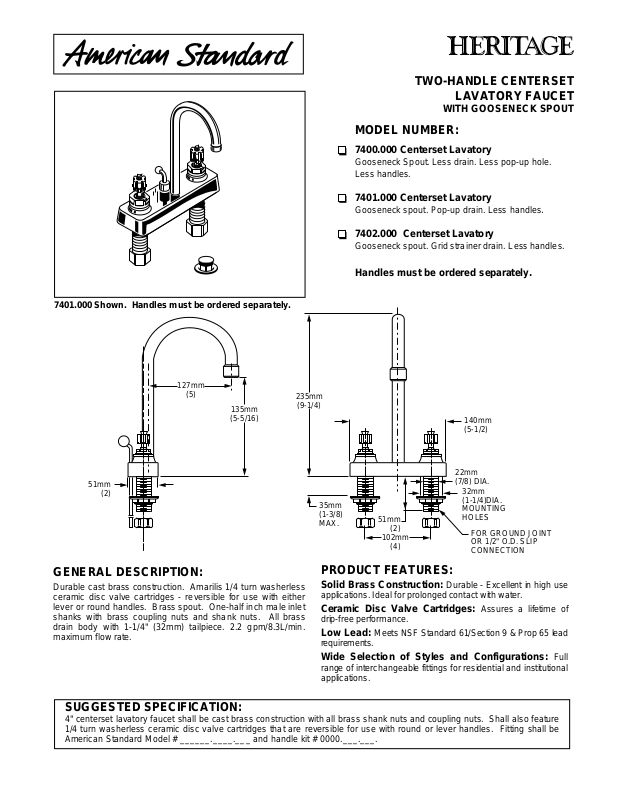

Page 1
7401.000 Shown. Handles must be ordered separately.
TWO-HANDLE CENTERSET
LAVATORY FAUCET
WITH GOOSENECK SPOUT
MODEL NUMBER:
7400.000 Centerset Lavatory
Gooseneck Spout. Less drain. Less pop-up hole.
Less handles.
7401.000 Centerset Lavatory
Gooseneck spout. Pop-up drain. Less handles.
7402.000 Centerset Lavatory
Gooseneck spout. Grid strainer drain. Less handles.
Handles must be ordered separately.
127mm
(5)
135mm
(5-5/16)
51mm
(2)
235mm
(9-1/4)
GENERAL DESCRIPTION:
Durable cast brass construction. Amarilis 1/4 turn washerless
ceramic disc valve cartridges - reversible for use with either
lever or round handles. Brass spout. One-half inch male inlet
shanks with brass coupling nuts and shank nuts. All brass
drain body with 1-1/4" (32mm) tailpiece. 2.2 gpm/8.3L/min.
maximum flow rate.
140mm
(5-1/2)
22mm
(7/8) DIA.
32mm
35mm
(1-3/8)
MAX.
51mm
(2)
102mm
(4)
(1-1/4)DIA.
MOUNTING
HOLES
FOR GROUND JOINT
OR 1/2" O.D. SLIP
CONNECTION
PRODUCT FEATURES:
Solid Brass Construction: Durable - Excellent in high use
applications. Ideal for prolonged contact with water.
Ceramic Disc Valve Cartridges: Assures a lifetime of
drip-free performance.
Low Lead: Meets NSF Standard 61/Section 9 & Prop 65 lead
requirements.
Wide Selection of Styles and Configurations: Full
range of interchangeable fittings for residential and institutional
applications.
SUGGESTED SPECIFICATION:
4" centerset lavatory faucet shall be cast brass construction with all brass shank nuts and coupling nuts. Shall also feature
1/4 turn washerless ceramic disc valve cartridges that are reversible for use with round or lever handles. Fitting shall be
American Standard Model # ______.____.___ and handle kit # 0000.___.___.
Page 2
TWO-HANDLE CENTERSET
LAVATORY FAUCET
WITH GOOSENECK SPOUT
CODES AND STANDARDS
These products meet or exceed the following
codes and standards:
ASME A112.18.1M
CSA B 125
NSF 61/Section 9
Product
Number
7400.000
Description
Centerset lavatory faucet. Less Drain. Less handles.
FLOW RATE*
3.0
2.5
2.0
1.5
1.0
0.5
GALLONS PER MINUTE
0.0
*Flow rates shown are for mixed hot and cold.
INLET PRESSURE (PSI)
Finish
Polished
Chrome
002
10080604020
7401.000
7402.000
Centerset lavatory faucet. Pop-up drain. Less handles.
Centerset lavatory faucet. Grid Strainer drain. Less handles.
Handles must be ordered separately.
To order Less Handles - Specify: 4 digit Style number followed by three zeros and 3 digit finish number.
Example 7400.000.002 = Centerset Lavatory, Less Drain in Polished Chrome finish.
The above fittings will accept the following Amarilis-Series handles. *
Wrist
Blade
172H
172V
4-Arm
Lever
152H
152V
Lever
142H
142V
AcrylicCrown
102H
112H 862
102V
Lexington
902
912
Triune
Cross
*See Section N for additional information on handle kits.
Meets the American Disabilities Act Guidelines and ANSI
A117.1 Requirements for the physically challenged.
