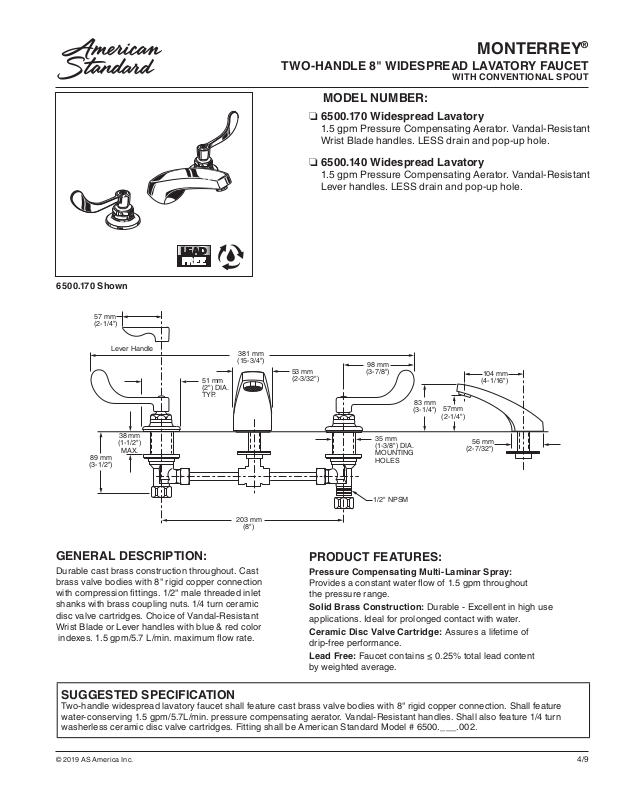

6500.170 Shown
57 mm
(2-1/4")
MONTERREY
TWO-HANDLE 8" WIDESPREAD LAVATORY FAUCET
WITH CONVENTIONAL SPOUT
MODEL NUMBER:
❏ 6500.170 Widespread Lavatory
1.5 gpm Pressure Compensating Aerator. Vandal-Resistant
Wrist Blade handles. LESS drain and pop-up hole.
❏ 6500.140 Widespread Lavatory
1.5 gpm Pressure Compensating Aerator. Vandal-Resistant
Lever handles. LESS drain and pop-up hole.
®
89 mm
(3-1/2")
Lever Handle
38 mm
(1-1/2")
MAX.
51 mm
(2
TYP.
"
) DIA.
381 mm
(15-3/4
203 mm
(8
"
)
"
GENERAL DESCRIPTION:
Durable cast brass construction throughout. Cast
brass valve bodies with 8" rigid copper connection
with compression ttings. 1/2" male threaded inlet
shanks with brass coupling nuts. 1/4 turn ceramic
disc valve cartridges. Choice of Vandal-Resistant
Wrist Blade or Lever handles with blue & red color
indexes. 1.5 gpm/5.7 L/min. maximum ow rate.
)
53 mm
(2-3/32
"
)
98 mm
(3-7/8")
35 mm
(1-3/8") DIA.
MOUNTING
HOLES
1/2" NPSM
83 mm
(3-1/4
"
)
57mm
(2-1/4
"
)
(2-7/32
104 mm
(4-1/16")
56 mm
"
)
PRODUCT FEATURES:
Pressure Compensating Multi-Laminar Spray:
Provides a constant water ow of 1.5 gpm throughout
the pressure range.
Solid Brass Construction: Durable - Excellent in high use
applications. Ideal for prolonged contact with water.
Ceramic Disc Valve Cartridge: Assures a lifetime of
drip-free performance.
Lead Free: Faucet contains ≤ 0.25% total lead content
by weighted average.
SUGGESTED SPECIFICATION
Two-handle widespread lavatory faucet shall feature cast brass valve bodies with 8" rigid copper connection. Shall feature
water-conserving 1.5 gpm/5.7L/min. pressure compensating aerator. Vandal-Resistant handles. Shall also feature 1/4 turn
washerless ceramic disc valve cartridges. Fitting shall be American Standard Model # 6500.___.002.
© 2019 AS America Inc.
4/9

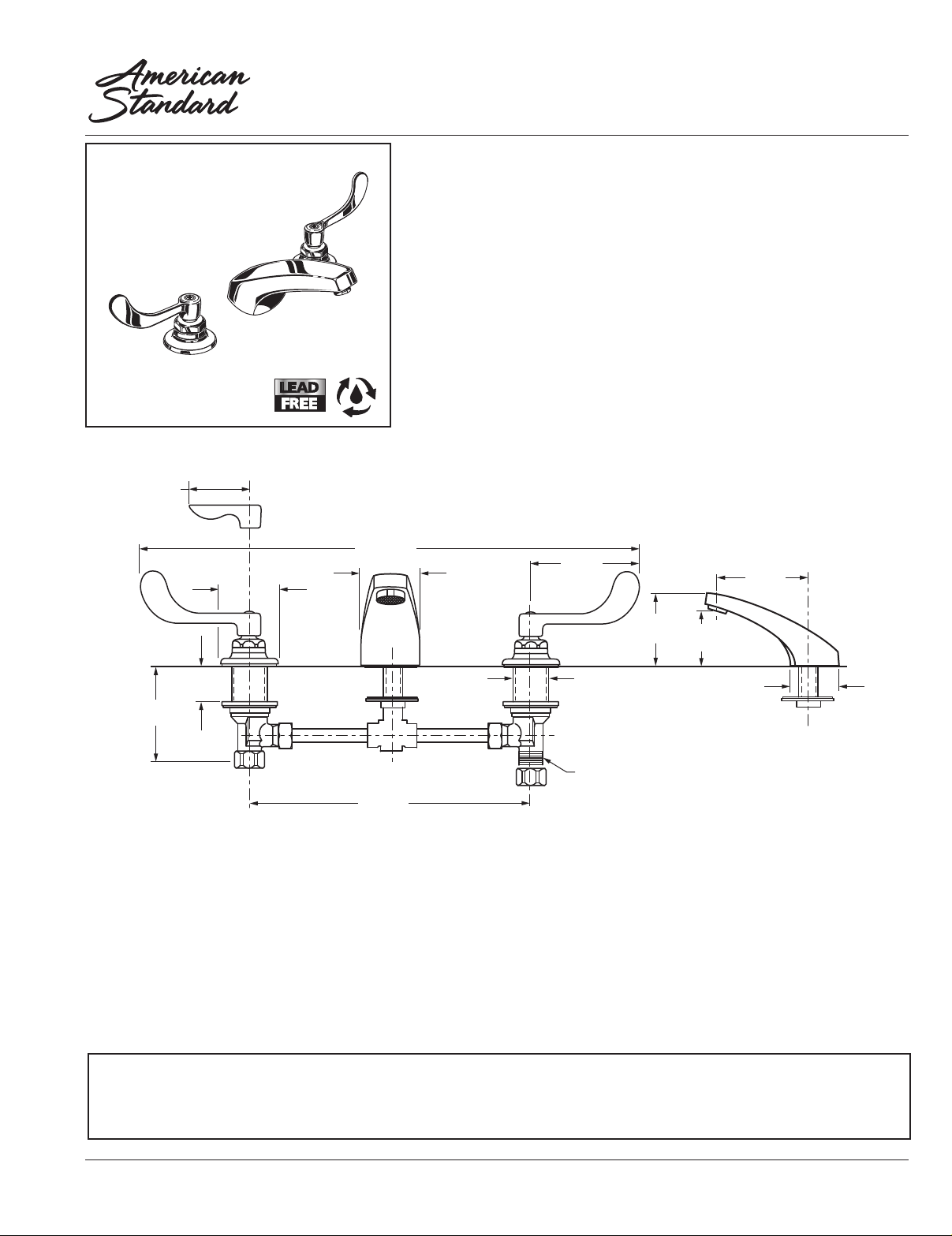

Page 2
MONTERREY
®
TWO-HANDLE 8" WIDESPREAD
LAVATORY FAUCET
WITH CONVENTIONAL SPOUT
CODES AND STANDARDS
These products meet or exceed the following
codes and standards:
ASME A112 .18 .1
CSA B125.1
NSF 372
Product
Number Description
65 0 0.17 0
Widespread Lavatory. 1.5 gpm/5.7L/min pressure compensating aerator.
Vandal-Resistant Wrist Blade Handles. LESS drain and pop-up hole.
FLOW RATE*
2.0
1.5
1.0
0.5
GALLONS PER MINUTE
0.0
INLET PRESSURE (PSI)
*Flow rates shown are for mixed hot and cold.
10080604020
Finish
Polished
Chrome
002
65 0 0.140
Meets the American Disabilities Act Guidelines
and ANSI A117.1 Requirements for accessible and
usable building facilities - check local codes
Widespread Lavatory. 1.5 gpm/5.7L/min pressure compensating aerator.
Vandal-Resistant Lever Handles. LESS drain and pop-up hole.
Other Aerators Available:
Part Suffix Description
LV15 1.5 gpm (5.7 Lpm) Vandal-Resistant PCA Non-Aerated Laminar Flow Outlet
V15 1.5 gpm (5.7 Lpm) PCA Vandal-Resistant Aerator
LV10 1.0 gpm (3.8 Lpm) Vandal-Resistant PCA Non-Aerated Laminar Flow Outlet
V10 1.0 gpm (3.8 Lpm) Vandal-Resistant PCA Aerator
V05* 0.5 gpm (1.9 Lpm) PCA Vandal-Resistant Multi-Laminar Spray
V035* t0.35 gpm (1.3 Lpm) Vandal-Resistant PCA Non-Aerated Spray
PCA - Pressure Compensating
*Meets Cal Green Code
© 2019 AS America Inc.
4/19
