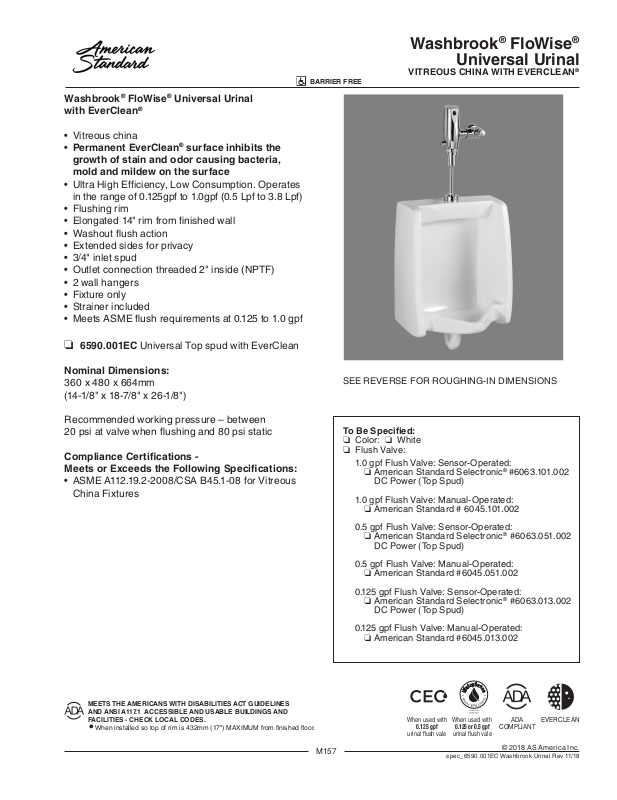

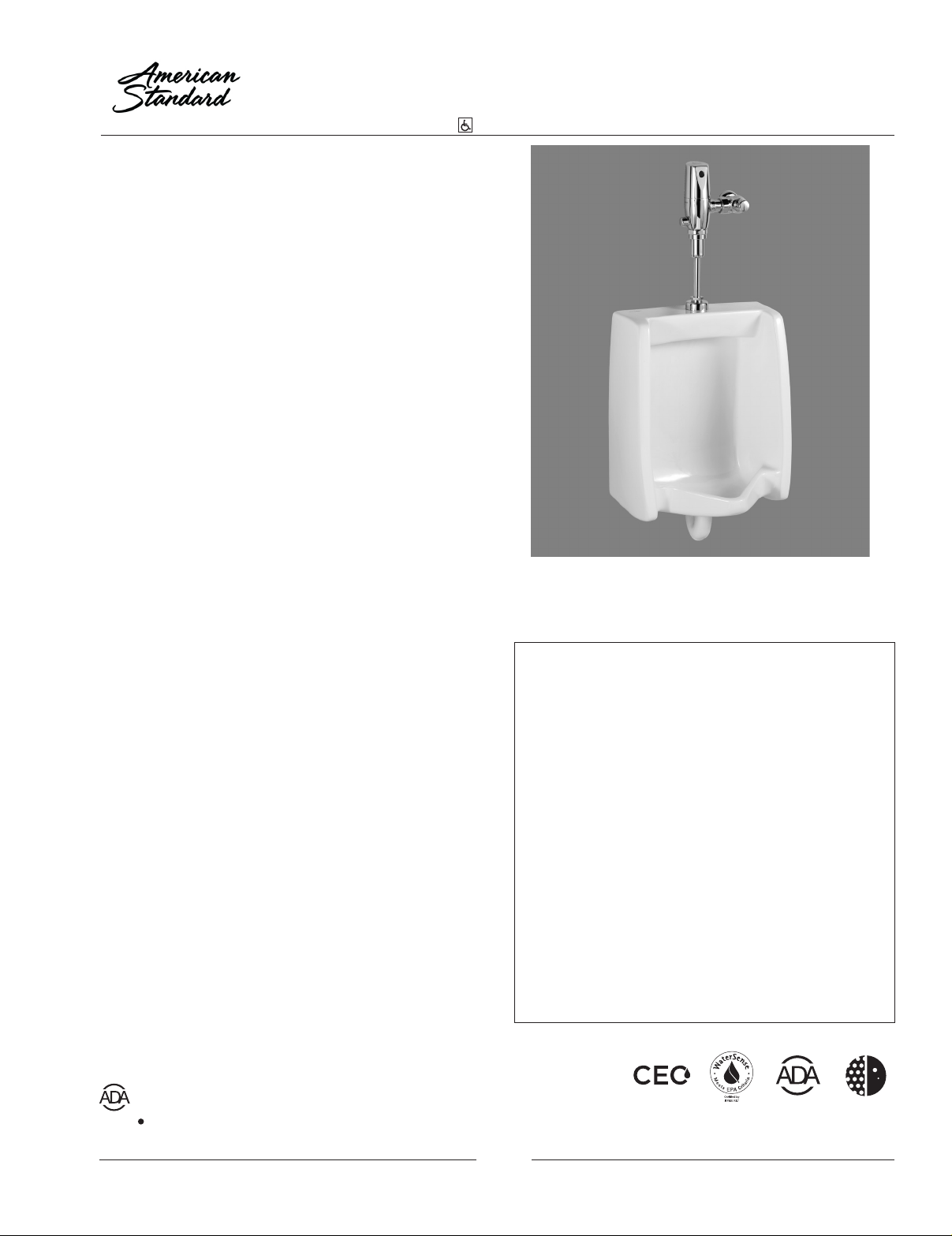

Page 1
BARRIER FREE
.
Washbrook® FloWise®
Universal Urinal
VITREOUS CHINA WITH EVERCLEAN
®
Washbrook® FloWise® Universal Urinal
with EverClean
®
• Vitreous china
• Permanent EverClean® surface inhibits the
growth of stain and odor causing bacteria,
mold and mildew on the surface
• Ultra High Efficiency, Low Consumption. Operates
in the range of 0.125gpf to 1.0gpf (0.5 Lpf to 3.8 Lpf)
• Flushing rim
• Elongated 14" rim from nished wall
• Washout ush action
• Extended sides for privacy
• 3/4" inlet spud
• Outlet connection threaded 2" inside (NPTF)
• 2 wall hangers
• Fixture only
• Strainer included
• Meets ASME ush requirements at 0.125 to 1.0 gpf
❏ 6590.001EC Universal Top spud with EverClean
Nominal Dimensions:
360 x 480 x 664mm
(14-1/8" x 18-7/8" x 26-1/8")
SEE REVERSE FOR ROUGHING-IN DIMENSIONS
Recommended working pressure – between
20 psi at valve when ushing and 80 psi static
Compliance Certications Meets or Exceeds the Following Specications:
• ASME A112.19.2-2008/CSA B45.1-08 for Vitreous
China Fixtures
MEETS THE AMERICANS WITH DISABILITIES ACT GUIDELINES
AND ANSI A117.1 ACCESSIBLE AND USABLE BUILDINGS AND
FACILITIES - CHECK LOCAL CODES.
When installed so top of rim is 432mm (17") MAXIMUM from finished floor
To Be Specied:
❏ Color: ❏ White
❏ Flush Valve:
1.0 gpf Flush Valve: Sensor-Operated:
❏ American Standard Selectronic® #6 0 63 .101.0 0 2
DC Power (Top Spud)
1.0 gpf Flush Valve: Manual-Operated:
❏ American Standard # 6045.101.002
0.5 gpf Flush Valve: Sensor-Operated:
❏ American Standard Selectronic® #6063.051.002
DC Power (Top Spud)
0.5 gpf Flush Valve: Manual-Operated:
❏ American Standard #6045.051.002
0.125 gpf Flush Valve: Sensor-Operated:
❏ American Standard Selectronic® #6063.013.002
DC Power (Top Spud)
0.125 gpf Flush Valve: Manual-Operated:
❏ American Standard #6045.013.002
M157
When used with
0.125 gpf
urinal ush vale
When used with
0.125 or 0.5 gpf
urinal ush vale
spec_6590.001EC Washbr ook Urinal Rev 11/18
ADA
COMPLIANT
© 2018 AS America Inc.
EVERCLEAN

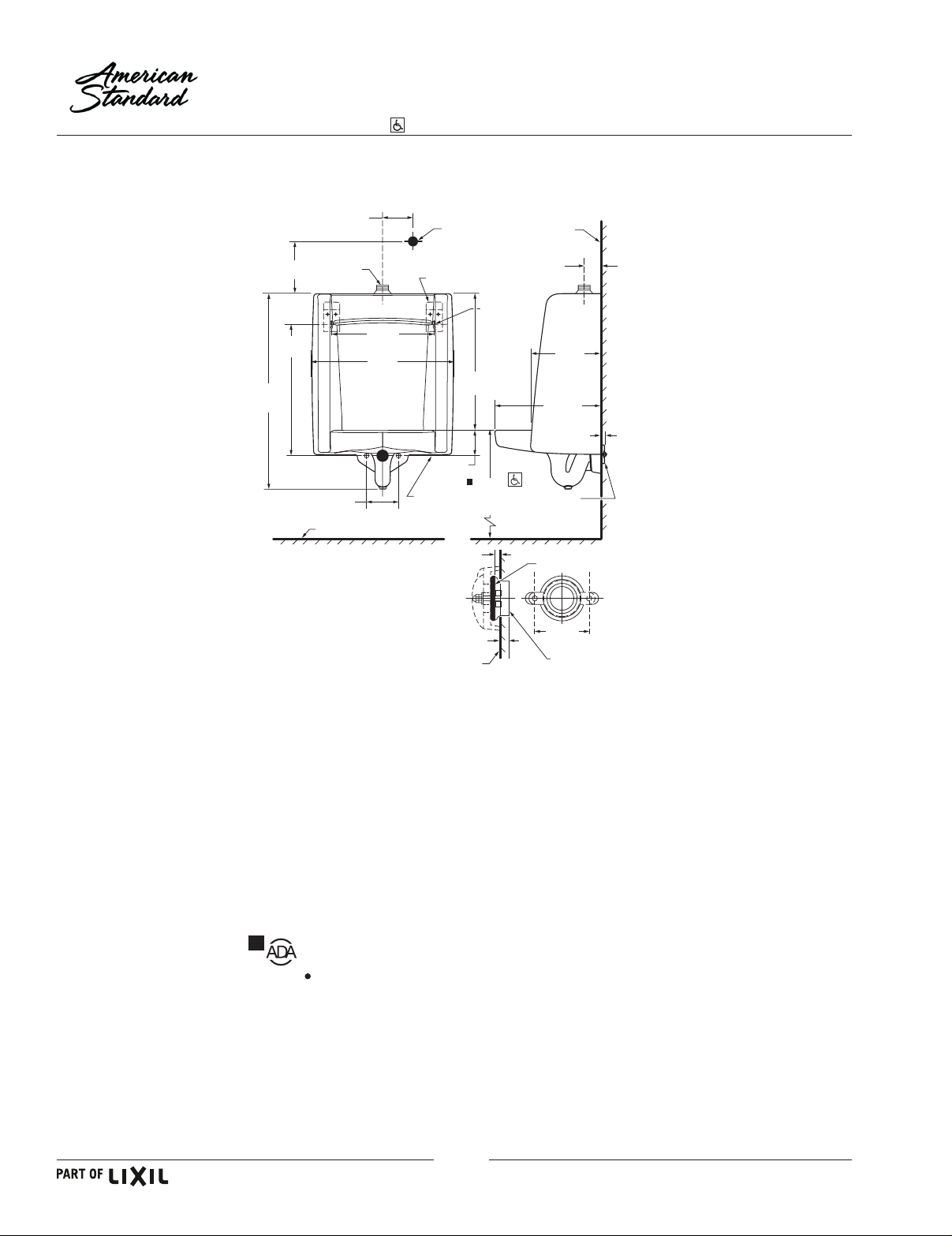

Page 2
BARRIER FREE
S
(26-1/8")
.
6590.001EC TOP SPUD
Washbrook® FloWise®
Universal Urinal
VITREOUS CHINA WITH EVERCLEAN
®
664mm
REF.
292mm
(11-1/2")
445mm
(17-1/2")
121mm
(4-3/4")
3/4"
SPUD
343mm
(13-1/2")
480mm
(18-7/8")
102mm
(4")
FINISHED FLOOR
3/4" S.P. S.
OR 3/4" C.W.T.
SUPPLY TO
FLUSH VALV E
K2 HANGERS
8mm x 25mm
(5/16" x 1")
SLOT
464mm
(18-1/4")
83mm
(3-1/4")
432mm
C/L OF
OUTLET
FINISHED WALL
(17") MAX
610mm (24")
OPTIONAL
13mm
(1/2")
13mm
(1/2")
DETAIL OF OUTLET CONNECTION
FINISHED
(2-1/2")
FEMALE OUTLET
CONNECTION
WALL
64mm
235mm
(9-1/4")
360mm
(14-1/8")
13mm
(1/2")
2" N.P.T.
GASKET
102mm
(4")
2" N.P. T.
INSIDE THREAD
MEETS THE AMERICANS WITH DISABILITIES ACT GUIDELINES
AND ANSI A117.1 ACCESSIBLE AND USABLE BUILDINGS AND
FACILITIES - CHECK LOCAL CODES.
When installed so top of rim is 432mm (17") MAXIMUM from finished floor
NOTES:
FLUSH VALVE NOT INCLUDED AND MUST BE ORDERED SEPARATELY.
PROVIDE SUITABLE REINFORCEMENT FOR ALL WALL SUPPORTS.
IMPORTANT: Dimensions of xtures are nominal and may vary within
the range of tolerances established by ANSI Standard A112.19.2. These
measurements are subject to change or cancellation. No responsibility is
assumed for use of superseded or voided pages.
M158
spec_6590.001EC Washbr ook Urinal Rev 8/18
© 2018 AS America Inc.
