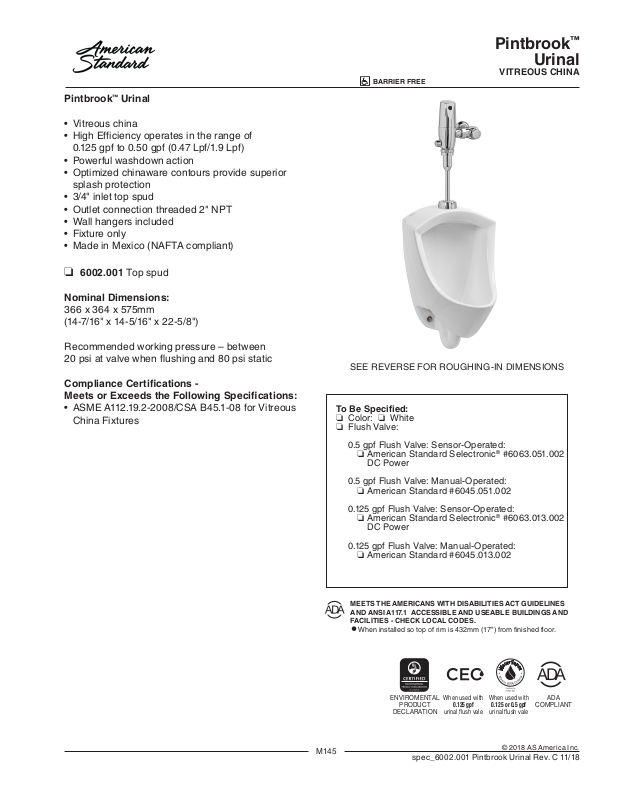

Page 1

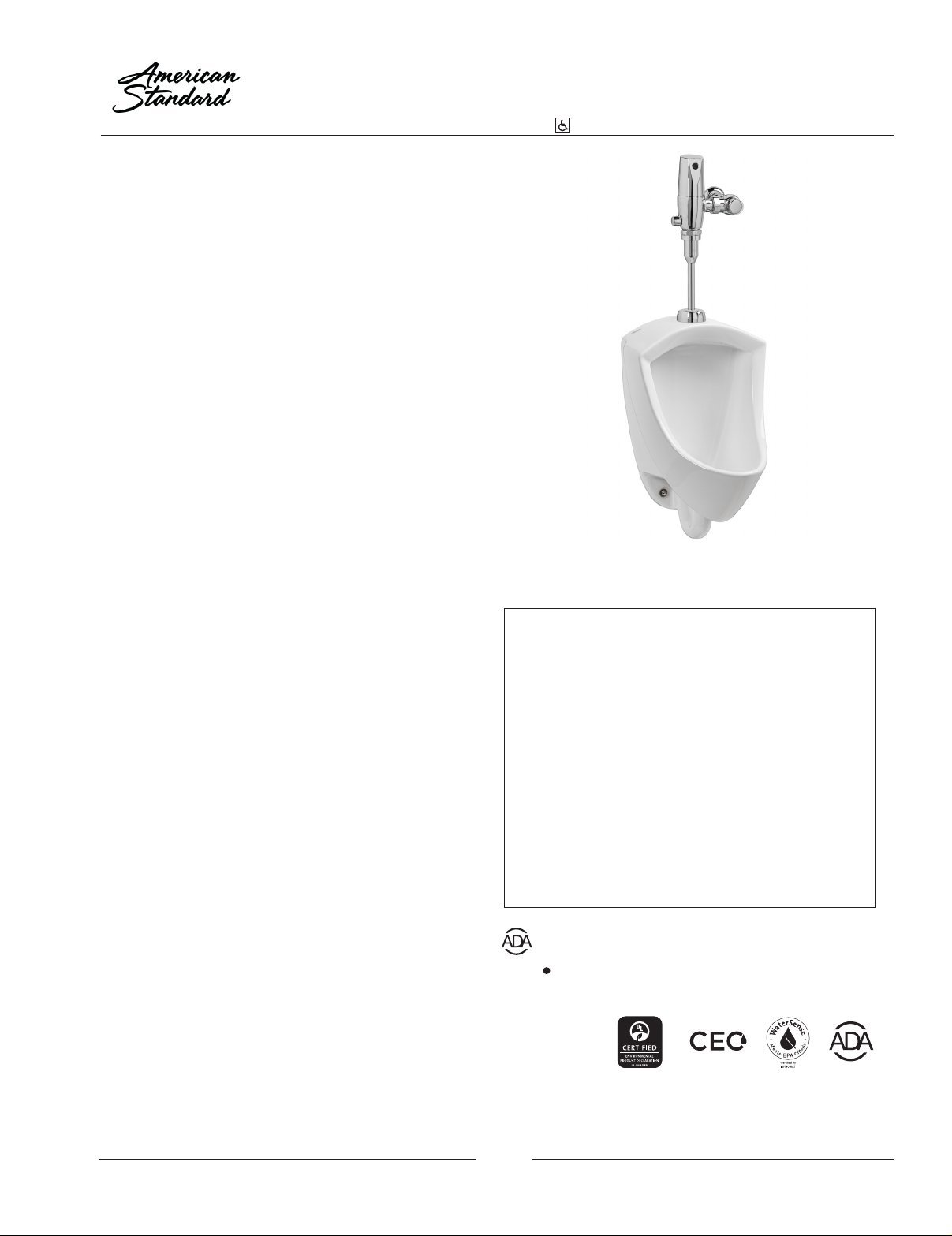

Pintbrook™ Urinal
• Vitreous china
• High Efficiency operates in the range of
0.125 gpf to 0.50 gpf (0.47 Lpf/1.9 Lpf)
• Powerful washdown action
• Optimized chinaware contours provide superior
splash protection
• 3/4" inlet top spud
• Outlet connection threaded 2" NPT
• Wall hangers included
• Fixture only
• Made in Mexico (NAFTA compliant)
❏ 6002.001 Top spud
Nominal Dimensions:
366 x 364 x 575mm
(14-7/16" x 14-5/16" x 22-5/8")
Pintbrook™
Urinal
VITREOUS CHINA
BARRIER FREE
Recommended working pressure – between
20 psi at valve when ushing and 80 psi static
Compliance Certications Meets or Exceeds the Following Specications:
• ASME A112.19.2-2008/CSA B45.1-08 for Vitreous
China Fixtures
SEE REVERSE FOR ROUGHING-IN DIMENSIONS
To Be Specied:
❏ Color: ❏ White
❏ Flush Valve:
0.5 gpf Flush Valve: Sensor-Operated:
❏ American Standard Selectronic® #6063.051.002
0.5 gpf Flush Valve: Manual-Operated:
❏ American Standard #6045.051.002
0.125 gpf Flush Valve: Sensor-Operated:
❏ American Standard Selectronic® #6063.013.002
0.125 gpf Flush Valve: Manual-Operated:
❏ American Standard #6045.013.002
DC Power
DC Power
MEETS THE AMERICANS WITH DISABILITIES ACT GUIDELINES
AND ANSI A117.1 ACCESSIBLE AND USEABLE BUILDINGS AND
FACILITIES - CHECK LOCAL CODES.
When installed so top of rim is 432mm (17") from finished floor.
M145
ENVIROMENTAL
PRODUCT
DECLARATION
spec_6002.001 Pintbrook Urinal Rev. C 11/18
When used with
0.125 gpf
urinal ush vale
When used with
0.125 or 0.5 gpf
urinal ush vale
© 2018 AS America Inc.
ADA
COMPLIANT

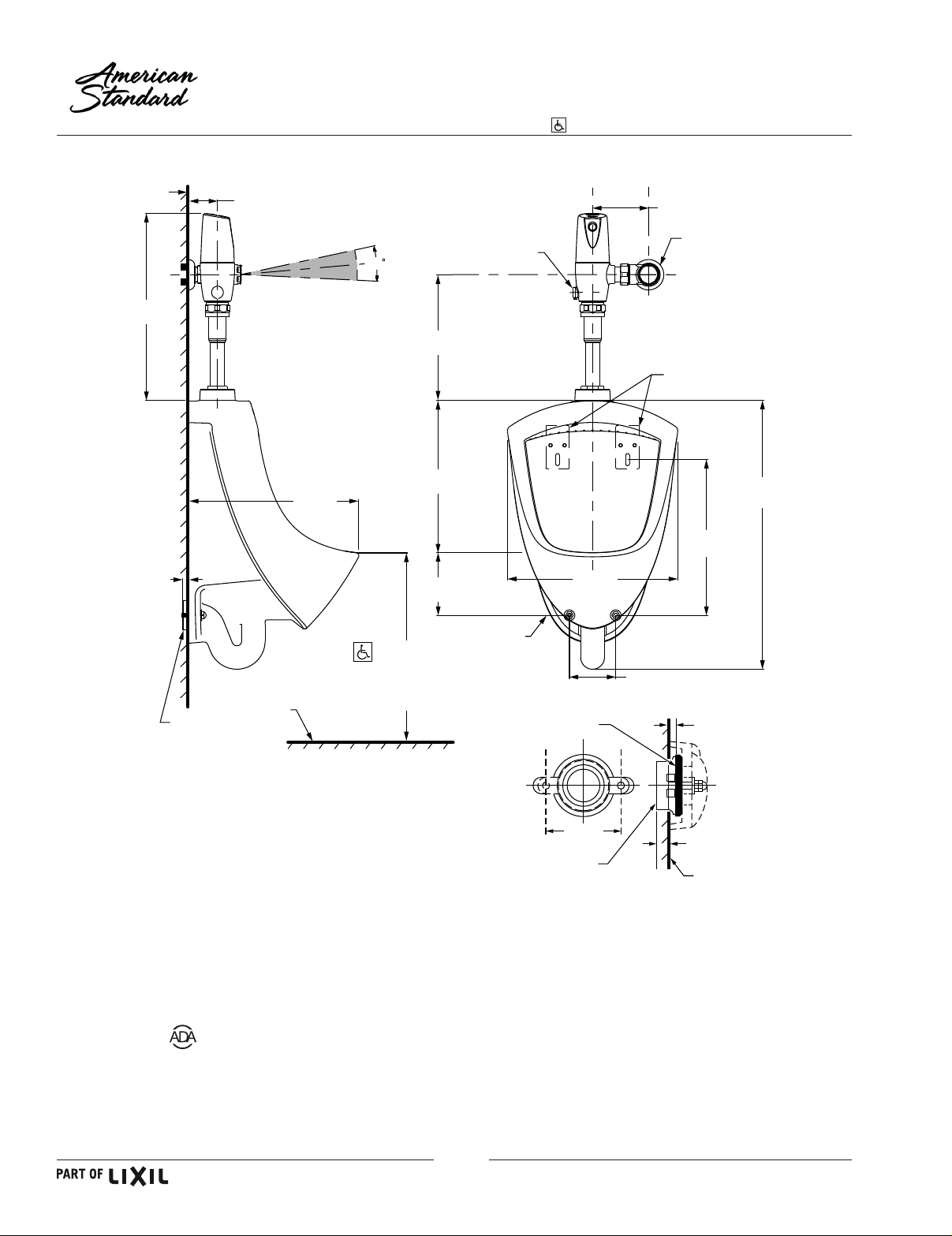

Page 2
BARRIER FREE
MEETS THE AMERICANS WITH DISABILITIES ACT GUIDELINES
AND ANSI A117.1 ACCESSIBLE AND USEABLE BUILDINGS AND
FACILITIES - CHECK LOCAL CODES.
When installed so top of rim is 432mm (17") from finished floor.
Pintbrook™
Urinal
VITREOUS CHINA
FINISHED
WALL
419mm
(16-1/2")
13mm
(1/2")
64mm
(2-1/2")
2" N.P.T.
FEMALE
OUTLET
CONNECTION
(14-7/16")
FINISHED
FLOOR
366mm
15
292mm
(11-1/2")
326mm
(12-13/16")
140mm
(5-1/2")
432mm (17")
MAXIMUM
610mm (24")
OPTIONAL
TO FINISHED
FLOOR
MANUAL
OVERRIDE
BUTTON
C/L OF
OUTLET
364mm
(14-5/16")
GASKET
108mm to 133mm
(4-1/4" to 5-1/4")
WALL HANGERS
(INCLUDED)
102mm
(4")
SUPPLY
DN 20mm
(3/4" I.P.S.)
334mm
(13-1/8")
10mm
(3/8")
575mm
(22-5/8")
NOTES:
FLUSH VALVE NOT INCLUDED WITH FIXTURE AND MUST BE ORDERED SEPARATELY.
PROVIDE SUITABLE REINFORCEMENT FOR ALL WALL SUPPORTS.
MEETS THE AMERICANS WITH DISABILITIES ACT GUIDELINES AND ANSI A117.1 ACCESSIBLE
AND USE ABLE BUILDINGS AND FACILITIES - CHECK LOCAL CODES.
When installed so top of rim is 4 32mm (17") maximum from nished oor.
IMPORTANT: Dimensions of xtures are nominal and may var y within the range of tolerances established
by ANSI Standard A112.19.2. These measurements are subject to change or cancellation. No responsibility
is assumed for use of superseded or voided pages.
M146
102mm
(4")
INSIDE THREADS
2" N.P.T.
DETAIL OF OUTLET CONNECTION
16mm
(5/8")
FINISHED WALL
© 2018 AS America Inc.
spec_6002.001 Pintbrook Urinal Rev. C 11/18
