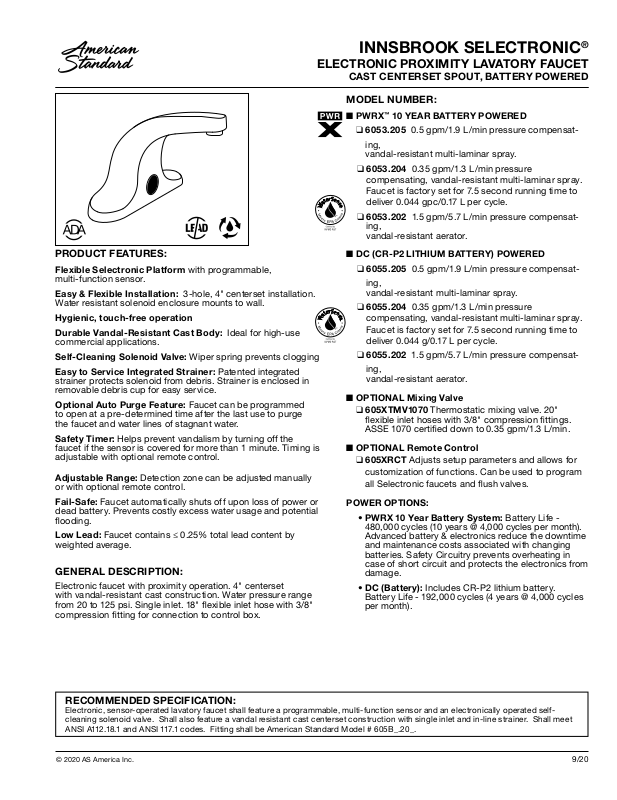

Page 1
INNSBROOK SELECTRONIC
ELECTRONIC PROXIMITY LAVATORY FAUCET
CAST CENTERSET SPOUT, BATTERY POWERED
MODEL NUMBER:
■ PWRX™ 10 YEAR BATTERY POWERED
❑ 6053.205 0.5 gpm/1.9 L/min pressure compensat-
ing,
vandal-resistant multi-laminar spray.
❑ 6053.204 0.35 gpm/1.3 L/min pressure
compensating, vandal-resistant multi-laminar spray.
Faucet is factory set for 7.5 second running time to
deliver 0.044 gpc/0.17 L per cycle.
❑ 6053.202 1.5 gpm/5.7 L/min pressure compensat-
ing,
vandal-resistant aerator.
®
PRODUCT FEATURES:
Flexible Selectronic Platform with programmable,
multi-function sensor.
Easy & Flexible Installation: 3-hole, 4" centerset installation.
Water resistant solenoid enclosure mounts to wall.
Hygienic, touch-free operation
Durable Vandal-Resistant Cast Body: Ideal for high-use
commercial applications.
Self-Cleaning Solenoid Valve: Wiper spring prevents clogging
Easy to Service Integrated Strainer: Patented integrated
strainer protects solenoid from debris.Strainer is enclosed in
removable debris cup for easy service.
Optional Auto Purge Feature:Faucet can be programmed
to open at a pre-determined time after the last use to purge
the faucet and water lines of stagnant water.
Safety Timer:Helps prevent vandalism by turning off the
faucet if the sensor is covered for more than 1 minute. Timing is
adjustable with optional remote control.
Adjustable Range: Detection zone can be adjusted manually
or with optional remote control.
Fail-Safe: Faucet automatically shuts off upon loss of power or
dead battery. Prevents costly excess water usage and potential
ooding.
Low Lead: Faucet contains ≤ 0.25% total lead content by
weighted average.
GENERAL DESCRIPTION:
Electronic faucet with proximity operation. 4" centerset
with vandal-resistant cast construction. Water pressure range
from 20 to 125 psi. Single inlet. 18" exible inlet hose with 3/8"
compression tting for connection to control box.
■ DC (CR-P2 LITHIUM BATTERY) POWERED
❑ 6055.205 0.5 gpm/1.9 L/min pressure compensat-
ing,
vandal-resistant multi-laminar spray.
❑ 6055.204 0.35 gpm/1.3 L/min pressure
compensating, vandal-resistant multi-laminar spray.
Faucet is factory set for 7.5 second running time to
deliver 0.044 g/0.17 L per cycle.
❑ 6055.202 1.5 gpm/5.7 L/min pressure compensat-
ing,
vandal-resistant aerator.
■ OPTIONAL Mixing Valve
❑ 605XTMV1070 Thermostatic mixing valve. 20"
exible inlet hoses with 3/8" compression ttings.
ASSE 1070 certied down to 0.35 gpm/1.3 L/min.
■ OPTIONAL Remote Control
❑ 605XRCT Adjusts setup parameters and allows for
customization of functions. Can be used to program
all Selectronic faucets and ush valves.
POWER OPTIONS:
• PWRX 10 Year Battery System: Battery Life -
480,000 cycles (10 years @ 4,000 cycles per month).
Advanced battery & electronics reduce the downtime
and maintenance costs associated with changing
batteries. Safety Circuitry prevents overheating in
case of short circuit and protects the electronics from
damage.
• DC (Battery): Includes CR-P2 lithium battery.
Battery Life - 192,000 cycles (4 years @ 4,000 cycles
per month).
RECOMMENDED SPECIFICATION:
Electronic, sensor-operated lavatory faucet shall feature a programmable, multi-function sensor and an electronically operated selfcleaning solenoid valve. Shall also feature a vandal resistant cast centerset construction with single inlet and in-line strainer. Shall meet
ANSI A112.18.1 and ANSI 117.1 codes. Fitting shall be American Standard Model # 605B_.20_.
© 2020 AS America Inc.
9/20
Page 2
INNSBROOK SELECTRONIC
ELECTRONIC PROXIMITY LAVATORY FAUCET
CAST CENTERSET SPOUT, BATTERY POWERED
CODES AND STANDARDS
These products meet or exceed the following
codes and standards:
ANSI A117. 1
ASME A112 .18.1
CSA B12 5 .1
NSF 61/Section 9
NSF 372
Other Aerators Available:
Part Suffix Description
V035* 0.35 gpm/1.3 L/min PCA Vandal-Resistant Multi-Laminar Spray
PCA - Pressure Compensating
* Meets Cal Green Code
®
38 mm
(1-1/2")
MAX.
130 mm
(5-1/8")
102 mm
(4")
155 mm
(6-1/8")
381 mm
(15")
81 mm
(3-3/16"")
114 mm
(4-1/2")
460 mm
(18")
110 mm
(4-5/16")
125 mm
(4-7/8")
175 mm
(6-7/8")
120 mm
(4-3/4")
35 mm
(1-3/8")
DIA. 3
HOLES
57 mm
(2-1/4")
Meets the American Disabilities Act Guidelines
and ANSI A117.1 Requirements for accessible
and usable building facilities - check local codes
© 2020 AS America Inc.
3/8" COMP.
9/20
