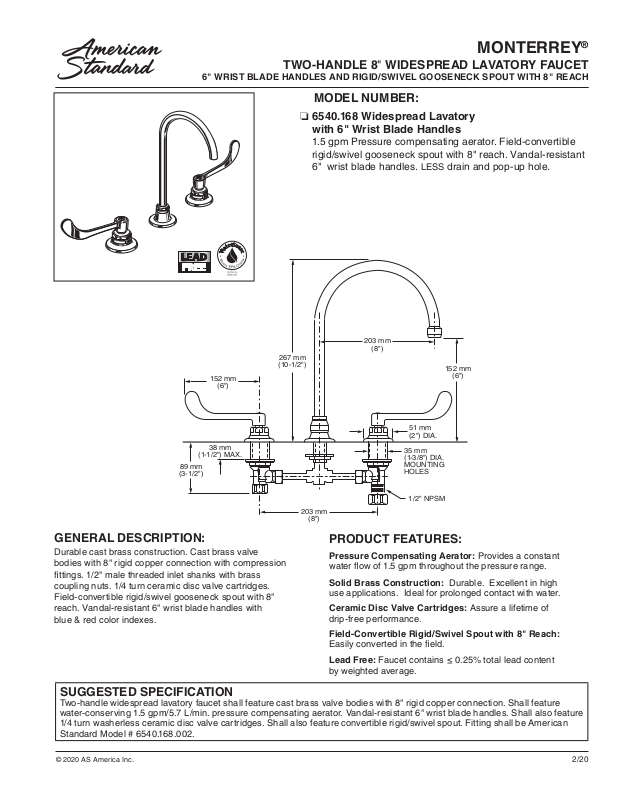

Page 1
MONTERREY
TWO-HANDLE 8" WIDESPRE AD LAVATORY FAUCET
6" WRIST BLADE HANDLES AND RIGID/SWIVEL GOOSENECK SPOUT WITH 8" REACH
MODEL NUMBER:
❏ 6540.168 Widespread Lavatory
with 6" Wrist Blade Handles
1.5 gpm Pressure compensating aerator. Field-convertible
rigid/swivel gooseneck spout with 8" reach. Vandal-resistant
6" wrist blade handles. LESS drain and pop-up hole.
203 mm
(8")
152 mm
(6")
152 mm
(6")
267 mm
(10-1/2")
®
51 mm
(2") DIA.
38 mm
(1-1/2") MAX.
89 mm
(3-1/2")
GENERAL DESCRIPTION:
Durable cast brass construction. Cast brass valve
bodies with 8" rigid copper connection with compression
203 mm
(8")
PRODUCT FEATURES:
Pressure Compensating Aerator: Provides a constant
water ow of 1.5 gpm throughout the pressure range.
35 mm
(1-3/8") DIA.
MOUNTING
HOLES
1/2" NPSM
ttings. 1/2" male threaded inlet shanks with brass
coupling nuts. 1/4 turn ceramic disc valve cartridges.
Field-convertible rigid/swivel gooseneck spout with 8"
reach. Vandal-resistant 6" wrist blade handles with
blue & red color indexes.
Solid Brass Construction: Durable. Excellent in high
use applications. Ideal for prolonged contact with water.
Ceramic Disc Valve Cartridges: Assure a lifetime of
drip-free performance.
Field-Convertible Rigid/Swivel Spout with 8" Reach:
Easily converted in the eld.
Lead Free: Faucet contains ≤ 0.25% total lead content
by weighted average.
SUGGESTED SPECIFICATION
Two-handle widespread lavatory faucet shall feature cast brass valve bodies with 8" rigid copper connection. Shall feature
water-conserving 1.5 gpm/5.7 L/min. pressure compensating aerator. Vandal-resistant 6" wrist blade handles. Shall also feature
1/4 turn washerless ceramic disc valve cartridges. Shall also feature convertible rigid/swivel spout. Fitting shall be American
Standard Model # 6540.168.002.
© 2020 AS America Inc.
2/20
Page 2
MONTERREY
TWO-HANDLE 8" WIDESPRE AD LAVATORY FAUCET
6" WRIST BLADE HANDLES AND RIGID/SWIVEL GOOSENECK SPOUT WITH 8" REACH
®
CODES AND STANDARDS
These products meet or exceed the following
codes and standards:
ASME A112 .18.1
CSA B125.1
NSF 372
Product
Number Description
Widespread Lavatory with eld-convertible rigid/swivel gooseneck spout with 8" reach.
6540.168
1.5 gpm/5.7 L/min pressure compensating aerator. Vandal-resistant 6" wrist blade handles.
LESS drain and pop-up hole.
FLOW RATE*
2.0
1.5
1.0
0.5
GALLONS PER MINUTE
0.0
INLET PRESSURE (PSI)
*Flow rates shown are for mixed hot and cold.
10080604020
Finish
Polished
Chrome
002
Meets the American Disabilities Act Guidelines
and ANSI A117.1 Requirements for accessible and
usable building facilities - check local codes
Other Aerators Available:
Part Suffix Description
LV15 1.5 gpm (5.7 Lpm) Vandal-Resistant PCA Non-Aerated Laminar Flow Outlet
V15 1.5 gpm (5.7 Lpm) Vandal-Resistant PCA Aerator
LV10 1.0 gpm (3.8 Lpm) Vandal-Resistant PCA Non-Aerated Laminar Flow Outlet
V10 1.0 gpm (3.8 Lpm) Vandal-Resistant PCA Aerator
V035* 0.35 gpm (1.3 Lpm) Vandal-Resistant PCA Non-Aerated Spray
PCA - Pressure Compensating
*Meets Cal Green Code
© 2020 AS America Inc.
2/20
