7500.160
75 0 0 .16 0 Show n

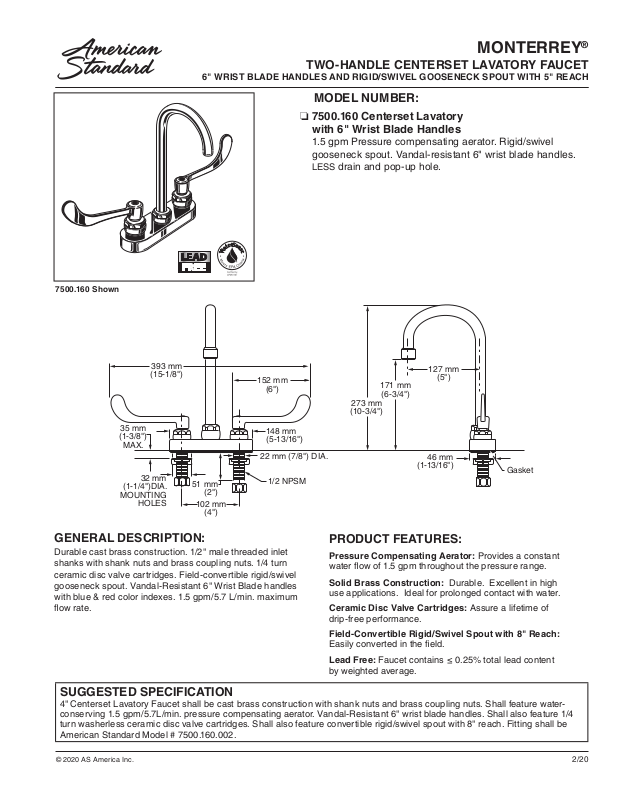

MONTERREY
TWO-HANDLE CENTERSET LAVATORY FAUCET
6" WRIST BLADE HANDLES AND RIGID/SWIVEL GOOSENECK SPOUT WITH 5" REACH
MODEL NUMBER:
❏ 7500.160 Centerset Lavatory
with 6" Wrist Blade Handles
1.5 gpm Pressure compensating aerator. Rigid/swivel
gooseneck spout. Vandal-resistant 6" wrist blade handles.
LESS drain and pop-up hole.
®
393 mm
(15-1/8
"
35 mm
(1-3/8
"
)
MAX.
32 mm
"
)DIA.
(1-1/4
MOUNTING
HOLES
)
51 mm
(2
102 mm
(4
"
)
"
)
152 mm
"
)
(6
148 mm
(5-13/16
22 mm (7/8") DIA.
1/2 NPSM
GENERAL DESCRIPTION:
Durable cast brass construction. 1/2" male threaded inlet
shanks with shank nuts and brass coupling nuts. 1/4 turn
ceramic disc valve cartridges. Field-convertible rigid/swivel
gooseneck spout. Vandal-Resistant 6" Wrist Blade handles
with blue & red color indexes. 1.5 gpm/5.7 L/min. maximum
ow rate.
127 mm
"
)
)
(1-13/16
(5
46 mm
"
)
Gasket
171 mm
(6-3/4
273 mm
(10-3/4
")
"
"
)
PRODUCT FEATURES:
Pressure Compensating Aerator: Provides a constant
water ow of 1.5 gpm throughout the pressure range.
Solid Brass Construction: Durable. Excellent in high
use applications. Ideal for prolonged contact with water.
Ceramic Disc Valve Cartridges: Assure a lifetime of
drip-free performance.
Field-Convertible Rigid/Swivel Spout with 8" Reach:
Easily converted in the eld.
Lead Free: Faucet contains ≤ 0.25% total lead content
by weighted average.
SUGGESTED SPECIFICATION
4" Centerset Lavatory Faucet shall be cast brass construction with shank nuts and brass coupling nuts. Shall feature waterconserving 1.5 gpm/5.7L/min. pressure compensating aerator. Vandal-Resistant 6" wrist blade handles. Shall also feature 1/4
turn washerless ceramic disc valve cartridges. Shall also feature convertible rigid/swivel spout with 8" reach. Fitting shall be
American Standard Model # 7500.160.002.
© 2020 AS America Inc.
2/20
Page 2
MONTERREY
TWO-HANDLE CENTERSET LAVATORY FAUCET
6" WRIST BLADE HANDLES AND RIGID/SWIVEL GOOSENECK SPOUT WITH 5" REACH
®
CODES AND STANDARDS
These products meet or exceed the following
codes and standards:
ASME A112 .18.1
CSA B125.1
NSF 372
Product
Number Description
750 0.16 0
Centerset Lavatory with eld-convertible rigid/swivel gooseneck spout. 1.5 gpm/5.7 L/min
pressure compensating aerator. Vandal-resistant 6" wrist blade handles. LESS drain and
pop-up hole.
FLOW RATE*
2.0
1.5
1.0
0.5
GALLONS PER MINUTE
0.0
INLET PRESSURE (PSI)
*Flow rates shown are for mixed hot and cold.
10080604020
Finish
Polished
Chrome
002
Meets the American Disabilities Act Guidelines
and ANSI A117.1 Requirements for accessible and
usable building facilities - check local codes
Other Aerators Available:
Part Suffix Description
LV15 1.5 gpm (5.7 Lpm) Vandal-Resistant PCA Non-Aerated Laminar Flow Outlet
V15 1.5 gpm (5.7 Lpm) Vandal-Resistant PCA Aerator
LV10 1.0 gpm (3.8 Lpm) Vandal-Resistant PCA Non-Aerated Laminar Flow Outlet
V10 1.0 gpm (3.8 Lpm) Vandal-Resistant PCA Aerator
V05* 0.5 gpm (1.9 Lpm) Vandal-Resistant PCA Multi-Laminar Spray
V035* 0.35 gpm (1.3 Lpm) Vandal-Resistant PCA Non-Aerated Spray
PCA - Pressure Compensating
*Meets Cal Green Code
© 2020 AS America Inc.
2/20
