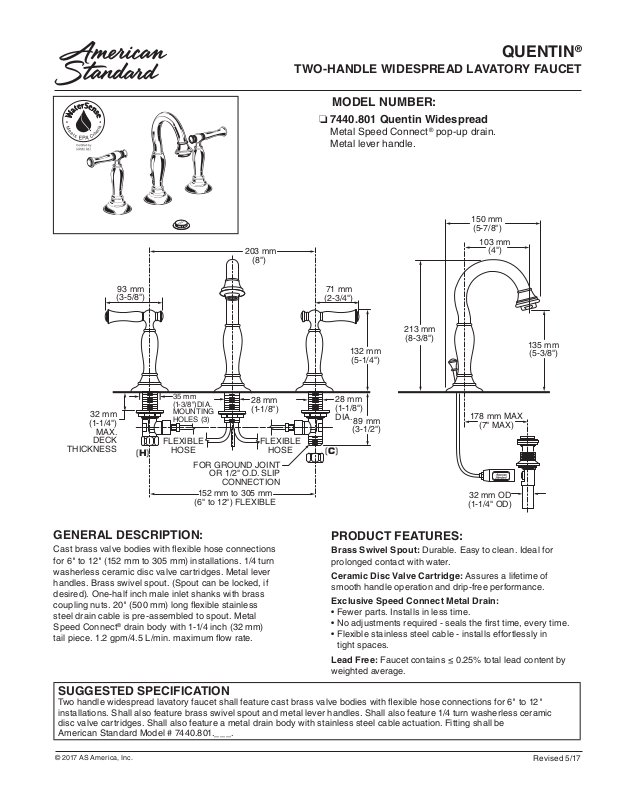

Page 1
203 mm
(8")
QUENTIN
TWO-HANDLE WIDESPREAD LAVATORY FAUCET
MODEL NUMBER:
❏ 7440.801 Quentin Widespread
Metal Speed Connect® pop-up drain.
Metal lever handle.
150 mm
(5-7/8")
103 mm
(4")
®
93 mm
(3-5/8")
32 mm
(1-1/4")
MAX.
DECK
THICKNESS
(H)
35 mm
(1-3/8")DIA.
MOUNTING
HOLES (3)
FLEXIBLE
HOSE
FOR GROUND JOINT
(6" to 12") FLEXIBLE
OR 1/2" O.D. SLIP
152 mm to 305 mm
28 mm
(1-1/8")
FLEXIBLE
HOSE
CONNECTION
GENERAL DESCRIPTION:
Cast brass valve bodies with exible hose connections
for 6" to 12" (152 mm to 305 mm) installations. 1/4 turn
washerless ceramic disc valve cartridges. Metal lever
handles. Brass swivel spout. (Spout can be locked, if
desired). One-half inch male inlet shanks with brass
coupling nuts. 20" (500 mm) long exible stainless
steel drain cable is pre-assembled to spout. Metal
Speed Connect® drain body with 1-1/4 inch (32 mm)
tail piece. 1.2 gpm/4.5 L/min. maximum ow rate.
71 mm
(2-3/4")
213 mm
(C)
132 mm
(5-1/4")
28 mm
(1-1/8")
DIA.
89 mm
(3-1/2")
(8-3/8")
178 mm MAX
(7" MAX)
32 mm OD
(1-1/4" OD)
135 mm
(5-3/8")
PRODUCT FEATURES:
Brass Swivel Spout: Durable. Easy to clean. Ideal for
prolonged contact with water.
Ceramic Disc Valve Cartridge: Assures a lifetime of
smooth handle operation and drip-free performance.
Exclusive Speed Connect Metal Drain:
• Fewer parts. Installs in less time.
• No adjustments required - seals the rst time, every time.
• Flexible stainless steel cable - installs effortlessly in
tight spaces.
Lead Free: Faucet contains ≤ 0.25% total lead content by
weighted average.
SUGGESTED SPECIFICATION
Two handle widespread lavatory faucet shall feature cast brass valve bodies with exible hose connections for 6" to 12"
installations. Shall also feature brass swivel spout and metal lever handles. Shall also feature 1/4 turn washerless ceramic
disc valve cartridges. Shall also feature a metal drain body with stainless steel cable actuation. Fitting shall be
American Standard Model # 7440.801.___.
© 2017 AS America, Inc.
Revised 5/17
Page 2
QUENTIN
TWO-HANDLE WIDESPREAD LAVATORY FAUCET
®
CODES AND STANDARDS
These products meet or exceed the following
codes and standards:
ASME A112 .18 .1
NSF 61/Section 9 and Annex G
CSA B125.1
Product
Number Description
7440. 8 01
Quentin Widespread with metal Speed Connect® pop-up drain.
Metal lever handles.
FLOW RATE*
1.4
1.2
1.0
0.8
0.6
0.4
0.2
GALLONS PER MINUTE
0.0
*Flow rates shown are for mixed hot and cold.
INLET PRESSURE (PSI)
Finish Options
Polished
Chrome
002 224 295
Oil
Rubbed
Bronze
806040200
PVD
Brushed
Nickel
Meets the American Disabilities Act Guidelines and ANSI A117.1
Requirements for the physically challenged.
AERATOR MODIFICATIONS***
Parts
Suffix**
0.5 gpm (1.9 Lpm) PCA* Spray ___F05
1.0 gpm (3.8 Lpm) PCA Aerator ___F10
*PCA — Pressure Compensating
**To modify a product, add suffix after the 4th digit (ex. 2064F05101.002)
***Modied product models are NOT WaterSense certied.
© 2017 AS America, Inc.
Revised 5/17
