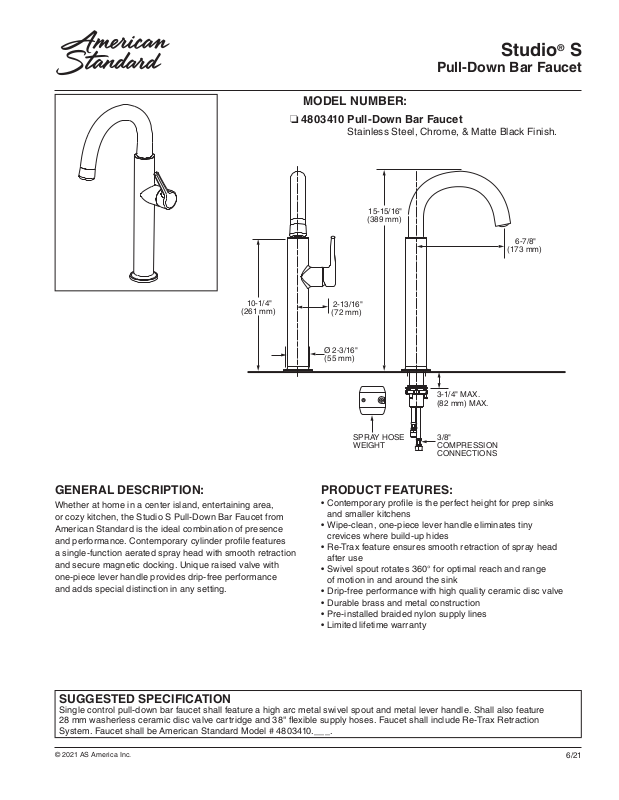

Page 1
Pull-Down Bar Faucet
MODEL NUMBER:
❏ 4803410 Pull-Down Bar Faucet
Stainless Steel, Chrome, & Matte Black Finish.
15-15/16"
(389 mm)
Studio® S
6-7/8"
(173 mm)
10-1/4"
(261 mm)
GENERAL DESCRIPTION:
Whether at home in a center island, entertaining area,
or cozy kitchen, the Studio S Pull-Down Bar Faucet from
American Standard is the ideal combination of presence
and performance. Contemporary cylinder prole features
a single-function aerated spray head with smooth retraction
and secure magnetic docking. Unique raised valve with
one-piece lever handle provides drip-free performance
and adds special distinction in any setting.
2-13/16"
(72 mm)
Ø 2-3/16"
(55 mm)
3-1/4" MAX.
(82 mm) MAX.
SPRAY HOSE
WEIGHT
3/8"
COMPRESSION
CONNECTIONS
PRODUCT FEATURES:
• Contemporary prole is the perfect height for prep sinks
and smaller kitchens
• Wipe-clean, one-piece lever handle eliminates tiny
crevices where build-up hides
• Re-Trax feature ensures smooth retraction of spray head
after use
• Swivel spout rotates 360° for optimal reach and range
of motion in and around the sink
• Drip-free performance with high quality ceramic disc valve
• Durable brass and metal construction
• Pre-installed braided nylon supply lines
• Limited lifetime warranty
SUGGESTED SPECIFICATION
Single control pull-down bar faucet shall feature a high arc metal swivel spout and metal lever handle. Shall also feature
28 mm washerless ceramic disc valve cartridge and 38" exible supply hoses. Faucet shall include Re-Trax Retraction
System. Faucet shall be American Standard Model # 4803410.__ _.
© 2021 AS America Inc.
6/21
Page 2
Studio® S
Pull-Down Bar Faucet
CODES AND STANDARDS
These products meet or exceed the following
codes and standards:
ANS I A117.1
ASME A112 .18 .1
CSA B125.1
NSF 61/Section 9
NSF 372
Product
Number Description
4803410
Pull-Down Bar faucet Faucet featuring Re-Trax™ technol ogy.
Soap dispenser and deckplate not included.
2.0
1.5
1.0
0.5
GALLONS PER MINUTE
0.0
20
Polished
Chrome
002 075 243
FLOW RATE*
100806040
I N L E T PRESSURE (PSI )
Finish Options
Stainless
Steel
Matte
Black
Meets the American Disabilities Act Guidelines
ANS I A117.1 Requirements for the
physically challenged.
Soap Dispenser & Deckplate (Not Included)
© 2021 AS America Inc.
6/21
