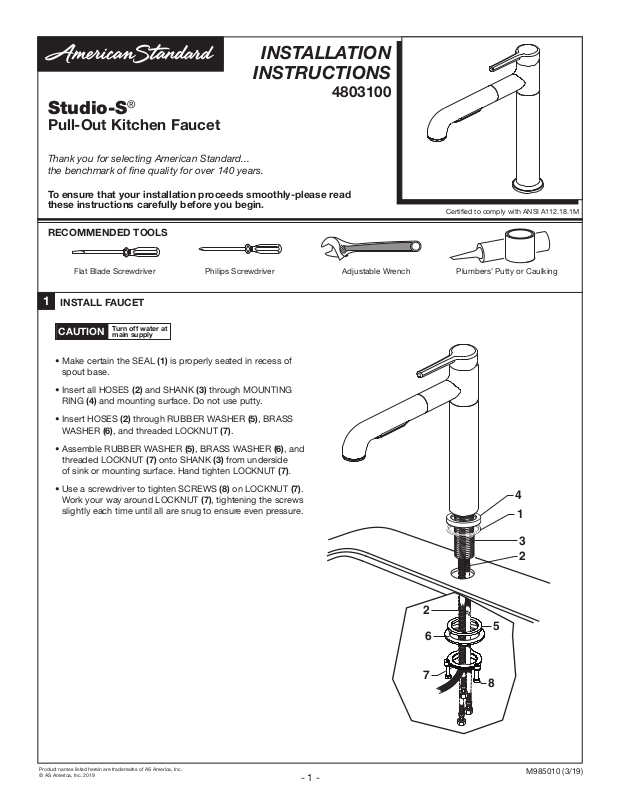

American Standard ASD11047 Installation & Assembly

INSTALLATION

INSTRUCTIONS

4803100

Studio-S

Pull-Out Kitchen Faucet

Thank you for selecting American Standard...
the benchmark of fine quality for over 140 years.

To ensure that your installation proceeds smoothly-please read
these instructions carefully before you begin.

RECOMMENDED TOOLS

Flat Blade Screwdriver Adjustable Wrench Plumbers’ Putty or CaulkingPhilips Screwdriver

1

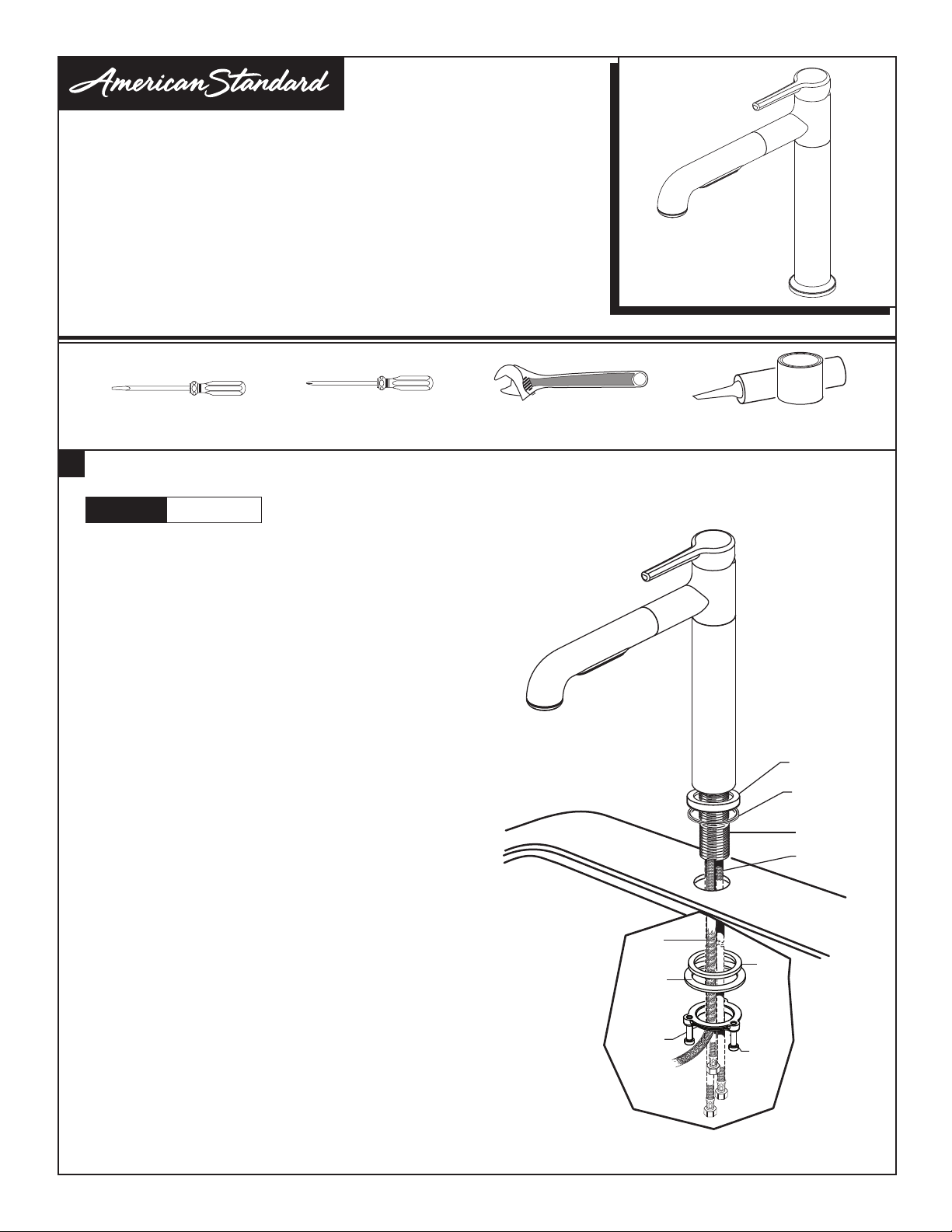

INSTALL FAUCET

®

Certied to comply with ANSI A112.18.1M

CAUTION

• Make certain the SEAL (1) is properly seated in recess of
spout base.

• Insert all HOSES (2) and SHANK (3) through MOUNTING
RING (4) and mounting surface. Do not use putty.

• Insert HOSES (2) through RUBBER WASHER (5), BRASS
WASHER (6), and threaded LOCKNUT (7).

• Assemble RUBBER WASHER (5), BRASS WASHER (6), and
threaded LOCKNUT (7) onto SHANK (3) from underside
of sink or mounting surface. Hand tighten LOCKNUT (7).

• Use a screwdriver to tighten SCREWS (8) on LOCKNUT (7).
Work your way around LOCKNUT (7), tightening the screws
slightly each time until all are snug to ensure even pressure.

Turn off water at
main supply

4

1

3
2

2

5

6

Product names listed herein are trademarks of AS America, Inc.
© AS America, Inc. 2019

- 1 -

7

8

M985010 (3/19)

2

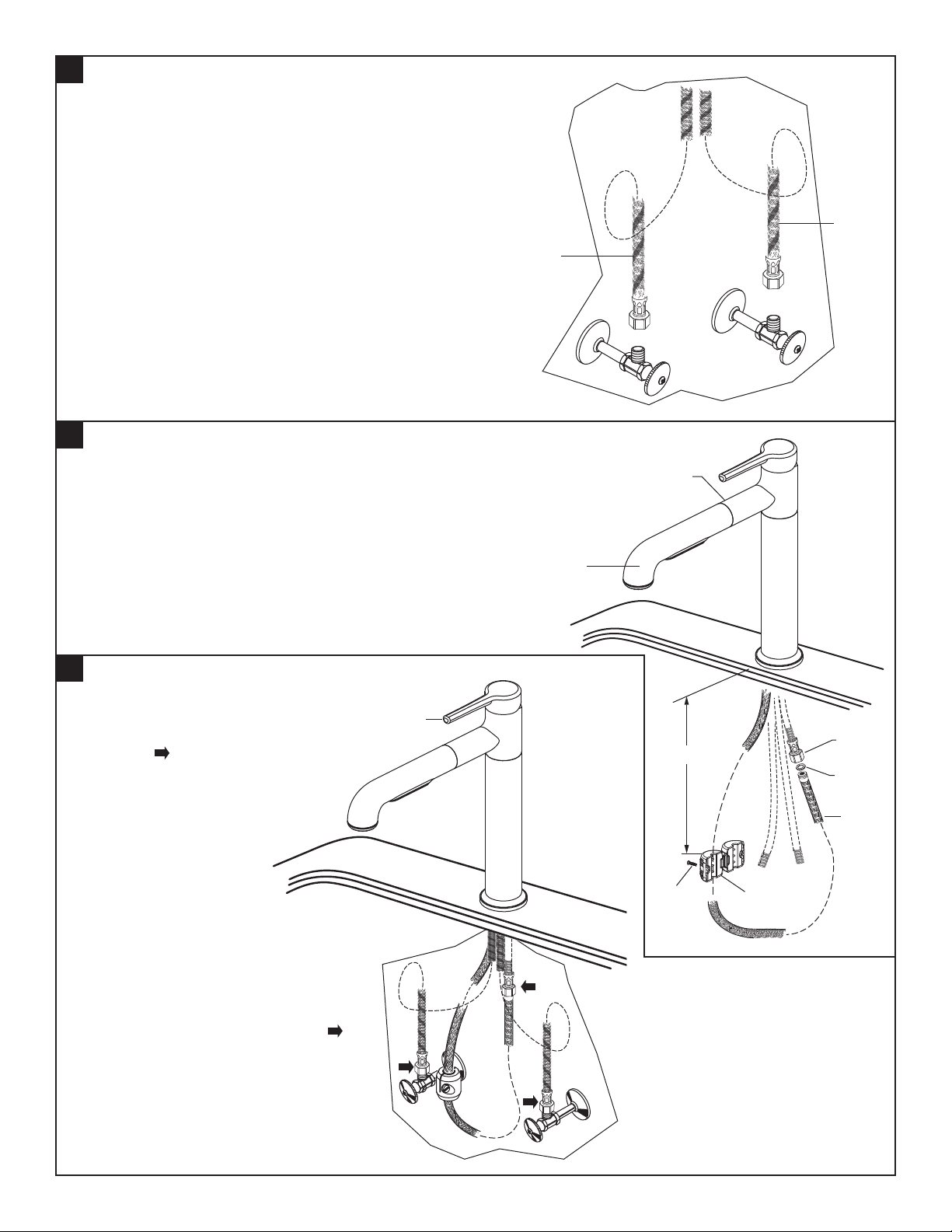

MAKE WATER SUPPLY CONNECTIONS

• Turn off hot and cold water supplies before beginning.

• Connect FLEXIBLE SUPPLIES (1, 2) directly to wall

supplies. Connection on tting supplies are 3/8"
compression. Connect left supply (Marked with a Red
Stripe) to Hot and right supply (Marked with Blue Stripe)
to Cold wall supply. Use adjustable wrench to tighten
connections. Do not over tighten.

• Faucet supplies are 21" long from faucet base.

• Note: If additional supply length is required, installer

must purchase additional parts separately.

• Important: If SUPPLY HOSES (1, 2) are too long,
loop as illustrated to avoid kinking.

3

CONNECT SPRAY HOSE AND INSTALL WEIGHTS

2

1

HOT

COLD

• With PULL-OUT SPRAY (1) seated in FAUCET (2),
install WEIGHT (3) onto HOSE (4) using SCREW (5).
Locate the WEIGHT (3) two feet (2’) from the underside
of the sink deck. Tighten SCREWS (5) rmly.

• Make sure SEAL WASHER (7) is installed in COUPLING
NUT (6). Connect threaded end of HOSE (4) to
SPRAY HOSE COUPLING NUT (6) from tting. Use
wrench to tighten.

4

CHECK CONNECTIONS FOR LEAKS

• Move HANDLE (1) down into “off” position.

• Turn on water supplies and check connections
for leaks.

2

1

1

24"

6

7

4

5

3

CHECK CONNECTIONS

FOR LEAKS

- 2 -

M985010 (3/19)

5

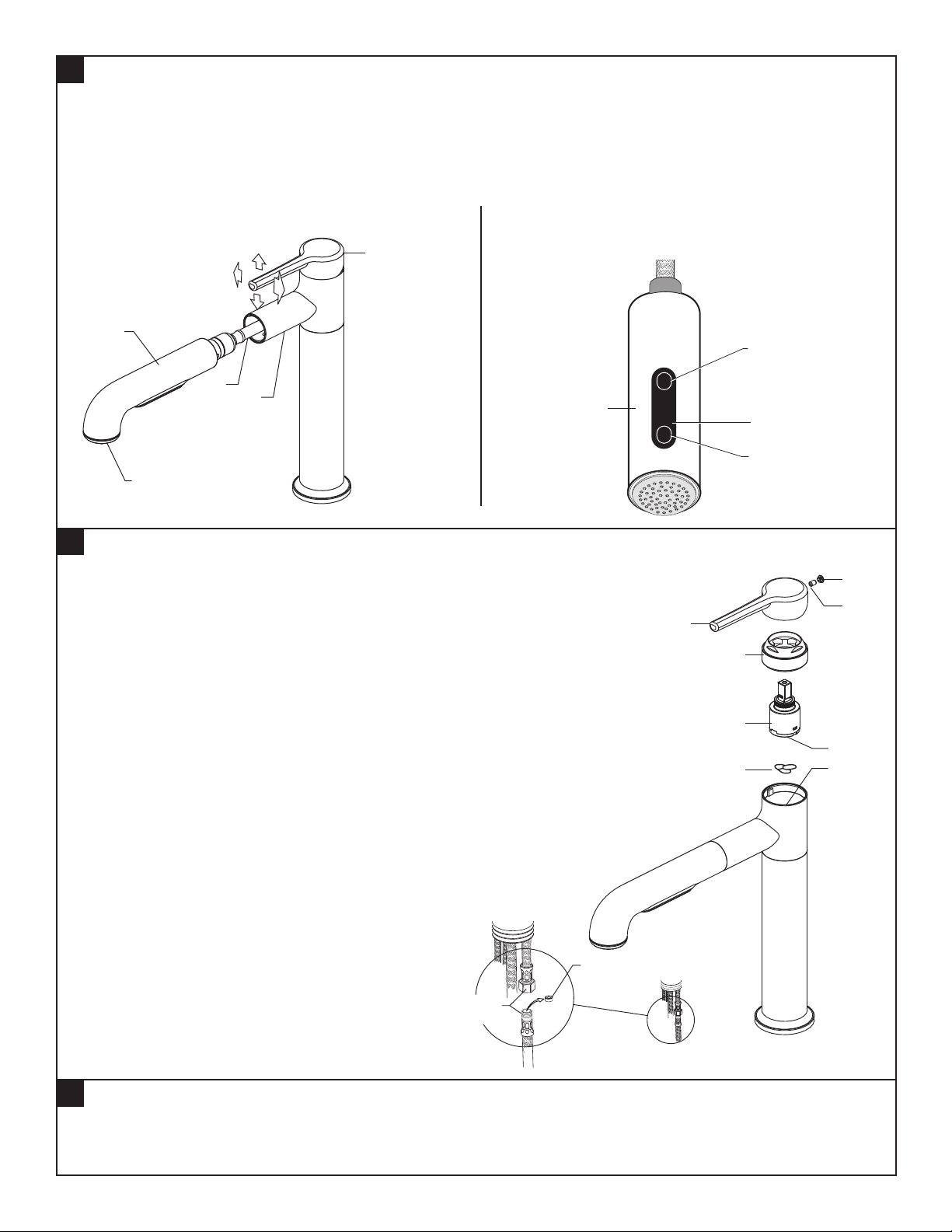

TEST INSTALLED FAUCET

• Move HANDLE (1) down into “off” position.

• With HANDLE (1) down in “off” position, pull HAND SPRAY (2) from SPOUT (3). SPRAY HOSE (4) should pull

approximately 2 feet and direct open SPRAY END (5) into sink.

• Operate handle up and down, in COLD and HOT positions, to ush water lines thoroughly.

• Check HAND SPRAY (2) operation:

SPRAY OPERATION

• With FAUCET on, press TOGGLE BUTTON (6) on

1

SPRAY (3) to switch from stream to spray.

2

4

3

3

5

STREAM (AERATOR)

6

SPRAY

6

SERVICE

If Faucet Drips Proceed As Follows:

• Turn VALVE in OFF position.

• If faucet drips, operate HANDLE several times from OFF to ON position.

Do not apply excessive force.

• FLOW CONTROL DEVICE may accumulate dirt. To remove the FLOW

CONTROL DEVICE, unthread SPRAY AND HOSE ASSEMBLY and
rinse clean FLOW CONTROL DEVICE.

Clogged CARTRIDGE outlets or inlets may cause reduced flow.

To clean, rst turn off water supply then:

• Remove INDEX BUTTON (1), loosen HANDLE SCREW (2) and remove HANDLE (3).

• Unthread ESCUTCHEON CAP (4).

• Lift CARTRIDGE (6) off MANIFOLD (7) and remove CARTRIDGE SEALS (5).

• Clean MANIFOLD (7), CARTRIDGE (6) ports and SEALS (5).

• Place SEALS (5) into CARTRIDGE PORTS (6a).

• Place CARTRIDGE (6) onto MANIFOLD (7.

• Replace ESCUTCHEON CAP (4), HANDLE (3),

tighten HANDLE SCREW (1) and install
INDEX BUTTON (2).

•Test tting.

Spray and Hose

Assembly

Flow Control
Device

1

2

3

4

6

6a

5

7

7

CARE:

DO: SIMPLY RINSE THE PRODUCT CLEAN WITH CLEAR WATER. DRY WITH A SOFT COTTON FLANNEL CLOTH.

DO NOT: DO NOT CLEAN THE PRODUCT WITH SOAPS, ACID, POLISH, ABRASIVES, HARSH CLEANERS, OR A
CLOTH WITH A COARSE SURFACE.
