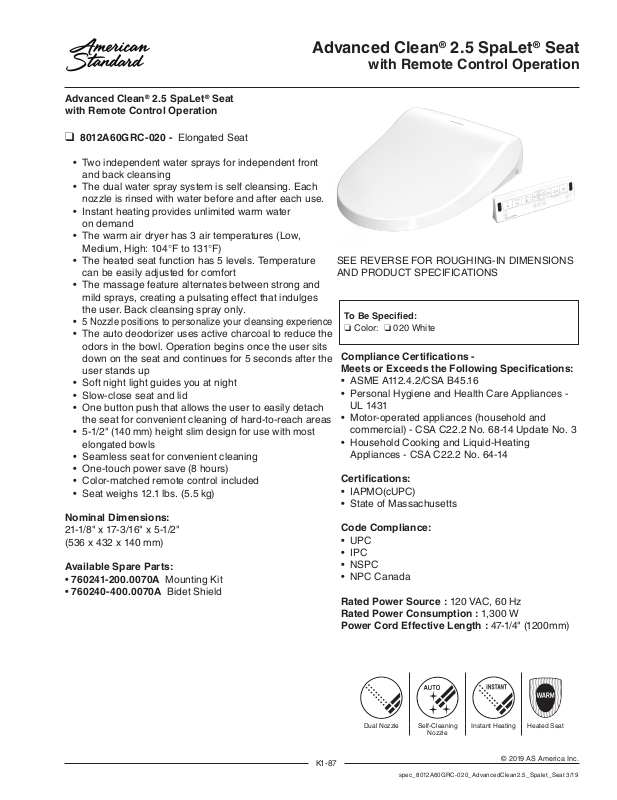

Page 1
Advanced Clean® 2.5 SpaLet® Seat
with Remote Control Operation
❑ 8012A60GRC-020 - Elongated Seat
• Two independent water sprays for independent front
and back cleansing
• The dual water spray system is self cleansing. Each
nozzle is rinsed with water before and after each use.
• Instant heating provides unlimited warm water
on demand
• The warm air dryer has 3 air temperatures (Low,
Medium, High: 104°F to 131°F)
• The heated seat function has 5 levels. Temperature
can be easily adjusted for comfort
• The massage feature alternates between strong and
mild sprays, creating a pulsating effect that indulges
the user. Back cleansing spray only.
•
5 Nozzle positions to personalize your cleansing experience
• The auto deodorizer uses active charcoal to reduce the
odors in the bowl. Operation begins once the user sits
down on the seat and continues for 5 seconds after the
user stands up
• Soft night light guides you at night
• Slow-close seat and lid
• One button push that allows the user to easily detach
the seat for convenient cleaning of hard-to-reach areas
• 5-1/2" (
elongated bowls
• Seamless seat for convenient cleaning
• One-touch power save (8 hours)
• Color-matched remote control included
• Seat weighs 12.1 lbs. (5.5 kg)
Nominal Dimensions:
21-1/8" x 17-3/16" x 5-1/2"
(536 x 432 x 140 mm)
Available Spare Parts:
• 760241-200.0070A Mounting Kit
• 760240-400.0070A Bidet Shield
140 mm) height slim design for use with most
Advanced Clean® 2.5 SpaLet® Seat
with Remote Control Operation
SEE REVERSE FOR ROUGHING-IN DIMENSIONS
AND PRODUCT SPECIFICATIONS
To Be Specied:
❏ Color: ❏ 020 White
Compliance Certications Meets or Exceeds the Following Specications:
• ASME A112.4.2/CSA B45.16
• Personal Hygiene and Health Care Appliances UL 1431
• Motor-operated appliances (household and
commercial) - CSA C22.2 No. 68-14 Update No. 3
• Household Cooking and Liquid-Heating
Appliances - CSA C22.2 No. 64-14
Certications:
• IAPMO(cUPC)
• State of Massachusetts
Code Compliance:
• UPC
• IPC
• NSPC
• NPC Canada
Rated Power Source : 120 VAC, 60 Hz
Rated Power Consumption : 1,300 W
Power Cord Effective Length : 47-1/4" (120 0 m m)
K1-87
Dual Nozzle Self-Cleaning
Nozzle
spec_8012A60GRC-020_AdvancedClean2.5_Spalet_Seat 3/19
Instant Heating Heated Seat
© 2019 AS America Inc.
Page 2
Advanced Clean® 2.5 SpaLet® Seat
with Remote Control Operation
STOP
Stops cleansing
functions
DRY
Use to Dry wet
part after cleaning
15-5/8"
(397mm)
CLEANSING
7-13/16"
(199mm)
9-3/16"
(233mm)
Use for Back
Cleansing.
BIDET
Use for Front
Cleansing.
SPRAY
STRENGTH
Adjusts Front and
Back spray strength
NIGHT LIGHT
Use to turn on
or off the Night
Light
11-1/4"
(285mm)
NOZZLE
POSITION
There are 5 modes
for nozzle position
adjustment
SEAT
TEMPERATURE
Adjusts seat
temperature
2-3/16"
(55mm)
7-15/16"
(202mm)
ECO
ECO
Power saving
WATER
TEMPERATURE
Adjusts water
temperature
14-7/8"
(378mm)
POWER
Controls POWER
to the seat
MASSAGE
Massage cleaning
(only for back cleansing)
TO CONNECT
WATER TANK
WATER VALVE
VOLTAGE AC120V
RATED
POWER LINE
LENGTH 1.2m
* Dimensions shown for location of supply is suggested.
IMPORTANT:
Dimensions of xtures are nominal and may vary within the range of tolerance established
by ANSI Standard A112.19.2. These measurements are subject to change or cancellation.
No responsibility is assumed for use of superseded or voided pages.
G15/16
5-1/4"
(133mm)
REMOTE
RECEIVER
21-1/8"
(536mm)
17-3/16~20-3/16"
(437~513mm)
FINISHED
FLOOR
9-13/16~11-13/16"
K1-88
(250~300mm)
5-1/8~8-7/16"
(130~215mm)
FINISHED
FLOOR
© 2019 AS America Inc.
spec_8012A60GRC-020_AdvancedClean2.5_Spalet_Seat 3/19
