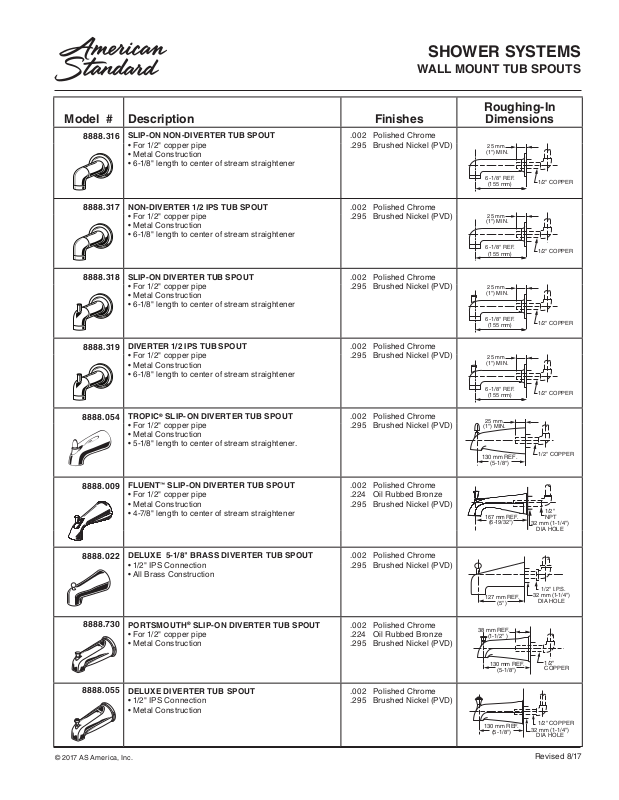

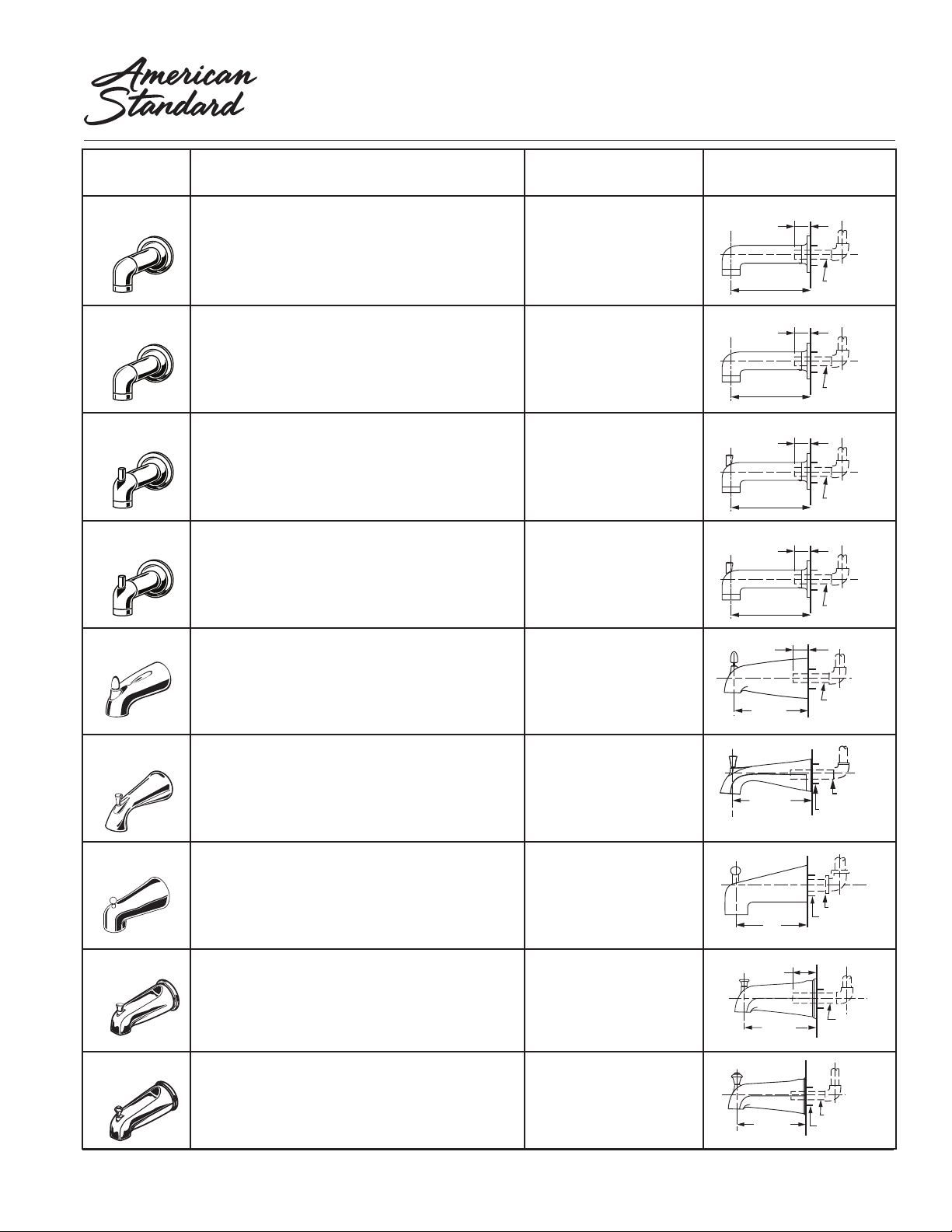

Page 1
Model # Description Finishes
8888.316
SLIP-ON NON-DIVERTER TUB SPOUT
• For 1/2" copper pipe
• Metal Construction
• 6-1/8" length to center of stream straightener
.002 Polished Chrome
.295 Brushed Nickel (PVD)
SHOWER SYSTEMS
WALL MOUNT TUB SPOUTS
Roughing-In
Dimensions
25 mm
(1") MIN.
6-1/8" REF.
(155 mm)
1/2" COPPER
8888.317
8888.318
8888.319
8888.054
8888.009
NON- DIVERTER 1/2 IPS TUB SPOUT
• For 1/2" copper pipe
• Metal Construction
• 6-1/8" length to center of stream straightener
SLIP-ON DIVERTER TUB SPOUT
• For 1/2" copper pipe
• Metal Construction
• 6-1/8" length to center of stream straightener
DIVERTER 1/2 IPS TUB SPOUT
• For 1/2" copper pipe
• Metal Construction
• 6-1/8" length to center of stream straightener
TROPIC® SLIP-ON DIVERTER TUB SPOUT
• For 1/2" copper pipe
• Metal Construction
• 5-1/8" length to center of stream straightener.
FLUENT™ SLIP-ON DIVERTER TUB SPOUT
• For 1/2" copper pipe
• Metal Construction
• 4-7/8" length to center of stream straightener
.002 Polished Chrome
.295 Brushed Nickel (PVD)
.002 Polished Chrome
.295 Brushed Nickel (PVD)
.002 Polished Chrome
.295 Brushed Nickel (PVD)
.002 Polished Chrome
.295 Brushed Nickel (PVD)
.002 Polished Chrome
.224 Oil Rubbed Bronze
.295 Brushed Nickel (PVD)
25 mm
(1") MIN.
6-1/8" REF.
(155 mm)
25 mm
(1") MIN.
6-1/8" REF.
(155 mm)
25 mm
(1") MIN.
6-1/8" REF.
(155 mm)
25 mm
(1") MIN.
130 mm REF.
(
5-1/8")
167 mm REF.
(6-19/32")
1/2" COPPER
1/2" COPPER
1/2" COPPER
1/2" COPPER
1/2"
NPT
32 mm (1-1/4")
DIA HOLE
8888.022
8888.730
8888.055
© 2017 AS America, Inc.
DELUXE 5-1/8" BRASS DIVERTER TUB SPOUT
• 1/2" IPS Connection
• All Brass Construction
PORTSMOUTH® SLIP-ON DIVERTER TUB SPOUT
• For 1/2" copper pipe
• Metal Construction
DELUXE DIVERTER TUB SPOUT
• 1/2" IPS Connection
• Metal Construction
.002 Polished Chrome
.295 Brushed Nickel (PVD)
.002 Polished Chrome
.224 Oil Rubbed Bronze
.295 Brushed Nickel (PVD)
.002 Polished Chrome
.295 Brushed Nickel (PVD)
127 mm REF.
(5")
38 mm REF.
(1-1/2" )
130 mm REF.
(5-1/8")
130 mm REF.
(5-1/8")
1/2" I.P.S.
32 mm (1-1/4")
DIA HOLE
1/2"
COPPER
1/2" COPPER
32 mm (1-1/4")
DIA HOLE
Revised 8/17

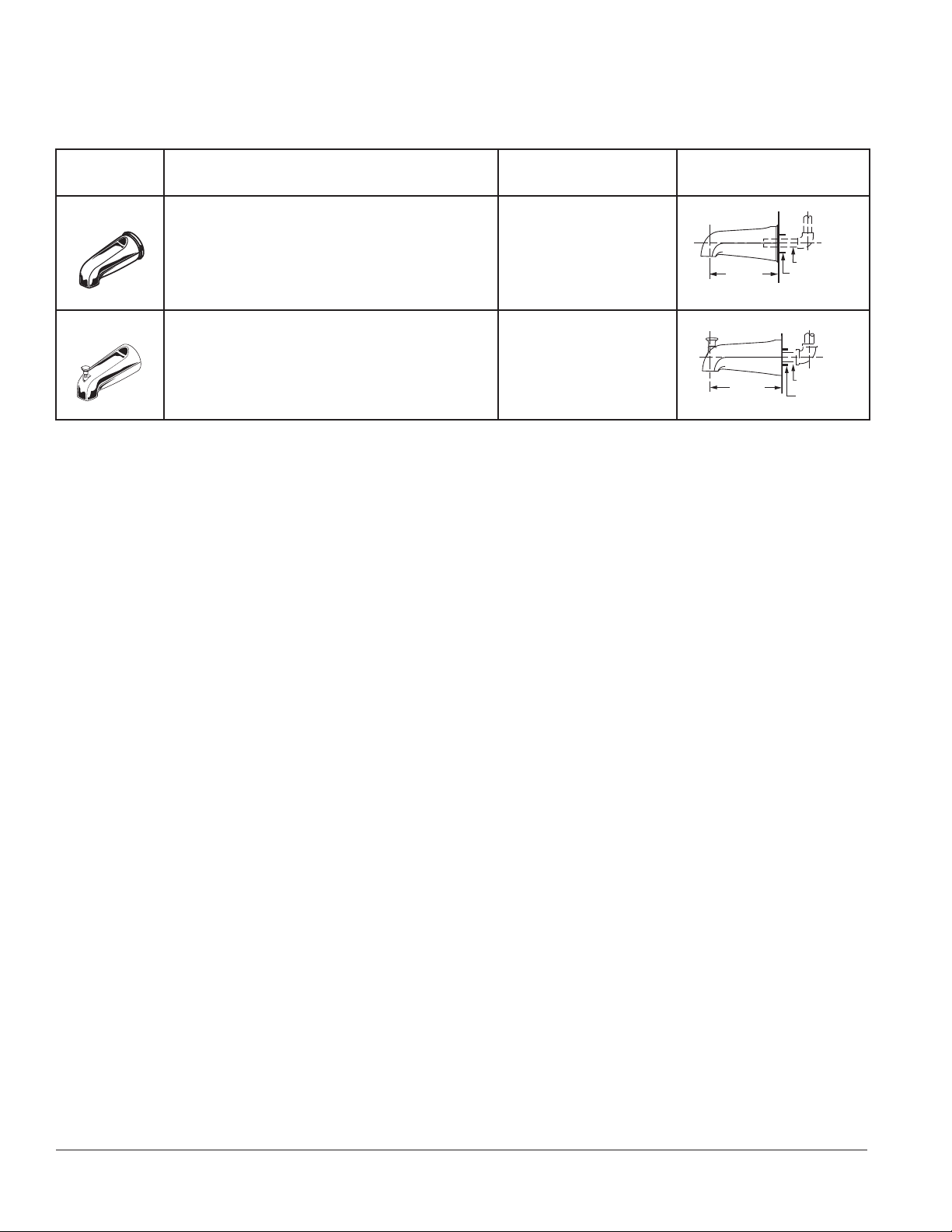

Page 2
Model # Description Finishes
8888.056
SLIP-ON NON DIVERTER TUB SPOUT
• For 1/2" copper pipe
• Metal Construction
.002 Polished Chrome
.224 Oil Rubbed Bronze
SHOWER SYSTEMS
WALL MOUNT TUB SPOUTS
Roughing-In
Dimensions
130 mm REF.
(5-1/8")
1/2" COPPER
32 mm (1-1/4")
DIA HOLE
8888.026
SLIP-ON 4" DIVERTER TUB SPOUT
• For 1/2" copper watertube
• Metal Construction
.002 Polished Chrome
121 mm REF.
(4-3/4")
1/2"SPOUT
NIPPLE
32 mm (1-1/4")
DIA HOLE
© 2017 AS America, Inc.
Revised 8/17
