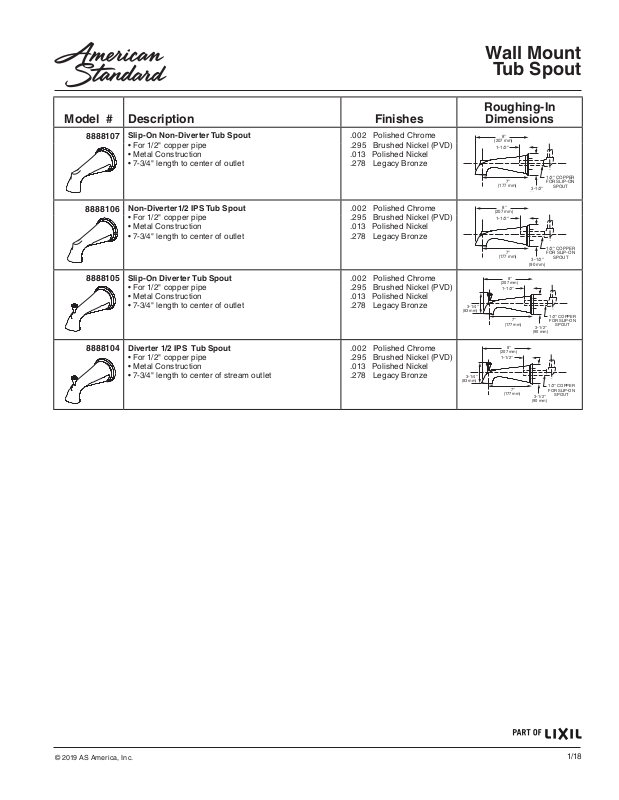

Model # Description Finishes
(90 mm)
8888107
Slip- On Non-Diverter Tu b Spou t
• For 1/2" copper pipe
• Metal Construction
• 7-3/4" length to center of outlet
.002 Polished Chrome
.295 Brushed Nickel (PVD)
.013 Polished Nickel
.278 Legacy Bronze
Wall Mount
Tub Spout
Roughing-In
Dimensions
8"
(207 mm)
1-1/2"
3-1/2"
1/2" COPPER
FOR SLIP-ON
SPOUT
7"
(177 mm)
8888106
8888105
8888104
Non-Diverter1/2 IPS Tub Spou t
• For 1/2" copper pipe
• Metal Construction
• 7-3/4" length to center of outlet
Slip- On Diverter Tu b Spo u t
• For 1/2" copper pipe
• Metal Construction
• 7-3/4" length to center of outlet
Diverter 1/2 IPS Tu b Spo u t
• For 1/2" copper pipe
• Metal Construction
• 7-3/4" length to center of stream outlet
.002 Polished Chrome
.295 Brushed Nickel (PVD)
.013 Polished Nickel
.278 Legacy Bronze
.002 Polished Chrome
.295 Brushed Nickel (PVD)
.013 Polished Nickel
.278 Legacy Bronze
.002 Polished Chrome
.295 Brushed Nickel (PVD)
.013 Polished Nickel
.278 Legacy Bronze
3-1/4"
(83 mm)
3-1/4"
(83 mm)
8"
(207 mm)
1-1/2"
7"
(177 mm)
(207 mm)
1-1/2"
(177 mm)
(207 mm)
1-1/2"
(177 mm)
1/2" COPPER
FOR SLIP-ON
SPOUT
3-1/2"
(90 mm)
8"
3-1/2"
(90 mm)
3-1/2"
1/2" COPPER
FOR SLIP-ON
SPOUT
1/2" COPPER
FOR SLIP-ON
SPOUT
7"
8"
7"
© 2019 AS America, Inc.
1/18
