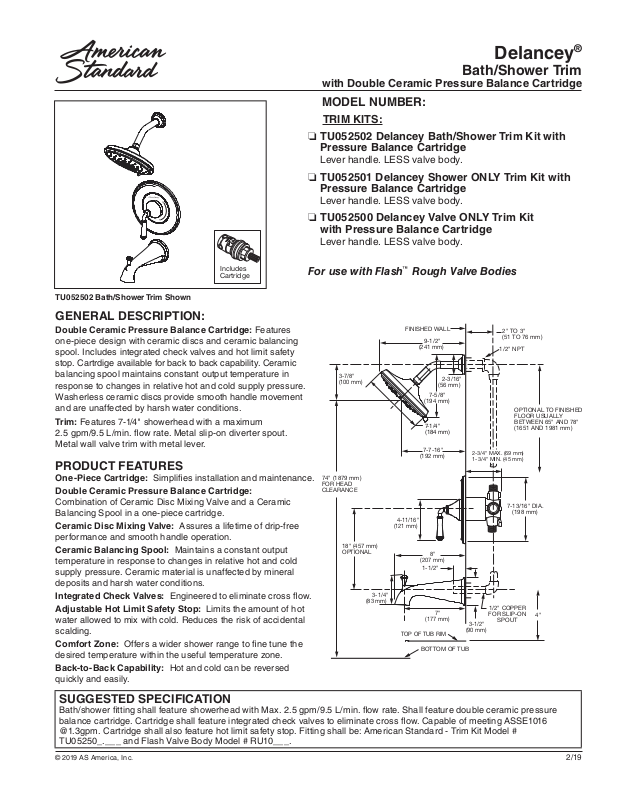

Page 1
Delancey
H
C
OFF
Bath/Shower Trim
with Double Ceramic Pressure Balance Cartridge
MODEL NUMBER:
TRIM KITS:
❏ TU052502 Delancey Bath/Shower Trim Kit with
Pressure Balance Cartridge
Lever handle. LESS valve body.
❏ TU052501 Delancey Shower ONLY Trim Kit with
Pressure Balance Cartridge
Lever handle. LESS valve body.
❏ TU052500 Delancey Valve ONLY Trim Kit
with Pressure Balance Cartridge
Lever handle. LESS valve body.
®
Includes
Cartridge
For use with Flash™ Rough Valve Bodies

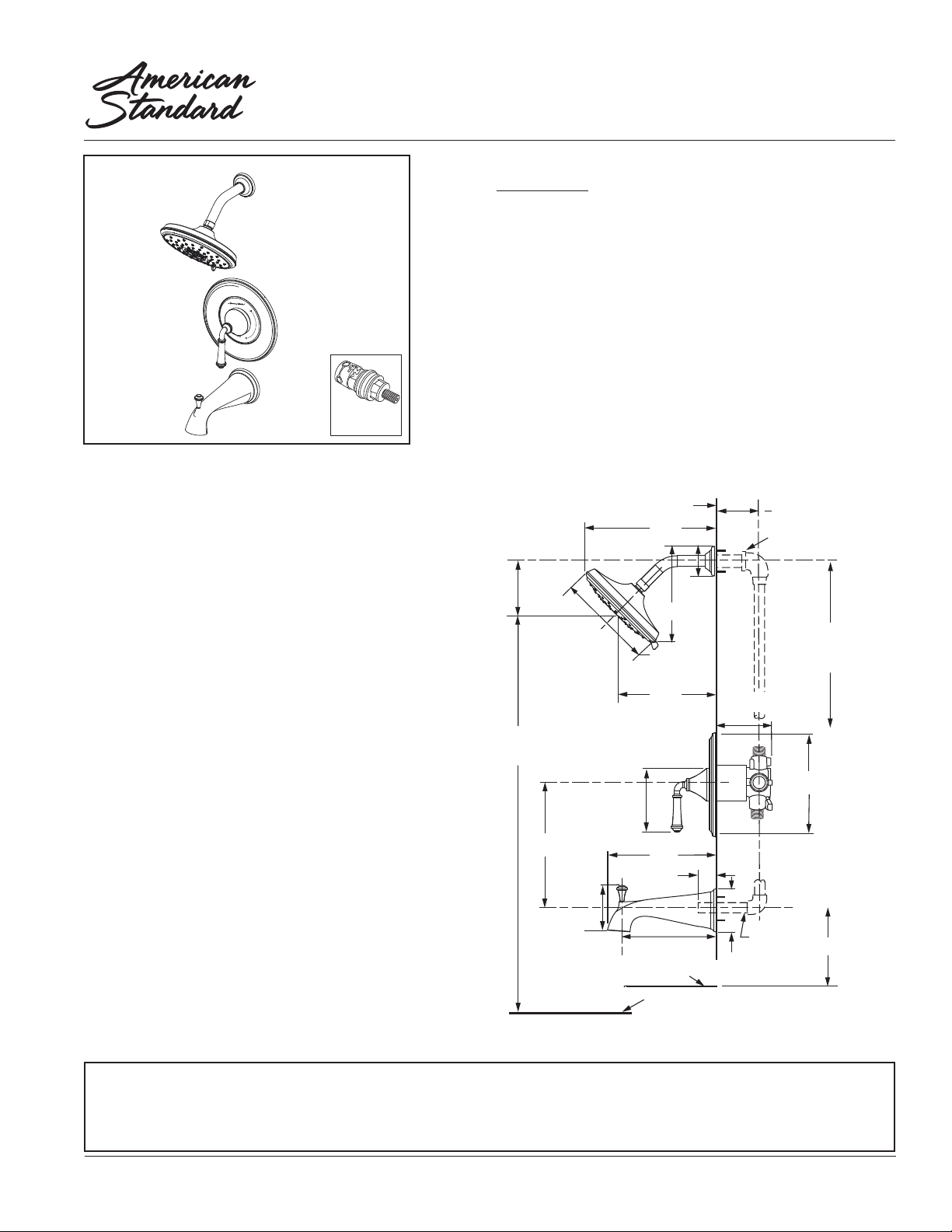

TU052502 Bath/Shower Trim Shown
GENERAL DESCRIPTION:
Double Ceramic Pressure Balance Cartridge: Features
one-piece design with ceramic discs and ceramic balancing
spool. Includes integrated check valves and hot limit safety
stop. Cartrdige available for back to back capability. Ceramic
balancing spool maintains constant output temperature in
response to changes in relative hot and cold supply pressure.
Washerless ceramic discs provide smooth handle movement
and are unaffected by harsh water conditions.
Tri m: Features 7-1/4" showerhead with a maximum
2.5 gpm/9.5 L/min. ow rate. Metal slip-on diverter spout.
Metal wall valve trim with metal lever.
3-7/8"
(100 mm)
FINISHED WALL
9-1/2"
(241 mm)
2-3/16"
(56 mm)
7-5/8"
(194 mm)
7-1/4"
(184 mm)
7-7-16"
(192 mm)
2" TO 3"
(51 TO 76 mm)
1/2" NPT
OPTIONAL TO FINISHED
FLOOR USUALLY
BETWEEN 65" AND 78"
(1651 AND 1981 mm)
2-3/4" MAX. (69 mm)
1-3/4" MIN. (45 mm)
PRODUCT FEATURES
One-Piece Cartridge: Simplies installation and maintenance.
Double Ceramic Pressure Balance Cartridge:
Combination of Ceramic Disc Mixing Valve and a Ceramic
Balancing Spool in a one-piece cartridge.
Ceramic Disc Mixing Valve: Assures a lifetime of drip-free
performance and smooth handle operation.
Ceramic Balancing Spool: Maintains a constant output
temperature in response to changes in relative hot and cold
supply pressure. Ceramic material is unaffected by mineral
deposits and harsh water conditions.
Integrated Check Valves: Engineered to eliminate cross ow.
Adjustable Hot Limit Safety Stop: Limits the amount of hot
water allowed to mix with cold. Reduces the risk of accidental
scalding.
Comfort Zone: Offers a wider shower range to ne tune the
desired temperature within the useful temperature zone.
Back-to-Back Capability: Hot and cold can be reversed
quickly and easily.
SUGGESTED SPECIFICATION
Bath/shower tting shall feature showerhead with Max. 2.5 gpm/9.5 L/min. ow rate. Shall feature double ceramic pressure
balance cartridge. Cartridge shall feature integrated check valves to eliminate cross ow. Capable of meeting ASSE1016
@1.3gpm. Cartridge shall also feature hot limit safety stop. Fitting shall be: American Standard - Trim Kit Model #
TU05250_._ __ and Flash Valve Body Model # RU10___.
© 2019 AS America, Inc.
74" (1879 mm)
FOR HEAD
CLEARANCE
18" (457 mm)
OPTIONAL
3-1/4"
(83 mm)
4-11/16"
(121 mm)
(207 mm)
1-1/2"
(177 mm)
TOP OF TUB RIM
BOTTOM OF TUB
7-13/16" DIA.
(198 mm)
8"
3-1/2"
(90 mm)
1/2" COPPER
FOR SLIP-ON
SPOUT
4"
7"
2/19

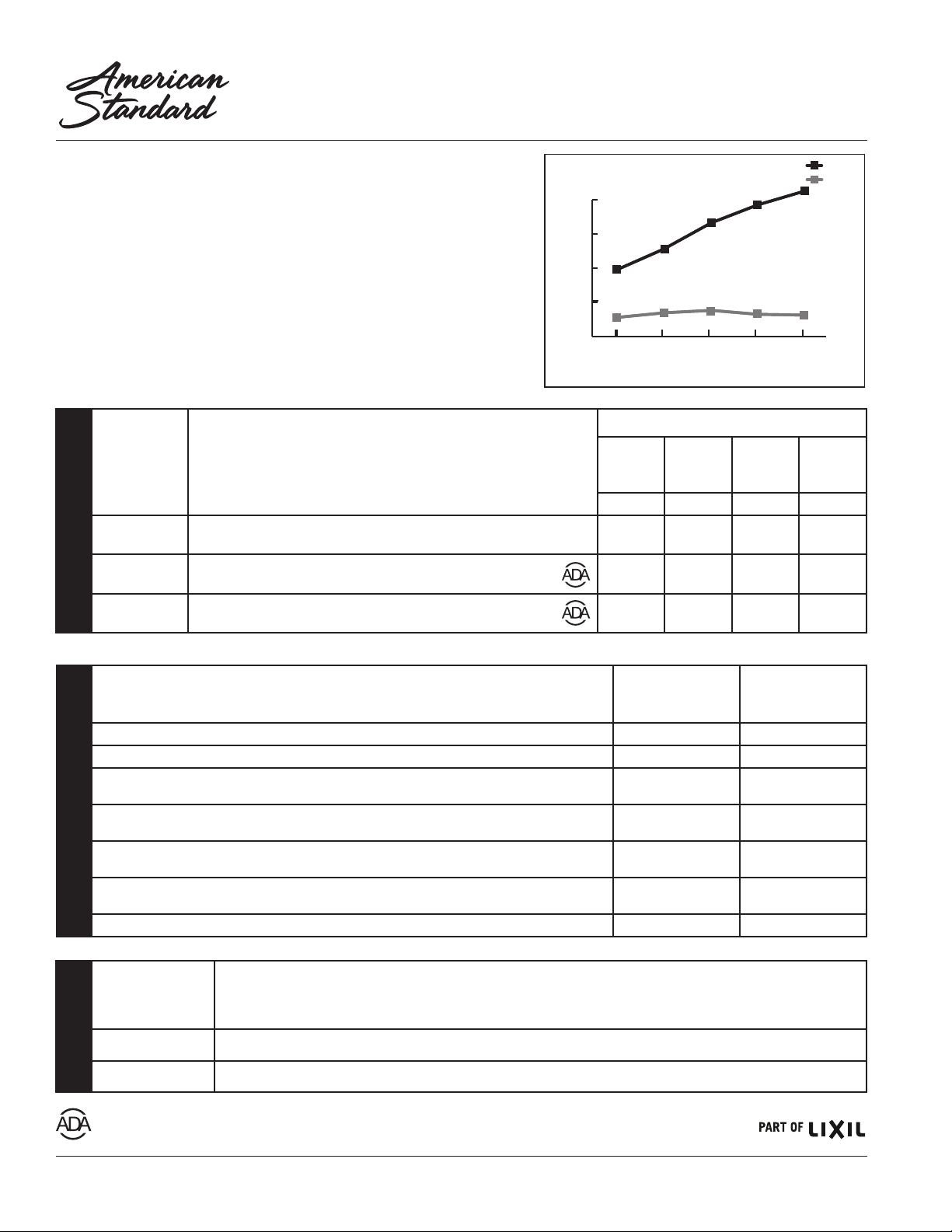

Page 2
Delancey
Pressure Balance Bath/Shower Trim
with Double Ceramic Pressure Balance Cartridge
®
CODES AND STANDARDS
These products meet or exceed the following
codes and standards:
ASSE 1016 / ASME A112.18.1016 / CSA B125.16
ASME A112.18.1 / CSA B125.1
Rated to meet ASSE 1016 @ 1.3gpm
Product
Number
TU052502
TRIM KITS *
TU052501
Description
Bath/Shower Trim Kit. Metal lever handle. Showerhead.
LESS valve body.
Shower Only Trim Kit. Metal lever handle. Showerhead.
LESS valve body.
FLOW RATE*
8
6
4
2
GALLONS PER MINUTE
0
*Flow rates shown are for mixed hot and cold.
INLET PRESSURE (PSI)
Finish Options
Polished
Chrome
002 013 278 295
PVD
Polished
Nickel
Legacy
Bronze
Spout
Shower
10080604020
PVD
Brushed
Nickel
TU052500
Valve Only Trim Kit. Metal lever handle. LESS valve body.
* TRIM & ROUGH MUST BE ORDERED SEPARATELY.
Without
Screwdriver
Product Description
Rough Valve Body. Universal* inlets/outlets. RU101 RU101SS
Rough Valve Body. Stub-out inlets/outlets for Press-Fit Fittings. RU102 RU102SS
Rough Valve Body. PEX inlets/Universal outlets for Crimp Ring PEX system
(ASTM F1807).
Rough Valve Body. PEX Elbow inlets/Universal outlets for Crimp Ring PEX system
(ASTM F1807).
Rough Valve Body. PEX inlets/Universal outlets for Cold Expansion PEX system
ROUGH VALVE BODIES
(ASTM F1960).
™
Rough Valve Body. PEX Elbow inlets/Universal outlets for Cold Expansion
PEX system (ASTM F1960).
Flash
Rough Valve Body. CPVC inlets/Universal outlets. RU109 RU109SS
Stops
RU107 RU107SS
RU107E RU107ESS
RU108 RU108SS
RU108E RU108ESS
Screwdriver
Product
Number Product Description
OPTIONAL
M954805-0070A Deep Rough-In Kit
ACCESSORY
With
Stops
M970640-0070A Back to Back Cartridge
Meets the American Disabilities Act Guidelines and ANSI A117.1
Requirements for the physically challenged.
© 2019 AS America, Inc.
2/19
