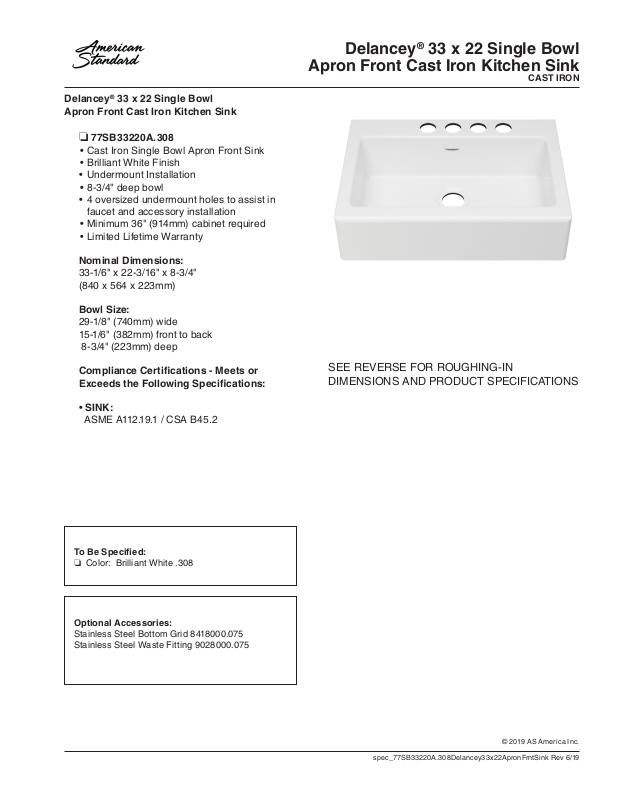

Page 1
Delancey® 33 x 22 Single Bowl
Apron Front Cast Iron Kitchen Sink
❏ 77SB33220A.308
• Cast Iron Single Bowl Apron Front Sink
• Brilliant White Finish
• Undermount Installation
• 8-3/4" deep bowl
• 4 oversized undermount holes to assist in
faucet and accessory installation
• Minimum 36" (914mm) cabinet required
• Limited Lifetime Warranty
Nominal Dimensions:
33-1/6" x 22-3/16" x 8-3/4"
(840 x 564 x 223mm)
Bowl Size:
29-1/8" (740mm) wide
15-1/6" (382mm) front to back
8-3/4" (223mm) deep
Delancey® 33 x 22 Single Bowl
Apron Front Cast Iron Kitchen Sink
CAST IRON
Compliance Certications - Meets or
Exceeds the Following Specications:
• SINK:
ASME A112.19.1 / CSA B45.2
To Be Specied:
❏ Color: Brilliant White .308
Optional Accessories:
Stainless Steel Bottom Grid 8418000.075
Stainless Steel Waste Fitting 9028000.075
SEE REVERSE FOR ROUGHING-IN
DIMENSIONS AND PRODUCT SPECIFICATIONS
© 2019 AS America Inc.
spec_77SB33220A.308Delancey33x22ApronFrntSink Rev 6/19
Page 2
Delancey® 33 x 22 Single Bowl
Apron Front Cast Iron Kitchen Sink
1/2"
(13mm)
CAST IRON
15-1/16"
(382mm)
8-3/4"
(223mm)
Ø2-9/16"
(Ø65mm)
Ø3-9/16"
(Ø90mm)
33-1/16"
(840mm)
3X 4"
(102mm)
29-1/8"
(740mm)
5/8"
(16mm)
2-3/16"
(55mm)
8-13/16"
(224mm)
10"
(255mm)
22-3/16 "
(564mm)
NOTES:
DIMENSIONS SHOWN FOR LOCATION OF SUPPLIES AND “ P" TRAP ARE SUGGESTED.
*
FITTINGS NOT INCLUDED WITH FIXTURE AND MUST BE ORDERED SEPARATELY.
SEALING COMPOUND SUPPLIED BY OTHERS.
IMPORTANT: Dimensions of xtures are nominal and may vary within the range of tolerances established by ASME A112.19.1 / CSA B45.2.
These measurements are subject to change or cancellation. No responsibility is assumed for use of superseded or voided pages.
© 2019 AS America Inc.
spec_77SB33220A.308Delancey33x22ApronFrntSink Rev 6/19
