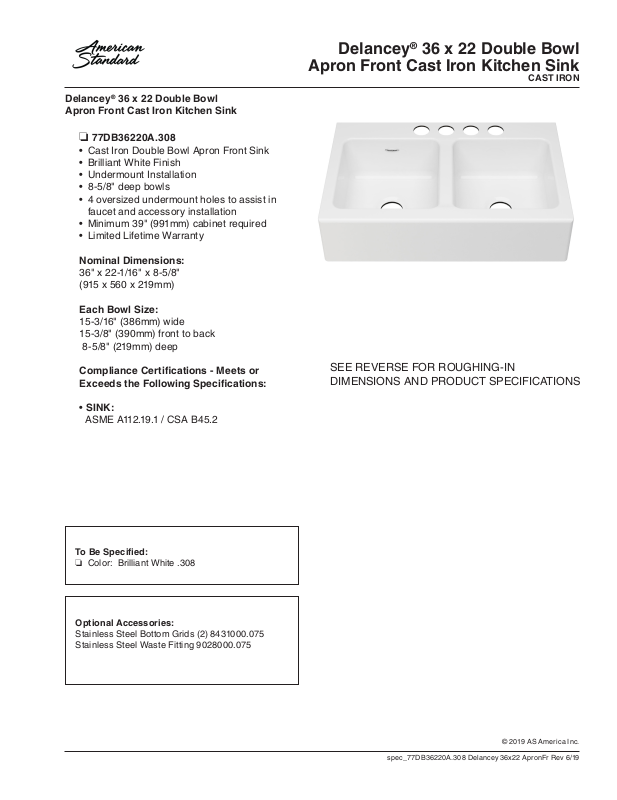

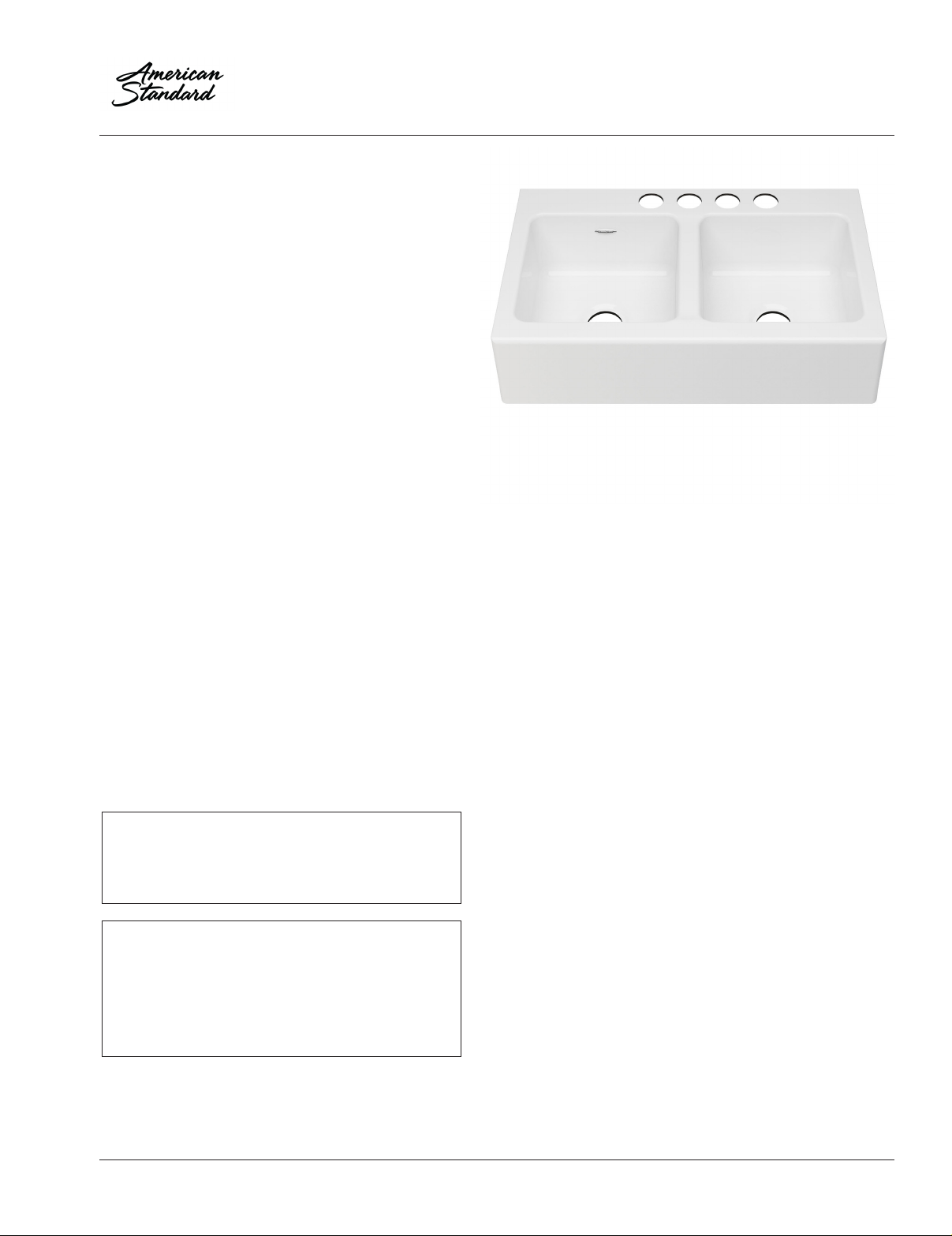

Delancey® 36 x 22 Double Bowl
Apron Front Cast Iron Kitchen Sink
❏ 77DB36220A.308
• Cast Iron Double Bowl Apron Front Sink
• Brilliant White Finish
• Undermount Installation
• 8-5/8" deep bowls
• 4 oversized undermount holes to assist in
faucet and accessory installation
• Minimum 39" (991mm) cabinet required
• Limited Lifetime Warranty
Nominal Dimensions:
36" x 22-1/16" x 8-5/8"
(915 x 560 x 219mm)
Each Bowl Size:
15-3/16" (386mm) wide
15-3/8" (390mm) front to back
8-5/8" (219mm) deep
Delancey® 36 x 22 Double Bowl
Apron Front Cast Iron Kitchen Sink
CAST IRON
Compliance Certications - Meets or
Exceeds the Following Specications:
• SINK:
ASME A112.19.1 / CSA B45.2
To Be Specied:
❏ Color: Brilliant White .308
Optional Accessories:
Stainless Steel Bottom Grids (2) 8431000.075
Stainless Steel Waste Fitting 9028000.075
SEE REVERSE FOR ROUGHING-IN
DIMENSIONS AND PRODUCT SPECIFICATIONS
© 2019 AS America Inc.
spec_77DB36220A.308 Delancey 36x22 ApronFr Rev 6/19

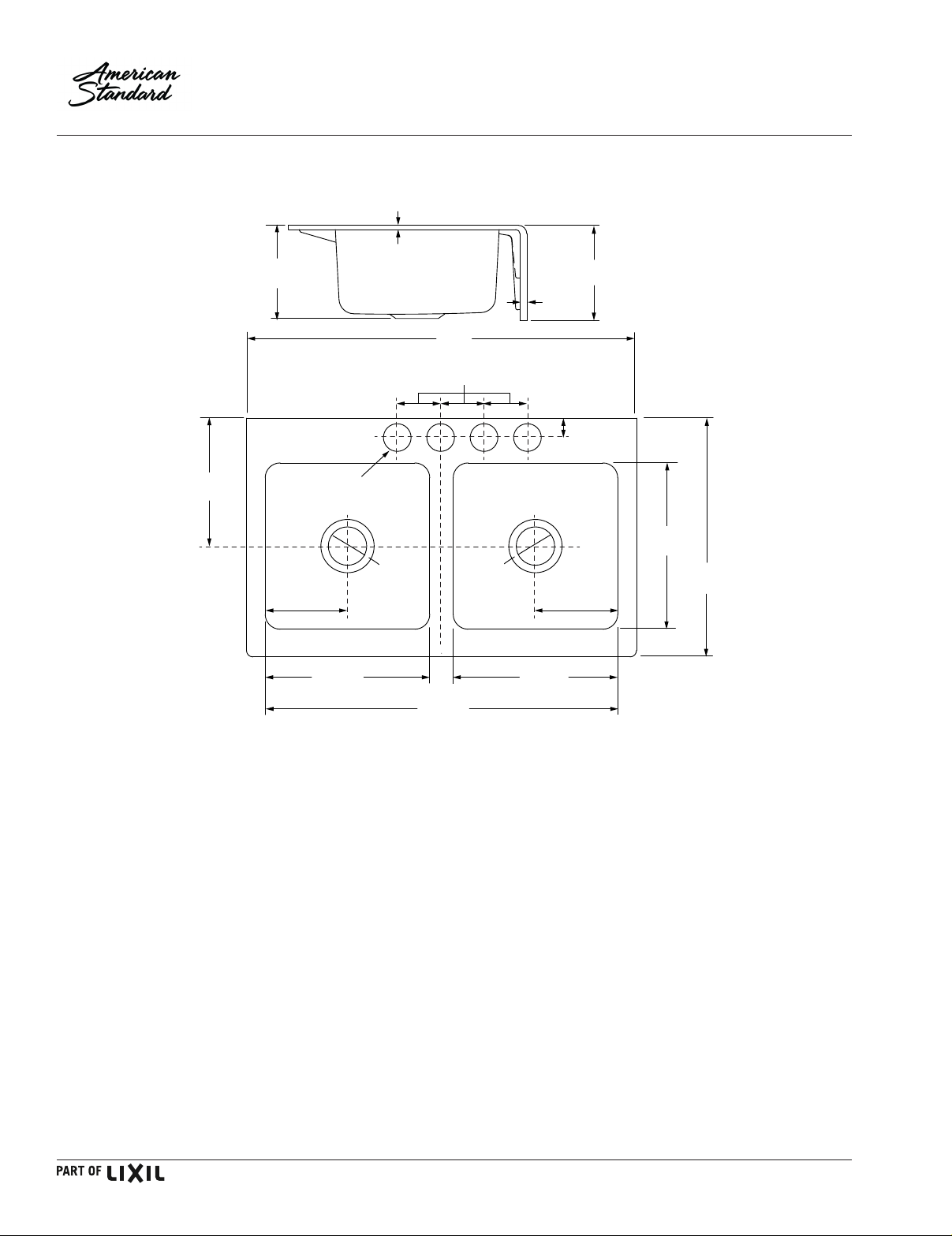

Page 2
3/8"
(10mm)
Delancey® 36 x 22 Double Bowl
Apron Front Cast Iron Kitchen Sink
CAST IRON
11-13/16"
(300mm)
8-5/8"
(219mm)
7-5/8"
(193mm)
Ø2-9/16"
(Ø65mm)
15-3/16"
(386mm)
Ø3-9/16"
(Ø90mm)
36"
(915mm)
3X 4"
(102mm)
32-9/16"
(827mm)
Ø3-9/16"
(Ø90mm)
5/8"
(16mm)
1-15/16"
(50mm)
(193mm)
15-3/16"
(386mm)
8-13/16"
(224mm)
7-5/8"
15-3/8"
(390mm)
22-1/16 "
(560mm)
NOTES:
DIMENSIONS SHOWN FOR LOCATION OF SUPPLIES AND “ P" TRAP ARE SUGGESTED.
*
FITTINGS NOT INCLUDED WITH FIXTURE AND MUST BE ORDERED SEPARATELY.
SEALING COMPOUND SUPPLIED BY OTHERS.
IMPORTANT: Dimensions of xtures are nominal and may vary within the range of tolerances established by ASME A112.19.1 / CSA B45.2.
These measurements are subject to change or cancellation. No responsibility is assumed for use of superseded or voided pages.
© 2019 AS America Inc.
spec_77DB36220A.308 Delancey 36x22 ApronFr Rev 6/19
