American Standard ASD10889 Specifications

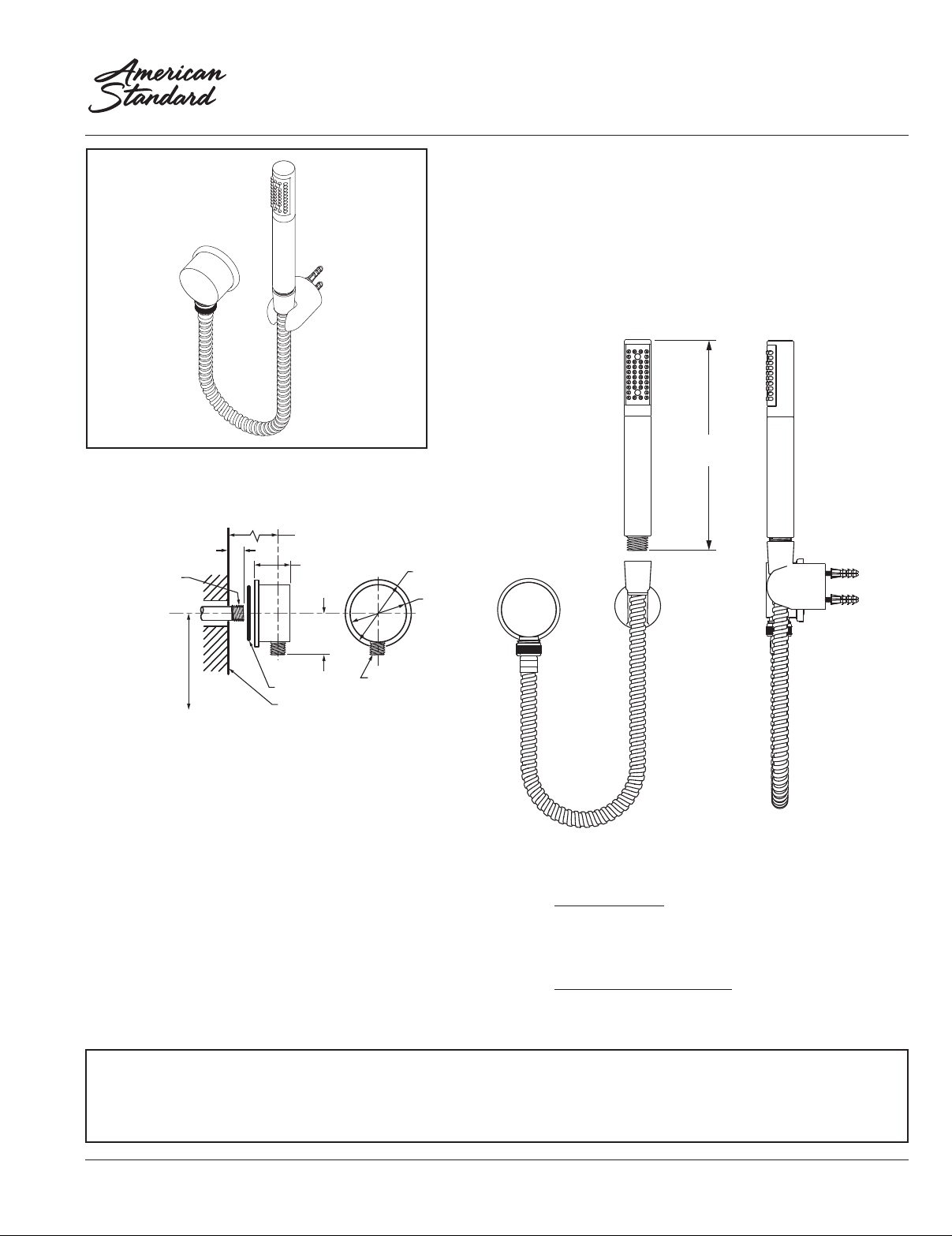

1/2" NPT

(48"- 60")

(OPTIONAL)

TO FINISHED

FLOOR

13 mm

(1/2")

21 mm
(13/16")

32 mm
(1-1/4")

35 mm

(1-3/8")

O-RING GASKET

FINISHED WALL

57 mm
(2-1/4") DIA.

50 mm
(2") DIA.

1/2" NPSM HOSE
CONNECTION

Shower Systems

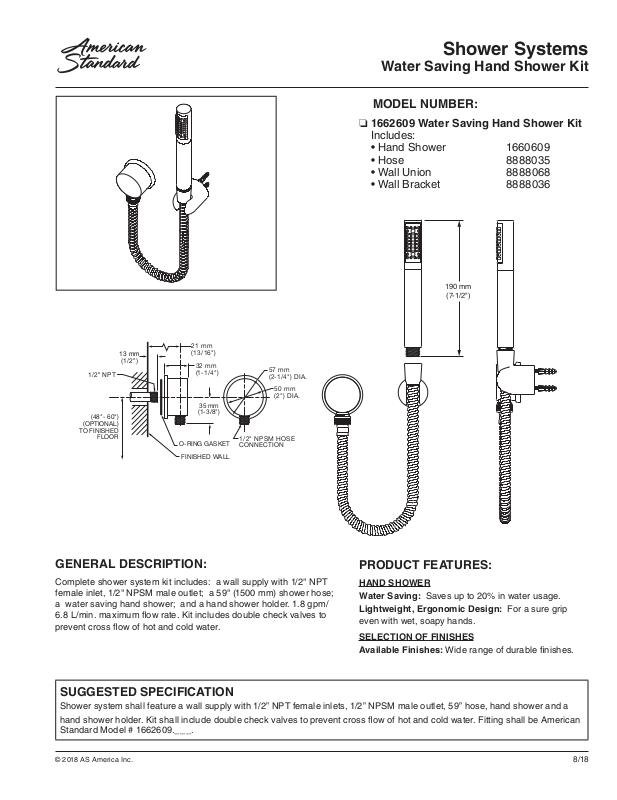

Water Saving Hand Shower Kit

MODEL NUMBER:

❏ 1662609 Water Saving Hand Shower Kit

Includes:

• Hand Shower 1660609

• Hose 8888035

• Wall Union 8888068

• Wall Bracket 8888036

190 mm

(7-1/2")

GENERAL DESCRIPTION:

Complete shower system kit includes: a wall supply with 1/2" NPT
female inlet, 1/2" NPSM male outlet; a 59" (1500 mm) shower hose;
a water saving hand shower; and a hand shower holder. 1.8 gpm/

6.8 L/min. maximum ow rate. Kit includes double check valves to
prevent cross ow of hot and cold water.

PRODUCT FEATURES:

HAND SHOWER
Water Saving: Saves up to 20% in water usage.
Lightweight, Ergonomic Design: For a sure grip

even with wet, soapy hands.

SELECTION OF FINISHES
Available Finishes: Wide range of durable nishes.

SUGGESTED SPECIFICATION

Shower system shall feature a wall supply with 1/2” NPT female inlets, 1/2” NPSM male outlet, 59” hose, hand shower and a
hand shower holder. Kit shall include double check valves to prevent cross ow of hot and cold water. Fitting shall be American

Standard Model # 1662609.___.

© 2018 AS America Inc.

8/18

Shower Systems

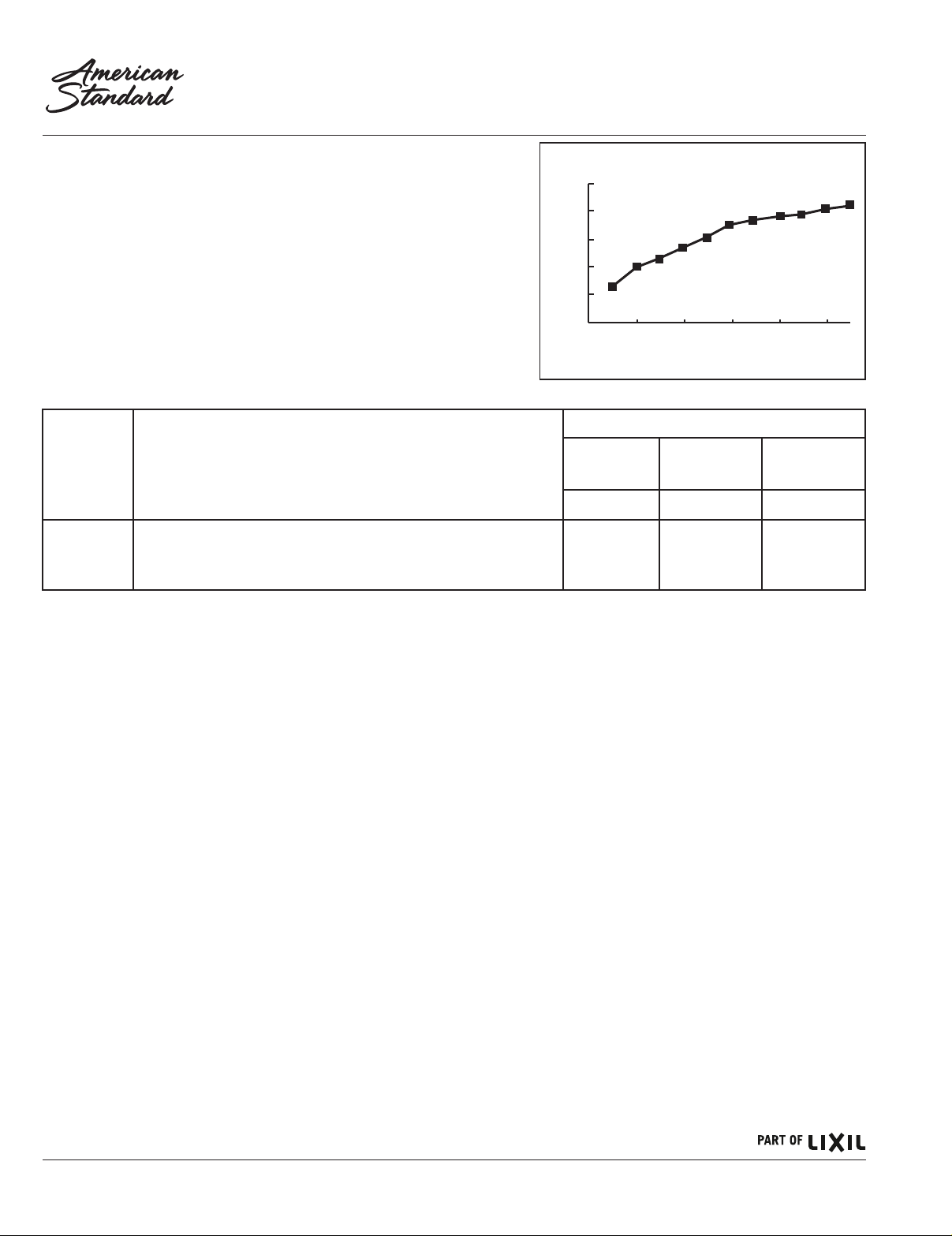

GALLONS PER MINUTE

Water Saving Hand Shower Kit

CODES AND STANDARDS

These products meet or exceed the following
codes and standards:

ASME A112 .18 .1
CSA B125

Product
Number Description

1662609

Shower System Kit. Contains Water Saving Hand Shower, Hose,
Wall Supply and Wall Bracket.

FLOW RATE*

2.5

2.0

1.5

1.0

0.5

0.0

*Flow rates shown are for mixed hot and cold.

INLET PRESSURE (PSI)

Finish

Polished

Chrome

002 243 295

Matte
Black

10080604020

Brushed

Nickel

© 2018 AS America Inc.

8/18
