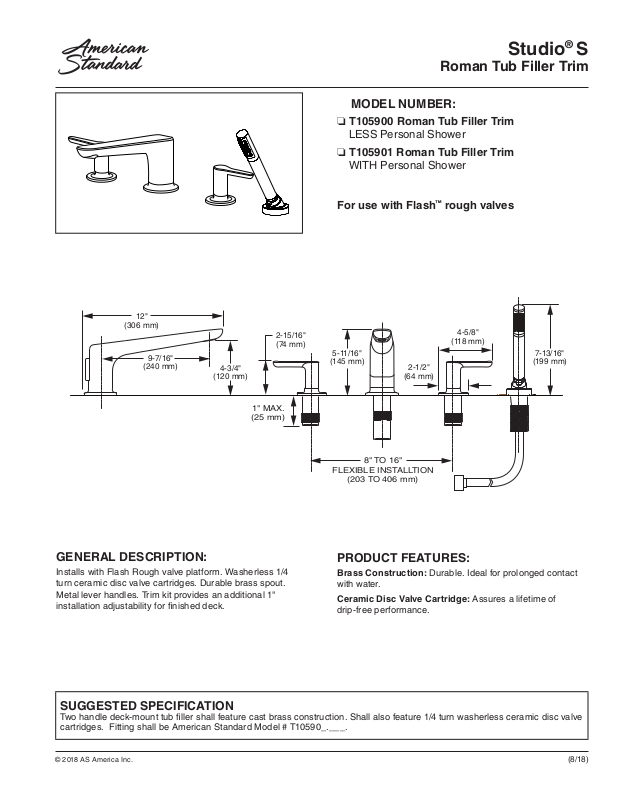

Page 1

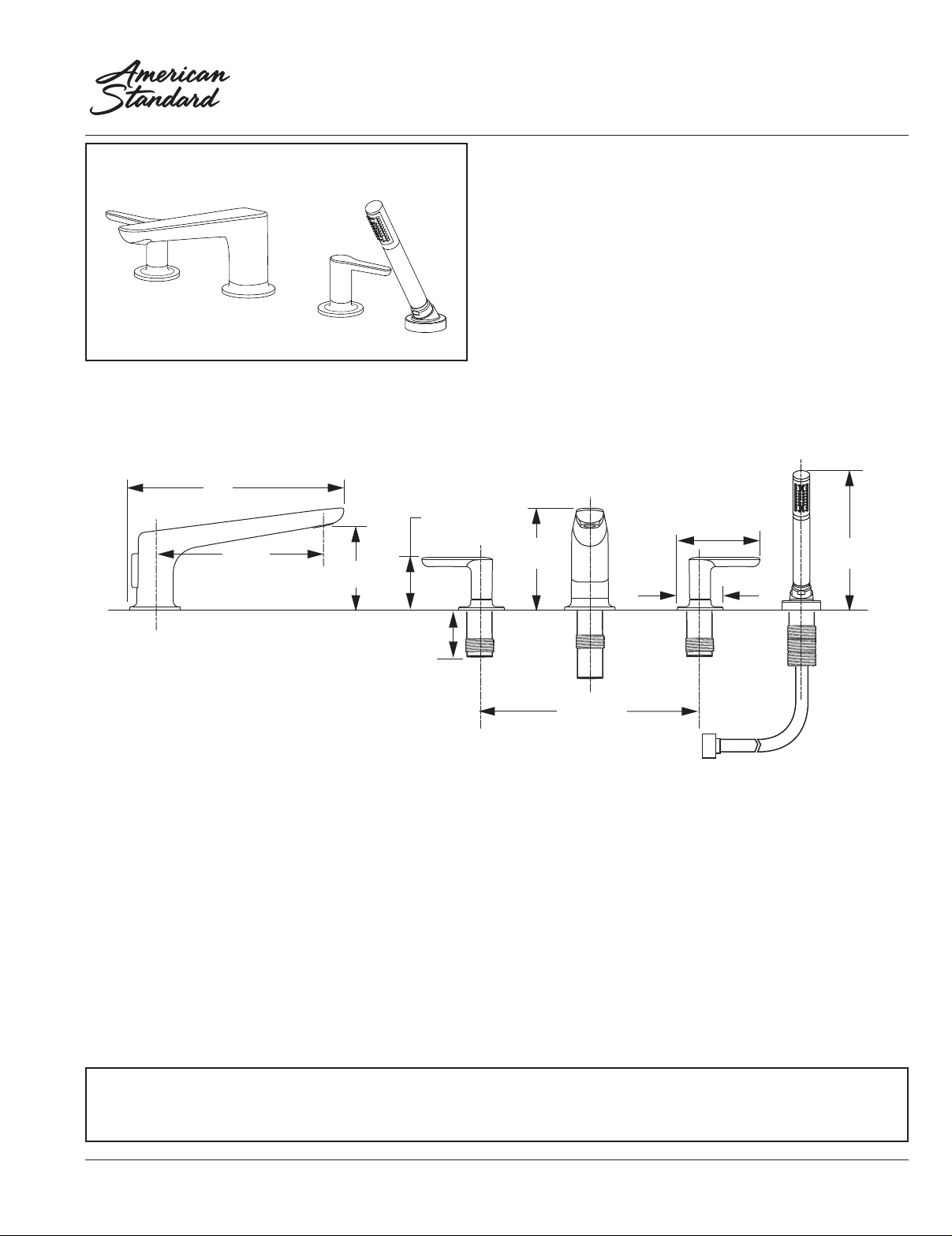

12"
(306 mm)
9-7/16"
(240 mm)
4-3/4"
(120 mm)
2-15/16"
(74 mm)
Roman Tub Filler Trim
MODEL NUMBER:
❏ T105900 Roman Tub Filler Trim
LESS Personal Shower
❏ T105901 Roman Tub Filler Trim
WITH Personal Shower
For use with Flash™ rough valves
4-5/8"
(118 mm)
5-11/16"
(145 mm)
2-1/2"
(64 mm)
Studio® S
7-13/16"
(199 mm)
1" MAX.
(25 mm)
GENERAL DESCRIPTION:
Installs with Flash Rough valve platform. Washerless 1/4
turn ceramic disc valve cartridges. Durable brass spout.
Metal lever handles. Trim kit provides an additional 1"
installation adjustability for nished deck.
FLEXIBLE INSTALLTION
8" TO 16"
(203 TO 406 mm)
PRODUCT FEATURES:
Brass Construction: Durable. Ideal for prolonged contact
with water.
Ceramic Disc Valve Cartridge: Assures a lifetime of
drip-free performance.
SUGGESTED SPECIFICATION
Two handle deck-mount tub ller shall feature cast brass construction. Shall also feature 1/4 turn washerless ceramic disc valve
cartridges. Fitting shall be American Standard Model # T10590_.___.
© 2018 AS America Inc.
(8/18)

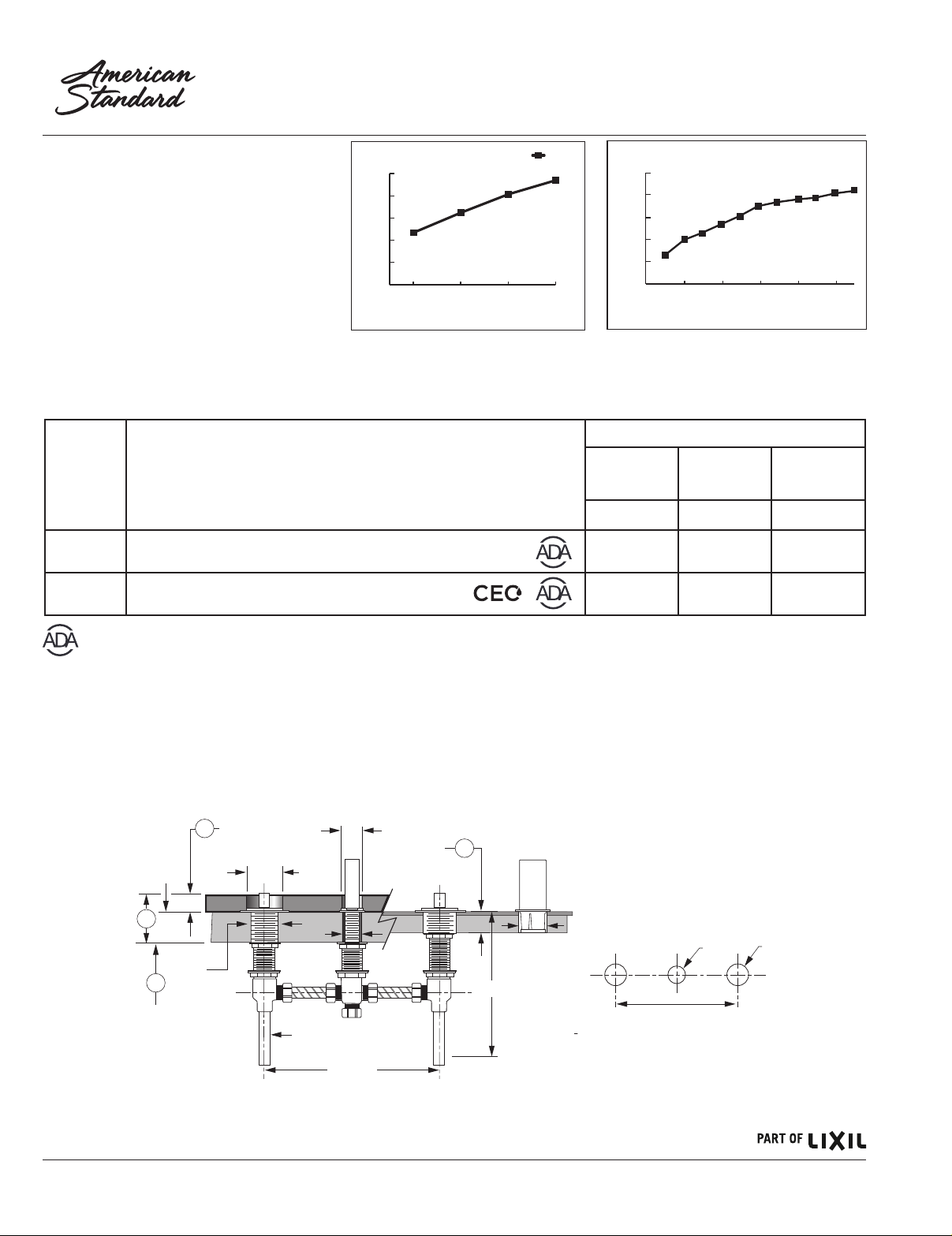

Page 2
Studio® S
GALLONS PER MINUTE
FINISHED DECK VARIABILITY
ACCOMMODATES DECKING
MATERIAL (TILE, MARBLE,
CORIAN®...) TO 1" THICK
2. FINISHED DECK
3. FITTING MOUNTING SURFACE
4. ACRYLIC BATHS
DECK MOUNTING HOLES
ADJUSTABILITY, TO 1-1/2" THICK
1. DECK THICKNESS
TOTAL DECK THICKNESS
UP TO 2-1/2"
ADJUSTABILITY, TO 1-1/2" THICK
(2) 1-3/8" D
HOLES
1" D
8" TO 16" FLEXIBLE INSTALLTION
(203 TO 406 mm)
GALLONS PER MINUTE
Roman Tub Filler Trim
CODES AND STANDARDS
These products meet or exceed the
following codes and standards:
ASME A112 .18 .1
CSA B125.1
Check local plumbing codes.
Some installations may require
a vacuum breaker.
Product
Number Description
T105900
T105901
Roman Tub Filler Trim LESS Personal Shower.
Roman Tub Filler Trim WITH Personal Shower.
FLOW RATE*
25
20
15
10
5
0
*Flow rates shown are for mixed hot and cold.
INLET PRESSURE (PSI)
Spout
80604020
2.5
2.0
1.5
1.0
0.5
0.0
*Flow rates shown are for mixed hot and cold.
INLET PRESSURE (PSI)
TUB SPOUT FLOW HAND SHOWER FLOW
Finish Options
Polished
Chrome
002 295 243
Brushed
Nickel
FLOW RATE*
10080604020
Matte
Black
Meets the American Disabilities Act Guidelines and ANSI A117.1
Requirements for the physically challenged.
❏ R900 Flash™ Roman Tub Filler
Rough Body – Less Personal Shower
❏ R910 Flash Roman Tub Filler
Rough Body – WITH Personal Shower
FINISHED
1
(2) 1-3/8" D
HOLES
3
FITTING
MOUNTING
SURFACE
2
DECK
1-3/8" D
MAX.
1-3/8" D
1/2" COPPER
INLET SUPPLIES
8" TO 16"
FLEXIBLE INSTALLTION
(203 TO 406 mm)
1-3/8" D MAX.
ACRYLIC
BAT H
MOUNTING
1. DECK THICKNESS
2. FINISHED DECK
4
3. FITTING MOUNTING SURFACE
4. ACRYLIC BATHS
1-1/2" D
7-1/8"
8" TO 16" FLEXIBLE INSTALLTION
TOTAL DECK THICKNESS
UP TO 2-1/2"
FINISHED DECK VARIABILITY
ACCOMMODATES DECKING
MATERIAL (TILE, MARBLE,
CORIAN®...) TO 1" THICK
ADJUSTABILITY, TO 1-1/2" THICK
ADJUSTABILITY, TO 1-1/2" THICK
1" D
(203 TO 406 mm)
DECK MOUNTING HOLES
(2) 1-3/8" D
HOLES
© 2018 AS America Inc.
(8/18)
