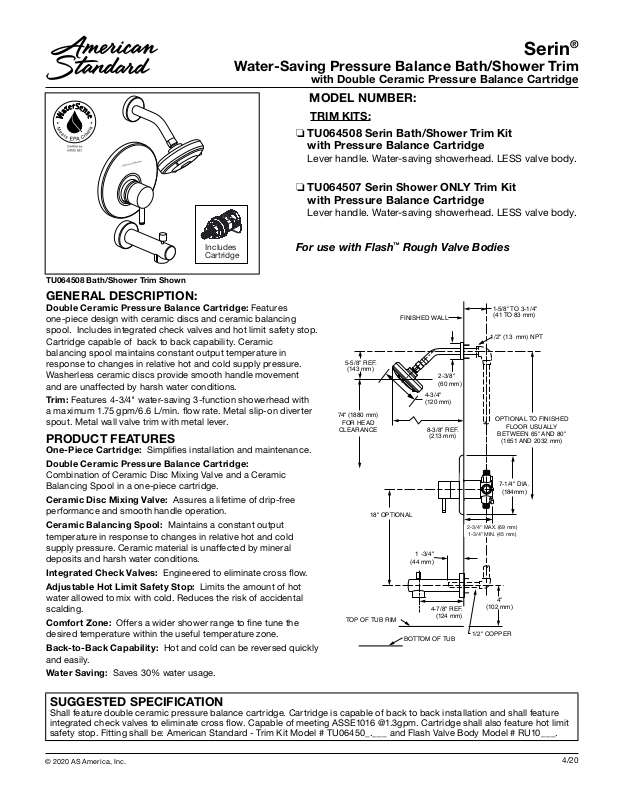

Page 1
Serin
®
Water-Saving Pressure Balance Bath/Shower Trim
with Double Ceramic Pressure Balance Cartridge
MODEL NUMBER:
TRIM KITS:
❏ TU064508 Serin Bath/Shower Trim Kit
with Pressure Balance Cartridge
Lever handle. Water-saving showerhead. LESS valve body.
H
❏ TU064507 Serin Shower ONLY Trim Kit
C
OFF
TU064508 Bath/Shower Trim Shown
Includes
Cartridge
with Pressure Balance Cartridge
Lever handle. Water-saving showerhead. LESS valve body.
For use with Flash™ Rough Valve Bodies
GENERAL DESCRIPTION:
Double Ceramic Pressure Balance Cartridge: Features
one-piece design with ceramic discs and ceramic balancing
spool. Includes integrated check valves and hot limit safety stop.
Cartridge capable of back to back capability. Ceramic
balancing spool maintains constant output temperature in
response to changes in relative hot and cold supply pressure.
Washerless ceramic discs provide smooth handle movement
and are unaffected by harsh water conditions.
Tri m : Features 4-3/4" water-saving 3-function showerhead with
a maximum 1.75 gpm/6.6 L/min. ow rate. Metal slip-on diverter
spout. Metal wall valve trim with metal lever.
PRODUCT FEATURES
One-Piece Cartridge: Simplies installation and maintenance.
Double Ceramic Pressure Balance Cartridge:
Combination of Ceramic Disc Mixing Valve and a Ceramic
Balancing Spool in a one-piece cartridge.
Ceramic Disc Mixing Valve: Assures a lifetime of drip-free
performance and smooth handle operation.
Ceramic Balancing Spool: Maintains a constant output
temperature in response to changes in relative hot and cold
supply pressure. Ceramic material is unaffected by mineral
deposits and harsh water conditions.
Integrated Check Valves: Engineered to eliminate cross ow.
Adjustable Hot Limit Safety Stop: Limits the amount of hot
water allowed to mix with cold. Reduces the risk of accidental
scalding.
Comfor t Zone: Offers a wider shower range to ne tune the
desired temperature within the useful temperature zone.
Back-to-Back Capability: Hot and cold can be reversed quickly
and easily.
Water Saving: Saves 30% water usage.

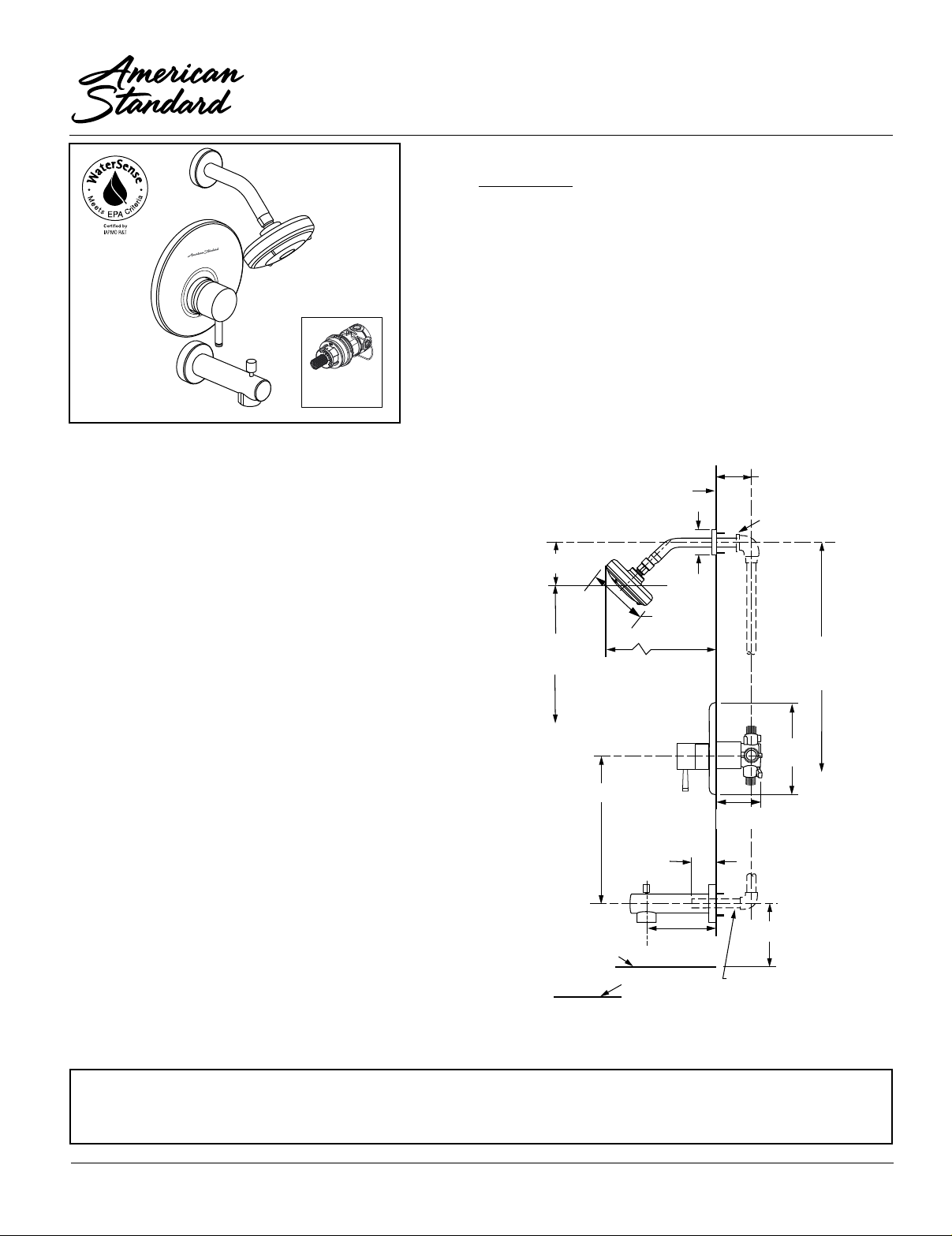

5-5/8" REF.
(143 mm)
74" (1880 mm)
FOR HEAD
CLEARANCE
18" OPTIONAL
TOP OF TUB RIM
FINISHED WALL
2-3/8"
(60 mm)
4-3/4"
(120 mm)
8-3/8" REF.
(213 mm)
1 -3/4"
(44 mm)
4-7/8" REF.
(124 mm)
BOTTOM OF TUB
1-5/8" TO 3-1/4"
(41 TO 83 mm)
1/2" (13 mm) NPT
OPTIONAL TO FINISHED
FLOOR USUALLY
BETWEEN 65'' AND 80''
(1651 AND 2032 mm)
7-1/4" DIA.
(184mm)
2-3/4" MAX. (69 mm)
1-3/4" MIN. (45 mm)
4"
(102 mm)
1/2" COPPER
SUGGESTED SPECIFICATION
Shall feature double ceramic pressure balance cartridge. Cartridge is capable of back to back installation and shall feature
integrated check valves to eliminate cross ow. Capable of meeting ASSE1016 @1.3gpm. Cartridge shall also feature hot limit
safety stop. Fitting shall be: American Standard - Trim Kit Model # TU06450_.___ and Flash Valve Body Model # RU10___.
© 2020 AS America, Inc.
4/20
Page 2
Serin
®
Water-Saving Pressure Balance Bath/Shower Trim
with Double Ceramic Pressure Balance Cartridge
CODES AND STANDARDS
These products meet or exceed the following
codes and standards:
ASSE 1016 / ASME A112.18.1016 / CSA B125.16
ASME A112.18.1 / CSA B125.1
Rated to meet ASSE 1016 @ 1.3gpm
Product
Number
TU064508
TRIM KITS *
TU064507
Description
Bath/Shower Trim Kit. Metal lever handle. Water-saving 3-function showerhead.
Includes cartridge. LESS valve body.
Shower Only Trim Kit. Metal lever handle. Water-saving 3-function showerhead.
Includes cartridge. LESS valve body.
* TRIM & ROUGH MUST BE ORDERED SEPARATELY.

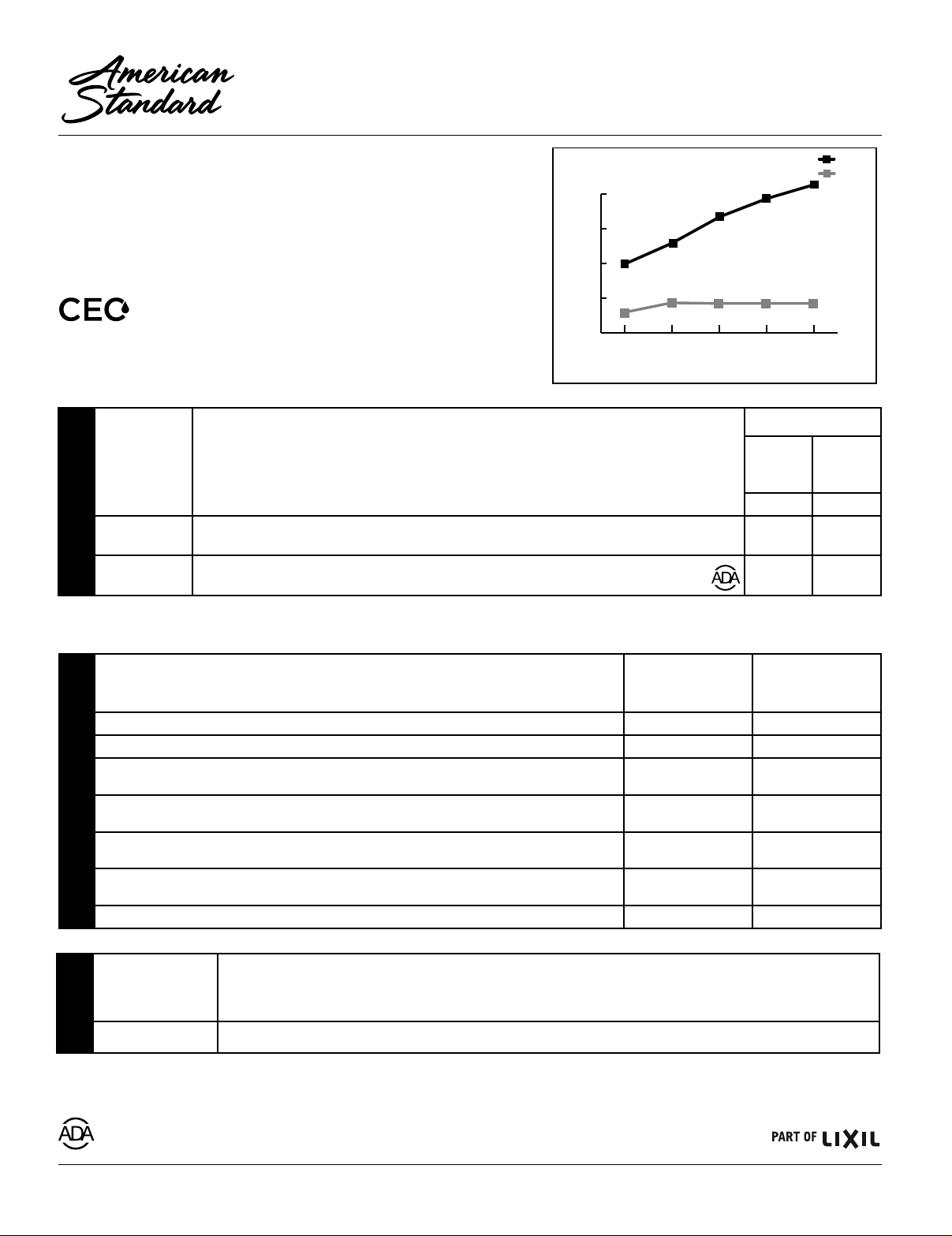

FLOW RATE*
8
6
4
2
GALLONS PER MINUTE
0
*Flow rates shown are for mixed hot and cold.
INLET PRESSURE (PSI)
Finish Options
Polished
Chrome
Spout
Shower
10080604020
PVD
Brushed
Nickel
002 295
Without
Screwdriver
Product Description
Rough Valve Body. Universal* inlets/outlets. RU101 RU101SS
Rough Valve Body. Stub-out inlets/outlets for Press-Fit Fittings. RU102 RU102SS
Rough Valve Body. PEX inlets/Universal outlets for Crimp Ring PEX system
(ASTM F1807).
Rough Valve Body. PEX Elbow inlets/Universal outlets for Crimp Ring PEX system
(ASTM F1807).
Rough Valve Body. PEX inlets/Universal outlets for Cold Expansion PEX system
ROUGH VALVE BODIES
(ASTM F1960).
™
Rough Valve Body. PEX Elbow inlets/Universal outlets for Cold Expansion
PEX system (ASTM F1960).
Flash
Rough Valve Body. CPVC inlets/Universal outlets. RU109 RU109SS
Stops
RU107 RU107SS
RU107E RU107ESS
RU108 RU108SS
RU108E RU108ESS
Screwdriver
Product
Number Product Description
OPTIONAL
M970649-YYY0A Deep Rough-In Kit
ACCESSORY
With
Stops
Meets the American Disabilities Act Guidelines and ANSI A117.1
Requirements for the physically challenged.
© 2020 AS America, Inc.
4/20
