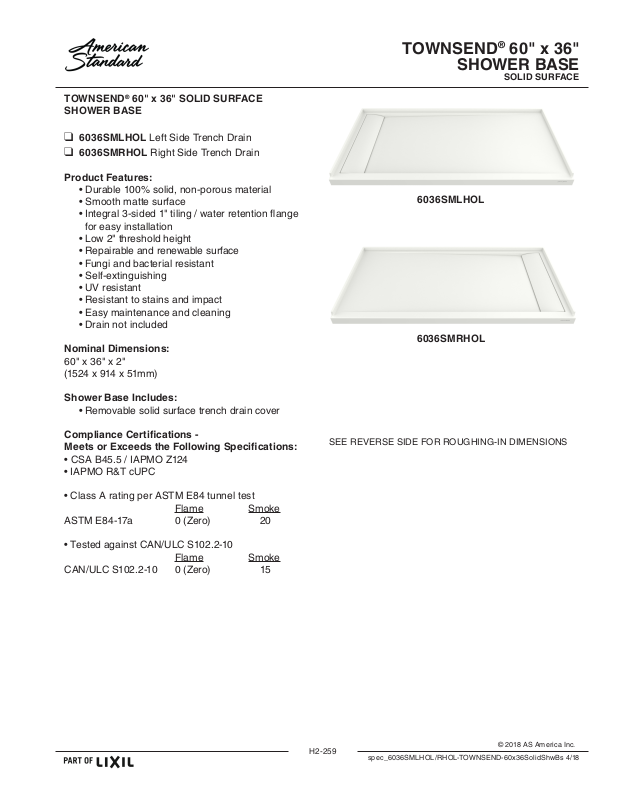

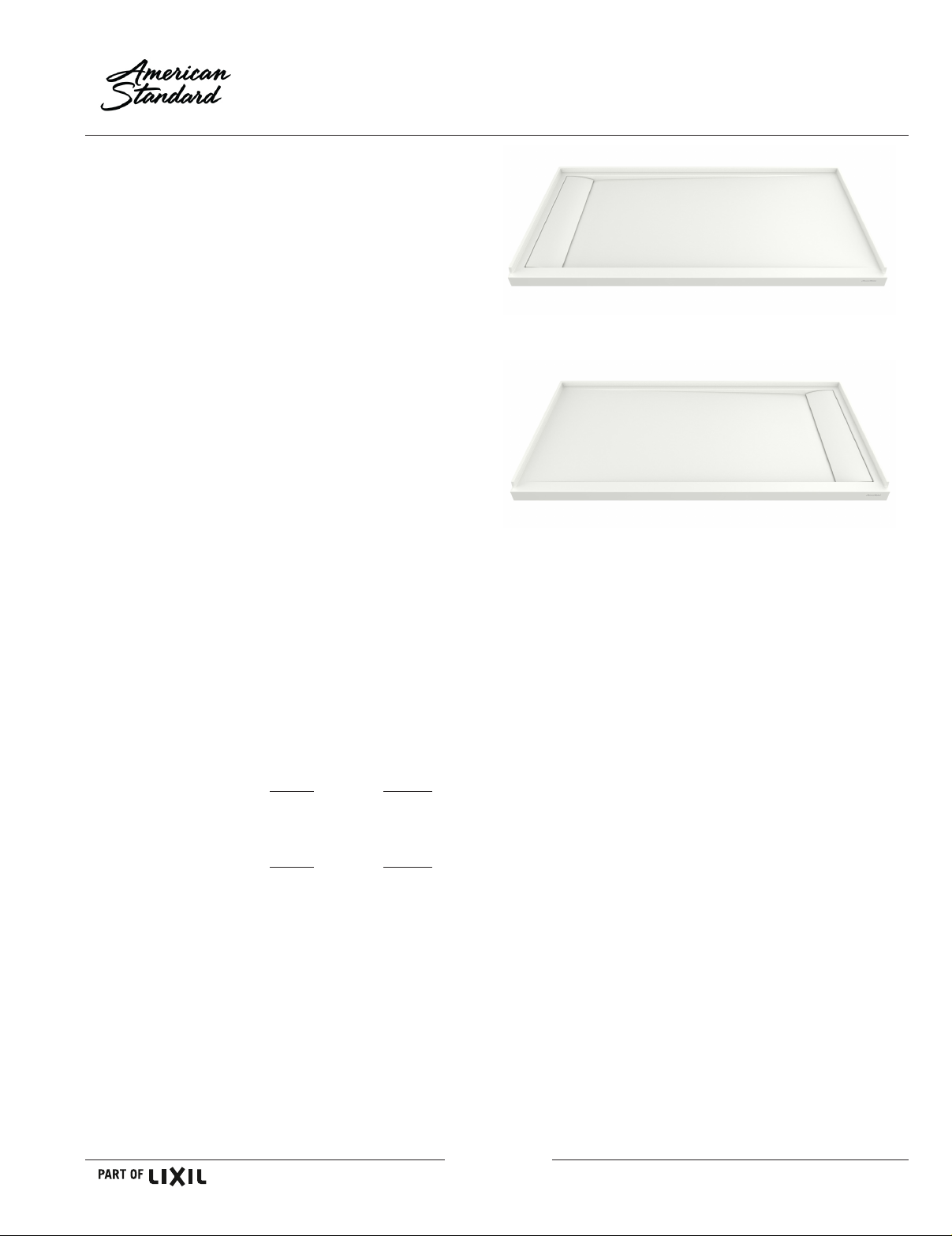

TOWNSEND® 60" x 36" SOLID SURFACE SHOWER BASE

❑ 6036SMLHOL Left Side Trench Drain ❑ 6036SMRHOL Right Side Trench Drain

Product Features:

• Durable 100% solid, non-porous material

• Smooth matte surface

• Integral 3-sided 1" tiling / water retention ange

for easy installation

• Low 2" threshold height

• Repairable and renewable surface

• Fungi and bacterial resistant

• Self-extinguishing

• UV resistant

• Resistant to stains and impact

• Easy maintenance and cleaning

• Drain not included

Nominal Dimensions:

60" x 36" x 2"

(1524 x 914 x 51mm)

TOWNSEND® 60" x 36"

SHOWER BASE

SOLID SURFACE

6036SMLHOL

6036SMRHOL

Shower Base Includes:

• Removable solid surface trench drain cover

Compliance Certications Meets or Exceeds the Following Specications:

• CSA B45.5 / IAPMO Z124

• IAPMO R&T cUPC

• Class A rating per ASTM E84 tunnel test

Flame Smoke

ASTM E84-17a 0 (Zero) 20

• Tested against CAN/ULC S102.2-10

Flame Smoke

CAN/ULC S102.2-10 0 (Zero) 15

SEE REVERSE SIDE FOR ROUGHING-IN DIMENSIONS

H2-259

spec_6036SMLHOL/RHOL-TOWNSEND-60x36SolidShwBs 4/18

Page 2

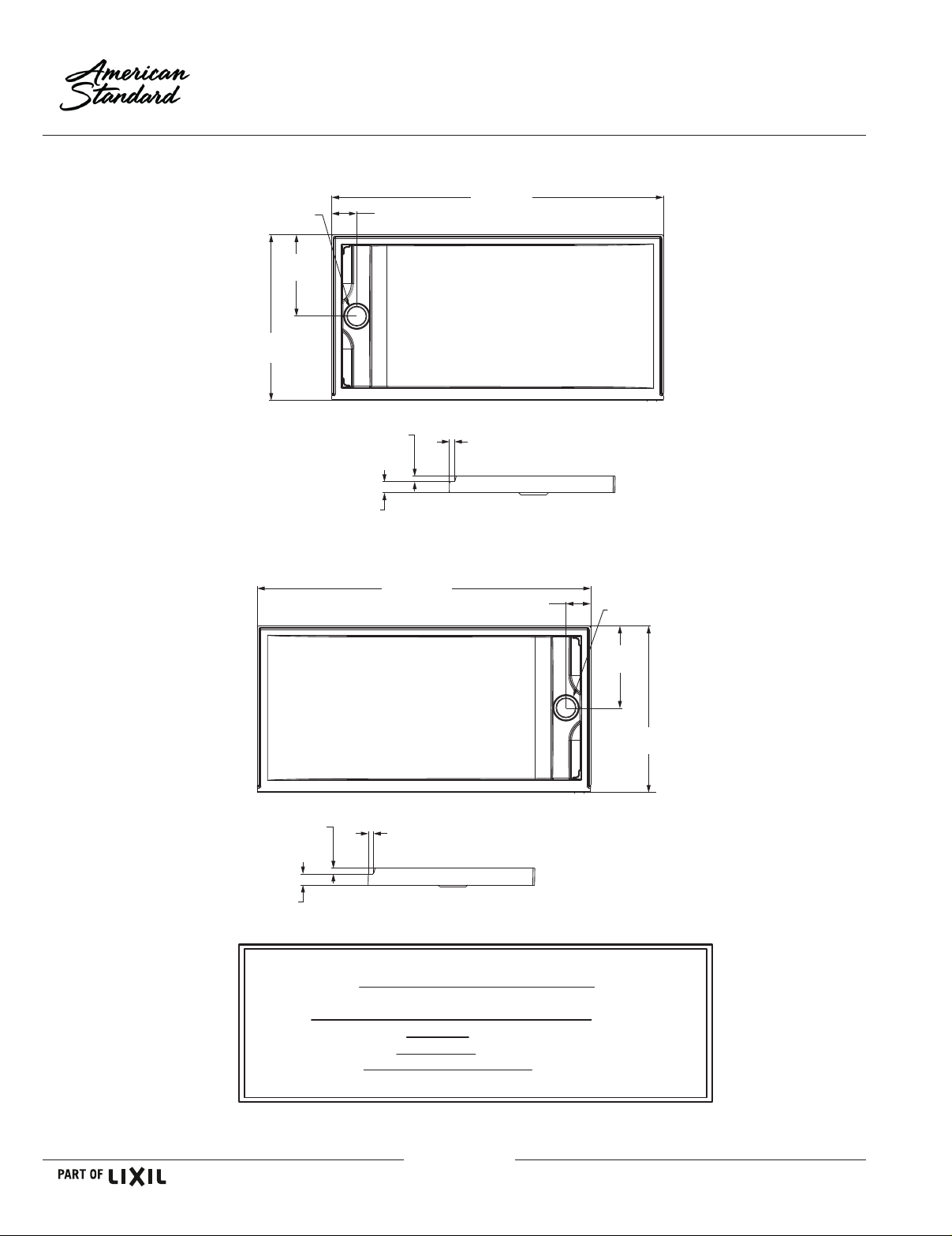

LEFT HAND

OUTLET

17-3/4"

(451mm)

36"

(914mm)

6036SMLHOL

Left Side Trench Drain

60"

4-9/16"

(116mm)

(25mm)

(1524mm)

FRONT

TOP VIEW

2" (51mm) THRESHOLD DEPTH

TOWNSEND® 60" x 36"

SHOWER BASE

SOLID SURFACE

(25mm)

(51mm)

6036SMRHOL

Right Side Trench Drain

60"

(1524mm)

FRONT

TOP VIEW

2" (51mm) THRESHOLD DEPTH

RIGHT SIDE

4-9/16"

(116mm)

RIGHT HAND

OUTLET

17-3/4"

(451mm)

36"

(914mm)

GENERAL SPECIFICATIONS FOR 6036SM SHOWER BASE

INSTALLED SIZE

WEIGHT SHOWER WELL AT SUMP SHOWER WELL AT RIM FLOOR LOADING (PROJECTED AREA)

1429mm x 795mm (56-3/16 x 31-5/16 In.)

1437mm x 817mm (56-5/8 x 32-3/16 In.)

42 Kgs/Sq. m. (9 Lbs./Sq. Ft.)

H2-260

spec_6036SMLHOL/RHOL-TOWNSEND-60x36SolidShwBs 4/18

1524mm x 914mm

58.6 Kg. (129 Lbs.)

(60 x 36 In.)
