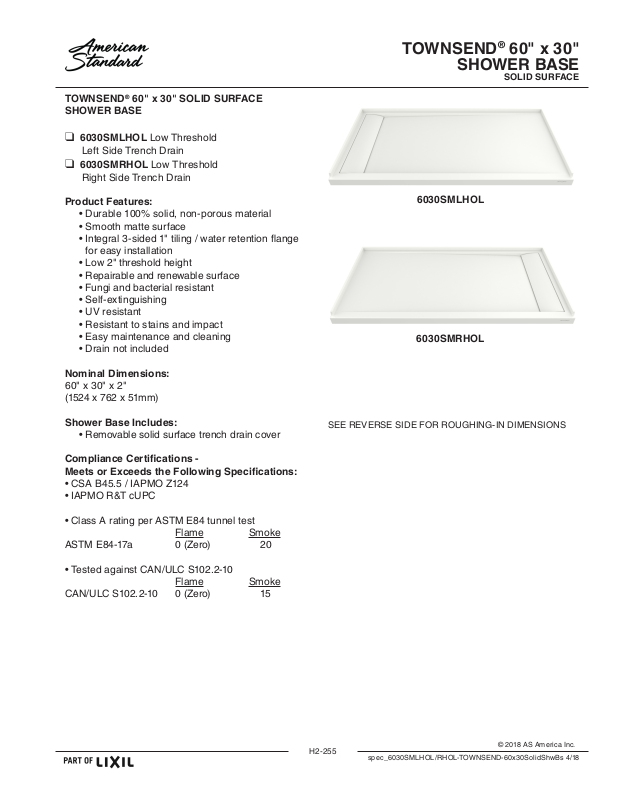

TOWNSEND® 60" x 30" SOLID SURFACE
SHOWER BASE
❑ 6030SMLHOL Low Threshold
Left Side Trench Drain
❑ 6030SMRHOL Low Threshold
Right Side Trench Drain
TOWNSEND® 60" x 30"
SHOWER BASE
SOLID SURFACE
Product Features:
• Durable 100% solid, non-porous material
• Smooth matte surface
• Integral 3-sided 1" tiling / water retention ange
for easy installation
• Low 2" threshold height
• Repairable and renewable surface
• Fungi and bacterial resistant
• Self-extinguishing
• UV resistant
• Resistant to stains and impact
• Easy maintenance and cleaning
• Drain not included
Nominal Dimensions:
60" x 30" x 2"
(1524 x 762 x 51mm)
Shower Base Includes:
• Removable solid surface trench drain cover
Compliance Certications Meets or Exceeds the Following Specications:
• CSA B45.5 / IAPMO Z124
• IAPMO R&T cUPC
6030SMLHOL
6030SMRHOL
SEE REVERSE SIDE FOR ROUGHING-IN DIMENSIONS
• Class A rating per ASTM E84 tunnel test
Flame Smoke
ASTM E84-17a 0 (Zero) 20
• Tested against CAN/ULC S102.2-10
Flame Smoke
CAN/ULC S102.2-10 0 (Zero) 15
H2-255
© 2018 AS America Inc.
spec_6030SMLHOL/RHOL-TOWNSEND-60x30SolidShwBs 4/18
Page 2

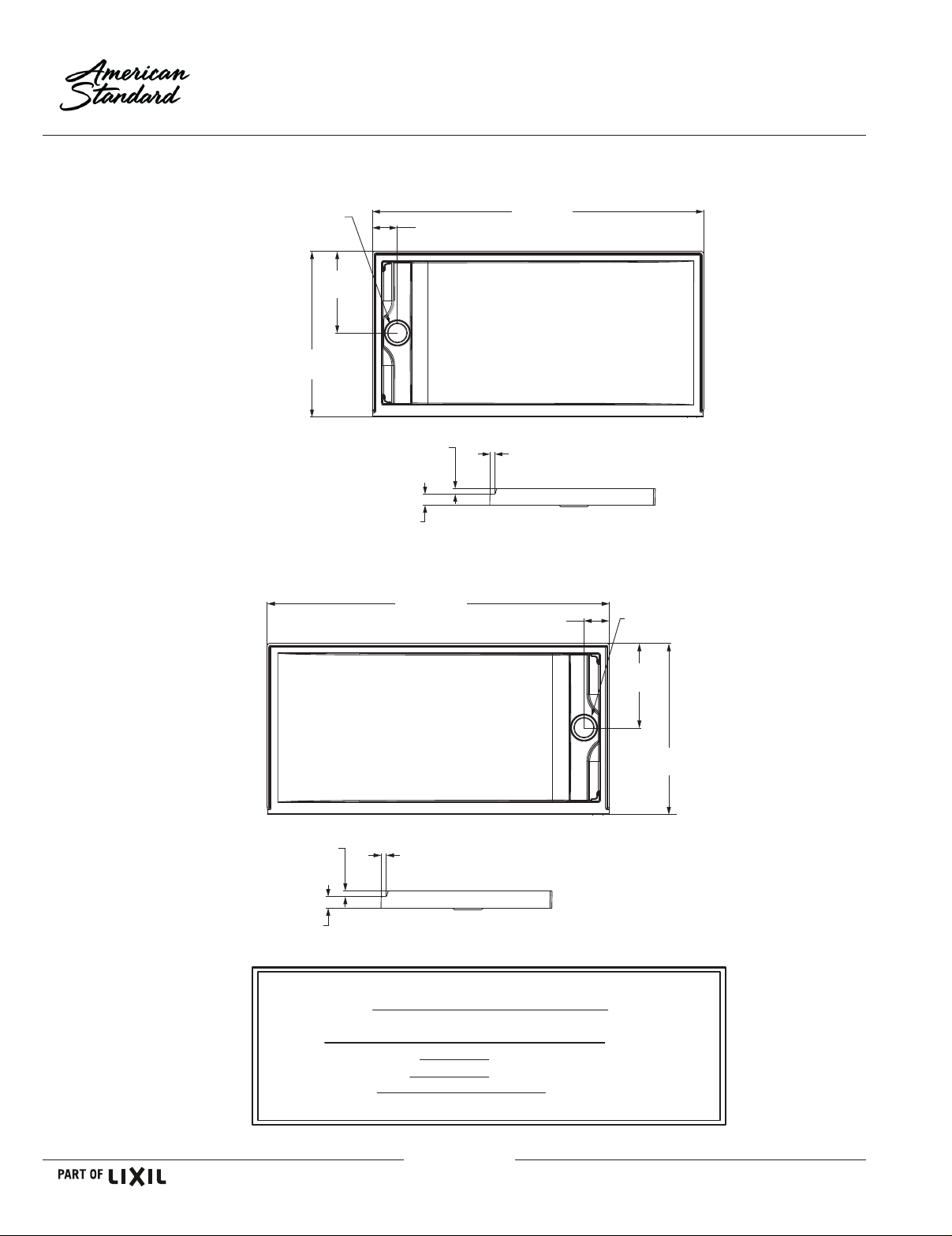

LEFT HAND
OUTLET
14-3/4"
(375mm)
30"
(762mm)
TOWNSEND® 60" x 30"
6030SMLHOL
Low Threshold - Left Side Trench Drain
60"
4-9/16"
(116mm)
1"
(25mm)
(1524mm)
FRONT
TOP VIEW
2" (51mm)
THRESHOLD DEPTH
SHOWER BASE
SOLID SURFACE
(25mm)
2"
(51mm)
2"
(51mm)
RIGHT SIDE
6030SMRHOL
Low Threshold - Right Side Trench Drain
60"
1"
(1524mm)
FRONT
TOP VIEW
2" (51mm)
THRESHOLD DEPTH
RIGHT SIDE
4-9/16"
(116mm)
RIGHT HAND
OUTLET
14-3/4"
(375mm)
30"
(762mm)
GENERAL SPECIFICATIONS FOR 6030SM SHOWER BASE
INSTALLED SIZE
WEIGHT
SHOWER WELL AT SUMP
SHOWER WELL AT RIM
FLOOR LOADING
(PROJECTED AREA)
1429mm x 644mm (56-3/16 x 25-3/8 In.)
1437mm x 665mm (56-5/8 x 26-3/16 In.)
43 Kgs/Sq. m. (9 Lbs./Sq. Ft.)
H2-256
spec_6030SMLHOL/RHOL-TOWNSEND-60x30SolidShwBs 4/18
1524mm x 762mm
50.5 Kg. (111 Lbs.)
(60 x 30 In.)
© 2018 AS America Inc.
