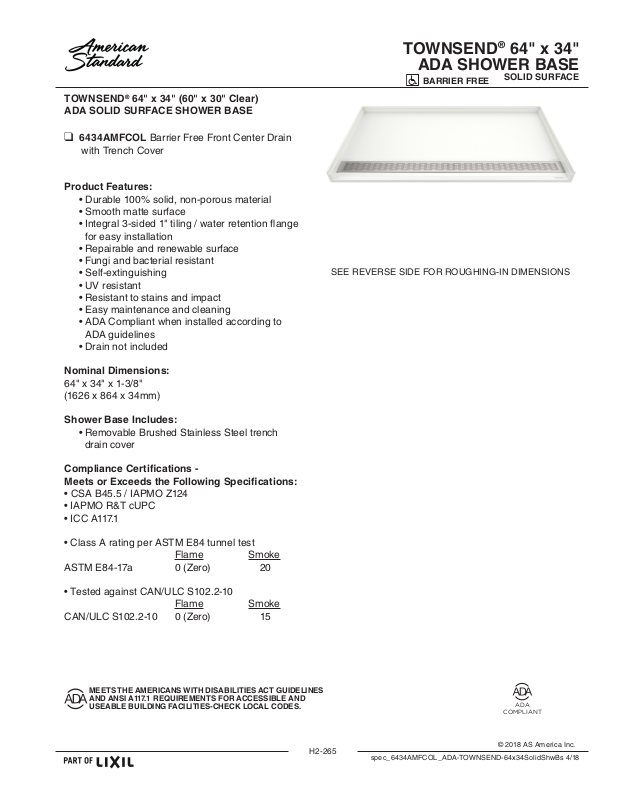

TOWNSEND® 64" x 34" (60" x 30" Clear)
MEETS THE AMERICANS WITH DISABILITIES ACT GUIDELINES
ADA SOLID SURFACE SHOWER BASE
❑ 6434AMFCOL Barrier Free Front Center Drain
with Trench Cover
Product Features:
• Durable 100% solid, non-porous material
• Smooth matte surface
• Integral 3-sided 1" tiling / water retention ange
for easy installation
• Repairable and renewable surface
• Fungi and bacterial resistant
• Self-extinguishing
• UV resistant
• Resistant to stains and impact
• Easy maintenance and cleaning
• ADA Compliant when installed according to
ADA guidelines
• Drain not included
TOWNSEND® 64" x 34"
ADA SHOWER BASE
BARRIER FREE
SEE REVERSE SIDE FOR ROUGHING-IN DIMENSIONS
SOLID SURFACE
Nominal Dimensions:
64" x 34" x 1-3/8"
(1626 x 864 x 34mm)
Shower Base Includes:
• Removable Brushed Stainless Steel trench
drain cover
Compliance Certications Meets or Exceeds the Following Specications:
• CSA B45.5 / IAPMO Z124
• IAPMO R&T cUPC
• ICC A117.1
• Class A rating per ASTM E84 tunnel test
Flame Smoke
ASTM E84-17a 0 (Zero) 20
• Tested against CAN/ULC S102.2-10
Flame Smoke
CAN/ULC S102.2-10 0 (Zero) 15
AND ANSI A117.1 REQUIREMENTS FOR ACCESSIBLE AND
USEABLE BUILDING FACILITIES-CHECK LOCAL CODES.
H2-265
ADA
COMPLIANT
© 2018 AS America Inc.
spec_6434AMFCOL_ADA-TOWNSEND-64x34SolidShwBs 4/18
Page 2

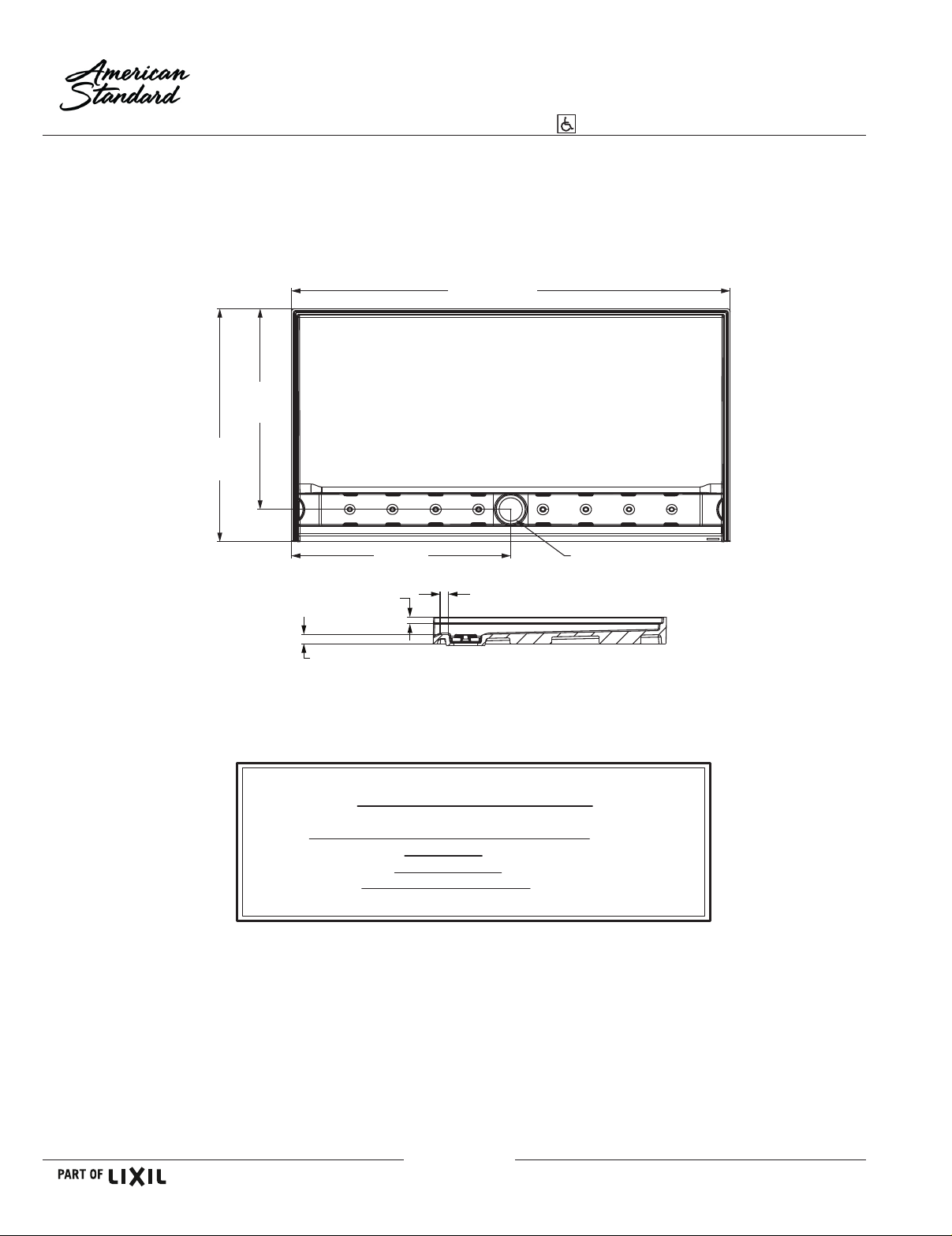

6434AMFCOL
FRONT
RIGHT SIDE (SECTIONED)
TOP VIEW
FCO
1-3/8" (34mm)
1" (25mm)
1" (26mm)
THRESHOLD DEPTH
64"
(1625mm)
34"
(863mm)
32"
(812mm)
29-1/4"
(743mm)
BARRIER FREE
Barrier Free Front Center Drain
with Trench Cover
TOWNSEND® 64" x 34"
ADA SHOWER BASE
SOLID SURFACE
GENERAL SPECIFICATIONS FOR 6434AM SHOWER BASE
INSTALLED SIZE
WEIGHT
SHOWER WELL AT SUMP
SHOWER WELL AT RIM
FLOOR LOADING
(PROJECTED AREA)
1562mm x 803mm (61-1/2 x 31-5/8 In.)
1586mm x 812mm (62-3/8 x 32 In.)
40 Kgs/Sq. m. (8 Lbs./Sq. Ft.)
1626mm x 864mm
56.2 Kg. (124 Lbs.)
H2-266
spec_6434AMFCOL_ADA-TOWNSEND-64x34SolidShwBs 4/18
(64 x 34 In.)
© 2018 AS America Inc.
