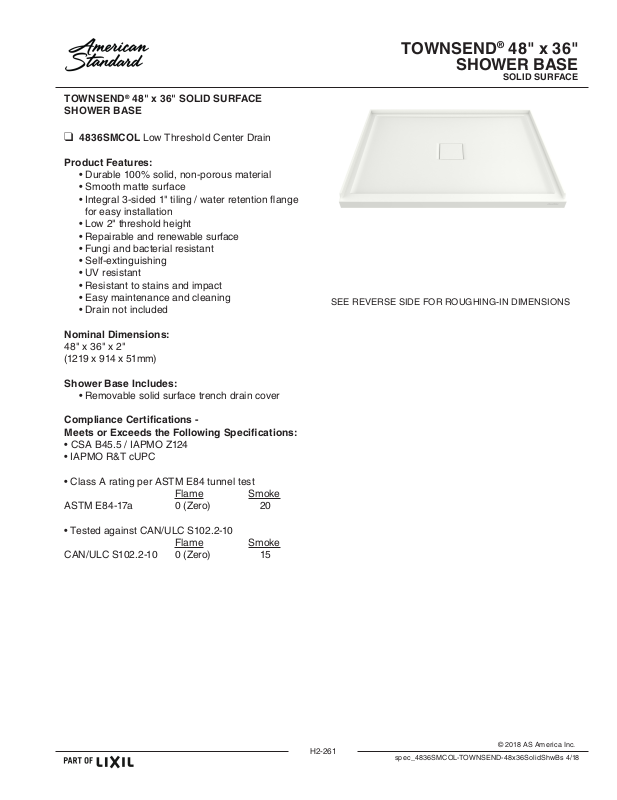

TOWNSEND® 48" x 36" SOLID SURFACE SHOWER BASE

❑ 4836SMCOL Low Threshold Center Drain

Product Features:

• Durable 100% solid, non-porous material

• Smooth matte surface

• Integral 3-sided 1" tiling / water retention ange

for easy installation

• Low 2" threshold height

• Repairable and renewable surface

• Fungi and bacterial resistant

• Self-extinguishing

• UV resistant

• Resistant to stains and impact

• Easy maintenance and cleaning

• Drain not included

Nominal Dimensions:

48" x 36" x 2"

(1219 x 914 x 51mm)

TOWNSEND® 48" x 36"

SHOWER BASE

SOLID SURFACE

SEE REVERSE SIDE FOR ROUGHING-IN DIMENSIONS

Shower Base Includes:

• Removable solid surface trench drain cover

Compliance Certications Meets or Exceeds the Following Specications:

• CSA B45.5 / IAPMO Z124

• IAPMO R&T cUPC

• Class A rating per ASTM E84 tunnel test

Flame Smoke

ASTM E84-17a 0 (Zero) 20

• Tested against CAN/ULC S102.2-10

Flame Smoke

CAN/ULC S102.2-10 0 (Zero) 15

H2-261

spec_4836SMCOL-TOWNSEND-48x36SolidShwBs 4/18

Page 2

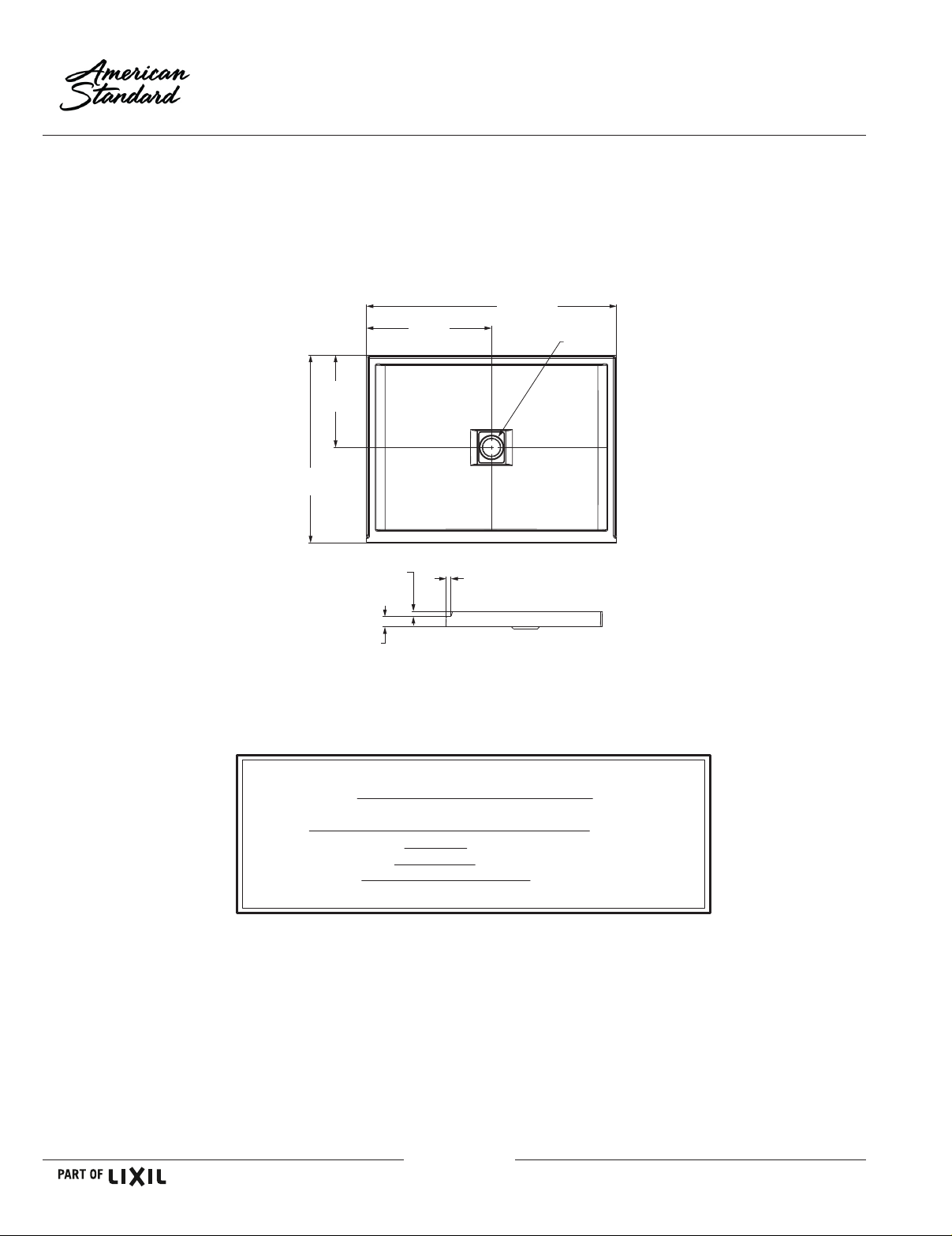

(451mm)

36"

(914mm)

17-3/4"

4836SMCOL

Low Threshold Center Drain

48"

(1219mm)

24"

(610mm)

FRONT

TOWNSEND® 48" x 36"

SHOWER BASE

SOLID SURFACE

CENTER OUTLET

TOP VIEW

(25mm)

(51mm)

2" (51mm) THRESHOLD DEPTH

RIGHT SIDE

GENERAL SPECIFICATIONS FOR 4836SM SHOWER BASE

INSTALLED SIZE

WEIGHT SHOWER WELL AT SUMP SHOWER WELL AT RIM FLOOR LOADING (PROJECTED AREA)

1037mm x 799mm (40-13/16 x 31-3/8 In.)

1133mm x 817mm (44-5/8 x 32-3/16 In.)

43 Kgs/Sq. m. (9 Lbs./Sq. Ft.)

1219mm x 915mm

48.1 Kg. (106 Lbs.)

(48 x 36 In.)

H2-262

spec_4836SMCOL-TOWNSEND-48x36SolidShwBs 4/18
