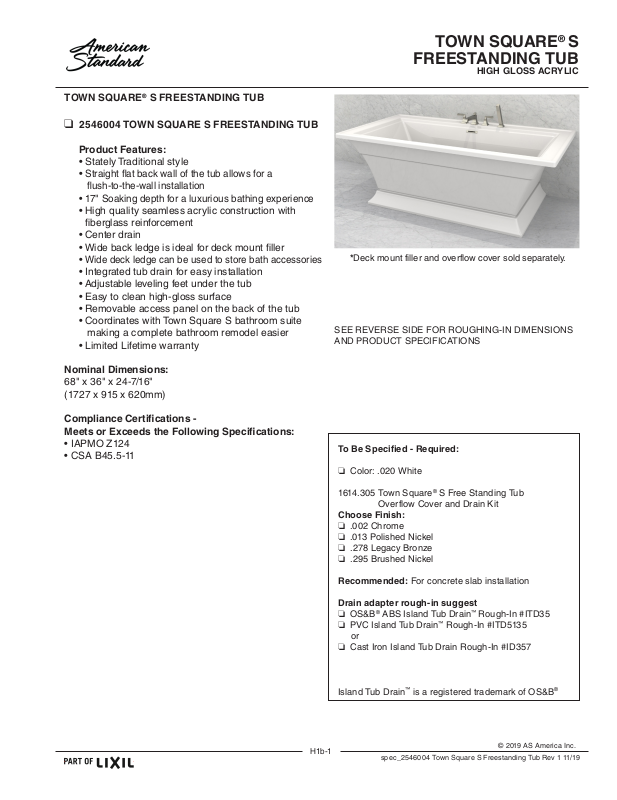

TOWN SQUARE® S FREESTANDING TUB
❑ 2546004 TOWN SQUARE S FREESTANDING TUB
Product Features:
• Stately Traditional style
•
Straight at back wall of the tub allows for a
ush-to-the-wall installation
• 17" Soaking depth for a luxurious bathing experience
• High quality seamless acrylic construction with
berglass reinforcement
• Center drain
•
Wide back ledge is ideal for deck mount
•
Wide deck ledge can be used to store bath accessories
• Integrated tub drain for easy installation
• Adjustable leveling feet under the tub
• Easy to clean high-gloss surface
• Removable access panel on the back of the tub
• Coordinates with Town Square S bathroom suite
making a complete bathroom remodel easier
• Limited Lifetime warranty
ller
TOWN SQUARE® S
FREESTANDING TUB
HIGH GLOSS ACRYLIC
*Deck mount filler and overflow cover sold separately.
SEE REVERSE SIDE FOR ROUGHING-IN DIMENSIONS
AND PRODUCT SPECIFICATIONS
Nominal Dimensions:
68" x 36" x 24-7/16"
(1727 x 915 x 620mm)
Compliance Certications Meets or Exceeds the Following Specications:
• IAPMO Z124
• CSA B45.5-11
To Be Specied - Required:
❏ Color: .020 White
1614.305 Town Square® S Free Standing Tub
Overflow Cover and Drain Kit
Choose Finish:
❏ .002 Chrome
❏ .013 Polished Nickel
❏ .278 Legacy Bronze
❏ .295 Brushed Nickel
Recommended: For concrete slab installation
Drain adapter rough-in suggest
❏ OS&B® ABS Island Tub Drain™ Rough-In #ITD35
❏ PVC Island Tub Drain™ Rough-In #ITD5135
or
❏ Cast Iron Island Tub Drain Rough-In #ID357
Island Tub Drain™ is a registered trademark of OS&B
H1b -1
spec_25460 04 Town Square S Freestanding Tub Rev 1 11/19
®
© 2019 AS America Inc.
Page 2

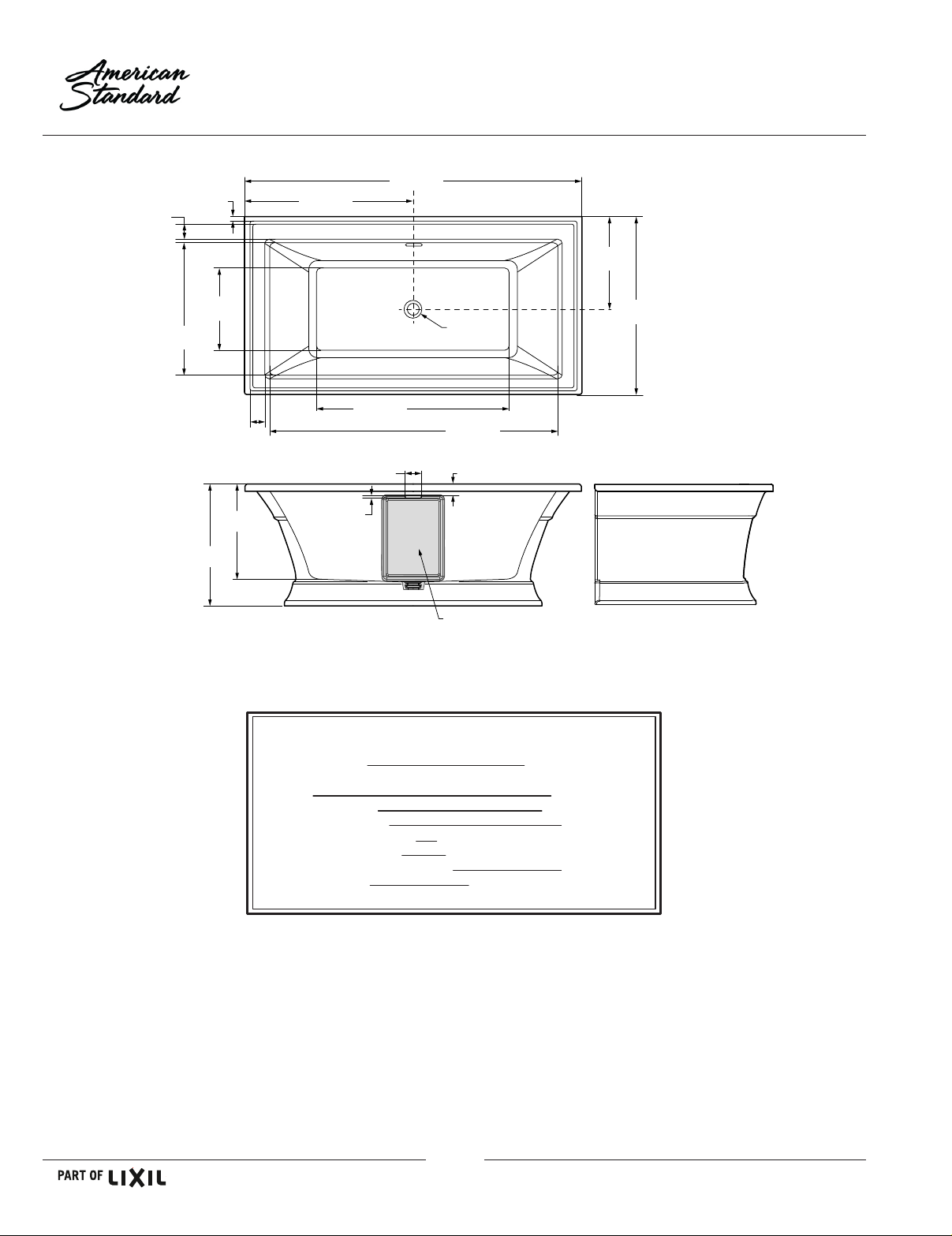

3-1/8"
(80 mm)
13/16"
(21 mm)
34"
(864 mm)
68"
(1727 mm)
TOWN SQUARE® S
FREESTANDING TUB
HIGH GLOSS ACRYLIC
18-11/16"
(475 mm)
26-1/4"
(666 mm)
(620 mm)
16-3/4"
(425 mm)
(65 mm)
24-7/16"
2-9/16"
19-3/8"
(492 mm)
9/16"
(14 mm)
GENERAL SPECIFICATIONS FOR
INSTALLED SIZE
WEIGHT
WEIGHT w/WATER
GAL. TO OVERFLOW
BATHING WELL AT SUMP
BATHING WELL AT RIM
WATER DEPTH TO OVERFLOW
FLOOR LOADING
(PROJECTED AREA)
ø2-3/16"
(55 mm)
38-13/16"
(968 mm)
3-1/8"
(80 mm)
57-1/4"
(1454 mm)
2-1/4"
(57 mm)
REMOVABLE ACCESS PANEL
2546 FREE STANDING BATH
38-13/16 x 16-3/4 In. (986 x 425mm)
57-1/4 x 26-1/4 In. (1454 x 666mm)
46 Lbs./Sq.Ft. (225 Kgs./Sq.m)
36"
(914 mm)
68 x 36 x 24-7/16 in.
(1727 x 914 x 620mm)
163 Lbs. (74 Kg.)
782 Lbs. (355 Kg.)
74 Gal. (280L)
17 In. (431mm)
NOTES:
■ REFER TO INSTALLATION INSTRUCTIONS SUPPLIED WITH BATHTUB FOR ADDITIONAL INFORMATION.
Fittings not included and must be ordered separately.
Provide suitable reinforcement for all supports.
Mounting holes drilled by installer.
IMPORTANT: Dimensions of x tures are nominal and may vary within the range of tolerances established by ANSI Standard Z124.1.2.
These measurements are subject to change or cancellation. No responsibility is assumed for use of superseded or voided leaet.
H1b- 2
spec_25460 04 Town Square S Freestanding Tub Rev 1 11/19
