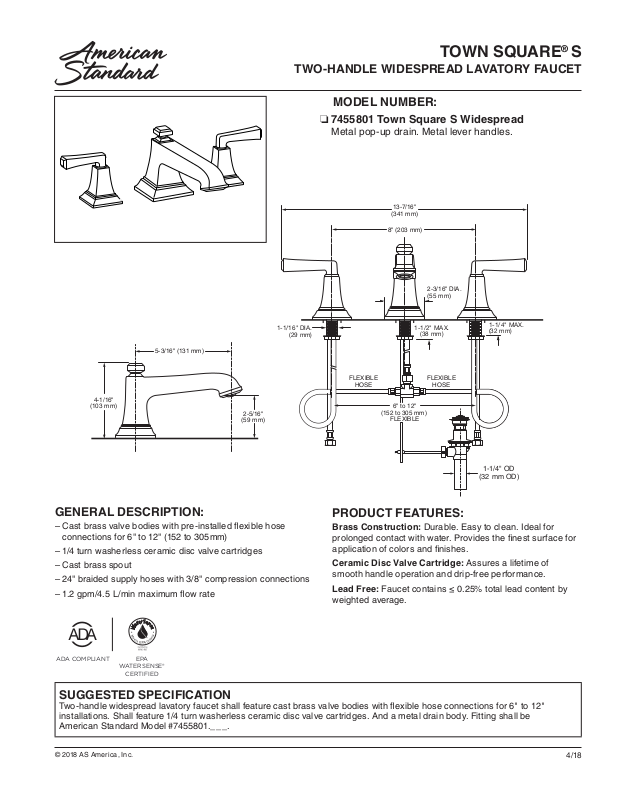

Page 1
TOWN SQUARE® S
TWO-HANDLE WIDESPREAD LAVATORY FAUCET
MODEL NUMBER:
❏ 7455801 Town Square S Widespread
Metal pop-up drain. Metal lever handles.
13-7/16"
(341 mm)
8" (203 mm)
2-3/16" DIA.
(55 mm)
1-1/16" DIA.
(29 mm)
5-3/16" (131 mm)
4-1/16"
(103 mm)
2-5/16"
(59 mm)
GENERAL DESCRIPTION:
– Cast brass valve bodies with pre-installed exible hose
connections for 6" to 12" (152 to 305mm)
– 1/4 turn washerless ceramic disc valve cartridges
– Cast brass spout
– 24" braided supply hoses with 3/8" compression connections
– 1.2 gpm/4.5 L/min maximum ow rate
1-1/4" MAX.
(32 mm)
1-1/4" OD
(32 mm OD)
FLEXIBLE
HOSE
1-1/2" MAX.
(38 mm)
6" to 12"
(152 to 305 mm)
FLEXIBLE
FLEXIBLE
HOSE
PRODUCT FEATURES:
Brass Construction: Durable. Easy to clean. Ideal for
prolonged contact with water. Provides the nest surface for
application of colors and nishes.
Ceramic Disc Valve Cartridge: Assures a lifetime of
smooth handle operation and drip-free performance.
Lead Free: Faucet contains ≤ 0.25% total lead content by
weighted average.
ADA COMPLIANT EPA
WATERSENSE®
CERTIFIED
SUGGESTED SPECIFICATION
Two-handle widespread lavatory faucet shall feature cast brass valve bodies with exible hose connections for 6" to 12"
installations. Shall feature 1/4 turn washerless ceramic disc valve cartridges. And a metal drain body. Fitting shall be
American Standard Model #7455801.___.
© 2018 AS America, Inc.
4/18
Page 2
TOWN SQUARE® S
TWO-HANDLE WIDESPREAD LAVATORY FAUCET
CODES AND STANDARDS
These products meet or exceed the following
codes and standards:
ANSI A117.1
ASME A112.18.1
CSA B125.1
NSF 61/Section 9
NSF 372
Product
Number Description
FLOW RATE*
1.4
1.2
1.0
0.8
0.6
0.4
0.2
GALLONS PER MINUTE
0.0
*Flow rates shown are for mixed hot and cold.
INLET PRESSURE (PSI)
Finish Options
Polished
Chrome
002 295 013 278
PVD
Brushed
Nickel
Polished
Nickel
806040200
Legacy
Bronze
7455801
Meets the American Disabilities Act Guidelines and ANSI A117.1
Requirements for the physically challenged.
Town Square S widespread.
© 2018 AS America, Inc.
4/18
