INSTALLATION
INSTRUCTIONS
STUDIO® S
DUAL CONTROL WIDESPREAD
7105.801
7105.821
LAVATORY FAUCET
WITH SPEED CONNECT® DRAIN
Congratulations on purchasing your American Standard faucet
with Speed Connect drain, a feature found only on American
Standard faucets.
Speed Connect® Drain*
• Fewer parts, installs in less time
• Never needs adjustment
• Guaranteed to seal properly the rst time, every time.
*Your new American Standard faucet is designed to work only with the Speed Connect drain.
To ensure that your installation proceeds smoothly-please read these instructions carefully before you begin.
RECOMMENDED TOOLS
Flat Head Screwdriver
1

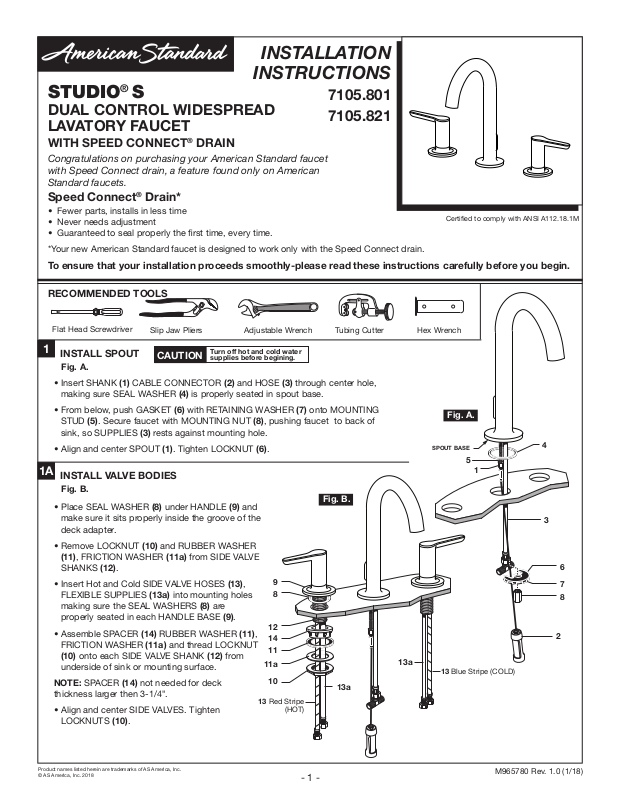

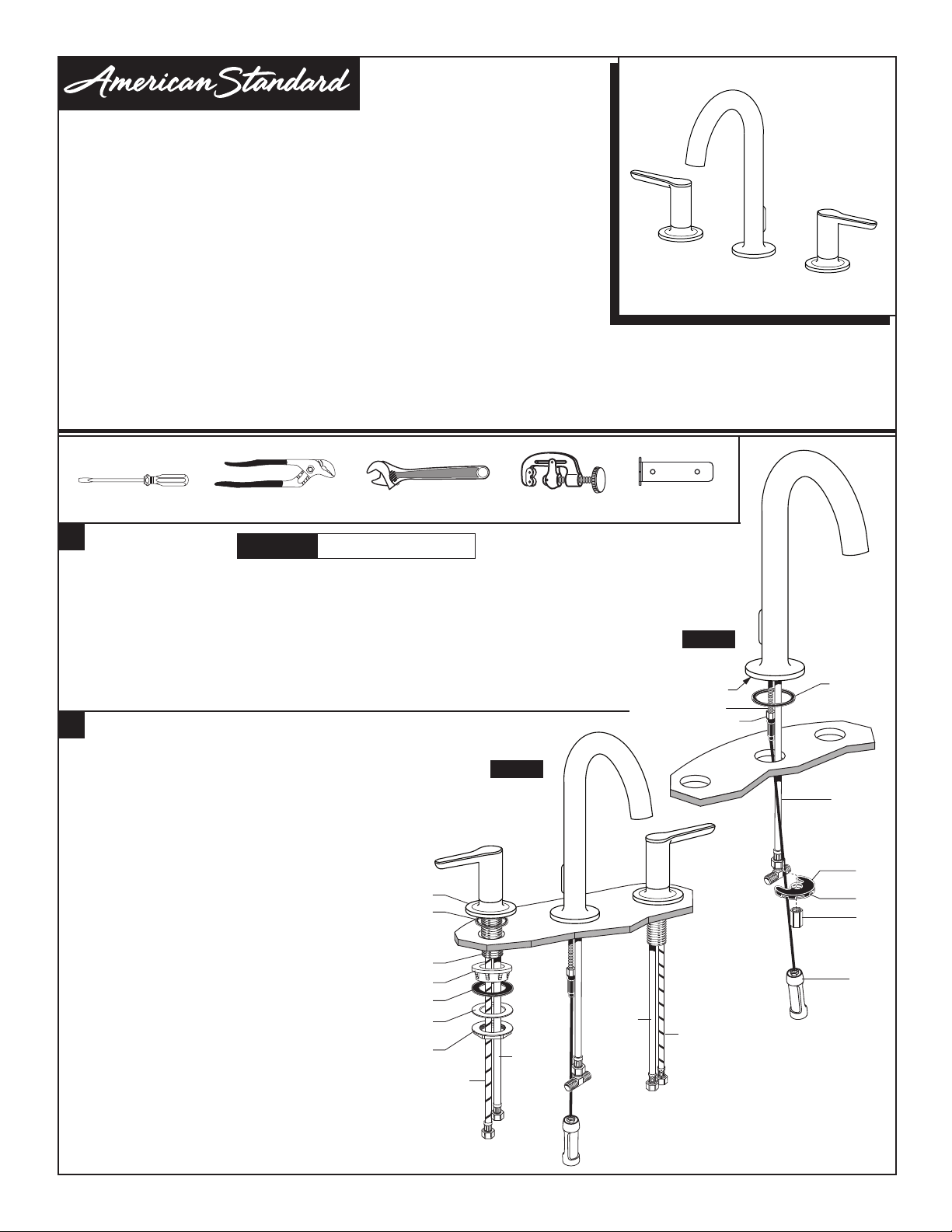

INSTALL SPOUT
Fig. A.
• Insert SHANK (1) CABLE CONNECTOR (2) and HOSE (3) through center hole,
making sure SEAL WASHER (4) is properly seated in spout base.
• From below, push GASKET (6) with RETAINING WASHER (7) onto MOUNTING
STUD (5). Secure faucet with MOUNTING NUT (8), pushing faucet to back of
sink, so SUPPLIES (3) rests against mounting hole.
• Align and center SPOUT (1). Tighten LOCKNUT (6).
1A
INSTALL VALVE BODIES
Fig. B.
• Place SEAL WASHER (8) under HANDLE (9) and
make sure it sits properly inside the groove of the
deck adapter.
• Remove LOCKNUT (10) and RUBBER WASHER
(11), FRICTION WASHER (11a) from SIDE VALVE
SHANKS (12).
• Insert Hot and Cold SIDE VALVE HOSES (13),
FLEXIBLE SUPPLIES (13a) into mounting holes
making sure the SEAL WASHERS (8) are
properly seated in each HANDLE BASE (9).
• Assemble SPACER (14) RUBBER WASHER (11),
FRICTION WASHER (11a) and thread LOCKNUT
(10) onto each SIDE VALVE SHANK (12) from
underside of sink or mounting surface.
NOTE: SPACER (14) not needed for deck
thickness larger then 3-1/4".
• Align and center SIDE VALVES. Tighten
LOCKNUTS (10).
CAUTION
Turn off hot and cold water
supplies before begining.
Adjustable Wrench Tubing CutterSlip Jaw Pliers
12
14
11
11a
10
13 Red Stripe
Fig. B.
9
8
13a
13a
(HOT)
Certied to comply with ANSI A112.18.1M
Hex Wrench
Fig. A.
SPOUT BASE
5
1
13 Blue Stripe (COLD)
4
3
6
7
8
2
Product names listed herein are trademarks of AS America, Inc.
© AS America, Inc. 2018
- 1 -
M965780 Rev. 1.0 (1/18)
Page 2
2

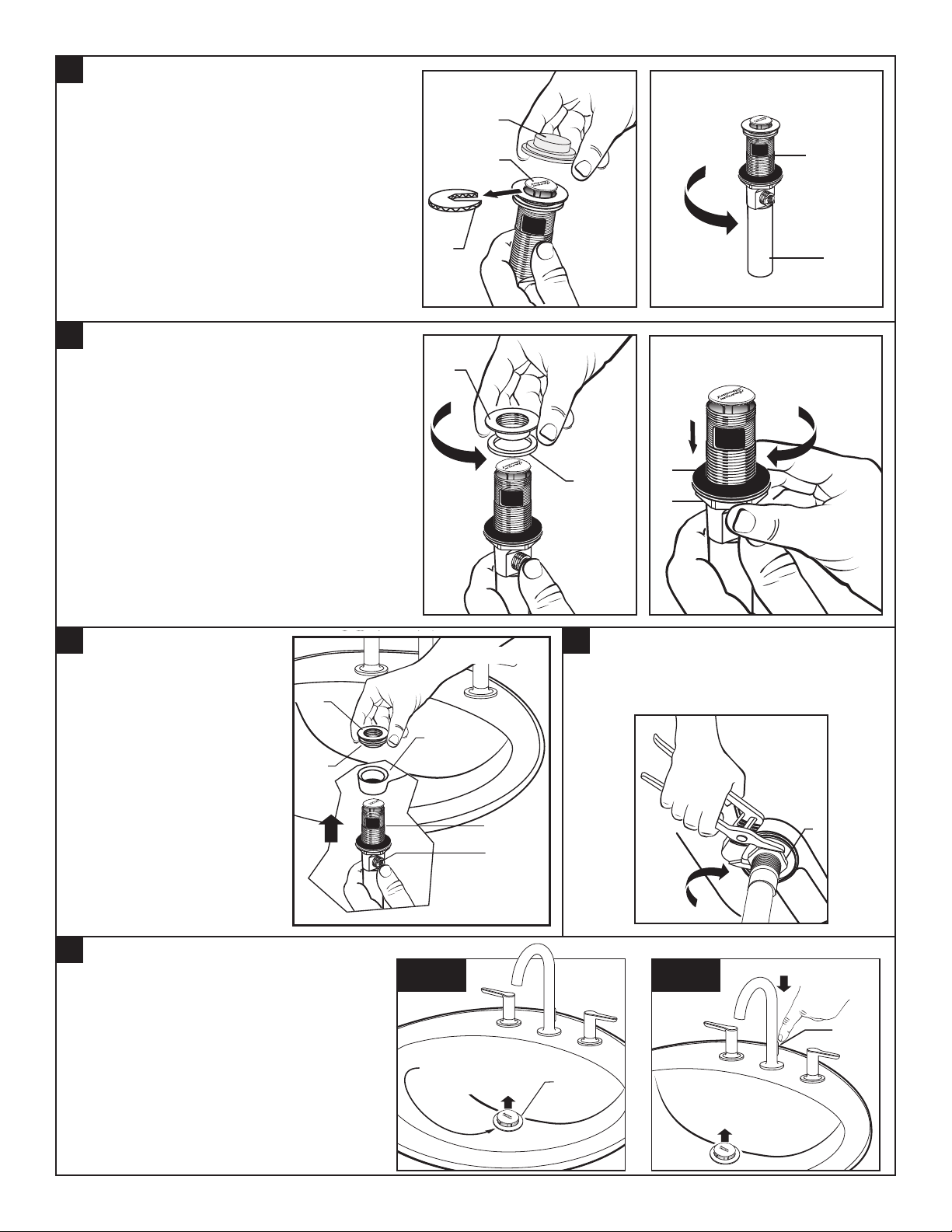

POP-UP DRAIN
Fig. A. Fig. B.
• Remove CLEAR PLASTIC COVER (1).
• Remove CARDBOARD SPACER (2) from under
DRAIN POP-UP (3).
• Tighten TAIL PIECE (4) on DRAIN BODY before
installing DRAIN BODY. Fig. B.
3
REMOVE FLANGE
• Thread FLANGE (1) counter-clockwise and
remove FLANGE (1) and FOAM GASKET (2)
from drain body. Fig. A.
• Thread LOCKNUT (3) clock-wise to bottom of
drain body. Push GASKET (4) down against
LOCKNUT (3). Fig. B.
2
Fig. A.
1
1
3
DRAIN
BODY
4
Fig. B.
2
4
3
4
INSTALL DRAIN FROM
BELOW FIXTURE
• From under side of SINK
install DRAIN BODY (1) up
through drain outlet.
Note: No plumber’s putty
or caulk is required.
The CABLE ATTACHMENT
POINT (2) must face towards
the rear of the SINK.
• Install FOAM GASKET (3) on
to bottom of ange and
assemble FLANGE (4) onto
drain body from above sink
and tighten FLANGE (4) rmly.
6
FLANGE GASKET AND POP-UP KNOB
• Check DRAIN FLANGE in SINK to ensure that
WHITE FOAM GASKET (3) is fully compressed
and not visible. Fig. A.
• P O P -UP KNOB (1) must be pressed completely
down Fig.B while pop up is in the full up
position.
4
3
5
REAR OF SINK
DRAIN
OUTLET
TIGHTEN LOCKNUT
• Tighten LOCKNUT (1) rmly with Adjustable
Wrench or Channel Locks.
1
2
Fig. A. Fig. B.
1
WHITE FOAM
GASKET
NOT VISIBLE
DRAIN
FLANGE
1
DOWN
2
- 2 -
M965780 Rev. 1.0 (1/18)
Page 3
7

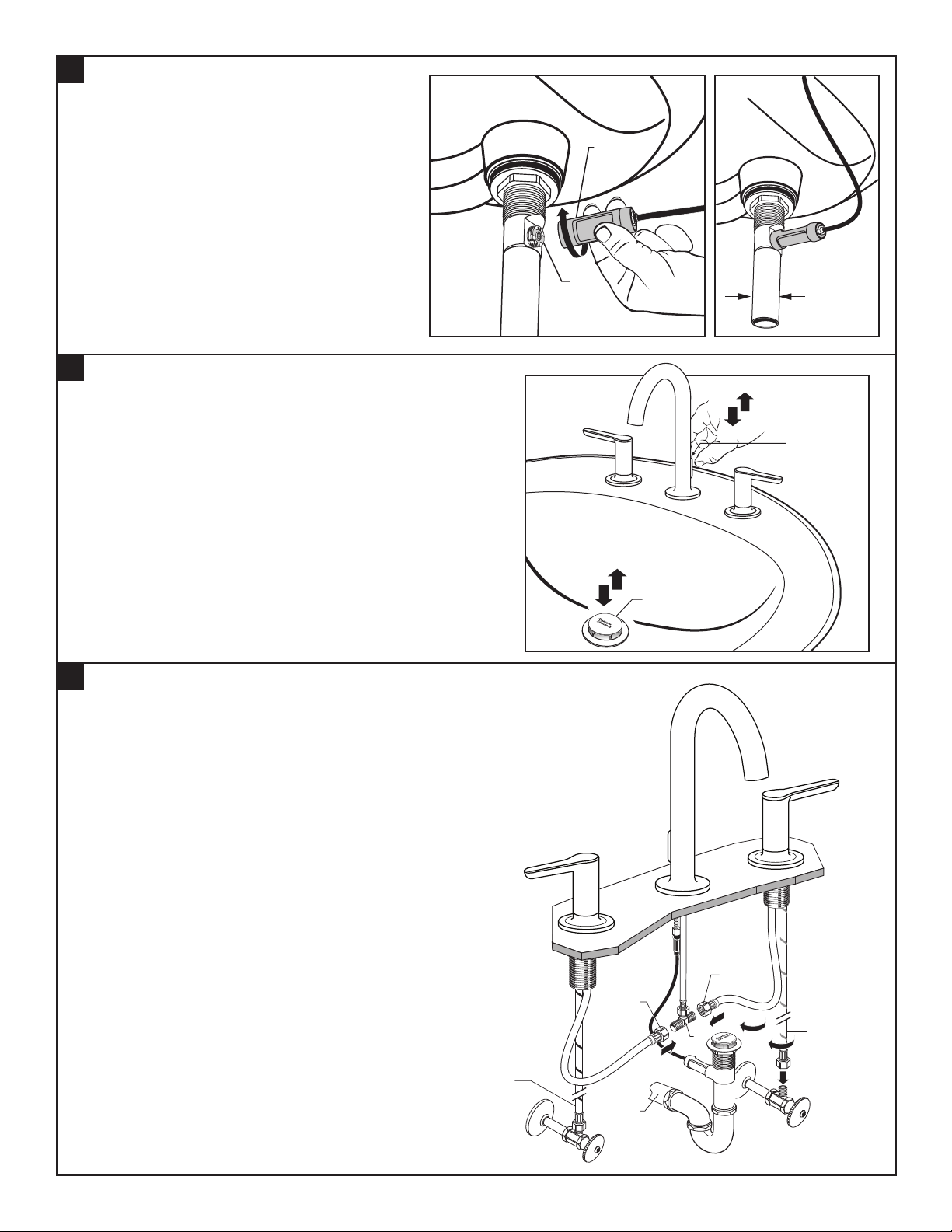

ATTACH CABLE CONNECTOR
• Thread CABLE CONNECTOR (1) clockwise
onto DRAIN BODY CONNECTION (2) and
hand tighten. Fig. A.
Your new POP-UP DRAIN installation is
now complete. Fig. B.
Note: Tail piece on pop-up drain is
1-1/4" O.D. Fig. B.
Fig. A.
Fig. B.
1
8
CHECK OPERATION OF POP-UP
• Operate LIFT KNOB (1) to verify that STOPPER (2) opens and
closes.
Note: If STOPPER (2) does not open and close properly then
refer to the “troubleshooting section” of these instructions.
9
MAKE WATER SUPPLY AND WASTE CONNECTIONS
• Connect FLEXIBLE SUPPLIES (1, 2) directly to wall supplies.
Connection on tting supplies are 3/8" compression.
Connect FLEXIBLE SUPPLY (1) (Marked with a Red Band) to the
Left wall supply and FLEXIBLE SUPPLY (2) (Marked with a Blue
Band) to Right wall supply.
• Connect the VALVE HOSES (3, 3a) to SPOUT TEE (4).
Use adjustable wrench to tighten connections.
Do not over tighten.
• Faucet supplies are 20" long from faucet base.
Note: If additional supply length is required, installer must
purchase additional parts separately.
Important: If SUPPLY HOSES (1, 2) are to long, loop as
illustrated to avoid kinking.
• Connect 1-1/4" O.D. tail piece on POP-UP DRAIN to
waste outlet.
2
1-1/4" O.D.
1
2
3a
3
Red Stripe (HOT)
1
- 3 -
WASTE
OUTLET
HOT
4
2
Blue Stripe
(C0LD)
COLD
M965780 Rev. 1.0 (1/18)
Page 4
10

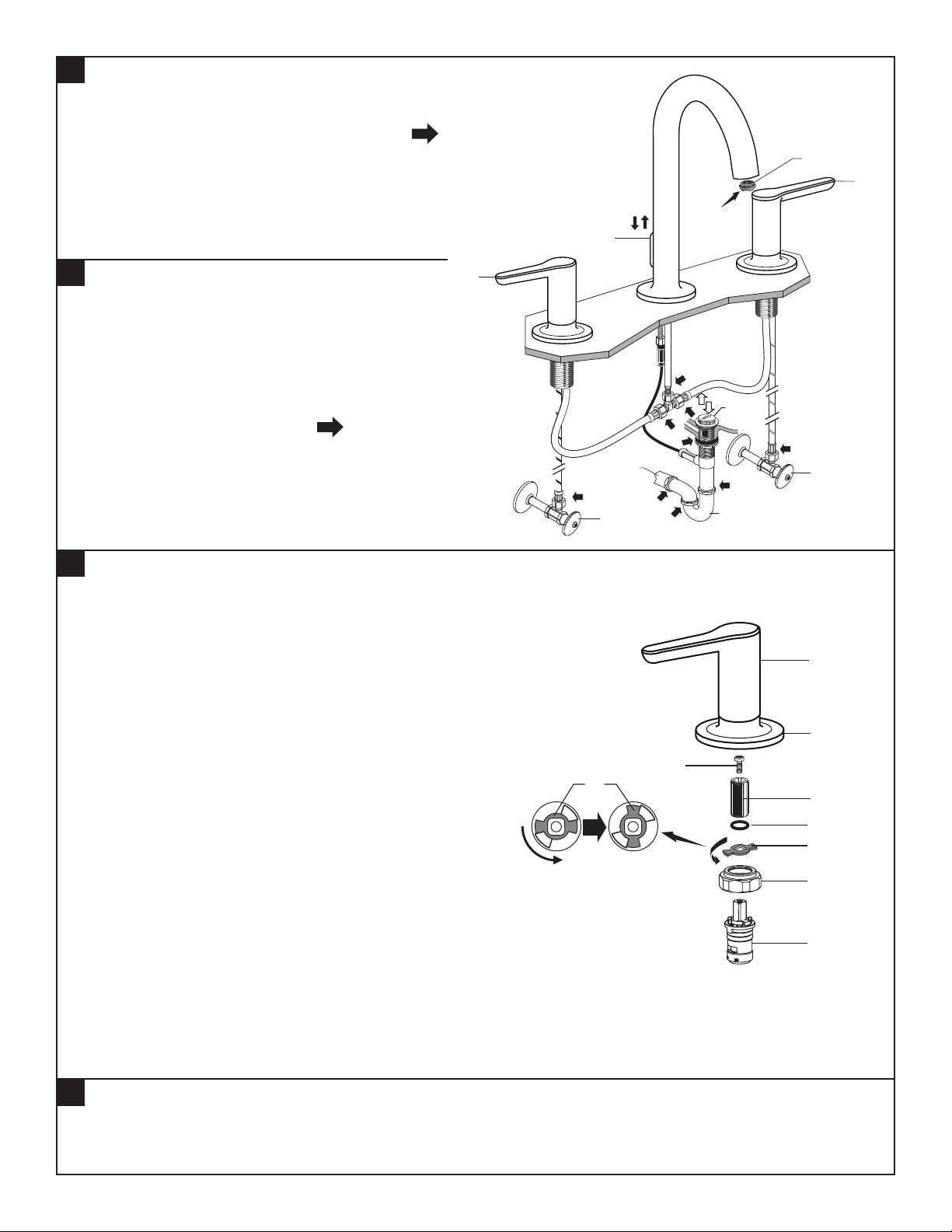

TEST INSTALLED FITTING
• With HANDLE (1) in OFF position, turn on WATER
SUPPLIES (2) and check all connections for leaks.
• Remove AERATOR (3).
• Operate HANDLE (1) to ush water lines thoroughly.
• Replace AERATOR (3).
3
1
5
11
CHECK DRAIN CONNECTIONS
• Operate POP-UP KNOB (5) and ll lavatory with water.
Check that DRAIN STOPPER (4) makes a good seal
and retains water in Sink. If DRAIN STOPPER (4)
does not seal properly, please refer to Troubleshooting
section in these instructions.
• Release POP-UP KNOB (5) down and check all drain
connections and “P” trap for leaks. Tighten
if necessary.
12
SERVICE
Change Direction of the Handle
• Turn valves to OFF position.
• Turn off water supplies.
• Pull HANDLE (1) “UP” rmly to release from ESCUTCHEON (6).
• Remove SCREW (3) and pull off PLASTIC INSERT (2).
• Remove CARTRIDGE NUT (8).
• Remove RETAINING O-RING (4).
• Lift and turn STOP WASHER (5) 90˚. Replace RETAINING
O-RING (4).
• Re-install HANDLE ASSEMBLY.
To Change Cartridge:
• Remove HANDLE (1), ADAPTER (2), SCREW (3) and CARTRIDGE
NUT (8) via steps above.
• Remove cartridge by pulling upward on stem.
1
4
HOT
WASTE
OUTLET
2
“P” TRAP
2
COLD
1
6
3
5
2
4
5
90˚
90˚
8
Aerator Clean Out
• AERATOR may accumulate dirt causing distorted and reduced
water ow. Remove AERATOR by using the edge of a coin
and rinse to clear any debris.
• If spout drips, operate handles several times from OFF to ON
position. Do not force - handles turn only 90˚.
13
CARE INSTRUCTIONS:
DO: SIMPLY RINSE THE PRODUCT CLEAN WITH CLEAR WATER. DRY WITH A SOFT COTTON FLANNEL CLOTH.
DO NOT: DO NOT CLEAN THE PRODUCT WITH SOAPS, ACID, POLISH, ABRASIVES, HARSH CLEANERS, OR A
CLOTH WITH A COARSE SURFACE.
- 4 -
M965780 Rev. 1.0 (1/18)
7
Page 5
Speed Connect® Drain
Troubleshooting Guide
If sink does not hold water even though Stopper is in the “down” position:
• Follow CABLE ADJUSTMENT PROCEDURE.
If Stopper does not raise up fully or sink drains too slowly:
• Follow CABLE ADJUSTMENT PROCEDURE.
If you need to remove the Stopper:
• Follow STOPPER REMOVAL PROCEDURE.
If you would like the ability to remove your Stopper simply by lifting it out of the drain:
• Follow STOPPER INSTALLATION PROCEDURE for “Unlocked” mode.

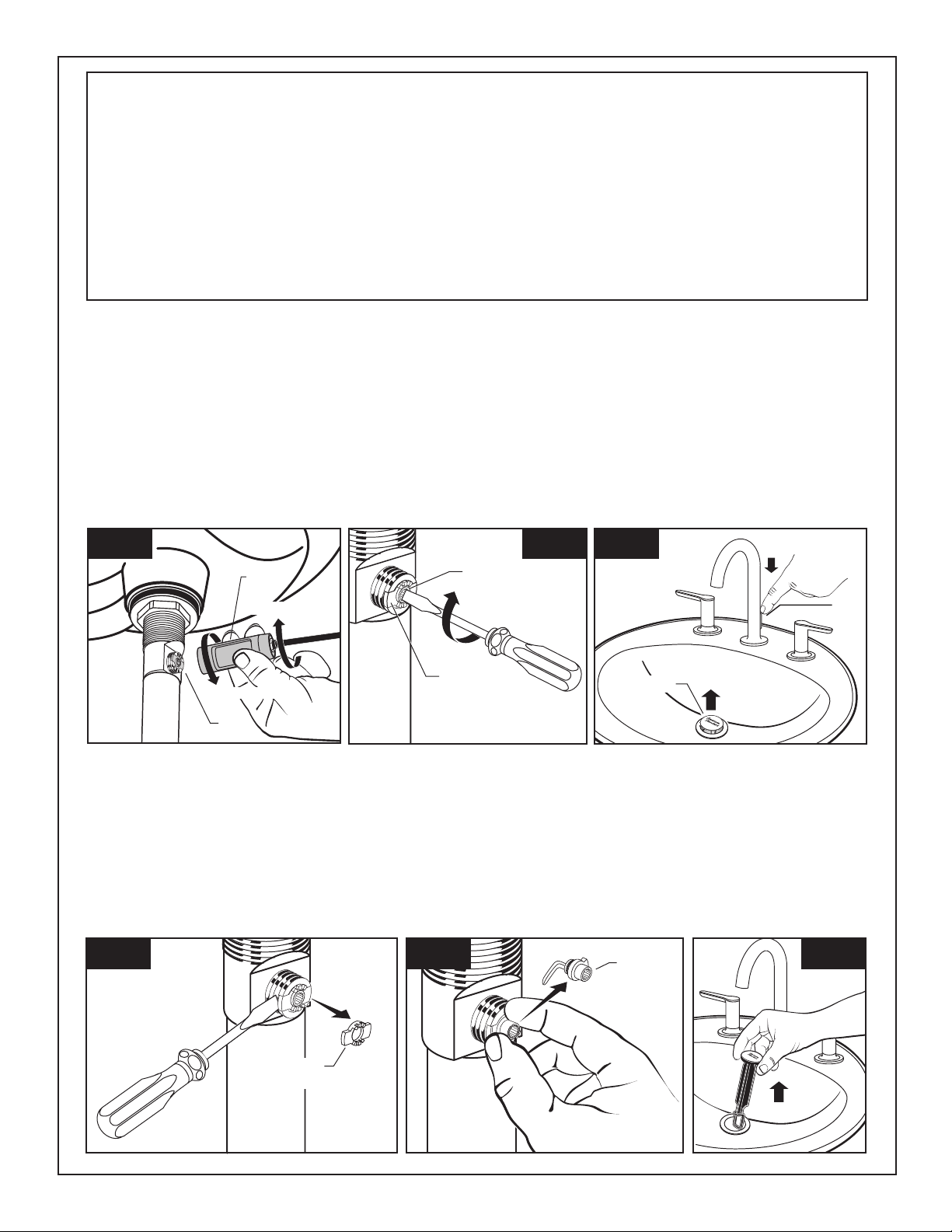

CABLE ADJUSTMENT PROCEDURE
• Disconnect the Cable from the Drain by threading the Cable Connector (1) counter-clockwise. Fig. A.
• Look at the area on the Drain Body where the Cable was attached and locate the component labeled as
“Cam” in the illustration. Fig. B.
• Use a small screwdriver to rotate the Cam in the clockwise direction as far as it will go. At this point the
Stopper should be in the UP position. Fig. B, C.
• Push DOWN on the Lift-Knob to make sure it is fully down. Fig. C.
• Re-attach the Cable to the Drain Body Connection (2) by threading the Cable Connector (1) clockwise onto the
Drain Body Connection (2) and hand-tighten. Fig. A.
1
RE-ATTACH
DISCONNECT
Fig. B.Fig. A.
CAM
CAM CAP
Fig. C.
STOPPER
2
STOPPER REMOVAL PROCEDURE
• Disconnect the Cable from the Drain by threading the Cable Connector (1) counter-clockwise. Fig. A.
• Look at the area on the Drain Body where the Cable was attached and locate the component labeled
as “Cam” and “Cam Cap” in the illustration. Fig. B.
• Use ngers or small screwdriver under either side of the Cam Cap to pry it out from the Drain. Fig. D.
• Remove the Cam by pulling it straight out while wiggling gently to loosen the Rubber Seal. Fig. E.
• The Stopper can now be removed by lifting it out of the Drain. Fig. F.
Fig. E.Fig. D.
REMOVE
CAM
DOWN
3
Fig. F.
REMOVE
CAM CAP
- 5 -
M965780 Rev. 1.0 (1/18)
Page 6

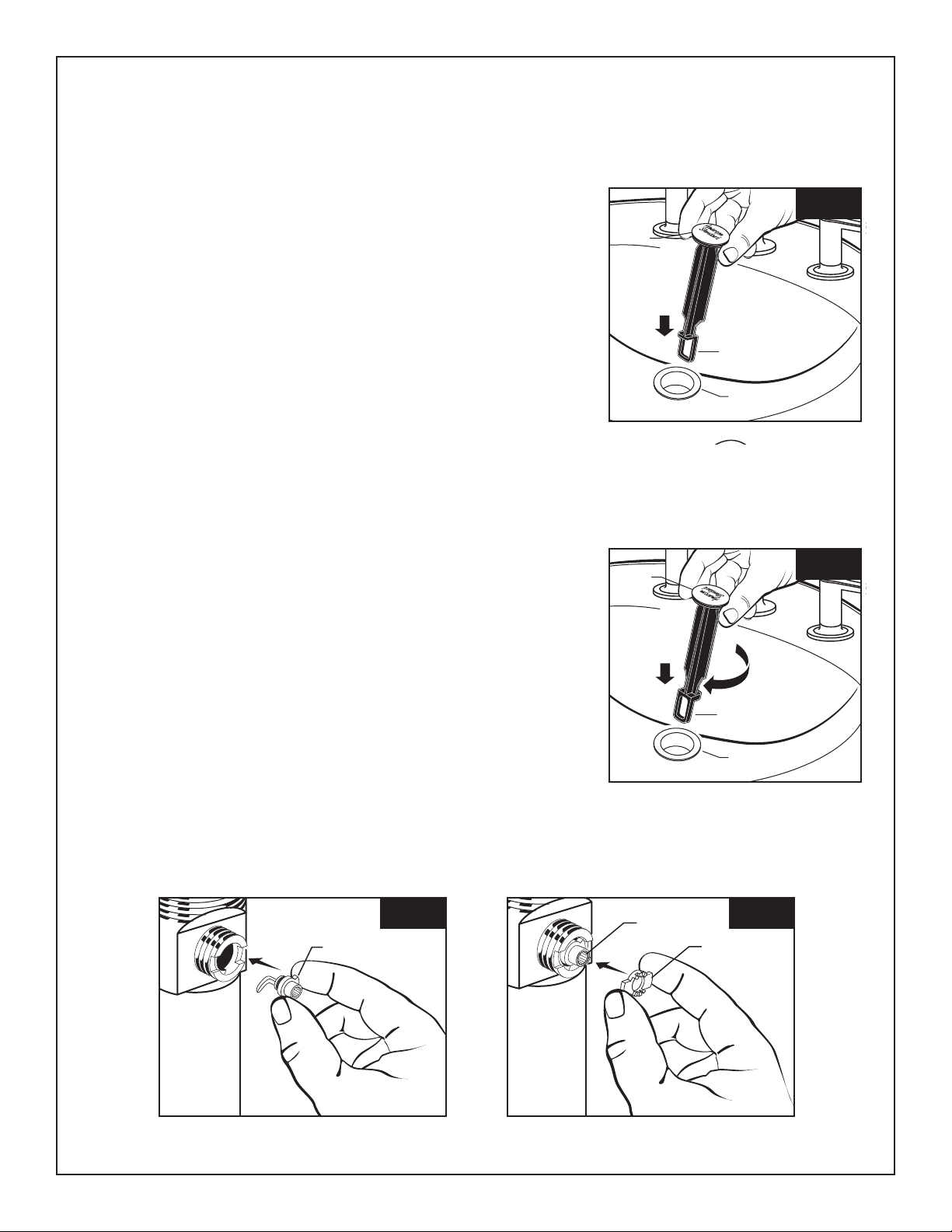

STOPPER INSTALLATION PROCEDURE
The Stopper can be installed two ways, “Locked” Mode (Stopper cannot be
removed) or “Unlock” Mode (Stopper is removable).
Locked Mode:
• Look at the Plastic Loop at the bottom of the Stopper and notice that the
Loop is on one side of the Stopper. Fig. G.
• To install the stopper in “Locked” mode, insert the Stopper into the Drain so
LOGO
that the Plastic Loop is facing toward the rear of the Sink and the American
Standard logo is facing front. Rotate Stopper slightly if necessary so that the
Stopper slides all the way down. Fig. G.
• Re-install the Cam into the Drain, rotating the Cam if necessary to make sure
it is fully inserted. Fig. J.
• Re-install the Cam Cap, making sure the guide teeth are facing outward. If
the Cam Cap does not “snap” into place, then rotate the Cam to make sure
it is fully inserted. Fig. K.
• Re-attach Cable. See “CABLE ADJUSTMENT PROCEDURE” in Troubling
Shooting Guide to complete installation. Stopper will be in “Locked” mode
and not be removable.
Unlocked Mode:
• Look at the Plastic Loop at the bottom of the Stopper and notice that the
Loop is on one side of the Stopper. Fig. H.
• To install the stopper in “Unlocked” mode, insert the Stopper into the Drain
so that the Plastic Loop is facing toward the front of the Sink and the American
Standard logo is facing rear. Rotate Stopper slightly if necessary so that the
Stopper slides all the way down. Fig. H.
• Re-install the Cam into the Drain, rotating the Cam if necessary to make sure it
is fully inserted. Fig. J.
• Re-install the Cam Cap, making sure the guide teeth are facing outward. If the
Cam Cap does not “snap” into place, then rotate the Cam to make sure it is
fully inserted. Fig. K.
• Re-attach Cable. See “CABLE ADJUSTMENT PROCEDURE” in
“Troubleshooting Guide” to complete installation. Stopper will be in “Unlocked”
mode and removable.
LOGO
Fig. G.
LOOP TOWARD
REAR OF SINK
DRAIN
Locked Mode
(Vandal Proof)
Fig. G.
180˚
LOOP TOWARD
FRONT OF SINK
DRAIN
Fig. J. Fig. K.
INSTALL CAM
- 6 -
Unlocked Mode
CAM
INSTALL
CAM CAP
M965780 Rev. 1.0 (1/18)
Page 7

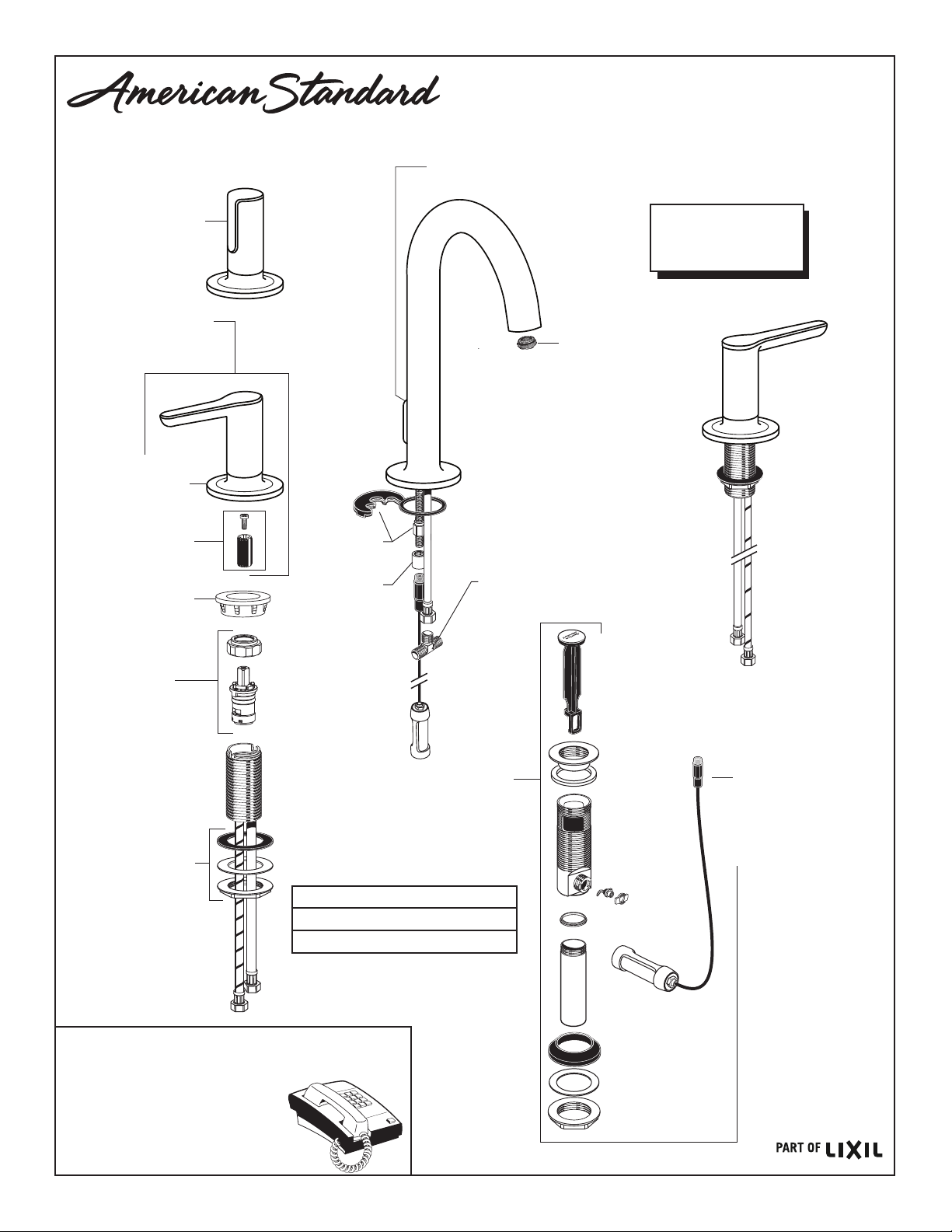

M970247-YYY0A
LIFT ROD AND KNOB
STUDIO® S
DUAL CONTROL WIDESPREAD
LAVATORY FAUCET
WITH SPEED CONNECT® DRAIN
MODEL NUMBERS
M970272-YYY0A
HANDLE KIT
M970233-YYY0A
LEVER HANDLE
M970246-YYY0A
ESCUTCHEON
M964055-0070A
SCREW & ADAPTER
M911116-0070A
SPACER VALVE
KIT
M962492-0070A
MOUNTING KIT
M918462-0070A
CABLE ADAPTER
M904521-0070A
T-CONNECTOR
M923838-0070A
AERATOR
7105.801
7105.821
M964005-0070A
CARTRIDGE
M961634-0070A
MOUNTING KIT
VALVE
Replace the “YYY” with
appropriate finish code
POLISHED CHROME 002
BRUSHED NICKEL 295
MATTE BLACK 243
HOT LINE FOR HELP
For toll-free information and answers to your questions, call:
1 (800) 442-1902
Mon. - Fri. 8:00 a.m. to 8:00 p.m. EST
Saturday 10:00 a.m. to 4:00 p.m. EST
IN CANADA 1-800-387-0369
(TORONTO 1-905-306-1093)
Weekdays 8:00 a.m. to 7:00 p.m. EST
IN MEXICO 01-800-839-1200
M952425-YYY0A
DRAIN ASSEMBLY
- 7 -
M952430-0070A
CABLE ASSEMBLY
M965780 Rev. 1.0 (1/18)
Loading...
