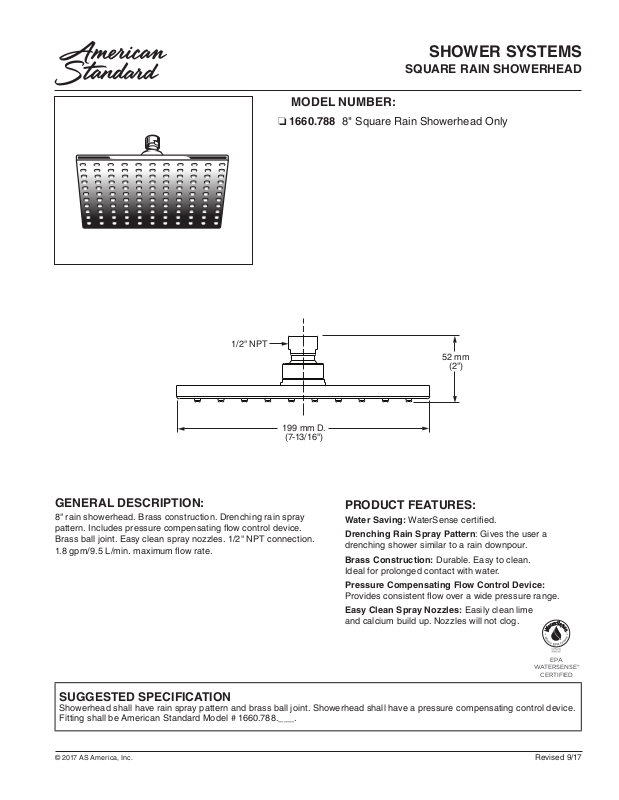

Page 1
1/2" NPT
SHOWER SYSTEMS
SQUARE RAIN SHOWERHEAD
MODEL NUMBER:
❏ 1660.788 8" Square Rain Showerhead Only
52 mm
(2")
199 mm D.
(7-13/16")
GENERAL DESCRIPTION:
8" rain showerhead. Brass construction. Drenching rain spray
pattern. Includes pressure compensating ow control device.
Brass ball joint. Easy clean spray nozzles. 1/2" NPT connection.
1.8 gpm/9.5 L/min. maximum ow rate.
PRODUCT FEATURES:
Water Saving: WaterSense certied.
Drenching Rain Spray Pattern: Gives the user a
drenching shower similar to a rain downpour.
Brass Construction: Durable. Easy to clean.
Ideal for prolonged contact with water.
Pressure Compensating Flow Control Device:
Provides consistent ow over a wide pressure range.
Easy Clean Spray Nozzles: Easily clean lime
and calcium build up. Nozzles will not clog.
EPA
WATERSENSE®
CERTIFIED
SUGGESTED SPECIFICATION
Showerhead shall have rain spray pattern and brass ball joint. Showerhead shall have a pressure compensating control device.
Fitting shall be American Standard Model # 1660.788.___.
© 2017 AS America, Inc.
Revised 9/17
Page 2
SHOWER SYSTEMS
SQUARE RAIN SHOWERHEAD
CODES AND STANDARDS
These products meet or exceed the following
codes and standards:
ASME A112 .18 .1
CSA B125.1
Product
Number Description
1660.788
Showerhead Accessories
8" Square Rain Showerhead Only
FLOW RATE
1.8
1.7
1.6
1.5
0
GALLONS PER MINUTE
INL ET PRESSURE ( PSI )
80604020
Finish Options
Polished
Nickel
013 278 002 295
Legacy
Bronze
Polished
Chrome
Brushed
Nickel
Product
Number Description
16 60.10 3
1660.186
16 60.19 0
16 60.194
16 6 0 .118
16 60.191
3" Ceiling Mount Shower Arm
6" Ceiling Mount Shower Arm
12" Ceiling Mount Shower Arm
12" Wall Mount Right Angle
Shower Arm
18" Wall Mount Right Angle
Shower Arm
Square Shower Arm Escutcheon
© 2017 AS America, Inc.
Revised 9/17
