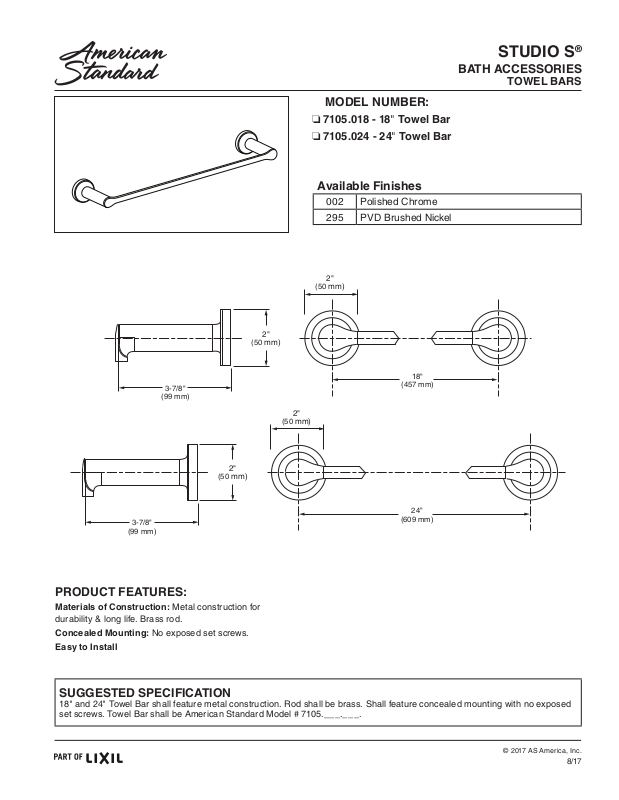

Page 1
2"
(50 mm)
MODEL NUMBER:
❏ 7105.018 - 18" Towel Bar
❏ 7105.024 - 24" Towel Bar
Available Finishes
002 Polished Chrome
295 PVD Brushed Nickel
2"
(50 mm)
STUDIO S
BATH ACCESSORIES
TOWEL BARS
®
3-7/8"
(99 mm)
2"
(50 mm)
3-7/8"
(99 mm)
PRODUCT FEATURES:
Materials of Construction: Metal construction for
durability & long life. Brass rod.
Concealed Mounting: No exposed set screws.
Easy to Install
18"
(457 mm)
2"
(50 mm)
24"
(609 mm)
SUGGESTED SPECIFICATION
18" and 24" Towel Bar shall feature metal construction. Rod shall be brass. Shall feature concealed mounting with no exposed
set screws. Towel Bar shall be American Standard Model # 7105.___.___.
© 2017 AS America, Inc.
8/ 17
Page 2
MODEL NUMBER:
❏ 7105.190 - Towel Ring
Available Finishes
002 Polished Chrome
295 PVD Brushed Nickel
STUDIO S
BATH ACCESSORIES
TOWEL RING
®
2-3/16"
(56 mm)
2"
(50 mm)
PRODUCT FEATURES:
Materials of Construction: Metal construction for
durability & long life. Bushing on towel ring to prevent
scratching and squeaking
Concealed Mounting: No exposed set screws.
Easy to Install
2"
(50 mm)
3-3/16"
(80 mm)
7-3/4" DIA.
(195 mm)
SUGGESTED SPECIFICATION
Towel Ring shall feature metal construction. Shall feature concealed mounting with no exposed set screws. Towel Ring shall be
American Standard Model # 7105.190.___.
© 2017 AS America, Inc.
8/ 17
