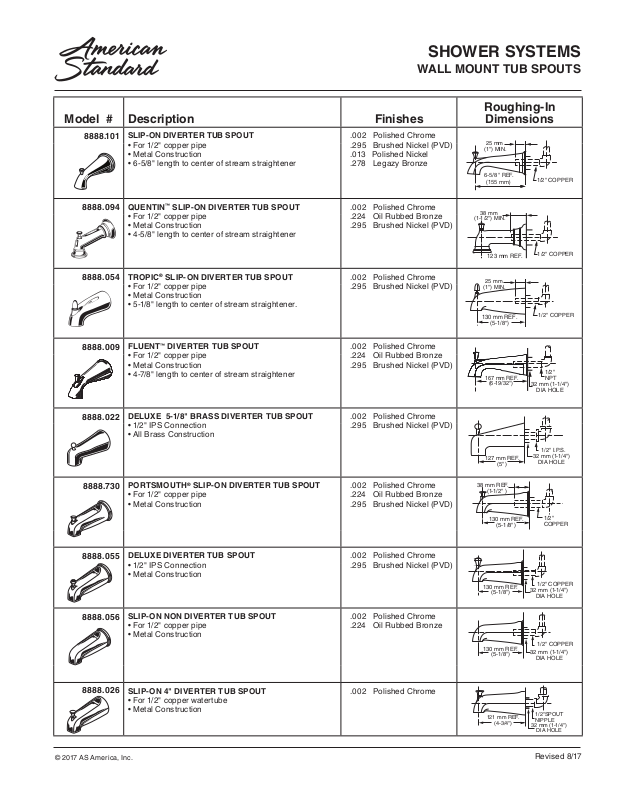

Model # Description Finishes
8888.101
SLIP-ON DIVERTER TUB SPOUT
• For 1/2" copper pipe
• Metal Construction
• 6-5/8" length to center of stream straightener
.002 Polished Chrome
.295 Brushed Nickel (PVD)
.013 Polished Nickel
.278 Legazy Bronze
SHOWER SYSTEMS
WALL MOUNT TUB SPOUTS
Roughing-In
Dimensions
25 mm
(1") MIN.
6-5/8" REF.
(155 mm)
1/2" COPPER
8888.094
8888.054
8888.009
8888.022
8888.730
QUENTIN™ SLIP-ON DIVERTER TUB SPOUT
• For 1/2" copper pipe
• Metal Construction
• 4-5/8" length to center of stream straightener
TROPIC® SLIP-ON DIVERTER TUB SPOUT
• For 1/2" copper pipe
• Metal Construction
• 5-1/8" length to center of stream straightener.
FLUENT™ DIVERTER TUB SPOUT
• For 1/2" copper pipe
• Metal Construction
• 4-7/8" length to center of stream straightener
DELUXE 5-1/8" BRASS DIVERTER TUB SPOUT
• 1/2" IPS Connection
• All Brass Construction
PORTSMOUTH® SLIP-ON DIVERTER TUB SPOUT
• For 1/2" copper pipe
• Metal Construction
.002 Polished Chrome
.224 Oil Rubbed Bronze
.295 Brushed Nickel (PVD)
.002 Polished Chrome
.295 Brushed Nickel (PVD)
.002 Polished Chrome
.224 Oil Rubbed Bronze
.295 Brushed Nickel (PVD)
.002 Polished Chrome
.295 Brushed Nickel (PVD)
.002 Polished Chrome
.224 Oil Rubbed Bronze
.295 Brushed Nickel (PVD)
38 mm
(1-1/2") MIN.
25 mm
(1") MIN.
130 mm REF.
(
5-1/8")
167 mm REF.
(6-19/32")
127 mm REF.
(5")
38 mm REF.
(1-1/2" )
130 mm REF.
(5-1/8")
1/2" COPPER
1/2" COPPER
1/2"
NPT
32 mm (1-1/4")
DIA HOLE
1/2" I.P.S.
32 mm (1-1/4")
DIA HOLE
1/2"
COPPER
8888.055
8888.056
8888.026
© 2017 AS America, Inc.
DELUXE DIVERTER TUB SPOUT
• 1/2" IPS Connection
• Metal Construction
SLIP-ON NON DIVERTER TUB SPOUT
• For 1/2" copper pipe
• Metal Construction
SLIP-ON 4" DIVERTER TUB SPOUT
• For 1/2" copper watertube
• Metal Construction
.002 Polished Chrome
.295 Brushed Nickel (PVD)
.002 Polished Chrome
.224 Oil Rubbed Bronze
.002 Polished Chrome
130 mm REF.
(5-1/8")
130 mm REF.
(5-1/8")
121 mm REF.
(4-3/4")
1/2" COPPER
32 mm (1-1/4")
DIA HOLE
1/2" COPPER
32 mm (1-1/4")
DIA HOLE
1/2"SPOUT
NIPPLE
32 mm (1-1/4")
DIA HOLE
Revised 8/17
