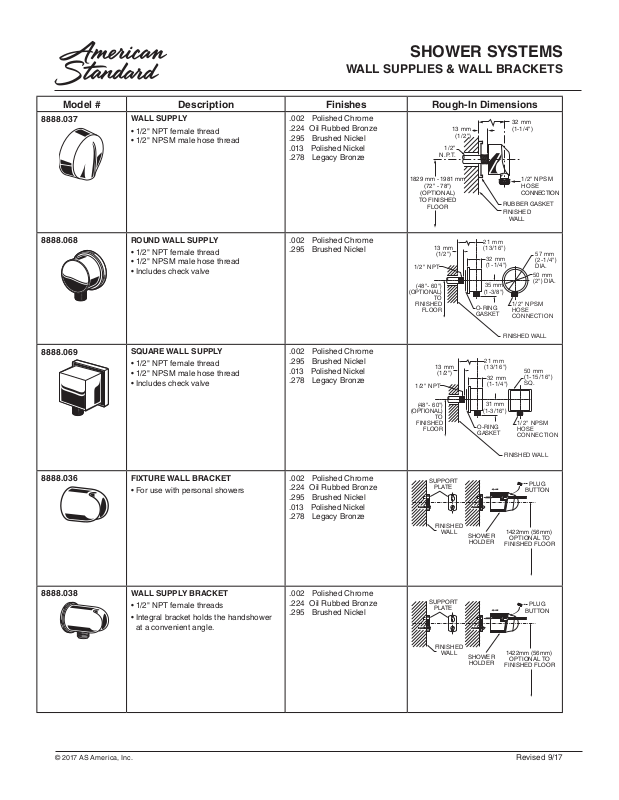

SHOWER SYSTEMS
WALL SUPPLIES & WALL BRACKETS

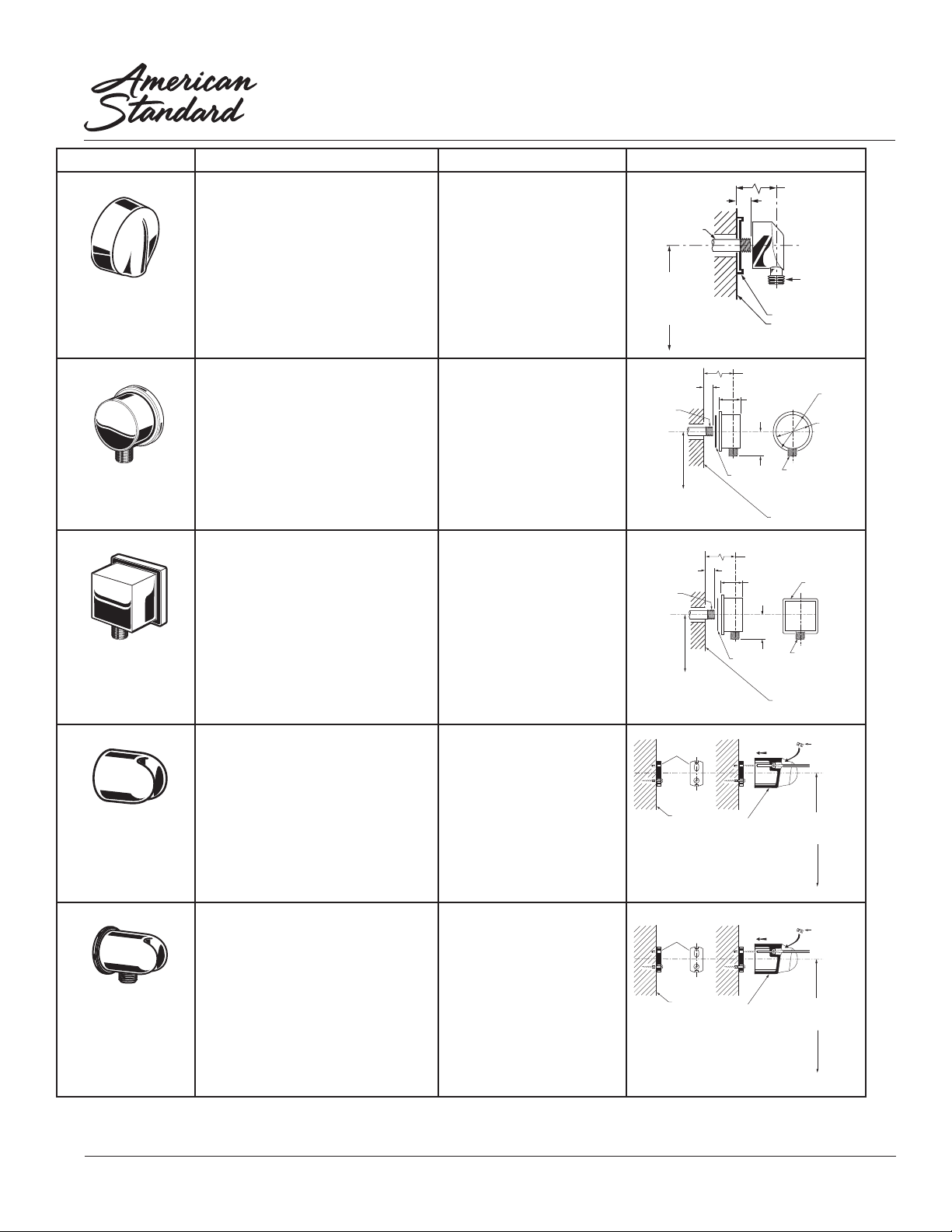

Model # Description Finishes Rough-In Dimensions
8888.037
WALL SUPPLY
• 1/2" NPT female thread
• 1/2" NPSM male hose thread
.002 Polished Chrome
.224 Oil Rubbed Bronze
.295 Brushed Nickel
.013 Polished Nickel
.278 Legacy Bronze
1/2"
N.P.T.
13 mm
(1/2")
32 mm
(1-1/4")
8888.068
8888.069
ROUND WALL SUPPLY
• 1/2" NPT female thread
• 1/2" NPSM male hose thread
• Includes check valve
SQUARE WALL SUPPLY
• 1/2" NPT female thread
• 1/2" NPSM male hose thread
• Includes check valve
.002 Polished Chrome
.295 Brushed Nickel
.002 Polished Chrome
.295 Brushed Nickel
.013 Polished Nickel
.278 Legacy Bronze
1829 mm - 1981 mm
(72" - 78")
(OPTIONAL)
TO FINISHED
FLOOR
13 mm
(1/2")
1/2" NPT
(48"- 60")
(OPTIONAL)
TO
FINISHED
FLOOR
13 mm
(1/2")
1/2" NPT
(48"- 60")
(OPTIONAL)
TO
FINISHED
FLOOR
21 mm
(13/16")
32 mm
(1-1/4")
35 mm
(1-3/8")
O-RING
GASKET
21 mm
(13/16")
32 mm
(1-1/4")
31 mm
(1-3/16")
O-RING
GASKET
1/2" NPSM
HOSE
CONNECTION
RUBBER GASKET
FINISHED
WALL
57 mm
(2-1/4")
DIA.
50 mm
(2") DIA.
1/2" NPSM
HOSE
CONNECTION
FINISHED WALL
50 mm
(1-15/16")
SQ.
1/2" NPSM
HOSE
CONNECTION
FINISHED WALL
8888.036
8888.038
© 2017 AS America, Inc.
FIXTURE WALL BRACKET
• For use with personal showers
WALL SUPPLY BRACKET
• 1/2" NPT female threads
• Integral bracket holds the handshower
at a convenient angle.
.002 Polished Chrome
.224 Oil Rubbed Bronze
.295 Brushed Nickel
.013 Polished Nickel
.278 Legacy Bronze
.002 Polished Chrome
.224 Oil Rubbed Bronze
.295 Brushed Nickel
SUPPORT
PLATE
FINISHED
WALL
SUPPORT
PLATE
FINISHED
WALL
SHOWER
HOLDER
SHOWER
HOLDER
PLUG
BUTTON
1422mm (56mm)
OPTIONAL TO
FINISHED FLOOR
PLUG
BUTTON
1422mm (56mm)
OPTIONAL TO
FINISHED FLOOR
Revised 9/17
