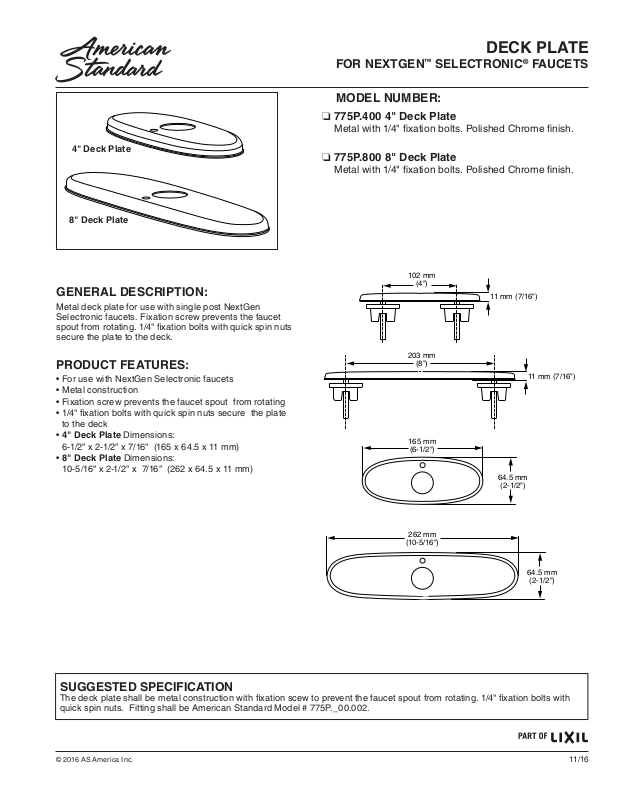

DE CK PL ATE
FOR NEXTGEN™ SELECTRONIC® FAUCETS
MODEL NUMBER:
❏ 775P.400 4" Deck Plate
Metal with 1/4" xation bolts. Polished Chrome nish.
4" Deck Plate
8" Deck Plate
GENERAL DESCRIPTION:
Metal deck plate for use with single post NextGen
Selectronic faucets. Fixation screw prevents the faucet
spout from rotating. 1/4" xation bolts with quick spin nuts
secure the plate to the deck.
PRODUCT FEATURES:
• For use with NextGen Selectronic faucets
• Metal construction
• Fixation screw prevents the faucet spout from rotating
• 1/4" xation bolts with quick spin nuts secure the plate
to the deck
• 4" Deck Plate Dimensions:
6-1/2" x 2-1/2" x 7/16" (165 x 64.5 x 11 mm)
• 8" Deck Plate Dimensions:
10-5/16" x 2-1/2" x 7/16" (262 x 64.5 x 11 mm)
❏ 775P.800 8" Deck Plate
Metal with 1/4" xation bolts. Polished Chrome nish.
102 mm
(4")
11 mm (7/16")
203 mm
(8")
11 mm (7/16")
165 mm
(6-1/2")
64.5 mm
(2-1/2")
262 mm
(10-5/16")
64.5 mm
(2-1/2")
SUGGESTED SPECIFICATION
The deck plate shall be metal construction with xation scew to prevent the faucet spout from rotating. 1/4" xation bolts with
quick spin nuts. Fitting shall be American Standard Model # 775P._00.002.
© 2016 AS America Inc.
11/ 16
