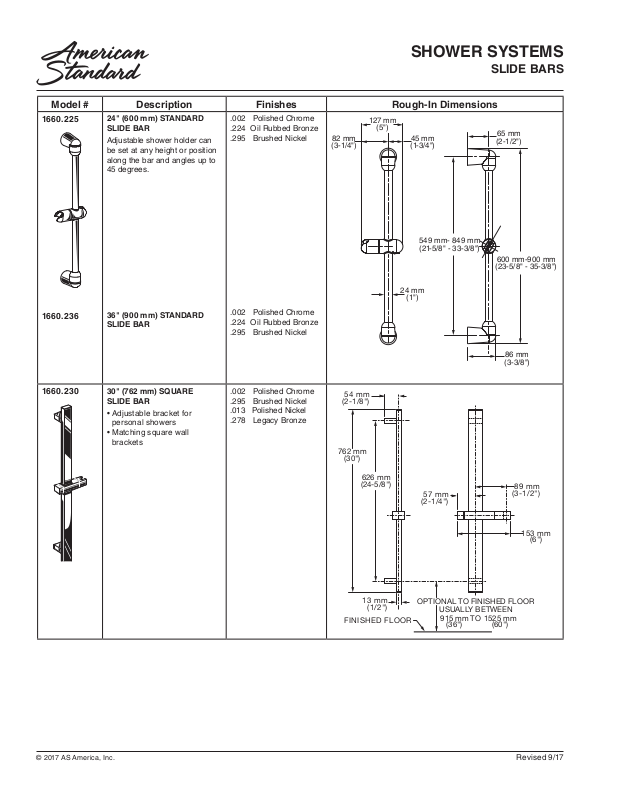

SHOWER SYSTEMS
Model # Description Finishes Rough-In Dimensions
1660.225
1660.236
24" (600 mm) STANDARD
SLIDE BAR
Adjustable shower holder can
be set at any height or position
along the bar and angles up to
45 degrees.
36" (900 mm) STANDARD
SLIDE BAR
.002 Polished Chrome
.224 Oil Rubbed Bronze
.295 Brushed Nickel
.002 Polished Chrome
.224 Oil Rubbed Bronze
.295 Brushed Nickel
82 mm
(3-1/4")
127 mm
(5")
45 mm
(1-3/4")
549 mm- 849 mm
(21-5/8" - 33-3/8")
24 mm
(1")
SLIDE BARS
65 mm
(2-1/2")
600 mm-900 mm
(23-5/8" - 35-3/8")
1660.230
30" (762 mm) SQUARE
SLIDE BAR
• Adjustable bracket for
personal showers
• Matching square wall
brackets
.002 Polished Chrome
.295 Brushed Nickel
.013 Polished Nickel
.278 Legacy Bronze
54 mm
(2-1/8")
762 mm
(30")
626 mm
(24-5/8")
13 mm
(1/2")
FINISHED FLOOR
86 mm
(3-3/8")
89 mm
1525 mm
(60")
(3-1/2")
153 mm
57 mm
(2-1/4")
OPTIONAL TO FINISHED FLOOR
USUALLY BETWEEN
915 mm
TO
(36")
(6")
© 2017 AS America, Inc.
Revised 9/17
Page 2
SHOWER SYSTEMS
Model # Description Finishes Rough-In Dimensions
1660.330
30" (762 mm) ROUND
SLIDE BAR
• Adjustable bracket for
personal showers
• Round wall ange
.002 Polished Chrome
55 mm
(2-3/16")
ESCUTCHEON
60 mm
(2-3/8") DIA.
SLIDE BARS
1660.530
29" (737 mm) ELLIPTIC
SLIDE BAR
• Adjustable bracket for
personal showers
• Square wall ange brackets
• 45° pivoting bar
.002 Polished Chrome
762 mm
(30")
625 mm
(24-5/8")
FINISHED FLOOR
61 mm
(2-3/8")
735 mm
(29")
625 mm
(24-5/8")
20 mm
(13/16") DIA.
44 mm
(1-3/8")
OPTIONAL TO FINISHED FLOOR
USUALLY BETWEEN
915 mm
1525 mm
TO
(36")
A A
Section A-A
(4-15/16")
60 mm
(2-3/8")
105 mm
(4-1/8")
(60")
125 mm
© 2017 AS America, Inc.
FINISHED FLOOR
54 mm
(2-1/8")
65 mm
(2-9/16")
OPTIONAL TO FINISHED FLOOR
USUALLY BETWEEN
915 mm
(36")
1525 mm
TO
(60")
Revised 9/17
