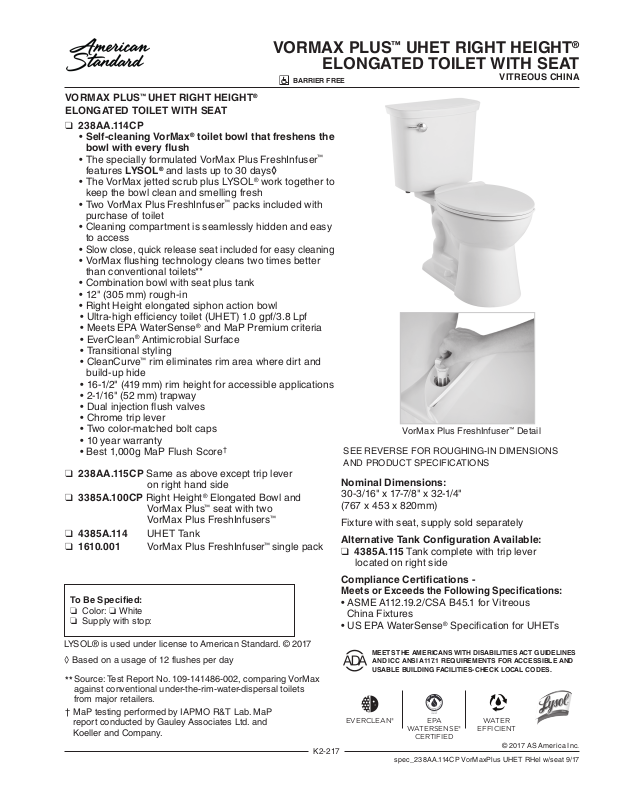

VORMAX PLUS™ UHET RIGHT HEIGHT®
CT GUIDELINES
BARRIER FREE
Source: Test Report No. 109-141486-002, comparing VorMax
against conventional under-the-rim-water-dispersal toilets
from major retailers.

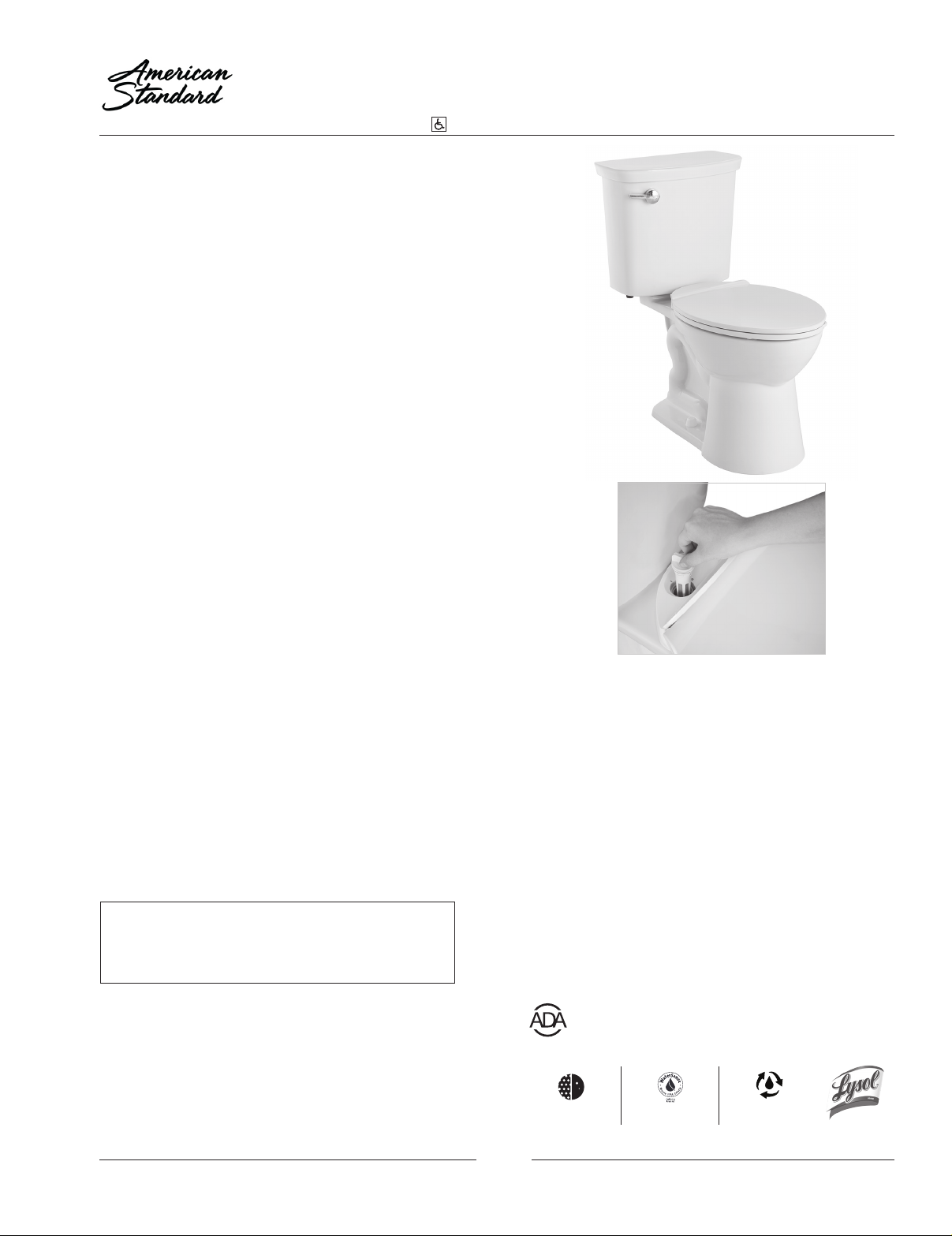

VORMAX PLUS™ UHET RIGHT HEIGHT®
ELONGATED TOILET WITH SEAT
❑ 238AA .114CP
• Self-cleaning VorMax® toilet bowl that freshens the
bowl with every ush
• The specially formulated VorMax Plus FreshInfuser™
features LYSO L® and lasts up to 30 days◊
• The VorMax jetted scrub plus LYSOL® work together to
keep the bowl clean and smelling fresh
• Two VorMax Plus FreshInfuser™ packs included with
purchase of toilet
• Cleaning compartment is seamlessly hidden and easy
to access
•
Slow close, quick release seat included for easy cleaning
• VorMax ushing technology cleans two times better
than conventional toilets**
• Combination bowl with seat plus tank
• 12" (305 mm) rough-in
• Right Height elongated siphon action bowl
• Ultra-high efficiency toilet (UHET) 1.0 gpf/3.8 Lpf
• Meets EPA WaterSense® and MaP Premium criteria
• EverClean® Antimicrobial Surface
• Transitional styling
• CleanCurve™ rim eliminates rim area where dirt and
build-up hide
• 16-1/2" (419 mm) rim height for accessible applications
• 2-1/16" (52 mm) trapway
• Dual injection ush valves
• Chrome trip lever
• Two color-matched bolt caps
• 10 year warranty
• Best 1,000g MaP Flush Score†
❑ 238AA .115CP Same as above except trip lever
on right hand side
❑ 3385A.100CP Right Height® Elongated Bowl and
VorMax Plus™ seat with two
VorMax Plus FreshInfusers
❑ 4385A .114 UHET Tank
❑ 1610.001 VorMax Plus FreshInfuser™ single pack
To Be Specied:
❏ Color: ❏ White
❏ Supply with stop:
™
ELONGATED TOILET WITH SEAT
VITREOUS CHINA
VorMax Plus FreshInfuser™ Detail
SEE REVERSE FOR ROUGHING-IN DIMENSIONS
AND PRODUCT SPECIFICATIONS
Nominal Dimensions:
30-3/16" x 17-7/8" x 32-1/4"
(767 x 453 x 820mm)
Fixture with seat, supply sold separately
Alternative Tank Conguration Available:
❑ 4385A .115 Tank complete with trip lever
located on right side
Compliance Certications Meets or Exceeds the Following Specications:
• ASME A112.19.2/CSA B45.1 for Vitreous
China Fixtures
• US EPA WaterSense® Specication for UHETs
LYSOL® is used under license to American Standard. © 2017
◊ Based on a usage of 12 flushes per day
**
† MaP testing performed by IAPMO R&T Lab. MaP
report conducted by Gauley Associates Ltd. and
Koeller and Company.
K2-217
MEETS THE AMERICANS WITH DISABILITIES A
AND ICC ANSI A117.1 REQUIREMENTS FOR ACCESSIBLE AND
USABLE BUILDING FACILITIES-CHECK LOCAL CODES.
EVERCLEAN® EPA
WATERSENSE®
CERTIFIED
spec_238AA.114CP VorMaxPlus UHET RHel w/seat 9/17
WATER
EFFICIENT
© 2017 AS America Inc.
Page 2

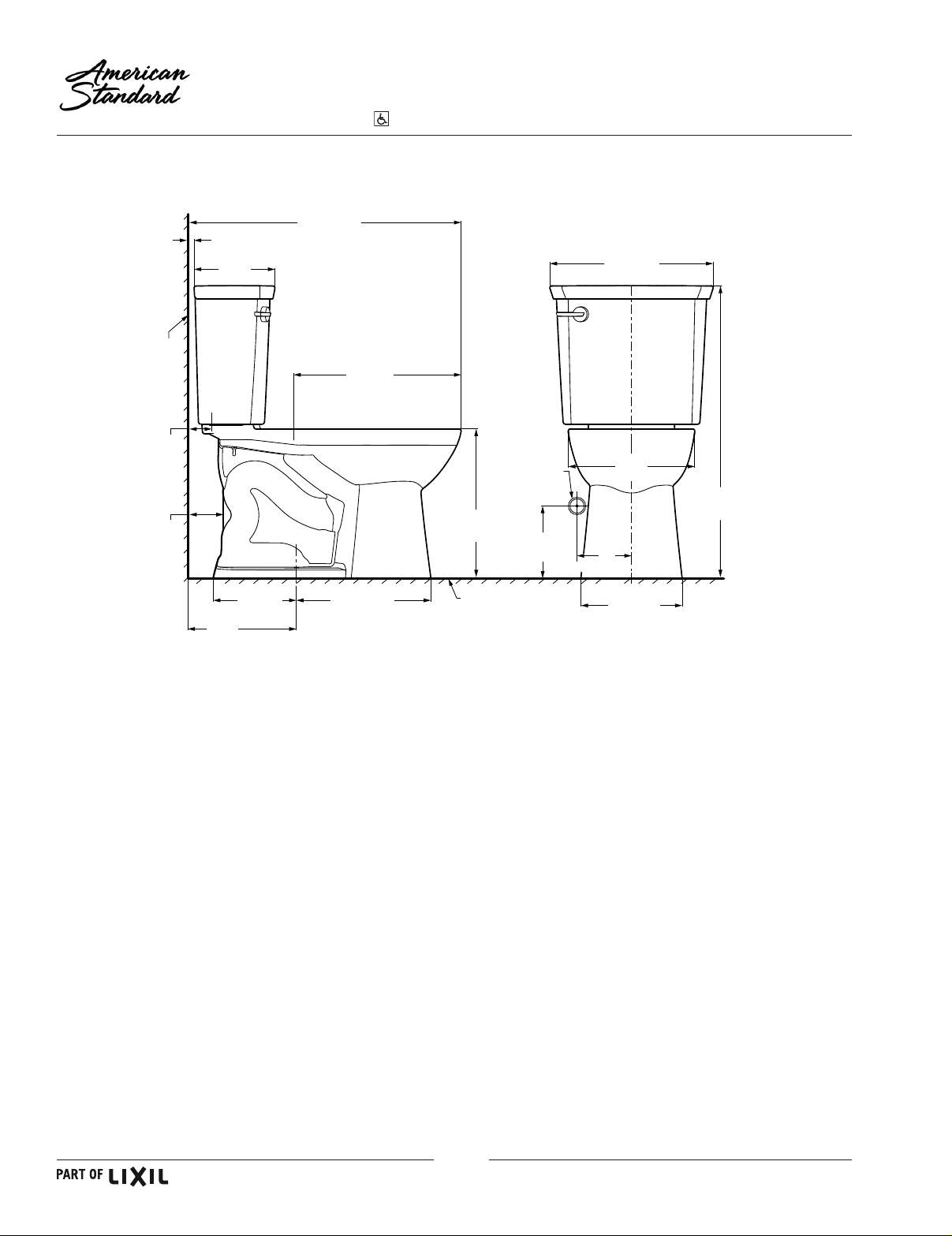

11/16"
(18mm)
9"
(227mm)
30-3/16"
(767mm)
VORMAX PLUS™ UHET RIGHT HEIGHT®
ELONGATED TOILET WITH SEAT
BARRIER FREE
17-7/8"
(453mm)
VITREOUS CHINA
WALL
FINISHED
(68mm)
2-11/16"
4"
(100mm)
9-3/16"
(233mm)
12"
(305mm)
NOTES:
THIS TOILET IS DESIGNED TO ROUGH-IN AT A MINIMUM DIMENSION OF 305MM (12") FROM FINISHED WALL TO C/L OF OUTLET.
SUPPLY NOT INCLUDED WITH FIXTURE AND MUST BE ORDERED SEPARATELY.
DIMENSION SHOWN FOR LOCATION OF SUPPLY IS SUGGESTED.
*
IMPORTANT: Dimensions of xtures are nominal and may vary within the range of tolerances established by ANSI Standard A112.19.2.
These measurements are subject to change or cancellation. No responsibility is assumed for use of superseded or voided pages.
18-1/2"
(470mm)
14-13/16"
(377mm)
16-1/2"
(419mm)
FINISHED
FLOOR
SUPPLY AS
REQUIRED
* 8"
(203mm)
14"
(355mm)
32-1/4"
(820mm)
* 6"
(152mm)
11-3/16"
(284mm)
K2-218
© 2017 AS America Inc.
spec_238AA.114CP VorMaxPlus UHET RHel w/seat 9/17
