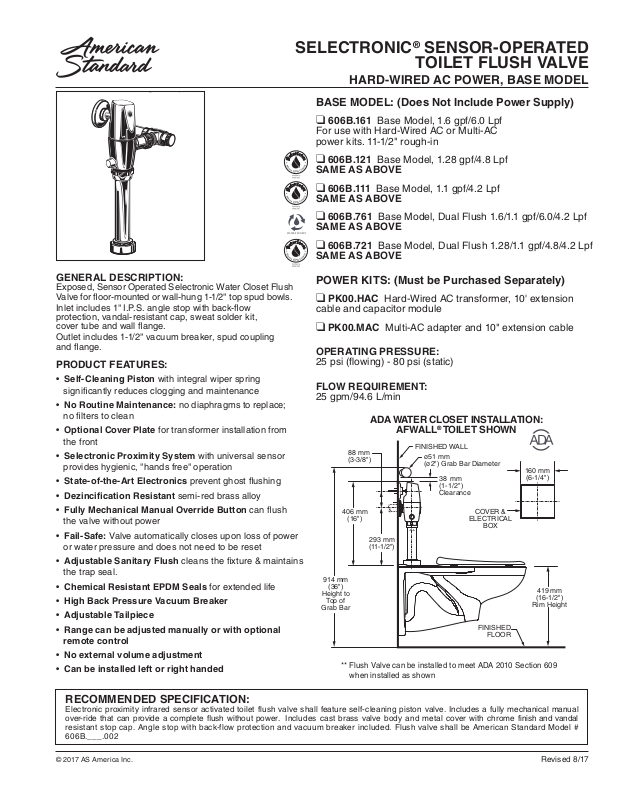

SELECTRONIC® SENSOR-OPERATED
WATER EFFICIENT
TOILET FLUSH VALVE
HARD-WIRED AC POWER, BASE MODEL
BASE MODEL: (Does Not Include Power Supply)
❑ 606 B .161 Base Model, 1.6 gpf/6.0 Lpf
For use with Hard-Wired AC or Multi-AC
power kits. 11-1/2" rough-in
❑ 606 B .121 Base Model, 1.28 gpf/4.8 Lpf
SAME AS ABOVE
❑ 606 B .111 Base Model, 1.1 gpf/4.2 Lpf
SAME AS ABOVE
❑ 606B.761 Base Model, Dual Flush 1.6/1.1 gpf/6.0/4.2 Lpf
SAME AS ABOVE
❑ 606B.721 Base Model, Dual Flush 1.28/1.1 gpf/4.8/4.2 Lpf
SAME AS ABOVE
GENERAL DESCRIPTION:
Exposed, Sensor Operated Selectronic Water Closet Flush
Valve for oor-mounted or wall-hung 1-1/2" top spud bowls.
Inlet includes 1" I.P.S. angle stop with back-ow
protection, vandal-resistant cap, sweat solder kit,
cover tube and wall ange.
Outlet includes 1-1/2" vacuum breaker, spud coupling
and ange.
PRODUCT FEATURES:
• Self-Cleaning Piston with integral wiper spring
signicantly reduces clogging and maintenance
• No Routine Maintenance: no diaphragms to replace;
no lters to clean
• Optional Cover Plate for transformer installation from
the front
• Selectronic Proximity System with universal sensor
provides hygienic, "hands free" operation
• State-of-the-Art Electronics prevent ghost ushing
• Dezincication Resistant semi-red brass alloy
• Fully Mechanical Manual Override Button can ush
the valve without power
• Fail-Safe: Valve automatically closes upon loss of power
or water pressure and does not need to be reset
• Adjustable Sanitary Flush cleans the xture & maintains
the trap seal.
• Chemical Resistant EPDM Seals for extended life
• High Back Pressure Vacuum Breaker
• Adjustable Tai lpiece
• Range can be adjusted manually or with optional
remote control
• No external volume adjustment
• Can be installed left or right handed
POWER KITS: (Must be Purchased Separately)
❑ PK00.HAC Hard-Wired AC transformer, 10' extension
cable and capacitor module
❑ PK00.MAC Multi-AC adapter and 10" extension cable
OPE R ATING PRESSURE:
25 psi (owing) - 80 psi (static)
FLOW REQUIREMENT:
25 gpm/94.6 L/min
ADA WATER CLOSET INSTALLATION:
AFWALL® TOILET SHOWN
88 mm
(3-3/8")
406 mm
(16")
293 mm
(11-1/2")
914 mm
(36")
Height to
Top of
Grab Bar
** Flush Valve can be installed to meet ADA 2010 Section 609
when installed as shown
FINISHED WALL
ø51 mm
(ø2") Grab Bar Diameter
38 mm
(1-1/2")
Clearance
-C-L-
COVER &
ELECTRICAL
BOX
FINISHED
FLOOR
160 mm
(6-1/4")
419 mm
(16-1/2")
Rim Height
RECOMMENDED SPECIFICATION:
Electronic proximity infrared sensor activated toilet flush valve shall feature self-cleaning piston valve. Includes a fully mechanical manual
over-ride that can provide a complete ush without power. Includes cast brass valve body and metal cover with chrome finish and vandal
resistant stop cap. Angle stop with back-flow protection and vacuum breaker included. Flush valve shall be American Standard Model #
606B.___.002
© 2017 AS America Inc.
Revised 8/17
Page 2
LISTINGS:
• ASSE 1037
• ANSI/ASME A112.19.2
• ADA Compliant

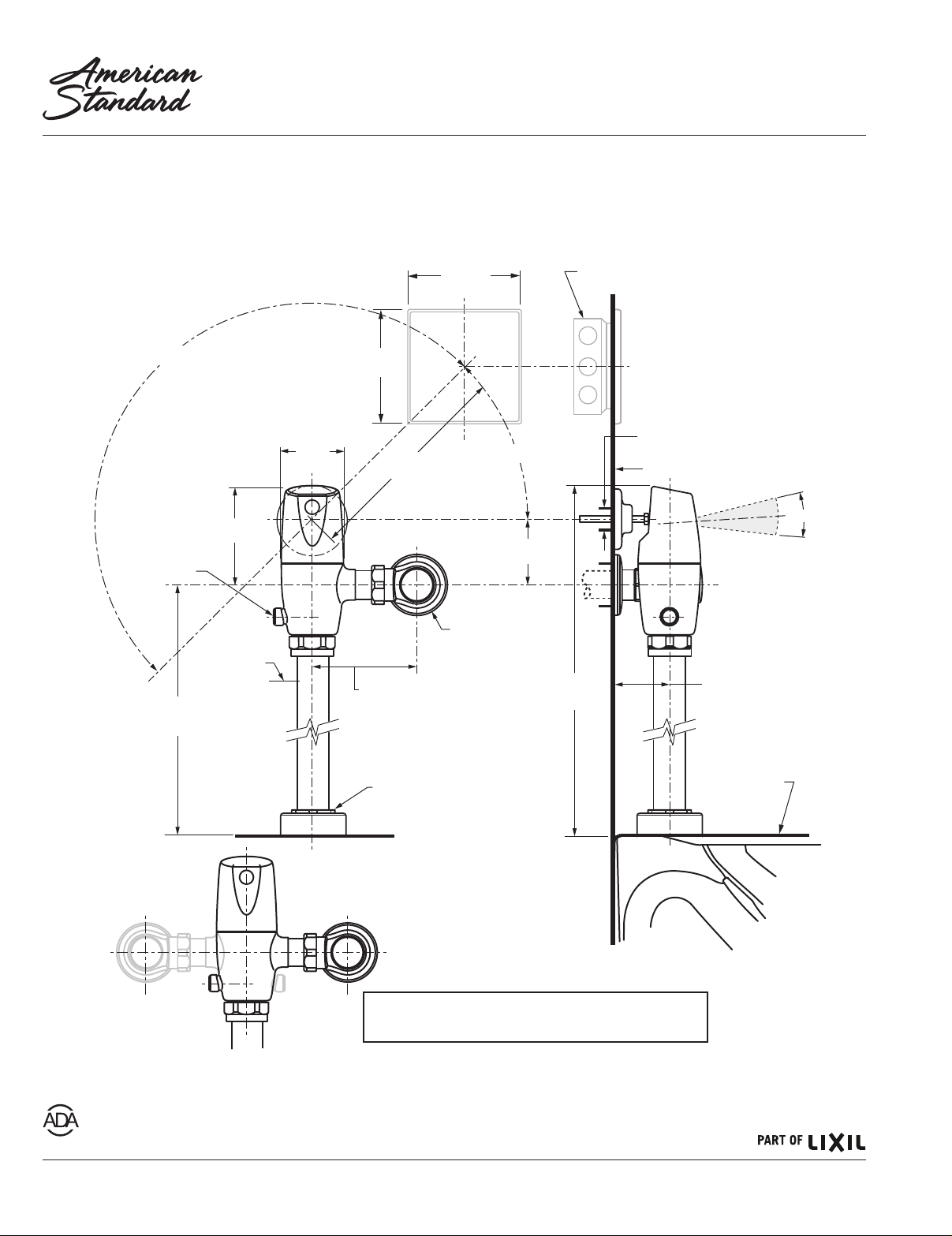

Roughing-in Dimensions
SELECTRONIC® SENSOR-OPERATED
TOILET FLUSH VALVE
HARD-WIRED AC POWER, BASE MODEL
OPTIONAL COVER PLATE
160 mm
(6-1/4")
2-GANG ELECTRICAL
BOX BY OTHERS
180
˚
MANUAL
OVERRIDE
BUTTON
292 mm
(11-1/2")
114 mm
(4-1/2")
*CRITICAL
LEVEL
72 mm
(2-7/8")
-C-L-
160 mm
(6-1/4")
305 mm
(12" MAX.)
108 mm-134 mm
(4-1/4" TO 5-1/4")
FOR 1-1/2" TOP
SPUD FIXTURES
SUPPLY
DN 25mm
(1" I.P.S.)
45
˚
86 mm
(3-3/8")
406 mm
(16" )
51 mm (2") HOLE
FOR CONDUIT
FINISHED WALL
57 mm (2-1/4") 137 mm (5-3/8")
15˚
DETECTION ZONE
400 mm-800 mm
(15-3/4" TO 31-1/2")
TOP OF
FIXTURE
Meets the American Disabilities Act Guidelines
and ANSI A117.1 Requirements for accessible
and usable building facilities - check local codes
© 2017 AS America Inc.
Right or Left Hand Installation
*Note: The Critical Line (-C-L-) on Vacuum Breaker
must typically be 6
Consult Codes for details.
" min. (152 mm) above fixture.
Revised 8/17
