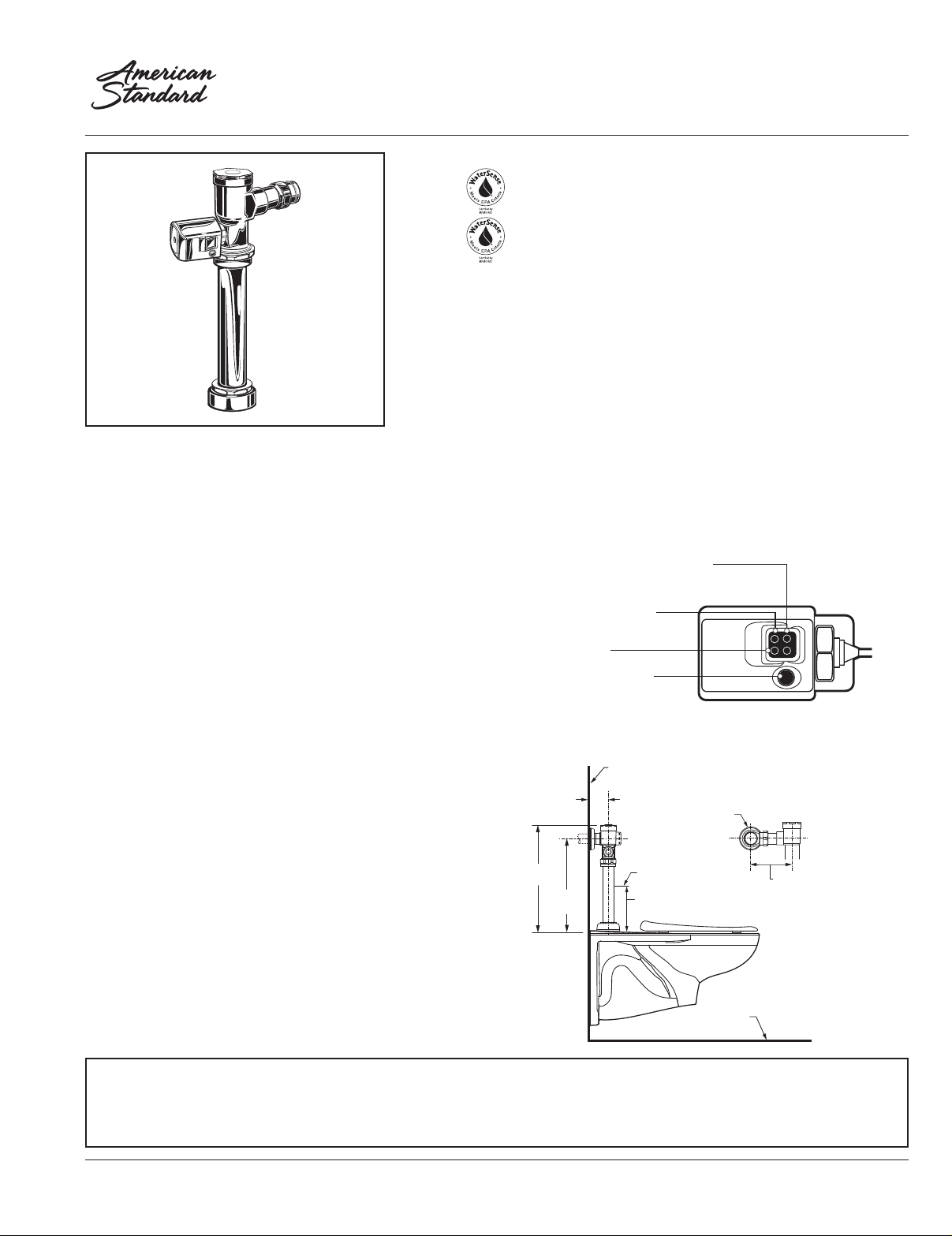

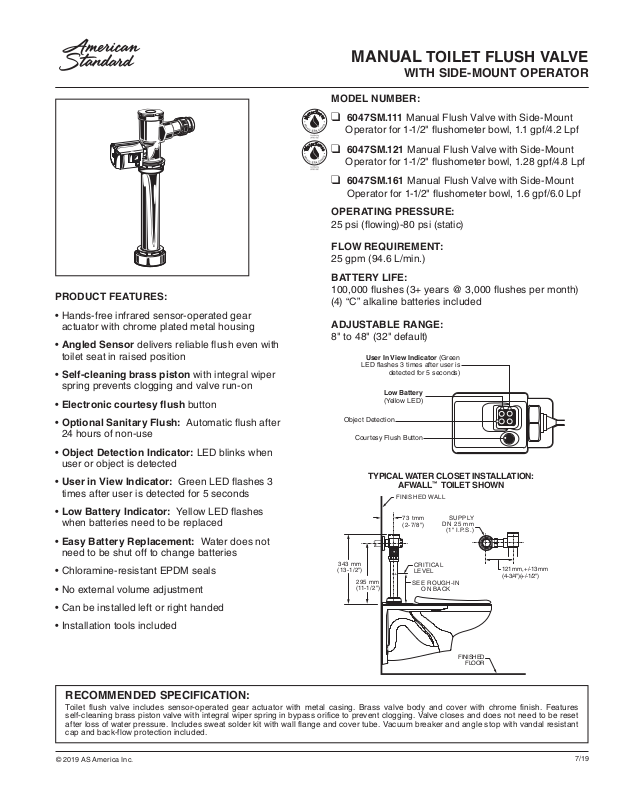

PRODUCT FEATURES:
• Hands-free infrared sensor-operated gear
actuator with chrome plated metal housing
• Angled Sensor delivers reliable ush even with
toilet seat in raised position
• Self-cleaning brass piston with integral wiper
spring prevents clogging and valve run-on
• Electronic courtesy ush button
• Optional Sanitary Flush: Automatic ush after
24 hours of non-use
• Object Detection Indicator: LED blinks when
user or object is detected
• User in View Indicator: Green LED ashes 3
times after user is detected for 5 seconds
• Low Battery Indicator: Yellow LED ashes
when batteries need to be replaced
• Easy Battery Replacement: Water does not
need to be shut off to change batteries
• Chloramine-resistant EPDM seals
• No external volume adjustment
MANUAL TOILET FLUSH VALVE
WITH SIDE-MOUNT OPERATOR
MODEL NUMBER:
❑ 6 0 47 S M.111 Manual Flush Valve with Side-Mount
Operator for 1-1/2" ushometer bowl, 1.1 gpf/4.2 Lpf
❑ 60 47 S M .121 Manual Flush Valve with Side-Mount
Operator for 1-1/2" ushometer bowl, 1.28 gpf/4.8 Lpf
❑ 6047SM .161 Manual Flush Valve with Side-Mount
Operator for 1-1/2" ushometer bowl, 1.6 gpf/6.0 Lpf
OPE R ATING PRESSURE:
25 psi (owing)-80 psi (static)
FLOW REQUIREMENT:
25 gpm (94.6 L/min.)
BAT TERY LIFE:
100,000 ushes (3+ years @ 3,000 ushes per month)
(4) “C” alkaline batteries included
ADJUSTABLE RANGE:
8" to 48" (32" default)
User In View Indicator (Green
LED ashes 3 times after user is
detected for 5 seconds)
Low Battery
(Yellow LED)
Object Detection
Courtesy Flush Button
TYPICAL WATER CLOSET INSTALLATION:
AFWALL™ TOILET SHOWN
FINISHED WALL
DN 25 mm
ON BACK
SUPPLY
(1" I.P.S.)
121 mm, +/-13 mm
(4-3/4")(+/-1/2")
343 mm
(13-1/2")
295 mm
(11-1/2")
-C-L-
73 tmm
(2-7/8")
CRITICAL
LEVEL
SEE ROUGH-IN
• Can be installed left or right handed
• Installation tools included
FINISHED
FLOOR
RECOMMENDED SPECIFICATION:
Toilet flush valve includes sensor-operated gear actuator with metal casing. Brass valve body and cover with chrome finish. Features
self-cleaning brass piston valve with integral wiper spring in bypass orifice to prevent clogging. Valve closes and does not need to be reset
after loss of water pressure. Includes sweat solder kit with wall flange and cover tube. Vacuum breaker and angle stop with vandal resistant
cap and back-flow protection included.
© 2019 AS America Inc.
7/19
Page 2

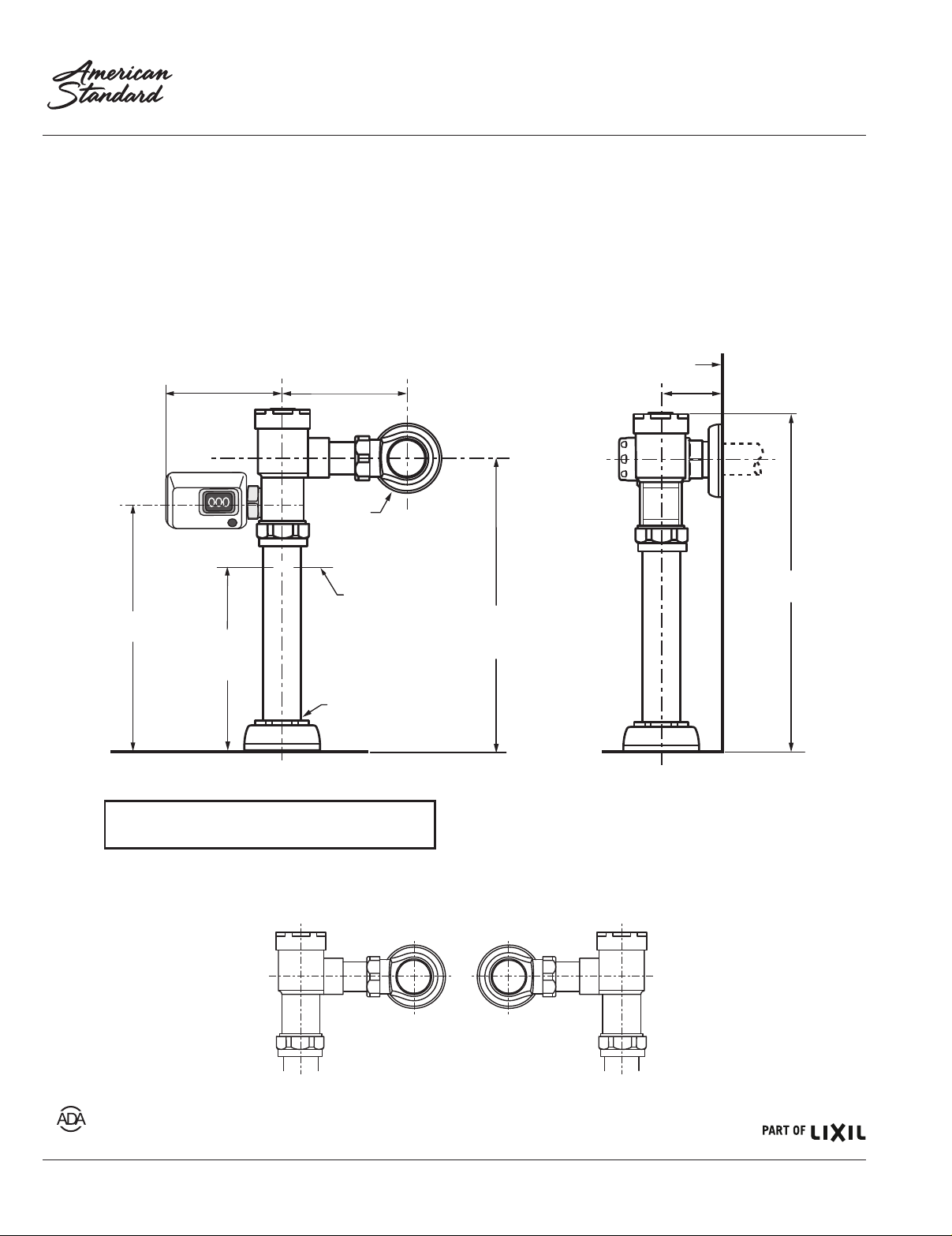

MANUAL TOILET FLUSH VALVE
*Note: The Critical Line (-C-L-) on Vacuum Breaker
must typically be 6
" (152mm) minimum above fixture.
Consult Codes for details.
FOR 1-1/2" TOP
SPUD FIXTURES
-C-L-
*CRITICAL
LEVEL
SUPPLY
DN 25 mm
(1" I.P.S.)
295 mm
(11-1/2")
ROUGH-IN
DIMENSION
FINISHED WALL
135 mm
(13-1/2")
38 mm-127 mm
(1-1/2-5")
152 mm
(6")
(Min.)
147 mm
(5-13/16")
253 mm
(9-15/16")
Roughing-in Dimensions
108 mm-133 mm
(4-1/4" to 5-1/4")
WITH SIDE-MOUNT OPERATOR
LISTINGS:
• ASSE 1037
• ANSI/ASME A112.19.2
• ADA Compliant
Roughing-in Dimensions
147 mm
(5-13/16")
-C-L-
253 mm
(9-15/16")
152 mm
(6")
(Min.)
108 mm-133 mm
(4-1/4" to 5-1/4")
SUPPLY
DN 25 mm
(1" I.P.S.)
*CRITICAL
LEVEL
INCLUDES:
• 1" I.P.S. angle stop with back-ow prevention and
vandal-resistant cap
• Sweat solder kit including cover tube and wall ange
• High back pressure vacuum breaker with down tube
• Spud coupling & ange for 1-1/2" top spud
FINISHED WALL
38 mm-127 mm
(1-1/2-5")
135 mm
(13-1/2")
ROUGH-IN
DIMENSION
295 mm
(11-1/2")
*Note: The Critical Line (-C-L-) on Vacuum Breaker
must typically be 6
Consult Codes for details.
MEETS THE AMERICANS WITH DISABILITIES ACT GUIDELINES
AND ANSI A117.1 REQUIREMENTS FOR ACCESSIBLE AND
USABLE BUILDING FACILITIES-CHECK LOCAL CODES
" (152mm) minimum above fixture.
FOR 1-1/2" TOP
SPUD FIXTURES
