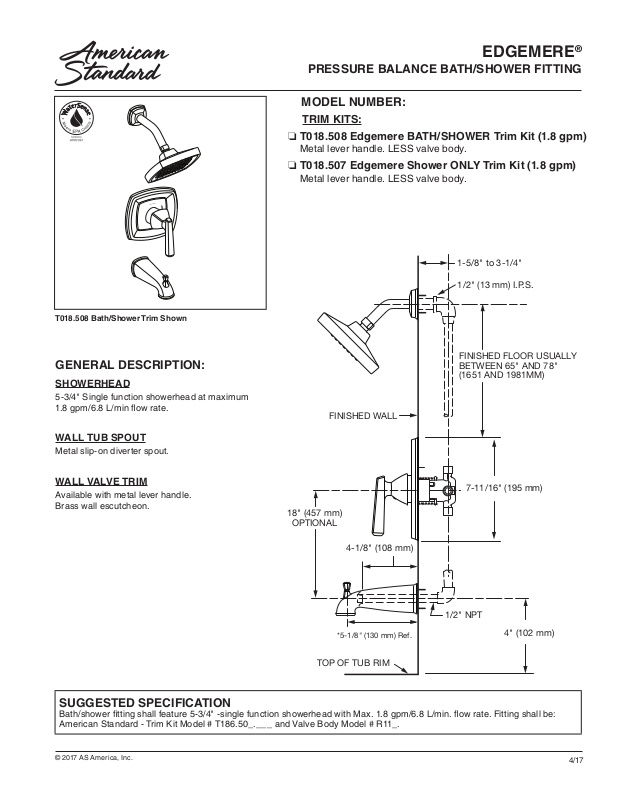

T018.508 Bath/Shower Trim Shown
EDGEMERE
®
PRESSURE BALANCE BATH/SHOWER FITTING
MODEL NUMBER:
TRIM KITS:
❏ T018.508 Edgemere BATH/SHOWER Trim Kit (1.8 gpm)
Metal lever handle. LESS valve body.
❏ T018.507 Edgemere Shower ONLY Trim Kit (1.8 gpm)
Metal lever handle. LESS valve body.
1-5/8" to 3-1/4"
1/2" (13 mm) I.P.S.
GENERAL DESCRIPTION:
SHOWERHEAD
5-3/4" Single function showerhead at maximum
1.8 gpm/6.8 L/min ow rate.
WALL TUB SPOUT
Metal slip-on diverter spout.
WALL VALVE TRIM
Available with metal lever handle.
Brass wall escutcheon.
FINISHED WALL

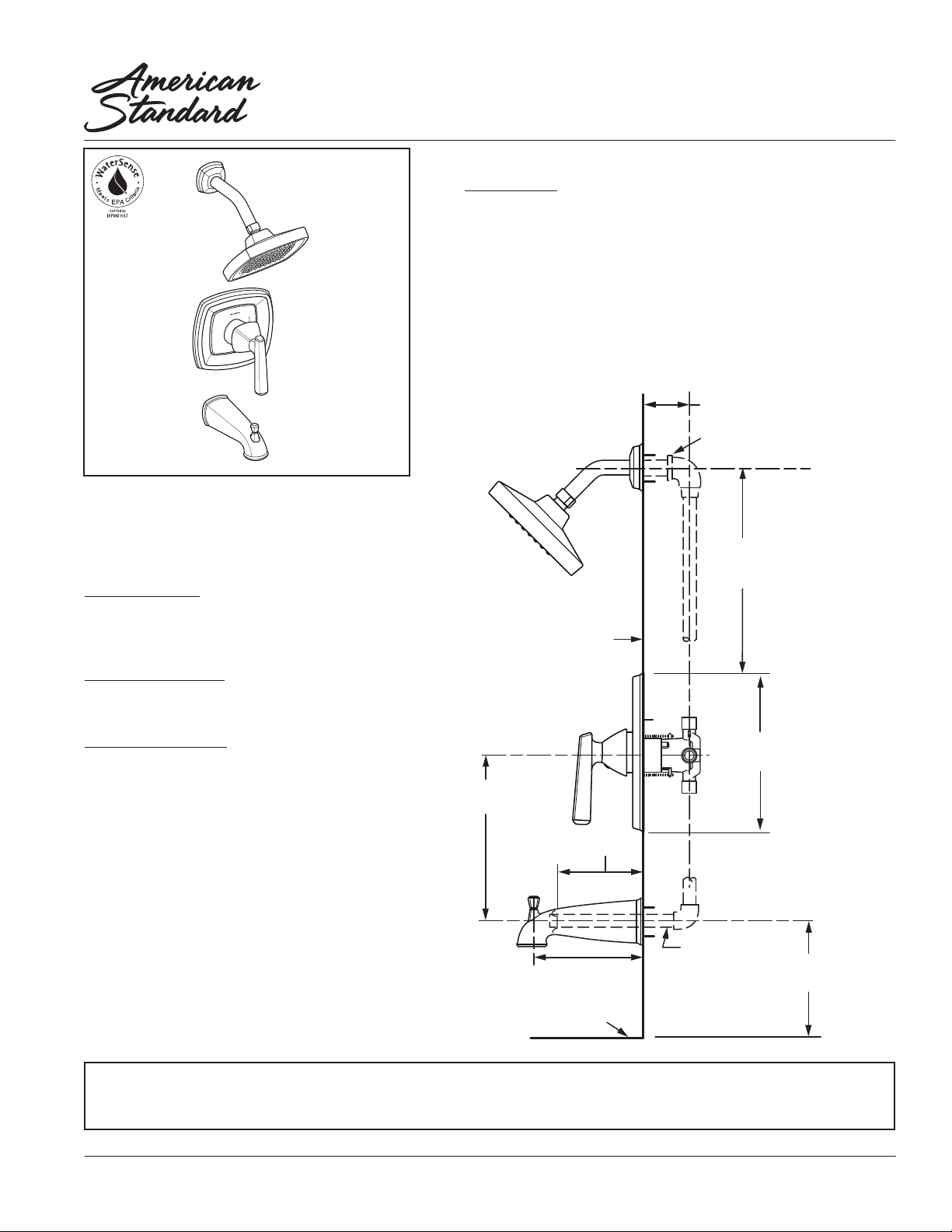

18" (457 mm)
OPTIONAL
4-1/8" (108 mm)
*5-1/8" (130 mm) Ref.
FINISHED FLOOR USUALLY
BETWEEN 65" AND 78"
(1651 AND 1981MM)
7-11/16" (195 mm)
1/2" NPT
4" (102 mm)
TOP OF TUB RIM
SUGGESTED SPECIFICATION
Bath/shower tting shall feature 5-3/4" -single function showerhead with Max. 1.8 gpm/6.8 L/min. ow rate. Fitting shall be:
American Standard - Trim Kit Model # T186.50_._ __ and Valve Body Model # R11_.
© 2017 AS America, Inc.
4/ 17
Page 2
EDGEMERE
PRESSURE BALANCE BATH/SHOWER FITTING
®
CODES AND STANDARDS
These products meet or exceed the following
codes and standards:
ANS I A117.1
ASME A112.18.1 / CSA B125.1
ASSE 1016
* TRIM & ROUGH MUST BE ORDERED SEPARATELY. Finish Options
Product
Number
T018.508
TRIM KITS *
T018.507
Description
Edgemere Bath/Shower Trim Kit (1.8 gpm)
Metal lever handle. LESS valve body.
Edgemere Shower ONLY Trim Kit (1.8 gpm)
Metal lever handle. LESS valve body.

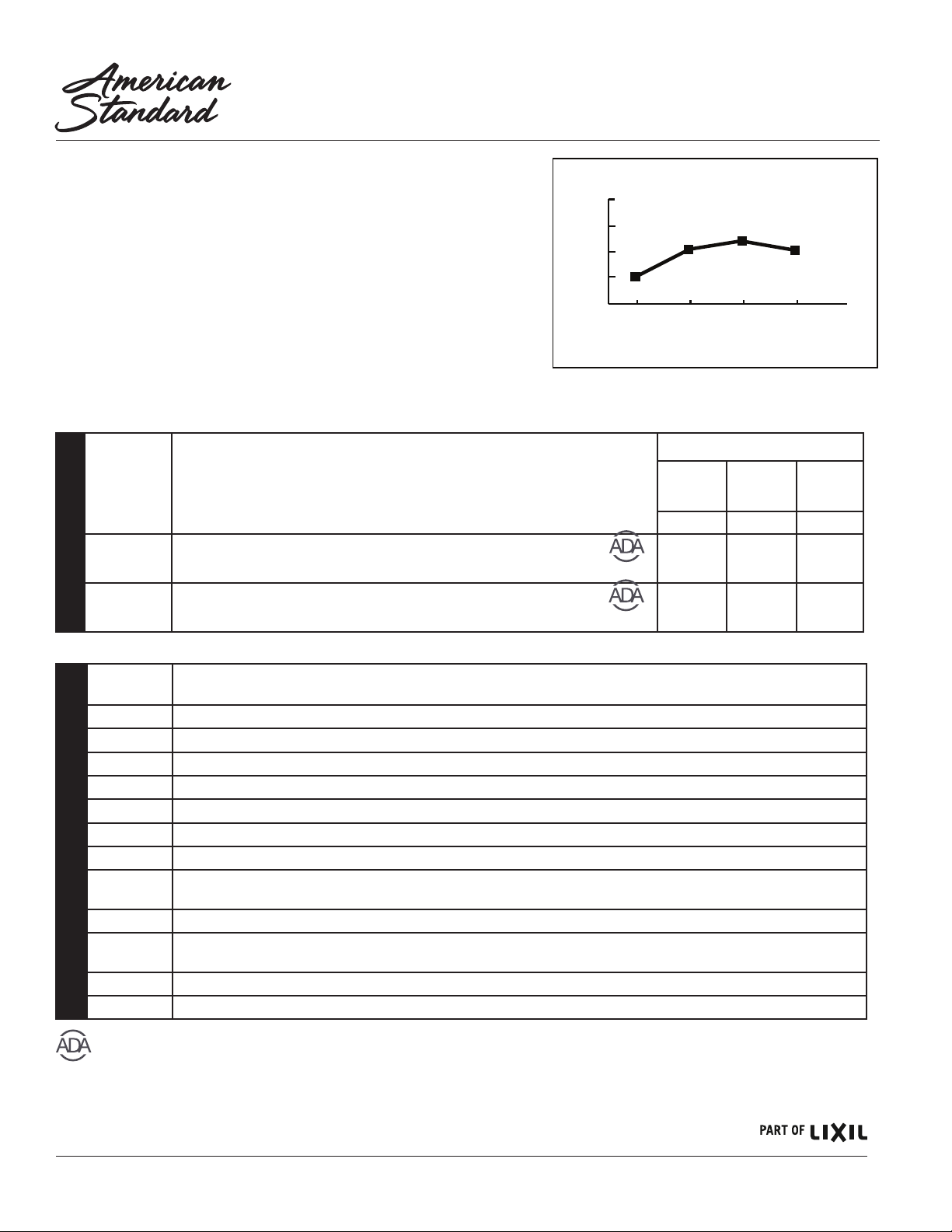

1.8
1.7
1.6
1.5
0
GALLONS PER MINUTE
INL ET PRESSURE ( PSI )
FLOW RATE
80604020
Polished
Chrome
002 278 295
Legacy
Bronze
Brushed
Nickel
Product
Number Description
R111
R111S S
R11 0
R11 0 SS
R115
R115 SS
R117
R117S S
R118
ROUGH VALVE BODIES
R118 SS
R119
R119 SS
Meets the American Disabilities Act Guidelines and ANSI A117.1
Requirements for the physically challenged.
Rough Valve Body less trim. Universal inlets/outlets.
Rough Valve Body less trim. Universal inlets/outlets with Screwdriver Stops.
Rough Valve Body less trim. Direct sweat inlets/outlets.
Rough Valve Body less trim. Direct sweat inlets/outlets with Screwdriver Stops.
Rough Valve Body less trim. Female Thread inlets/outlets.
Rough Valve Body less trim. Female Thread inlets/outlets with Screwdriver Stops.
Rough Valve Body less trim. PEX inlets/universal outlets for Crimp Ring PEX system (ASTM F1807).
Rough Valve Body less trim. PEX inlets/universal outlets for Crimp Ring PEX system (ASTM F1807)
with Screwdriver Stops.
Rough Valve Body less trim. PEX inlets/universal outlets for Cold Expansion PEX system (ASTM F1960).
Rough Valve Body less trim. PEX inlets/universal outlets for Cold Expansion PEX system (ASTM F1960)
with Screwdriver Stops.
Rough Valve Body less trim. CPVC inlets/universal outlets.
Rough Valve Body less trim. CPVC inlets/universal outlets with Screwdriver Stops.
