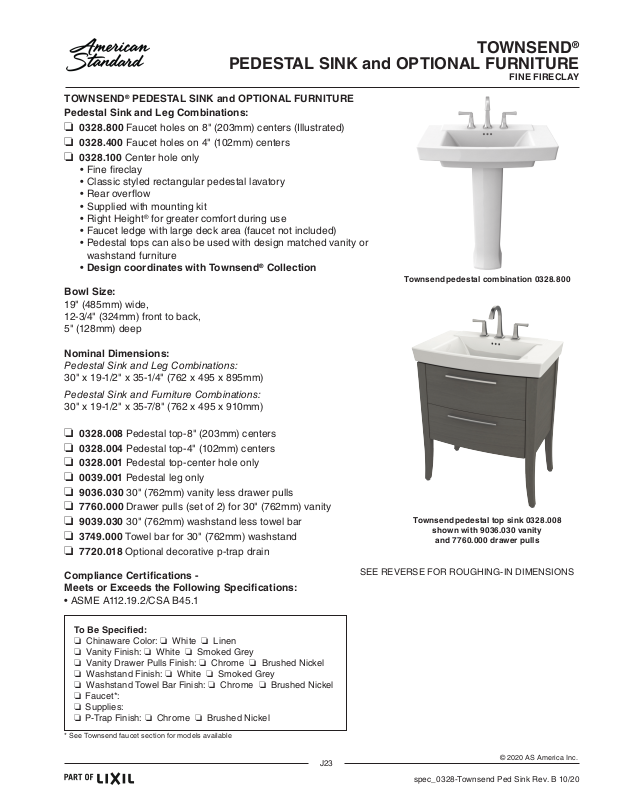

Page 1
PEDESTAL SINK and OPTIONAL FURNITURE
TOWNSEND® PEDESTAL SINK and OPTIONAL FURNITURE
Pedestal Sink and Leg Combinations:
❏ 0328.800 Faucet holes on 8" (203mm) centers (Illustrated)
❏ 0328.400 Faucet holes on 4" (102mm) centers
❏ 0328.100 Center hole only
• Fine reclay
• Classic styled rectangular pedestal lavatory
• Rear overow
• Supplied with mounting kit
• Right Height® for greater comfort during use
• Faucet ledge with large deck area (faucet not included)
• Pedestal tops can also be used with design matched vanity or
washstand furniture
• Design coordinates with Townsend® Collection
Bowl Size:
19" (485mm) wide,
12-3/4" (324mm) front to back,
5" (128mm) deep
TOWNSEND
FINE FIRECLAY

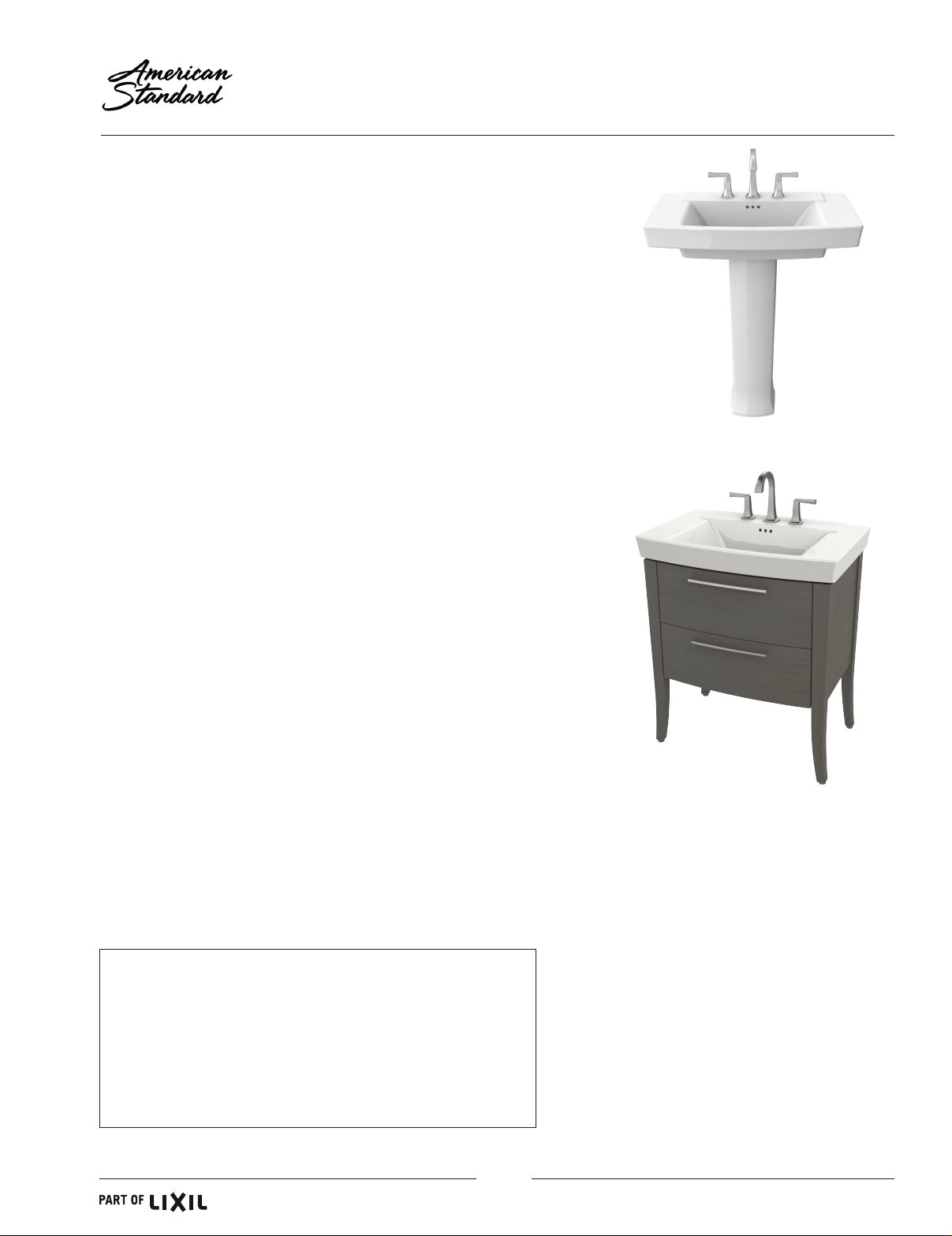

Townsend pedestal combination 0328.800
®
Nominal Dimensions:
Pedestal Sink and Leg Combinations:
30" x 19-1/2" x 35-1/4" (762 x 495 x 895mm)
Pedestal Sink and Furniture Combinations:
30" x 19-1/2" x 35-7/8" (762 x 495 x 910mm)
❏ 0328.008 Pedestal top-8" (203mm) centers
❏ 0328.004 Pedestal top-4" (102mm) centers
❏ 0328.001 Pedestal top-center hole only
❏ 0039.001 Pedestal leg only
❏ 9036.030 30" (762mm) vanity less drawer pulls
❏ 7760.000 Drawer pulls (set of 2) for 30" (762mm) vanity
❏ 9039.030 30" (762mm) washstand less towel bar
❏ 3749.000 Towel bar for 30" (762mm) washstand
❏ 7720.018 Optional decorative p-trap drain
Compliance Certications Meets or Exceeds the Following Specications:
• ASME A112.19.2/CSA B45.1
To Be Specied:
❏ Chinaware Color: ❏ White ❏ Linen
❏ Vanity Finish: ❏ White ❏ Smoked Grey
❏ Vanity Drawer Pulls Finish: ❏ Chrome ❏ Brushed Nickel
❏ Washstand Finish: ❏ White ❏ Smoked Grey
❏ Washstand Towel Bar Finish: ❏ Chrome ❏ Brushed Nickel
❏ Faucet*:
❏ Supplies:
❏ P-Trap Finish: ❏ Chrome ❏ Brushed Nickel
* See Townsend faucet section for models available
Townsend pedestal top sink 0328.008
shown with 9036.030 vanity
and 7760.00 0 drawer pulls
SEE REVERSE FOR ROUGHING-IN DIMENSIONS
J23
© 2020 AS America Inc.
spec_0328-Townsend Ped Sink Rev. B 10/20

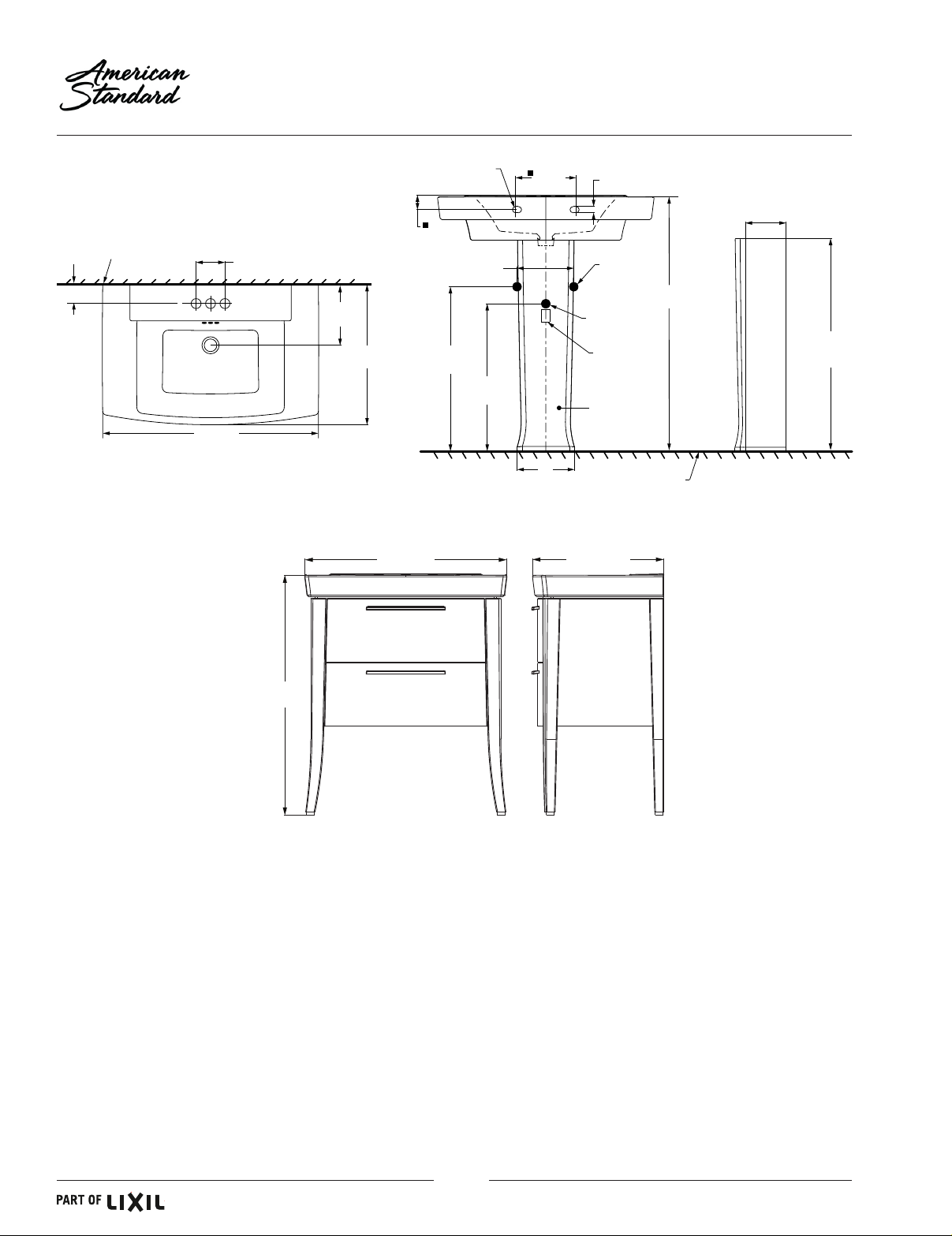

Page 2
TOWNSEND
PEDESTAL SINK and OPTIONAL FURNITURE
FINE FIRECLAY
®
2-11/16"
(67mm)
FINISHED
WALL
FAUCET MOUNTING HOLES:
SINGLE HOLE, 4"(102mm) OR 8"(203mm)
8-1/2"
(215mm)
29-15/16"
(760mm)
19-1/2"
(495mm)
29-15/16"
(760mm)
2X HOLES FOR
ANCHOR BOLTS
2"
(50mm)
(203mm)
22-3/4"
*
(578mm)
*20-1/2"
(521mm)
8-3/8"
(213mm)
8"
*
8"
(202mm)
7/8"
(22mm)
SUPPLIES
AS REQ'D
1-1/4"
O.D. WASTE
1-1/4" O.D.
TAIL PIECE
PEDESTAL
BASE
35-1/4"
(895mm)
FINISHED
FLOOR
DRAIN
CHASE
OPEN
FLOOR
TO
19-1/2"
(495 mm)
35-1/4"
(895 mm)
Vanity shown
(same dimensions
as washstand)
NOTES:
DIMENSIONS SHOWN FOR LOCATION OF SUPPLIES AND “P" TRAPS ARE SUGGESTED.
*
■ SUITABLE FOR REINFORCEMENT ONLY. ACTUAL DIMENSIONS MUST BE TAKEN FROM FIXTURE.
FITTING NOT INCLUDED AND MUST BE ORDERED SEPARATELY.
PROVIDE SUITABLE REINFORCEMENT FOR ALL WALL SUPPORTS.
INSTALLATION INSTRUCTIONS SUPPLIED WITH LAVATORY.
FURNITURE SPECIFIC INSTRUCTIONS SUPPLIED WITH OPTIONAL FURNITURE.
IMPORTANT: Dimensions of x tures are nominal and may vary within the range of tolerance established by ANSI Standard A112.19.2
These measurements are subject to change or cancellation. No responsibility is assumed for use of superseded or voided pages.
J24
© 2020 AS America Inc.
spec_0328-Townsend Ped Sink Rev. B 10/20
