BARRIER FREE

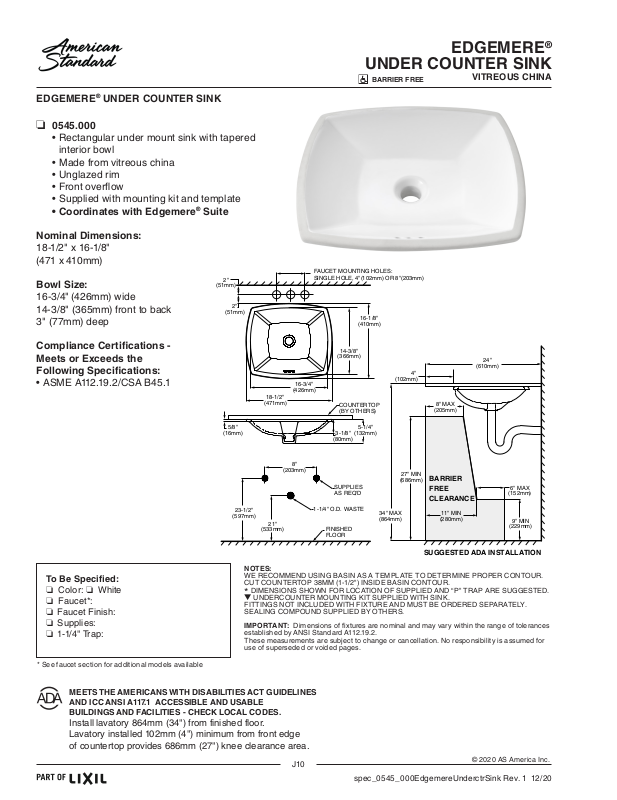

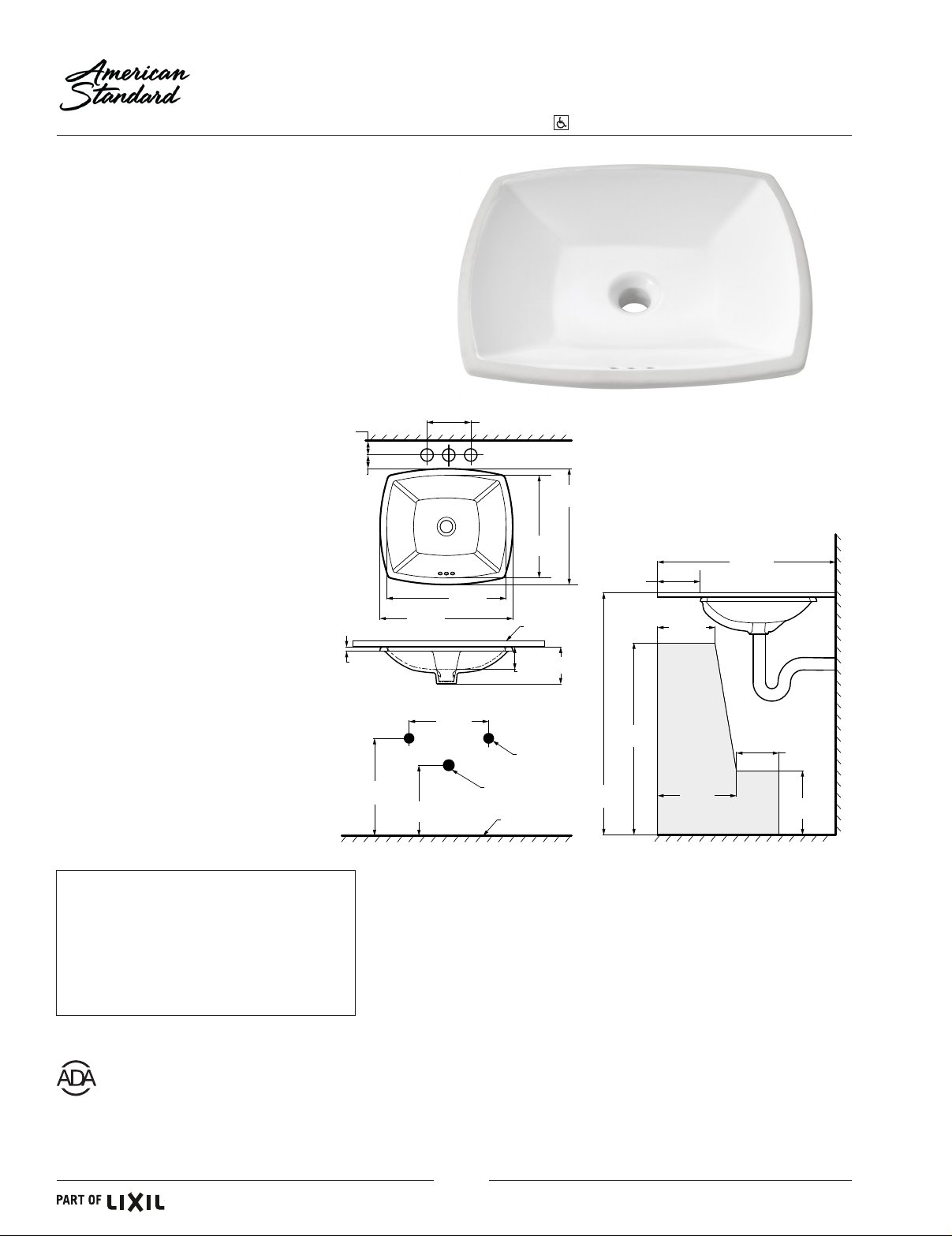

EDGEMERE® UNDER COUNTER SINK

CT GUIDELINES

❏ 0545.000

• Rectangular under mount sink with tapered interior bowl

• Made from vitreous china

• Unglazed rim

• Front overow

• Supplied with mounting kit and template

• Coordinates with Edgemere® Suite

Nominal Dimensions:

18-1/ 2 " x 16-1/8 " (471 x 410mm)

Bowl Size:

16-3/4" (426mm) wide 14-3/8" (365mm) front to back 3" (77mm) deep

(51mm)

UNDER COUNTER SINK

FAUCET MOUNTING HOLES:

SINGLE HOLE, 4"(102mm) OR 8"(203mm)

16-1/8"

(410mm)

EDGEMERE

VITREOUS CHINA

Compliance Certications Meets or Exceeds the Following Specications:

• ASME A112.19.2/CSA B45.1

To Be Specied:

❏ Color: ❏ White ❏ Faucet*: ❏ Faucet Finish: ❏ Supplies: ❏ 1-1/4" Trap:

* See faucet section for additional models available

14-3/8"

(366mm)

34" MAX (864mm)

(102mm)

8" MAX

(205mm)

27" MIN

BARRIER

(686mm)

FREE CLEARANCE

11" MIN

(280mm)

SUGGESTED ADA INSTALLATION

16-3/4"

(426mm)

18-1/2"

(471mm)

5/8"

(16mm)

(203mm)

23-1/2"

(597mm)

21"

(533mm)

NOTES:

WE RECOMMEND USING BASIN AS A TEMPLATE TO DETERMINE PROPER CONTOUR. CUT COUNTERTOP 38MM (1-1/2") INSIDE BASIN CONTOUR.

DIMENSIONS SHOWN FOR LOCATION OF SUPPLIED AND “ P" TRAP ARE SUGGESTED.

▼ UNDERCOUNTER MOUNTING KIT SUPPLIED WITH SINK.

FITTINGS NOT INCLUDED WITH FIXTURE AND MUST BE ORDERED SEPARATELY. SEALING COMPOUND SUPPLIED BY OTHERS.

IMPORTANT: Dimensions of xtures are nominal and may vary within the range of tolerances established by ANSI Standard A112.19.2. These measurements are subject to change or cancellation. No responsibility is assumed for use of superseded or voided pages.

COUNTERTOP (BY OTHERS)

3-1/8"

(132mm)

(80mm)

SUPPLIES AS REQ'D

1-1/4" O.D. WASTE

FINISHED FLOOR

5-1/4"

24"

(610mm)

6" MAX

(152mm)

9" MIN

(229mm)

MEETS THE AMERICANS WITH DISABILITIES A AND ICC ANSI A117.1 ACCESSIBLE AND USABLE BUILDINGS AND FACILITIES - CHECK LOCAL CODES.

Install lavatory 864mm (34") from finished floor. Lavatory installed 102mm (4") minimum from front edge of countertop provides 686mm (27") knee clearance area.

J10

spec_0545_000EdgemereUnderctrSink Rev. 1 12/20
