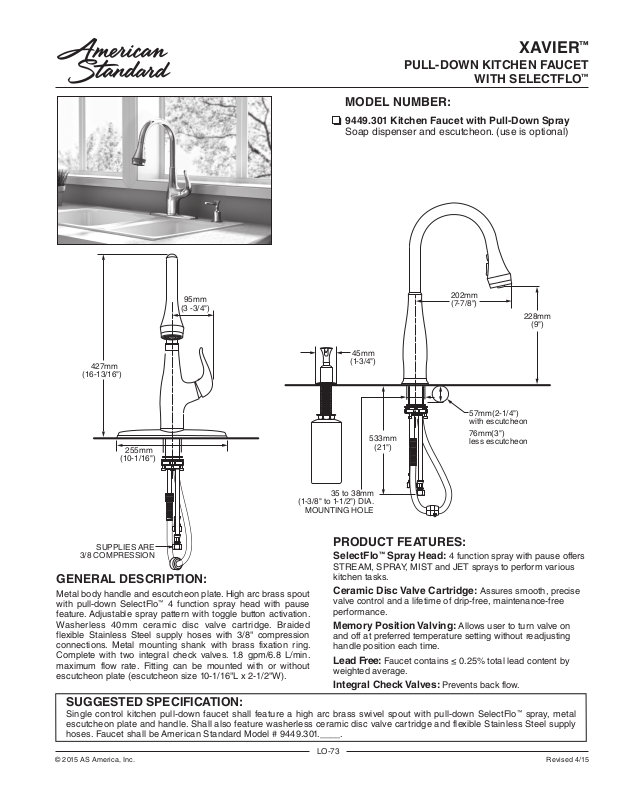

Page 1
XAVIER
PULL-DOWN KITCHEN FAUCET
WITH SELECTFLO
MODEL NUMBER:
9449.301 Kitchen Faucet with Pull-Down Spray
Soap dispenser and escutcheon. (use is optional)
™
™
95mm
(3 -3/4")
427mm
(16-13/16")
255mm
(10-1/16")
(1-3/8" to 1-1/2") DIA.
SUPPLIES ARE
3/8 COMPRESSION
GENERAL DESCRIPTION:
Metal body handle and escutcheon plate. High arc brass spout
with pull-down SelectFlo
feature. Adjustable spray pattern with toggle button activation.
Washerless 40mm ceramic disc valve cartridge. Braided
flexible Stainless Steel supply hoses with 3/8" compression
connections. Metal mounting shank with brass fixation ring.
Complete with two integral check valves. 1.8 gpm/6.8 L/min.
maximum flow rate.
escutcheon plate (escutcheon size 10-1/16"L x 2-1/2"W).
™
4 function spray head with pause
Fitting can be mounted with or without
45mm
(1-3/4")
533mm
(21")
35 to 38mm
MOUNTING HOLE
PRODUCT FEATURES:
SelectFlo™ Spray Head: 4 function spray with pause offers
STREAM, SPRAY, MIST and JET sprays to perform various
kitchen tasks.
Ceramic Disc Valve Cartridge: Assures smooth, precise
valve control and a lifetime of drip-free, maintenance-free
performance.
Memory Position Valving: Allows user to turn valve on
and off at preferred temperature setting without readjusting
handle position each time.
Lead Free: Faucet contains ≤ 0.25% total lead content by
weighted average.
202mm
(7-7/8")
228mm
(9")
57mm(2-1/4")
with escutcheon
76mm(3")
less escutcheon
Integral Check Valves: Prevents back flow.
SUGGESTED SPECIFICATION:
Single control kitchen pull-down faucet shall feature a high arc brass swivel spout with pull-down SelectFlo™ spray, metal
escutcheon plate and handle. Shall also feature washerless ceramic disc valve cartridge and flexible Stainless Steel supply
hoses. Faucet shall be American Standard Model # 9449.301.____.
© 2015 AS America, Inc. Rev is ed 4 /15
LO -73
Page 2
XAVIER
CODES AND STANDARDS
™
PULL-DOWN KITCHEN FAUCET
WITH SELECTFLO
FLOW RATE*
™
These products meet or exceed the following
codes and standards:
ANSI A117.1
ASME A112.18.1
NSF 61/Section 9 & Annex G
CSA B125
Product
Number
9449.301
Description
Xavier Pull-Down Kitchen Faucet with SelectFlo
2.5
2.0
1.5
1.0
0.5
GALLONS PER MINUTE
0.0
INLET PRESSURE (PSI)
*Flow rates shown are for mixed hot and cold.
10080604020
Finish Options
Polished
Chrome
002
™
Stainless
Steel
(PVD)
075
Meets the American Disabilities Act Guidelines
and ANSI A117.1 Requirements for the
physically challenged.
© 2014 AS America, Inc. Rev is ed 4 /15
LO -74
