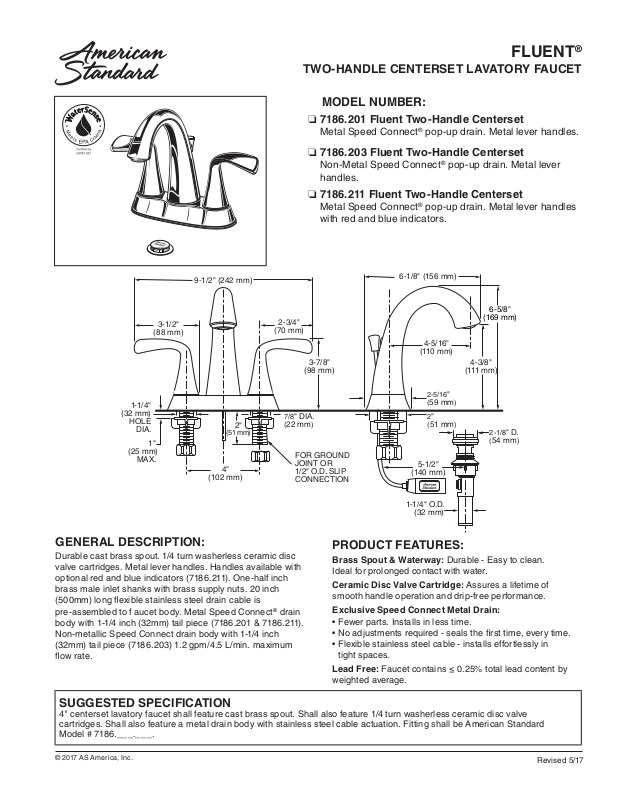

FLUENT
TWO-HANDLE CENTERSET LAVATORY FAUCET
MODEL NUMBER:
❏ 7186.201 Fluent Two-Handle Centerset
Metal Speed Connect® pop-up drain. Metal lever handles.
❏ 7186.203 Fluent Two-Handle Centerset
Non-Metal Speed Connect® pop-up drain. Metal lever
handles.
❏ 7186.211 Fluent Two-Handle Centerset
Metal Speed Connect® pop-up drain. Metal lever handles
with red and blue indicators.
®
9-1/2" (242 mm)
2-3/4"
(70 mm)
" DIA.
7/8
(22 mm)
FOR GROUND
JOINT OR
1/2" O.D. SLIP
CONNECTION
1-1/4"
(32 mm)
HOLE
DIA.
(25 mm)
MAX.
3-1/2"
(88 mm)
1"
(51 mm)
4"
(102 mm)
2"
GENERAL DESCRIPTION:
Durable cast brass spout. 1/4 turn washerless ceramic disc
valve cartridges. Metal lever handles. Handles available with
optional red and blue indicators (7186.211). One-half inch
brass male inlet shanks with brass supply nuts. 20 inch
(500mm) long exible stainless steel drain cable is
pre-assembled to f aucet body. Metal Speed Connect® drain
body with 1-1/4 inch (32mm) tail piece (7186.201 & 7186.211).
Non-metallic Speed Connect drain body with 1-1/4 inch
(32mm) tail piece (7186.203) 1.2 gpm/4.5 L/min. maximum
ow rate.
6-1/8" (156 mm)
6-5/8"
(169 mm)
4-5/16"
(110 mm)
3-7/8"
(98 mm)
2-5/16"
(59 mm)
"
2
(51 mm)
5-1/2"
(140 mm)
1-1/4" O.D.
(32 mm)
4-3/8"
(111 mm)
2-1/8" D.
(54 mm)
PRODUCT FEATURES:
Brass Spout & Waterway: Durable - Easy to clean.
Ideal for prolonged contact with water.
Ceramic Disc Valve Cartridge: Assures a lifetime of
smooth handle operation and drip-free performance.
Exclusive Speed Connect Metal Drain:
• Fewer parts. Installs in less time.
• No adjustments required - seals the rst time, every time.
• Flexible stainless steel cable - installs effortlessly in
tight spaces.
Lead Free: Faucet contains ≤ 0.25% total lead content by
weighted average.
SUGGESTED SPECIFICATION
4" centerset lavatory faucet shall feature cast brass spout. Shall also feature 1/4 turn washerless ceramic disc valve
cartridges. Shall also feature a metal drain body with stainless steel cable actuation. Fitting shall be American Standard
Model # 7186.___.___.
© 2017 AS America, Inc.
Revised 5/17
Page 2
FLUENT
®
CODES AND STANDARDS
These products meet or exceed the following
codes and standards:
ASME A112 .18 .1
NSF 61/Section 9 and Annex G
CSA B125.1
Product
Number Description
7186. 201
Fluent™ Two-handle Centerset with metal Speed Connect®
pop-up drain. Metal lever handles.
FLOW RATE*
1.4
1.2
1.0
0.8
0.6
0.4
0.2
GALLONS PER MINUTE
0.0
*Flow rates shown are for mixed hot and cold.
INLET PRESSURE (PSI)
Finish Options
Polished
Chrome
002 224 295
Oil Rubbed
Bronze
806040200
PVD
Brushed
Nickel
7186. 203
718 6. 211
Fluent™ Two-handle Centerset with non- metal
Speed Connect® pop-up drain. Metal lever handles.
Fluent™ Two-handle Centerset with metal Speed Connect®
pop-up drain. Metal lever handles with red & blue indicators
N/A = Not Available
Meets the American Disabilities Act Guidelines and ANSI A117.1
Requirements for the physically challenged.
N/A
