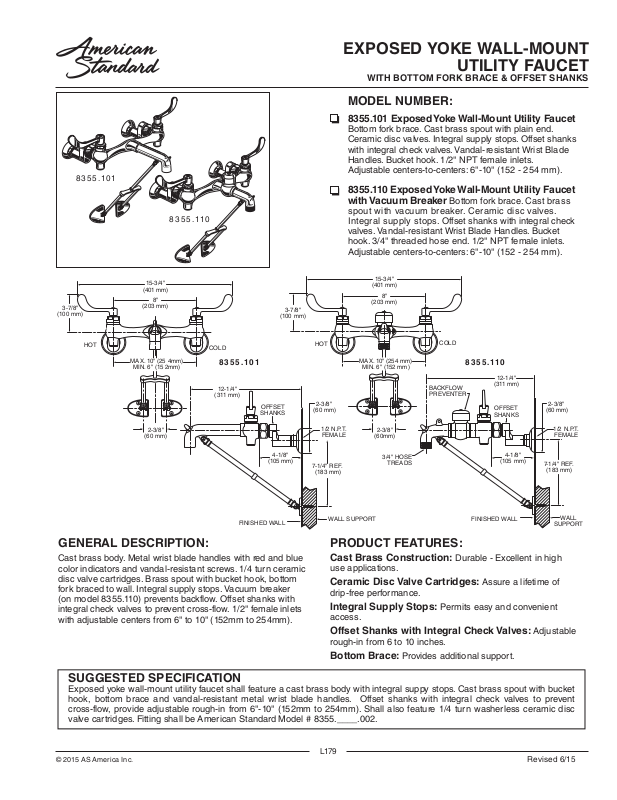

Page 1
CODES AND STANDARDS
These products meet or exceed the following
codes and standards:
ASME A112.18.1
CSA B 125
ANSI A117.1
8355.101
8355.110
EXPOSED YOKE WALL-MOUNT
UTILITY FAUCET
WITH BOTTOM FORK BRACE & OFFSET SHANKS
MODEL NUMBER:
8355.101 Exposed Yoke Wall-Mount Utility Faucet
Bottom fork brace. Cast brass spout with plain end.
Ceramic disc valves. Integral supply stops. Offset shanks
with integral check valves. Vandal-resistant Wrist Blade
Handles. Bucket hook. 1/2" NPT female inlets.
Adjustable centers-to-centers: 6"-10" (152 - 254 mm).
8355.110 Exposed Yo ke Wall-Mount Utility Faucet
with Vacuum Breaker
spout with vacuum breaker. Ceramic disc valves.
Integral supply stops. Offset shanks with integral check
valves. Vandal-resistant Wrist Blade Handles. Bucket
hook. 3/4" threaded hose end. 1/2" NPT female inlets.
Adjustable centers-to-centers: 6"-10" (152 - 254 mm).
Bottom fork brace. Cast brass

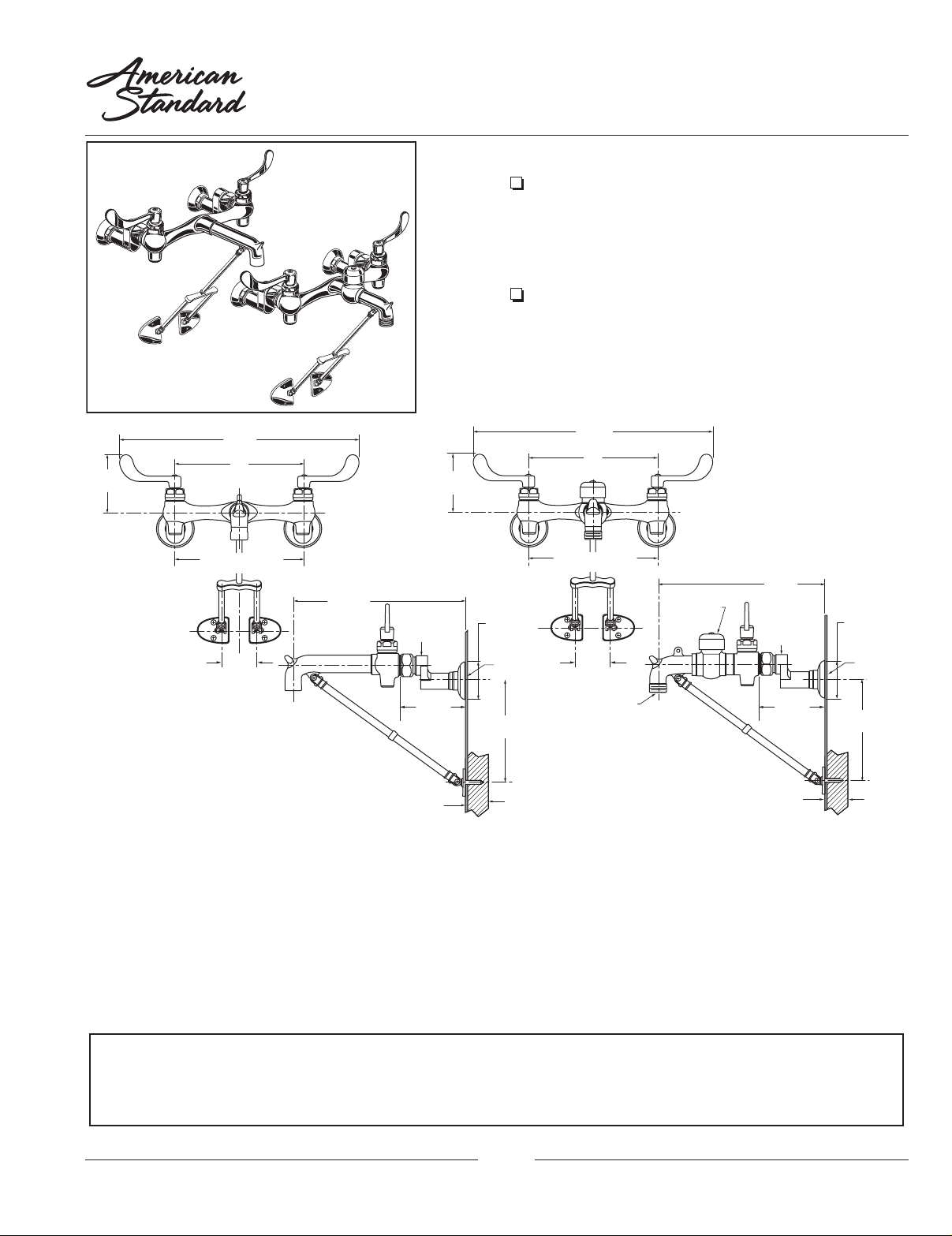

15-3/4"
(401 mm)
8"
3-7/8"
(100 mm)
HOT
(203 mm)
MAX. 10" (25 4mm)
MIN. 6" (15 2mm)
2-3/8"
(60 mm)
3-7/8"
(100 mm)
COLD
8355.101 8355.110
12-1/4"
(311 mm)
OFFSET
SHANKS
4-1/8"
(105 mm)
FINISHED WALL
GENERAL DESCRIPTION:
Cast brass body. Metal wrist blade handles with red and blue
color indicators and vandal-resistant screws. 1/4 turn ceramic
disc valve cartridges. Brass spout with bucket hook, bottom
fork braced to wall. Integral supply stops. Vacuum breaker
(on model 8355.110) prevents backflow. Offset shanks with
integral check valves to prevent cross-flow. 1/2" female inlets
with adjustable centers from 6" to 10" (152mm to 254mm).
15-3/4"
(401 mm)
8"
(203 mm)
HOT
2-3/8"
(60 mm)
1/2 N.P.T.
FEMALE
7-1/4" REF.
(183 mm)
WALL SUPPORT
MAX. 10" (254 mm)
MIN. 6" (152 mm)
2-3/8"
(60mm)
3/4" HOSE
TREADS
COLD
BACKFLOW
PREVENTER
12-1/4"
(311 mm)
OFFSET
SHANKS
4-1/8"
(105 mm)
FINISHED WALL
PRODUCT FEATURES:
Cast Brass Construction: Durable - Excellent in high
use applications.
Ceramic Disc Valve Cartridges: Assure a lifetime of
drip-free performance.
Integral Supply Stops: Permits easy and convenient
access.
Offset Shanks with Integral Check Valves: Adjustable
rough-in from 6 to 10 inches.
Bottom Brace: Provides additional support.
2-3/8"
(60 mm)
1/2 N.P.T.
FEMALE
7-1/4" REF.
(183 mm)
WALL
SUPPORT
SUGGESTED SPECIFICATION
Exposed yoke wall-mount utility faucet shall feature a cast brass body with integral suppy stops. Cast brass spout with bucket
hook, bottom brace and vandal-resistant metal wrist blade handles. Offset shanks with integral check valves to prevent
cross-flow, provide adjustable rough-in from 6"-10" (152mm to 254mm). Shall also feature 1/4 turn washerless ceramic disc
valve cartridges. Fitting shall be American Standard Model # 8355.____.002.
© 2015 AS America I nc.
L17 9
Revised 6/15
Page 2
EXPOSED YOKE WALL-MOUNT
CODES
These pr
codes and standar
A
CSA B
ANSI
UTILITY FAUCET
WITH BOTTOM FORK BRACE & OFFSET SHANKS
oducts meet or exceed the following
SME A112.18.1
125
A117.1
Product
Number
AND STANDARDS
ds:
Description

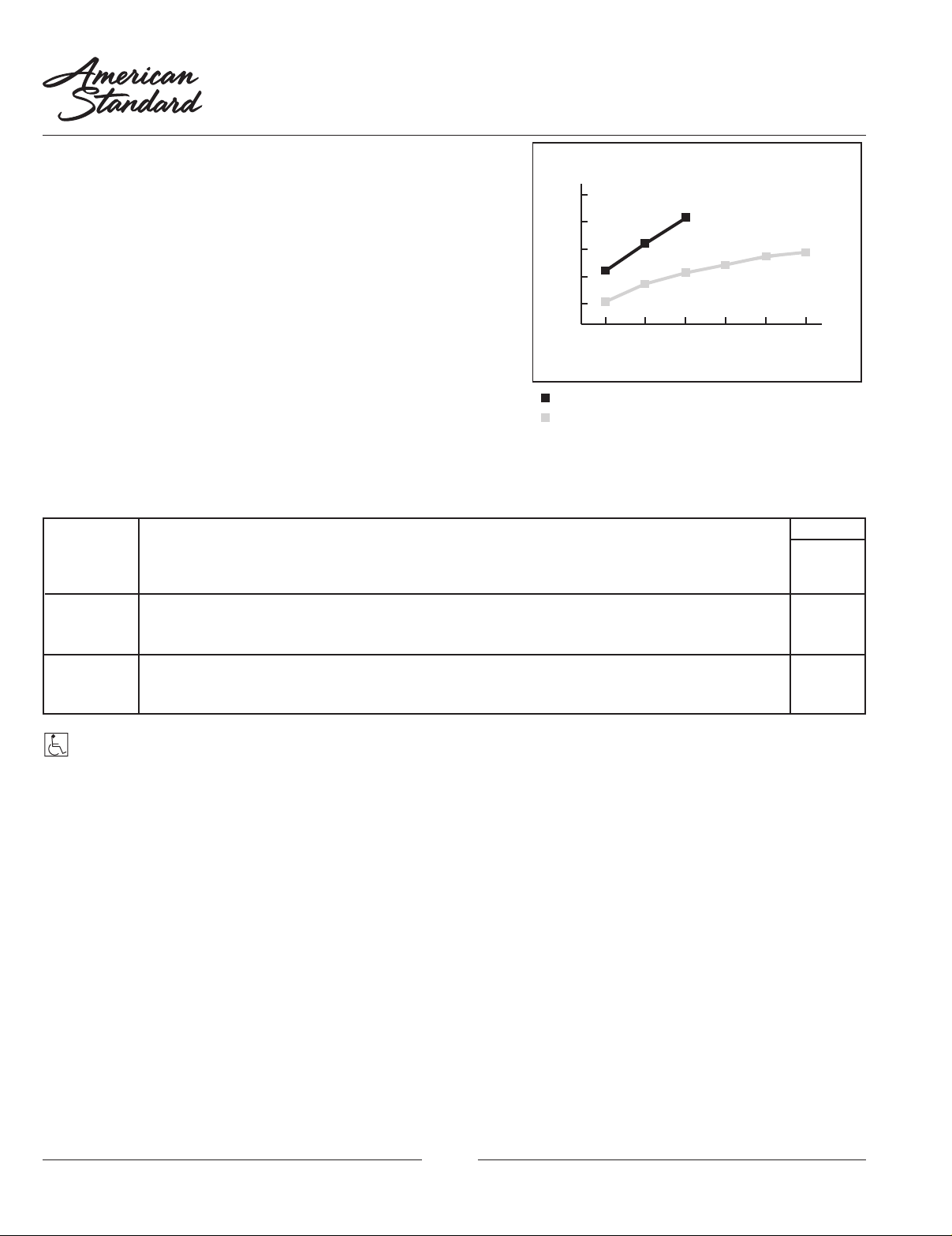

FLOW RATE*
25
20
15
10
5
GALLONS PER MINUTE
0
*Flow rates shown are for mixed hot and cold.
- Flow rates for 8355.101
- Flow rates for 8355.110
INLET PRESSURE (PSI)
50 6040302010
Finish
Polished
Chrome
002
8355.101
8355.110
Exposed yoke wall-mount utility faucet. Bottom fork brace. Ceramic disc valves. Cast brass
spout with plain end. Integral supply stops. Offset shanks with integral check valves.
Vandal-resistant wrist blade handles.
Exposed yoke wall-mount utility faucet. Bottom fork brace. Ceramic disc valves. Cast brass
spout with threaded end. With Vacuum Breaker. Offset shanks with integral check valves.
Vandal-resistant wrist blade handles.
Meets the American Disabilities Act Guidelines
and ANSI A117.1 Requirements for the
physically challenged.
© 2014 AS America In c.
L18 0
Revised 6/15
