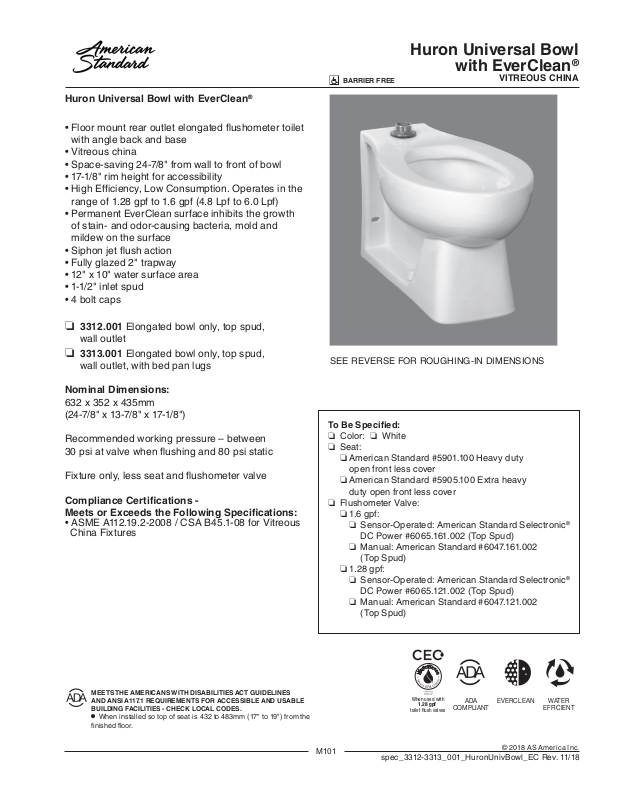

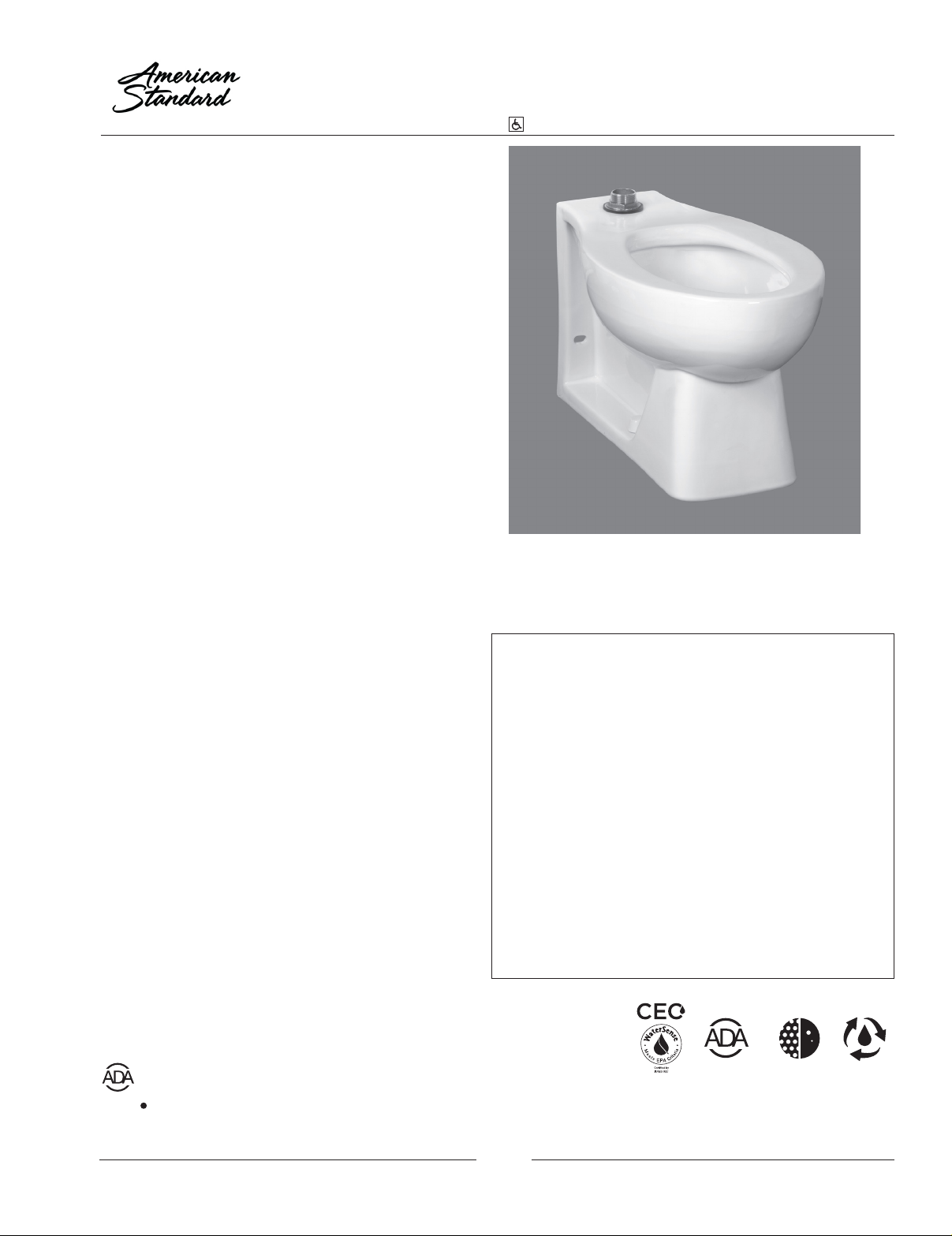

Huron Universal Bowl
BARRIER FREE
with EverClean®
VITREOUS CHINA
Huron Universal Bowl with EverClean
®
• Floor mount rear outlet elongated ushometer toilet
with angle back and base
• Vitreous china
• Space-saving 24-7/8" from wall to front of bowl
• 17-1/8" rim height for accessibility
• High Efficiency, Low Consumption. Operates in the
range of 1.28 gpf to 1.6 gpf (4.8 Lpf to 6.0 Lpf)
• Permanent EverClean surface inhibits the growth
of stain- and odor-causing bacteria, mold and
mildew on the surface
• Siphon jet ush action
• Fully glazed 2" trapway
• 12" x 10" water surface area
• 1-1/2" inlet spud
• 4 bolt caps
❏ 3312.001 Elongated bowl only, top spud,
wall outlet
❏ 3313.0 01 Elongated bowl only, top spud,
wall outlet, with bed pan lugs
Nominal Dimensions:
632 x 352 x 435mm
(24-7/8" x 13-7/8" x 17-1/8")
Recommended working pressure – between
30 psi at valve when ushing and 80 psi static
Fixture only, less seat and ushometer valve
Compliance Certications Meets or Exceeds the Following Specications:
• ASME A112.19.2-2008 / CSA B45.1-08 for Vitreous
China Fixtures
SEE REVERSE FOR ROUGHING-IN DIMENSIONS
To Be Specied:
❏ Color: ❏ White
❏ Seat:
❏ American Standard #5901.100 Heavy duty
open front less cover
❏ American Standard #5905.100 Extra heavy
duty open front less cover
❏ Flushometer Valve:
❏ 1.6 gpf:
❏ Sensor-Operated: American Standard Selectronic®
DC Power #6065.161.002 (Top Spud)
❏ Manual: American Standard #6047.161.002
(Top Spud)
❏ 1.28 gpf:
❏ Sensor-Operated: American Standard Selectronic
DC Power #6065.121.002 (Top Spud)
❏ Manual: American Standard #6047.121.002
(Top Spud)
®
MEETS THE AMERICANS WITH DISABILITIES ACT GUIDELINES
AND ANSI A117.1 REQUIREMENTS FOR ACCESSIBLE AND USABLE
BUILDING FACILITIES - CHECK LOCAL CODES.
When installed so top of seat is 432 to 483mm (17" to 19") from the
finished floor.
M101
When used with
1.28 gpf
toilet flush valves
spec_3312-3313_001_HuronUnivBowl_EC Rev. 11/18
ADA
COMPLIANT
EVERCLEAN WATER
© 2018 AS America Inc.
EFFICIENT

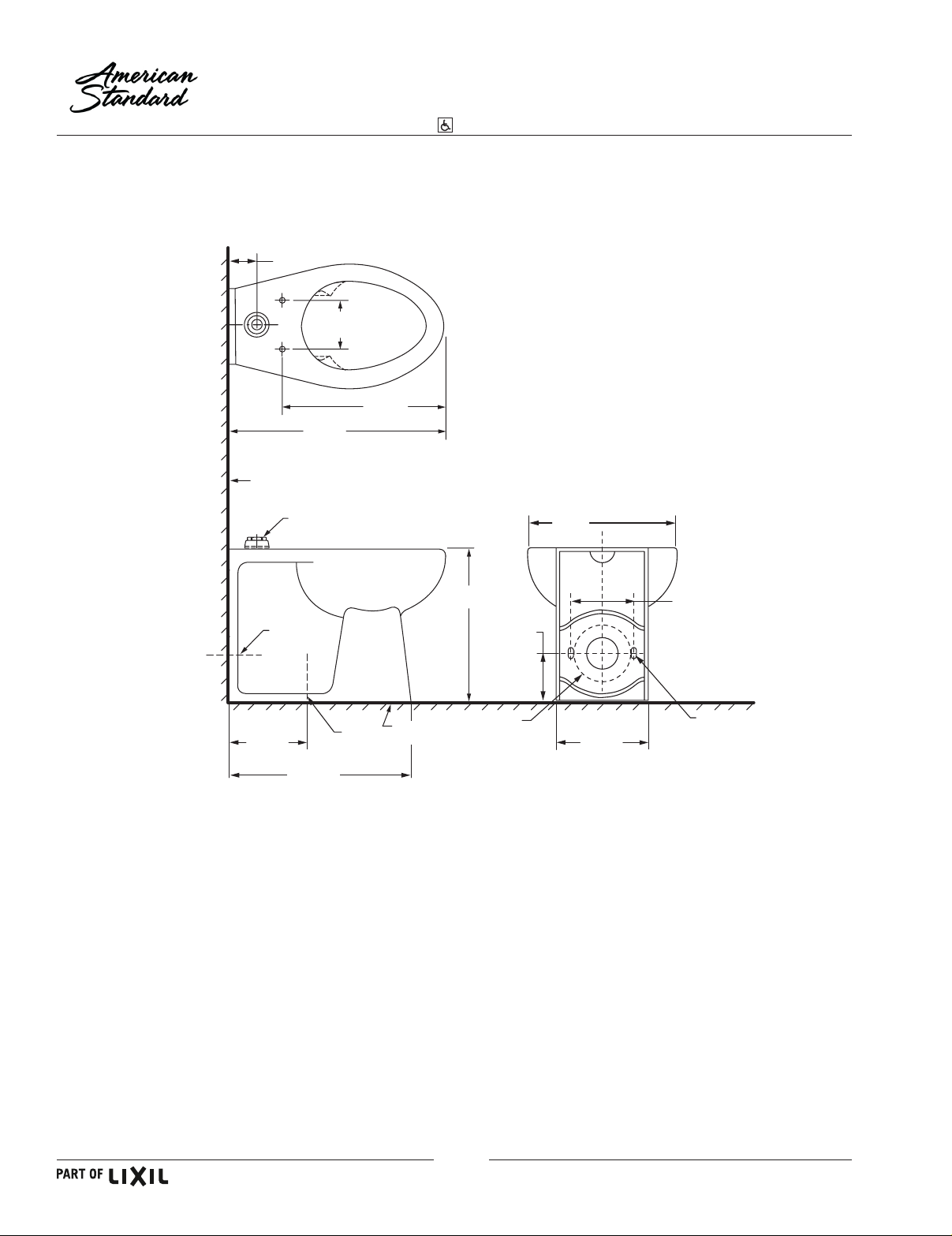

Page 2
3"
(76mm)
(533mm)
5-1/2"
(140mm)
24-7/8"
(632mm)
FINISHED WALL
18-7/8"
(479mm)
BARRIER FREE
Huron Universal Bowl
with EverClean®
VITREOUS CHINA
1-1/2" (38mm)
SPUD CONNECTION
17-1/8"
(435mm)
C/L OUTLET
4-1/4"
(108mm)
10-3/4"
(273mm)
NOTES:
* VARIABLE — CHECK WITH MANUFACTURER OF FLUSHVALVE FOR PROPER ROUGH-IN DIMENSIONS.
WASTE OUTLET SEAL RING MUST BE NEOPRENE OR GRAPHITE-FELT (WAX RING NOT RECOMMENDED).
TO COMPLY WITH AREA CODE GOVERNING THE HEIGHT OF VACUUM BREAKER ON FLUSH VALVE, THE
PLUMBER MUST VERIFY DIMENSIONS SHOWN FOR SUPPLY ROUGHING.
FLUSH VALVE NOT INCLUDED AND MUST BE ORDERED SEPARATELY.
IMPORTANT: Dimensions of xtures are nominal and may vary within the range of tolerances established by ANSI
Standard A112.19.2. These measurements are subject to change or cancellation. No responsibilit y is assumed for
use of superseded or voided pages.
C/L of
1/2"(13mm)
Dia. Holes
21"
FINISHED
FLOOR
C/L OUTLET
(108mm)
6" (152mm)
DIA. HOLE
IN WALL
4-1/4"
13-7/8"
(352mm)
(216mm)
8-1/2"
6"
(152mm)
(2) SLOTS
1" x 1/2"
(25mm x 13mm)
M102
spec_3312-3313_001_HuronUnivBowl_EC Rev. 11/18
© 2018 AS America Inc.
