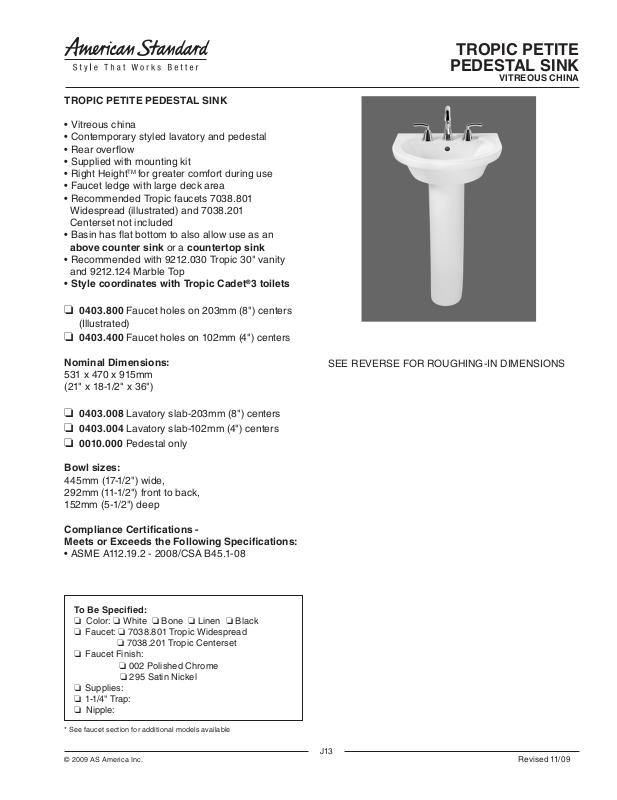

Page 1
TROPIC PETITE PEDESTAL SINK
• Vitreous china
• Contemporary styled lavatory and pedestal
• Rear overow
• Supplied with mounting kit
• Right Height
TM
for greater comfort during use
• Faucet ledge with large deck area
• Recommended Tropic faucets 7038.801
Widespread (illustrated) and 7038.201
Centerset not included
• Basin has at bottom to also allow use as an
above counter sink or a countertop sink
• Recommended with 9212.030 Tropic 30" vanity
and 9212.124 Marble Top
• Style coordinates with Tropic Cadet®3 toilets
❏ 0403.800 Faucet holes on 203mm (8") centers
(Illustrated)
❏ 0403.400 Faucet holes on 102mm (4") centers
TROPIC PETITE
PEDESTAL SINK
VITREOUS CHINA
Nominal Dimensions:
531 x 470 x 915mm
(21" x 18-1/2" x 36")
❏ 0403.008 Lavatory slab-203mm (8") centers
❏ 0403.004 Lavatory slab-102mm (4") centers
❏ 0010.000 Pedestal only
Bowl sizes:
445mm (17-1/2") wide,
292mm (11-1/2") front to back,
152mm (5-1/2") deep
Compliance Certications Meets or Exceeds the Following Specications:
• ASME A112.19.2 - 2008/CSA B45.1-08
To Be Specied:
❏ Color: ❏ White ❏ Bone ❏ Linen ❏ Black
❏ Faucet: ❏ 7038.801 Tropic Widespread
❏ 7038.201 Tropic Centerset
❏ Faucet Finish:
❏ 002 Polished Chrome
❏ 295 Satin Nickel
❏ Supplies:
❏ 1-1/4" Trap:
❏ Nipple:

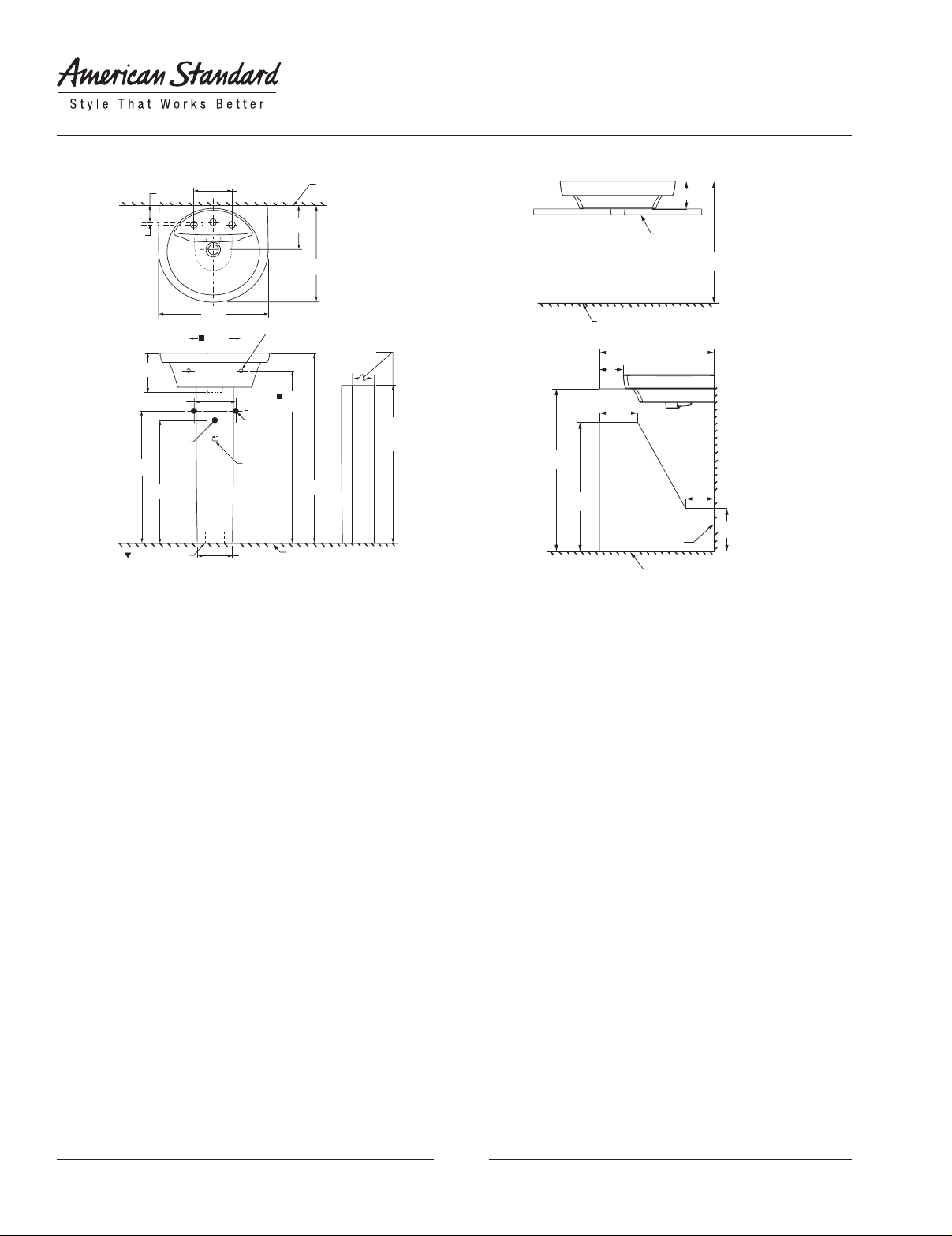

SEE REVERSE FOR ROUGHING-IN DIMENSIONS
* See faucet section for additional models available
© 2009 AS America Inc.
J13
Revised 11/09
Page 2
TROPIC PETITE
FINI SHED
WALL
470m m
(18- 1/2)
82mm
(3-1/4)
13mm
(1/2)
213mm
(8-1/2)
203mm
(8)
254mm
(10) REF.
203mm (8)
191mm
(7-1/2)
*635mm
(25)
13mm
(1/2) DIA.
HOLES FOR
ANCHOR BOLTS
*590mm
(23-1/4)
9-1/2mm (3/8) DIA
BASE ANCHOR
SCREW HOLES
1-1/ 4
O.D.
WAST E
830m m
(32- 3/4)
1-1/ 4 OD
TAIL PIECE
915m m
(36)
FINI SHED
FLOO R
170m m
(6-3 /4)
PEDESTAL
SIDE SECTION
760mm
(30)
OPEN TO
FLOOR
DRAIN
CHASE
531mm
(21)
SUPPLIES
AS
REQUIRED
COUN TERTO P
FINI SHED FLOOR
FINI SHED FLOOR
FINI SHED
WALL
165mm
(6-1/2)
787mm
(31)
610mm
(24)
127mm
(5)
864mm
(34)
686mm
(27)
203mm
(8)
152mm
(6)
229mm
(9)
PEDESTAL SINK
VITREOUS CHINA
© 2009 AS America Inc.
NOTES:
DIMENSIONS SHOWN FOR LOCATION OF SUPPLIES AND “P" TR APS
*
ARE SUGGESTED.
▼ PEDESTAL ANCHORING SCREWS NOT INCLUDED.
■ SUITABLE FOR REINFORCEMENT ONLY. ACTUAL DIMENSIONS MUST
BE TAKEN FROM FIXTURE.
FITTING NOT INCLUDED AND MUST BE ORDERED SEPARATELY.
PROVIDE SUITABLE REINFORCEMENT FOR ALL WALL SUPPORTS.
INSTALLATION INSTRUCTIONS SUPPLIED WITH LAVATORY.
IMPORTANT: Dimensions of xtures are nominal and may vary within the
range of tolerance established by ANSI Standard A112.19.2
These measurements are subject to c hange or cancellation. No responsibility
is assumed for use of superseded or voided pages.
J14
Revised 11/09
