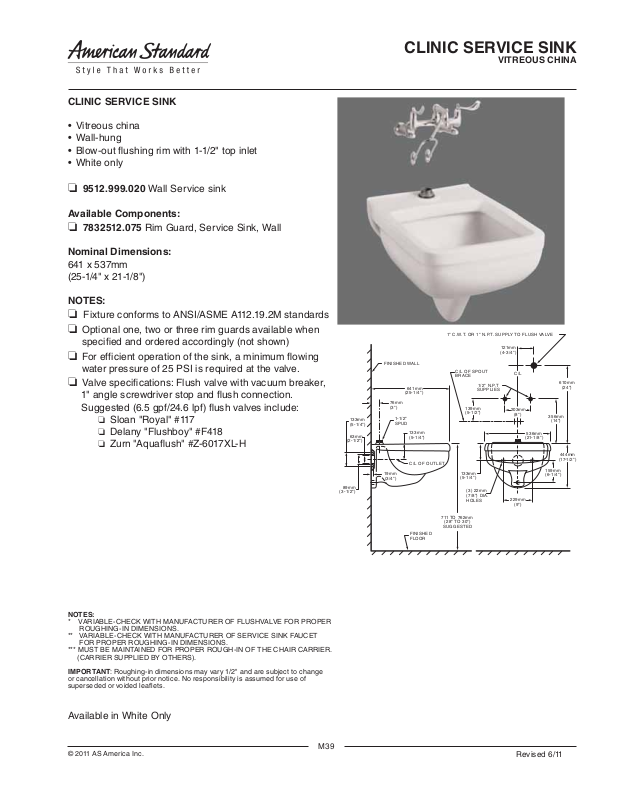

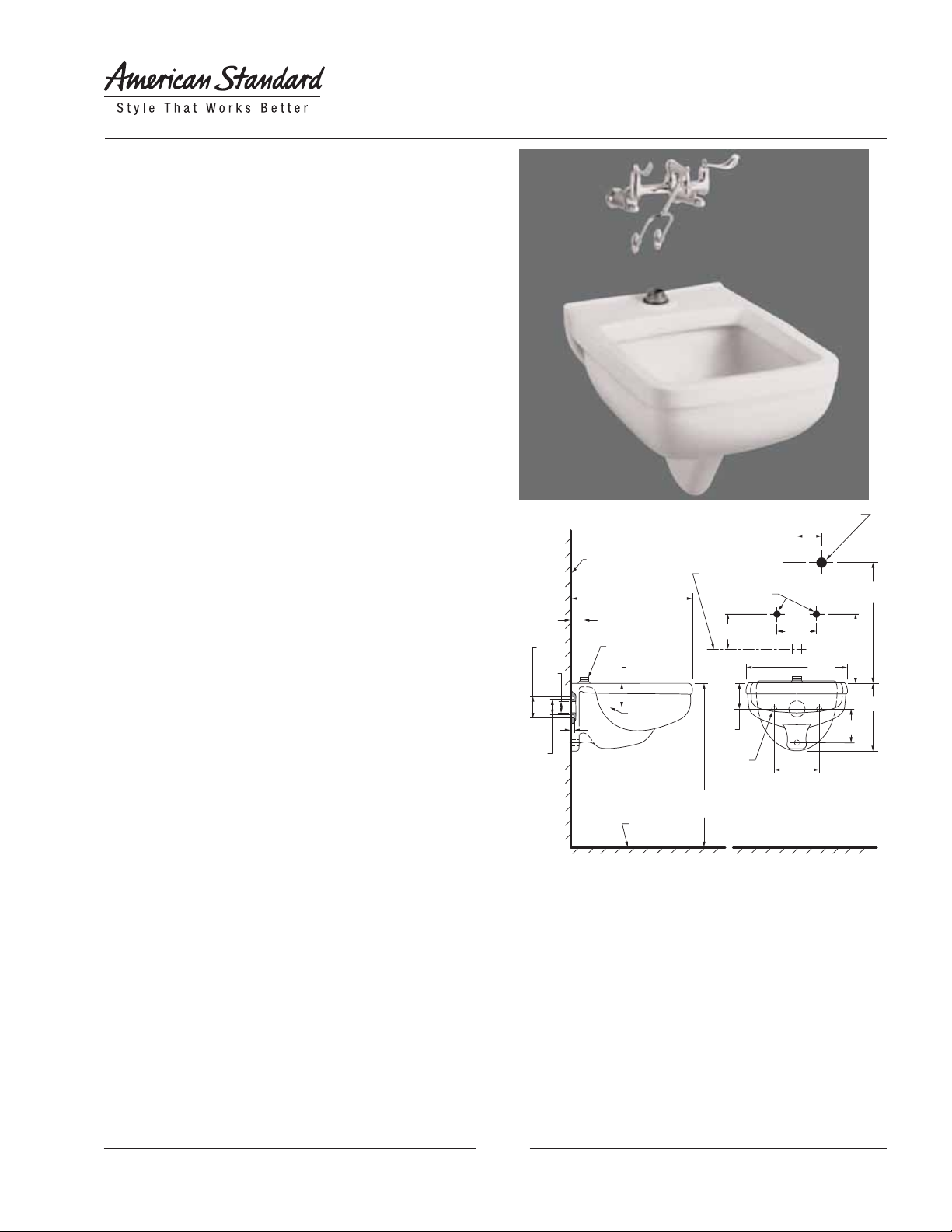

CLINIC SERVICE SINK
• Vitreous china
• Wall-hung
• Blow-out ushing rim with 1-1/2" top inlet
• White only
❏ 9512.999.020 Wall Service sink
Available Components:
❏ 7832512.075 Rim Guard, Service Sink, Wall
Nominal Dimensions:
641 x 537mm
(25-1/4" x 21-1/8")
NOTES:
❏ Fixture conforms to ANSI/ASME A112.19.2M standards
❏ Optional one, two or three rim guards available when
speci ed and ordered accordingly (not shown)
❏ For efficient operation of the sink, a minimum owing
water pressure of 25 PSI is required at the valve.
❏ Valve speci cations: Flush valve with vacuum breaker,
1" angle screwdriver stop and ush connection.
Suggested (6.5 gpf/24.6 lpf) ush valves include:
❏ Sloan "Royal" #117
❏ Delany "Flushboy" #F418
❏ Zurn "Aqua ush" #Z-6017XL-H
(2-1/2")
89mm
(3-1/2")
133mm
(5-1/4")
63mm
CLINIC SERVICE SINK
VITREOUS CHINA
1" C.W.T. OR 1" N.P.T. SUPPLY TO FLUSH VALVE
121mm
(4-3/4")
FINISHED WALL
641mm
(25-1/4")
76mm
(3")
1-1/2"
SPUD
133mm
(5-1/4")
C/L OF OUTLET
19mm
(3/4")
FINISHED
FLOOR
C/L OF SPOUT
BRACE
133mm
(5-1/4")
711 TO 762mm
(28" TO 30")
SUGGESTED
1/2" N.P.T
SUPPLIES
139mm
(5-1/2")
(3) 22mm
(7/8") DIA.
HOLES
C/L
203mm
(8")
229mm
(9")
536mm
(21-1/8")
356mm
(14")
159mm
(6-1/4")
610mm
(24")
444mm
(17-1/2")
NOTES:
* VARIABLE-CHECK WITH MANUFACTURER OF FLUSHVALVE FOR PROPER
ROUGHING-IN DIMENSIONS.
** VARIABLE-CHECK WITH MANUFACTURER OF SERVICE SINK FAUCET
FOR PROPER ROUGHING-IN DIMENSIONS.
*** MUST BE MAINTAINED FOR PROPER ROUGH-IN OF THE CHAIR CARRIER.
(CARRIER SUPPLIED BY OTHERS).
IMPORTANT: Roughing-in dimensions may vary 1/2" and are subject to change
or cancellation without prior notice. No responsibility is assumed for use of
superseded or voided leaflets.
Available in White Only
© 2011 AS America Inc.
M39
Revised 6/11
