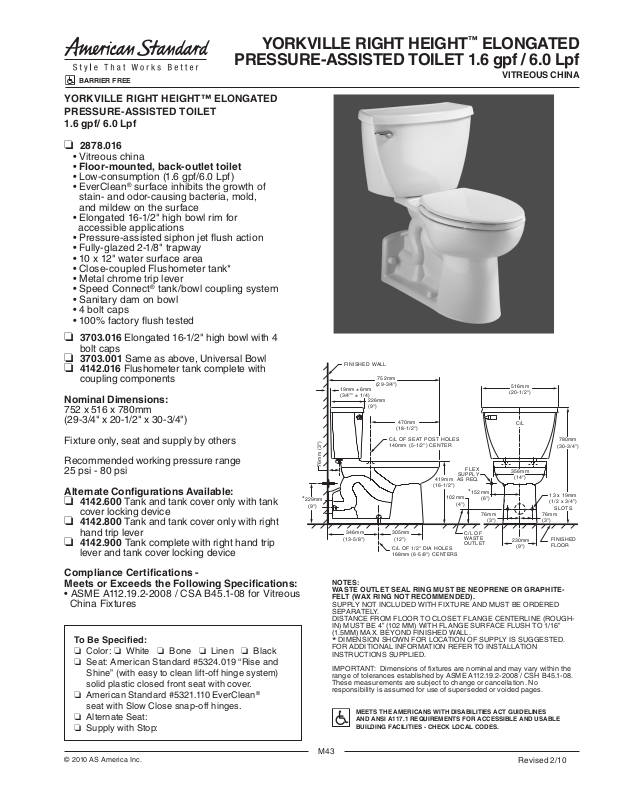

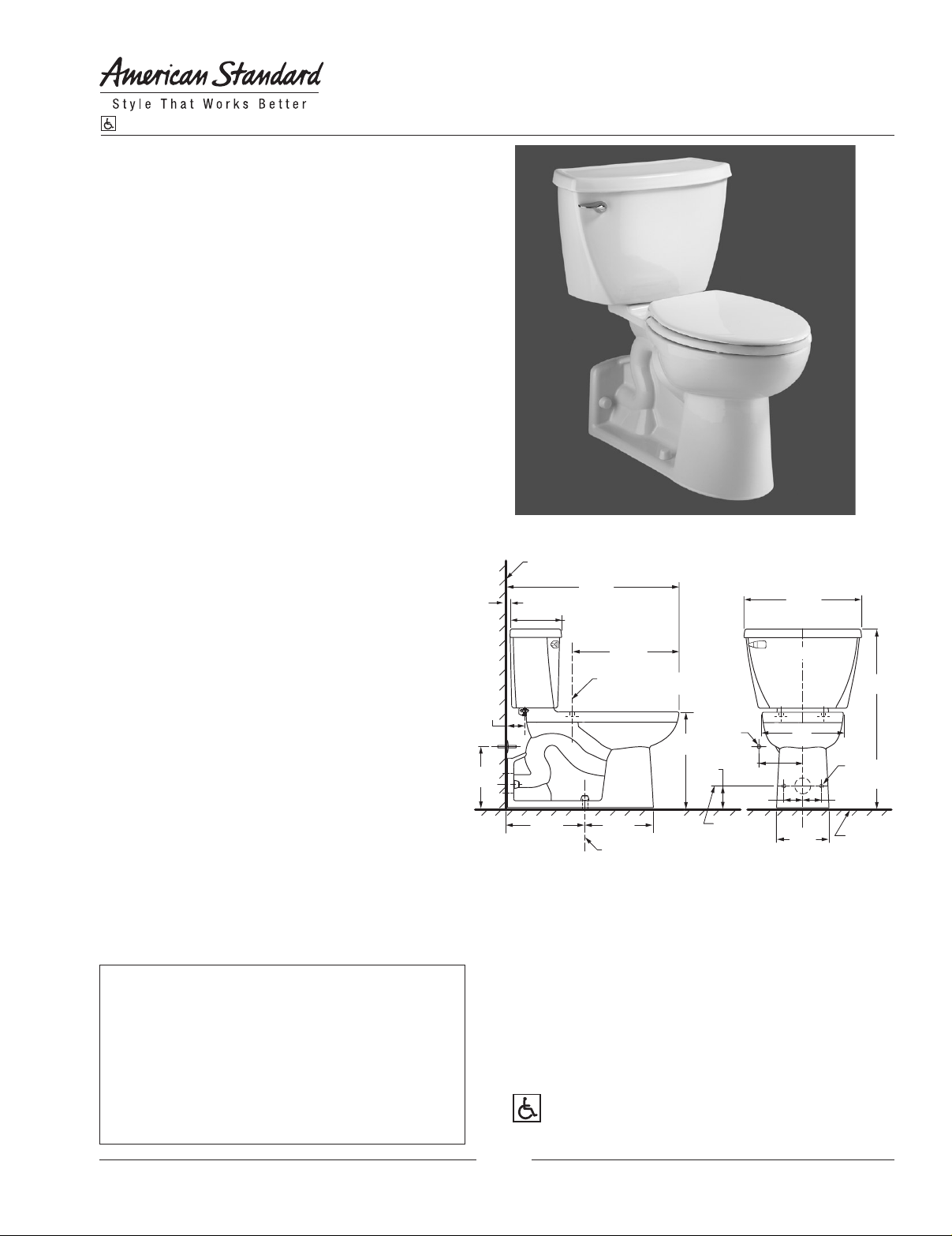

YORKVILLE RIGHT HEIGHT™ ELONGATED
780 mm
(30 -3/4")
230 mm
(9" )
419 mm
(16 -1/2")
470 mm
(18 -1/2")
752 mm
(29 -3/4")
C/L OF SE AT PO ST HOLES
140 mm (5- 1/2") CE NTER
FIN ISHED WALL
FIN ISHED
FLO OR
*15 2 mm
(6" )
76m m (3")
34 6mm
(13 -5/8")
30 5mm
(12 ")
C/L OF 1/ 2" DI A H OLES
168 mm (6- 5/8") CE NTERS
76m m
(3" )
76m m
(3" )
*22 9mm
(9" )
102 mm
(4" )
C/L OF
WAS TE
OUT LET
13 x 19mm
(1/ 2 x 3/ 4")
SLO TS
FLE X
SUP PLY
AS REQ.
C/L
19m m ±6 mm
(3/ 4"" ± 1/4)
226 mm
(9" )
516 mm
(20 -1/2 ")
356 mm
(14 ")
MEETS THE AMERICANS WITH DISABILITIES ACT GUIDELINES
AND ANSI A117.1 REQUIREMENTS FOR ACCESSIBLE AND USABLE
BUILDING FACILITIES - CHECK LOCAL CODES.
BARRIER FREE
PRESSURE-ASSISTED TOILET 1.6 gpf / 6.0 Lpf
YORKVILLE RIGHT HEIGHT™ ELONGATED
PRESSURE-ASSISTED TOILET
1.6 gpf/ 6.0 Lpf
❏ 2878.016
• Vitreous china
• Floor-mounted, back-outlet toilet
• Low-consumption (1.6 gpf/6.0 Lpf)
• EverClean® surface inhibits the growth of
stain- and odor-causing bacteria, mold,
and mildew on the surface
• Elongated 16-1/2" high bowl rim for
accessible applications
• Pressure-assisted siphon jet ush action
• Fully-glazed 2-1/8" trapway
• 10 x 12" water surface area
• Close-coupled Flushometer tank*
• Metal chrome trip lever
• Speed Connect® tank/bowl coupling system
• Sanitary dam on bowl
• 4 bolt caps
• 100% factory ush tested
❏ 3703.016 Elongated 16-1/2" high bowl with 4
bolt caps
❏ 3703.001 Same as above, Universal Bowl
❏ 4142.016 Flushometer tank complete with
coupling components
VITREOUS CHINA
Nominal Dimensions:
752 x 516 x 780mm
(29-3/4" x 20-1/2" x 30-3/4")
Fixture only, seat and supply by others
Recommended working pressure range
25 psi - 80 psi
Alternate Congurations Available:
❏ 4142.600 Tank and tank cover only with tank
cover locking device
❏ 4142.800 Tank and tank cover only with right
hand trip lever
❏ 4142.900 Tank complete with right hand trip
lever and tank cover locking device
Compliance Certications Meets or Exceeds the Following Specications:
• ASME A112.19.2-2008 / CSA B45.1-08 for Vitreous
China Fixtures
To Be Specied:
❏ Color: ❏ White ❏ Bone ❏ Linen ❏ Black
❏ Seat: American Standard #5324.019 “Rise and
Shine” (with easy to clean lift-off hinge system)
solid plastic closed front seat with cover.
❏ American Standard #5321.110 EverClean
seat with Slow Close snap-off hinges.
❏ Alternate Seat:
❏ Supply with Stop:
© 2010 AS America Inc.
®
NOTES:
WASTE OUTLET SEAL RING MUST BE NEOPRENE OR GRAPHITEFELT (WAX RING NOT RECOMMENDED).
SUPPLY NOT INCLUDED WITH FIX TURE AND MUST BE ORDERED
SEPARATELY.
DISTANCE FROM FLOOR TO CLOSET FLANGE CENTERLINE (ROUGHIN) MUST BE 4” (102 MM) WITH FLANGE SURFACE FLUSH TO 1/16”
(1.5MM) MAX. BEYOND FINISHED WALL.
DIMENSION SHOWN FOR LOCATION OF SUPPLY IS SUGGESTED.
*
FOR ADDITIONAL INFORMATION REFER TO INSTALLATION
INSTRUCTIONS SUPPLIED.
IMPORTANT: Dimensions of xtures are nominal and may vary within the
range of tolerances established by ASME A112.19.2-2008 / CSH B45.1-08.
These measurements are subject to change or cancellation. No
responsibility is assumed for use of superseded or voided pages.
M43
Revised 2/10
