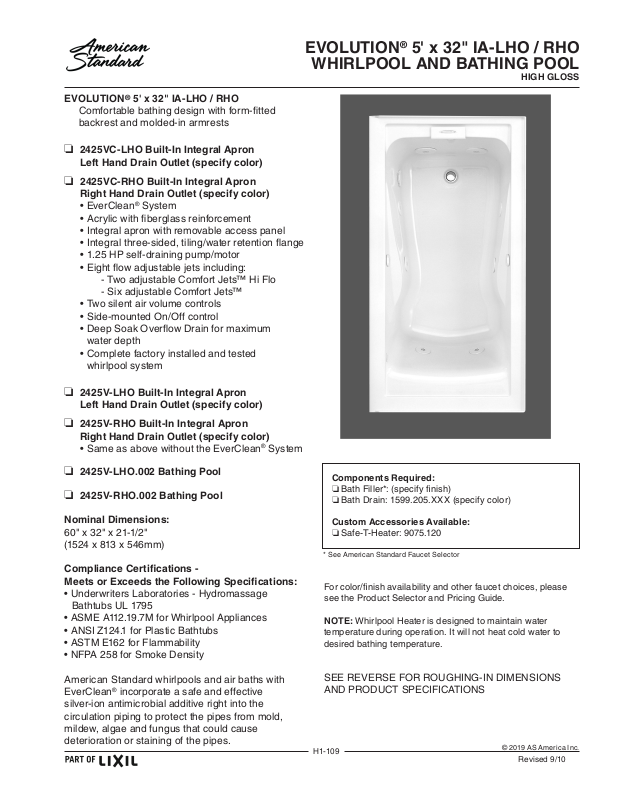

Page 1

EVOLUTION® 5' x 32" IA-LHO / RHO

Comfortable bathing design with form-tted backrest and molded-in armrests

❏ 2425VC-LHO Built-In Integral Apron

Left Hand Drain Outlet (specify color)

❏ 2425VC-RHO Built-In Integral Apron

Right Hand Drain Outlet (specify color)

• EverClean® System

• Acrylic with berglass reinforcement

• Integral apron with removable access panel

• Integral three-sided, tiling/water retention ange

• 1.25 HP self-draining pump/motor

• Eight ow adjustable jets including:

- Two adjustable Comfort Jets™ Hi Flo

- Six adjustable Comfort Jets™

• Two silent air volume controls

• Side-mounted On/Off control

• Deep Soak Overow Drain for maximum water depth

• Complete factory installed and tested whirlpool system

EVOLUTION® 5' x 32" IA-LHO / RHO

WHIRLPOOL AND BATHING POOL

HIGH GLOSS

❏ 2425V-LHO Built-In Integral Apron

Left Hand Drain Outlet (specify color)

❏ 2425V-RHO Built-In Integral Apron

Right Hand Drain Outlet (specify color)

• Same as above without the EverClean® System

❏ 2425V-LHO.002 Bathing Pool

❏ 2425V-RHO.002 Bathing Pool

Nominal Dimensions:

60" x 32" x 21-1/2" (1524 x 813 x 546mm)

Compliance Certications Meets or Exceeds the Following Specications:

• Underwriters Laboratories - Hydromassage

Bathtubs UL 1795

• ASME A112.19.7M for Whirlpool Appliances

• ANSI Z124.1 for Plastic Bathtubs

• ASTM E162 for Flammability

• NFPA 258 for Smoke Density

American Standard whirlpools and air baths with EverClean® incorporate a safe and effective silver-ion antimicrobial additive right into the circulation piping to protect the pipes from mold, mildew, algae and fungus that could cause deterioration or staining of the pipes.

Components Required:

❏ Bath Filler*: (specify nish) ❏ Bath Drain: 1599.205.XXX (specify color)

Custom Accessories Available:

❏ Safe-T-Heater: 9075.120

* See American Standard Faucet Selector

For color/nish availability and other faucet choices, please see the Product Selector and Pricing Guide.

NOTE: Whirlpool Heater is designed to maintain water temperature during operation. It will not heat cold water to desired bathing temperature.

SEE REVERSE FOR ROUGHING-IN DIMENSIONS AND PRODUCT SPECIFICATIONS

H1-10 9

Revised 9/10

Page 2

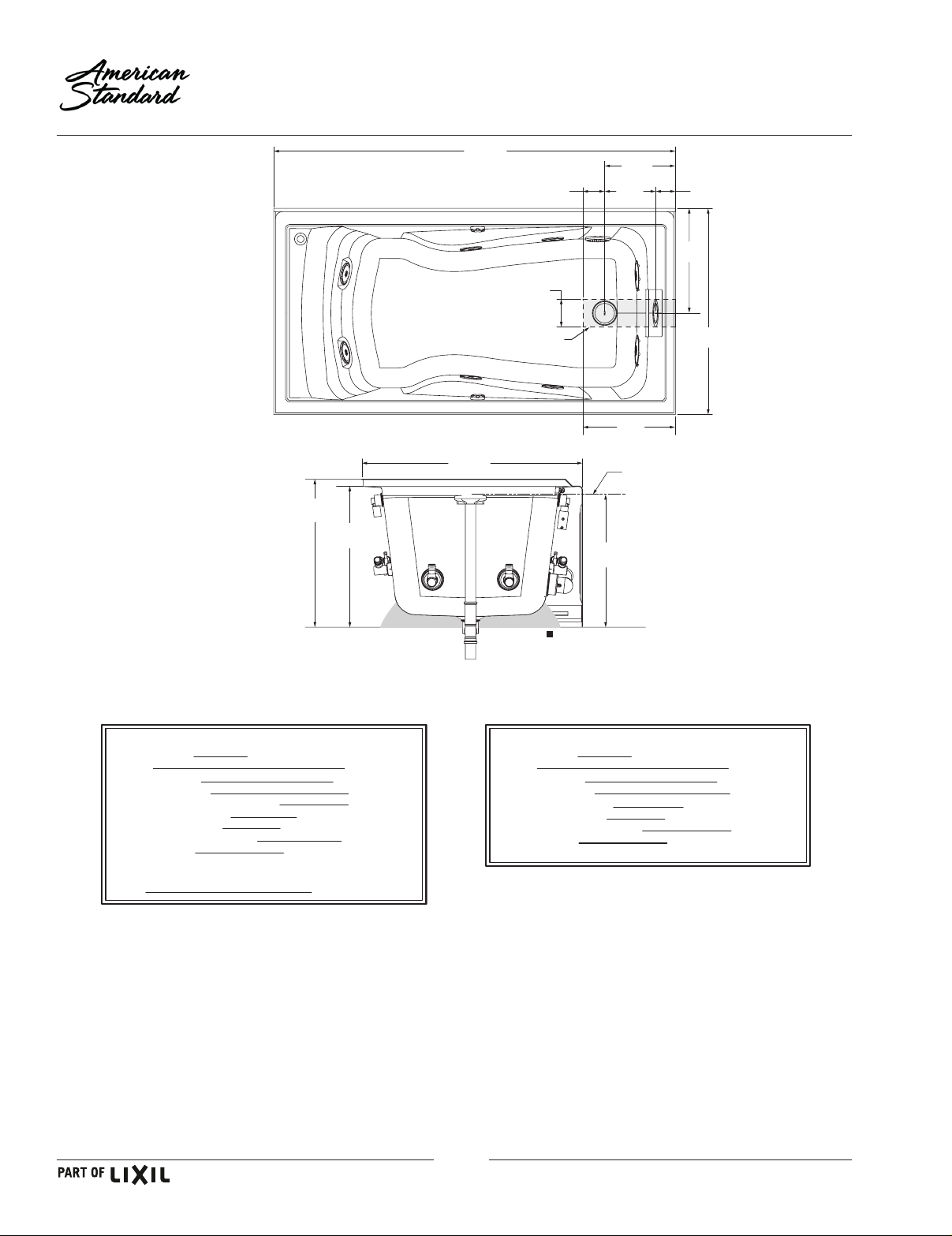

EVOLUTION® 5' x 32" IA-LHO / RHO

60"

WHIRLPOOL AND BATHING POOL

HIGH GLOSS

Model 2425V-LHO shown

21-1/2"

(546mm)

20-1/2"(H)

(521mm)

(1524mm)

32"

(813mm)

(76mm)

(152mm)

CUT OUT IN FLOOR

FOR DRAIN

10-1/2"

(267mm)

19-1/8"(A)

(486mm)

7-1/2"

(191mm)

13-1/2"

(343mm)

C/L OF OVERFLOW

2-7/8" (73mm)

16"

(406mm)

(813mm)

32"

GENERAL SPECIFICATIONS FOR 2425V WHIRLPOOL

INSTALLED SIZE WEIGHT WEIGHT w/WATER GAL. TO OVERFLOW WHIRLPOOL MIN. OPERATING VOL. BATHING WELL AT SUMP BATHING WELL AT RIM WATER DEPTH TO OVERFLOW FLOOR LOADING (PROJECTED AREA)

60 x 32 x 20-1/2 (1524 x 813 x 521mm)

42 x 22 In. (1067 x 559mm)

53 x 25-1/2 In. (1346 x 648mm)

51 Lbs./Sq.Ft. (247 Kgs./Sq.m)

92 Lbs. (42 Kg.)

675 Lbs. (306 Kg.)

70 Gal. (265 L.)

39 Gal. (148 L.)

17-1/2 (445mm)

GENERAL SPECIFICATIONS FOR 2425V BATHING POOL

INSTALLED SIZE WEIGHT WEIGHT w/WATER GAL. TO OVERFLOW BATHING WELL AT SUMP BATHING WELL AT RIM WATER DEPTH TO OVERFLOW FLOOR LOADING (PROJECTED AREA)

60 x 32 x 20-1/2 (1524 x 813 x 521mm)

42 x 22 In. (1067 x 559mm)

53 x 25-1/2 In. (1346 x 648mm)

50 Lbs./Sq.Ft. (242 Kgs./Sq.m)

77 Lbs. (35 Kg.)

661 Lbs. (299 Kg.)

70 Gal. (265 L.)

17-1/2 (445mm)

WHIRLPOOL ELECTRICAL SPECIFICATIONS

PUMP 1.25 HP, 9.7 AMPS,120V.

NOTES:

BATH CAN BE INSTALLED EITHER ABOVE OR BELOW FLOOR LINE AS PIER, ISLAND, OR PENINSULA TYPE INSTALLATION. SUPPORT OF BATH BY SUMP BEDDING. SUPPORT AND ENCLOSING MATERIAL BY OTHERS.

■ REFER TO INSTALLATION INSTRUCTIONS SUPPLIED WITH WHIRLPOOL FOR ADDITIONAL INFORMATION.

FITTINGS NOT INCLUDED AND MUST BE ORDERED SEPARATELY.

PROVIDE SUITABLE REINFORCEMENT FOR ALL SUPPORTS.

IMPORTANT: Dimensions of xtures are nominal and may var y within the range of tolerances established by ANSI Standard Z124.1 and A112.19.7. These measurements are subject to change or cancellation. No responsibility is assumed for use of superseded or voided leaet.

H1-110

Revised 9/10
