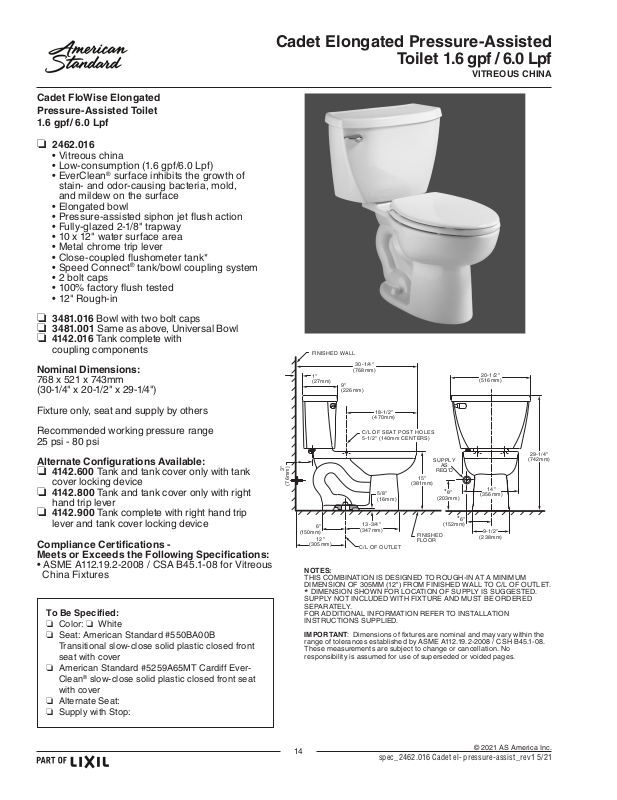

Page 1
Cadet FloWise Elongated
Pressure-Assisted Toilet
1.6 gpf/ 6.0 Lpf
❏ 2462.016
• Vitreous china
• Low-consumption (1.6 gpf/6.0 Lpf)
• EverClean® surface inhibits the growth of
stain- and odor-causing bacteria, mold,
and mildew on the surface
• Elongated bowl
• Pressure-assisted siphon jet ush action
• Fully-glazed 2-1/8" trapway
• 10 x 12" water surface area
• Metal chrome trip lever
• Close-coupled ushometer tank*
• Speed Connect® tank/bowl coupling system
• 2 bolt caps
• 100% factory ush tested
• 12" Rough-in
❏ 3481.016 Bowl with two bolt caps
❏ 3481.001 Same as above, Universal Bowl
❏ 4142.016 Tank complete with
coupling components
Nominal Dimensions:
768 x 521 x 743mm
(30-1/4" x 20-1/2" x 29-1/4")
Cadet Elongated Pressure-Assisted
Toilet 1.6 gpf / 6.0 Lpf
VITREOUS CHINA
FINISHED WALL
30-1/4"
1"
(27mm)
(768mm)
9"
(226mm)
20-1/2"
(516mm)
Fixture only, seat and supply by others
Recommended working pressure range
25 psi - 80 psi
Alternate Congurations Available:
❏ 4142.600 Tank and tank cover only with tank
cover locking device
❏ 4142.80 0 Tank and tank cover only with right
hand trip lever
❏ 4142.900 Tank complete with right hand trip
lever and tank cover locking device
Compliance Certications Meets or Exceeds the Following Specications:
• ASME A112.19.2-2008 / CSA B45.1-08 for Vitreous
China Fixtures
To Be Specied:
❏ Color: ❏ White
❏ Seat: American Standard #550BA00B
Transitional slow-close solid plastic closed front
seat with cover
❏ American Standard #5259A65MT Cardiff Ever-
Clean® slow-close solid plastic closed front seat
with cover
❏ Alternate Seat:
❏ Supply with Stop:
18-1/2"
(470mm)
C/L OF SEAT POST HOLES
5-1/2" (140mm CENTERS)
SUPPLY
3"
(76mm)
6"
(150mm)
12"
(305mm)
NOTES:
THIS COMBINATION IS DESIGNED TO ROUGH-IN AT A MINIMUM
DIMENSION OF 305MM (12") FROM FINISHED WALL TO C/L OF OUTLET.
DIMENSION SHOWN FOR LOCATION OF SUPPLY IS SUGGESTED.
*
SUPPLY NOT INCLUDED WITH FIXTURE AND MUST BE ORDERED
SEP A R AT E LY.
FOR ADDITIONAL INFORMATION REFER TO INSTALLATION
INSTRUCTIONS SUPPLIED.
IMPORTANT: Dimensions of xtures are nominal and may vary within the
range of tolerances established by ASME A112.19.2-2008 / CSH B4 5.1-08.
These measurements are subject to change or cancellation. No
responsibility is assumed for use of superseded or voided pages.
5/8"
(16mm)
13-3/4"
(347mm)
C/L OF OUTLET
15"
(381mm)
FINISHED
FLOOR
AS
REQ'D
*8"
(203mm)
(152mm)
*6"
14"
(356mm)
9-1/2"
(238mm)
29-1/4"
(742mm)
14
spec_2462.016 Cadet el- pressure-assist_rev1 5/21
© 2021 AS America Inc.
