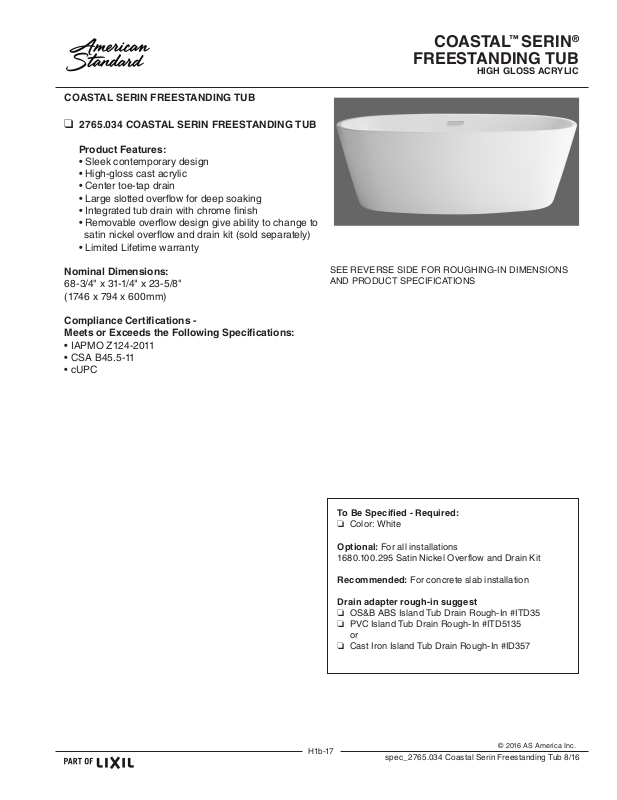

Page 1

COASTAL SERIN FREESTANDING TUB

❑ 2765.034 COASTAL SERIN FREESTANDING TUB

Product Features:

• Sleek contemporary design

• High-gloss cast acrylic

• Center toe-tap drain

• Large slotted overow for deep soaking

• Integrated tub drain with chrome nish

• Removable overow design give ability to change to satin nickel overow and drain kit (sold separately)

• Limited Lifetime warranty

COASTAL™ SERIN

FREESTANDING TUB

HIGH GLOSS ACRYLIC

Nominal Dimensions:

68-3/4" x 31-1/4" x 23-5/8"

(1746 x 794 x 600mm)

Compliance Certications Meets or Exceeds the Following Specications:

• IAPMO Z124-2011

• CSA B45.5-11

• cUPC

SEE REVERSE SIDE FOR ROUGHING-IN DIMENSIONS AND PRODUCT SPECIFICATIONS

To Be Specied - Required:

❏ Color: White

Optional: For all installations

1680.100.295 Satin Nickel Overflow and Drain Kit

Recommended: For concrete slab installation

Drain adapter rough-in suggest

❏ OS&B ABS Island Tub Drain Rough-In #ITD35 ❏ PVC Island Tub Drain Rough-In #ITD5135

or ❏ Cast Iron Island Tub Drain Rough-In #ID357

H1b -17

spec_ 2765.034 Coastal Serin Freestanding Tub 8/16

Page 2

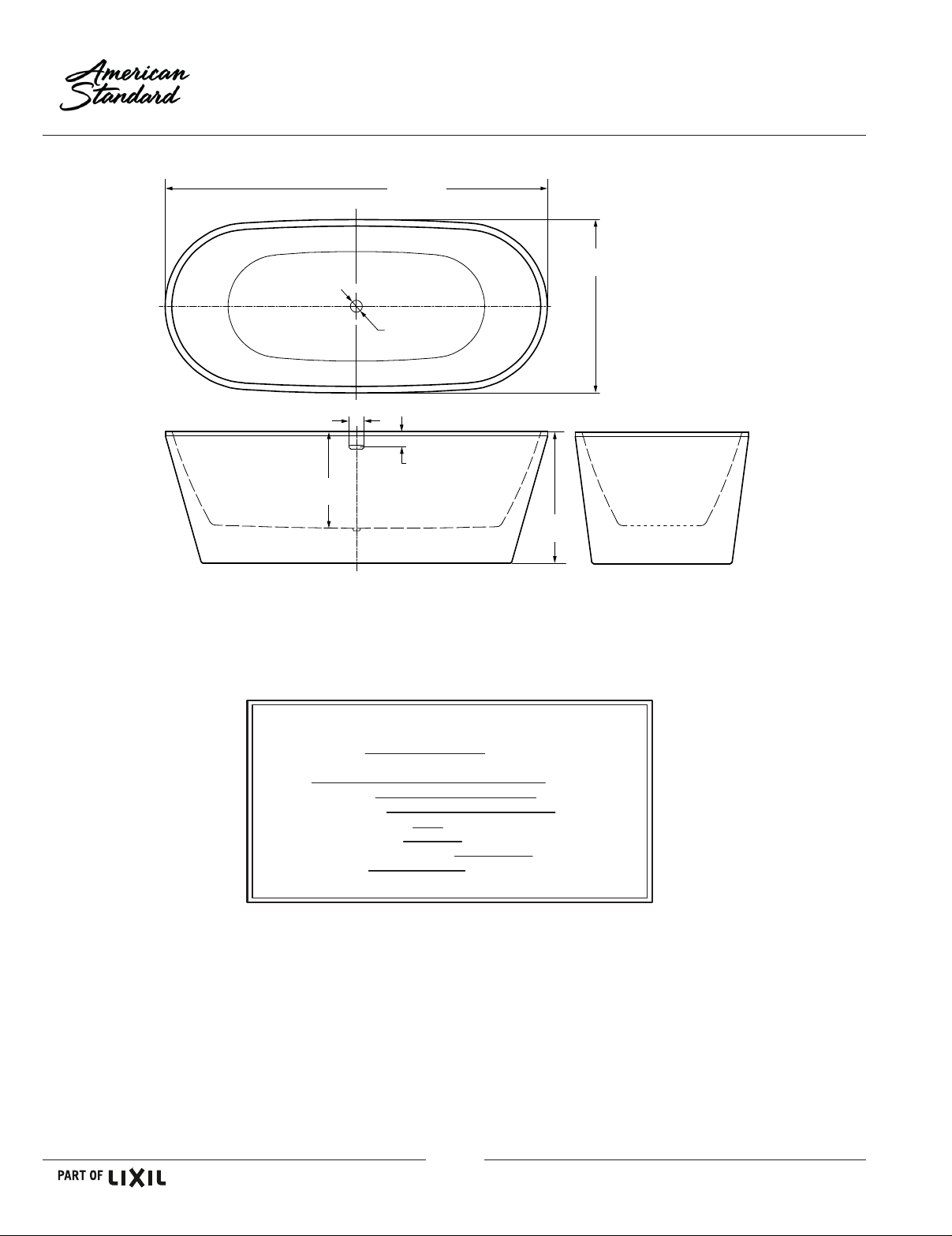

5-1/8"

(130 mm)

16-7/8"

(430 mm)

68-3/4"

(1745 mm)

ø2-1/8" (ø55 mm)

2-3/4" (70 mm)

23-5/8"

(600 mm)

COASTAL™ SERIN

FREESTANDING TUB

HIGH GLOSS ACRYLIC

31-1/4"

(795 mm)

GENERAL SPECIFICATIONS FOR

2765 FREE STANDING BATH

INSTALLED SIZE

68-3/4 x 31-1/4 x 23-5/8 in.

(1746 x 794 x 600mm) WEIGHT WEIGHT w/WATER GAL. TO OVERFLOW BATHING WELL AT SUMP BATHING WELL AT RIM WATER DEPTH TO OVERFLOW FLOOR LOADING

46-1/8 x 20-1/8 In. (1172 x 511mm)

66 x 28-1/2 In. (1677 x 724mm)

40 Lbs./Sq.Ft. (195 Kgs./Sq.m)

97 Lbs. (44 Kg.)

594 Lbs. (270 Kg.)

71 Gal. (269 L)

14-1/8 In. (359mm)

(PROJECTED AREA)

NOTES:

■ REFER TO INSTALLATION INSTRUCTIONS SUPPLIED WITH BATHTUB FOR ADDITIONAL INFORMATION.

IMPORTANT: Dimensions of xtures are nominal and may vary within the range of tolerances established by ANSI Standard Z124.1.2. These measurements are subject to change or cancellation. No responsibility is assumed for use of superseded or voided leaet.

H1b -18

spec_ 2765.034 Coastal Serin Freestanding Tub 8/16
