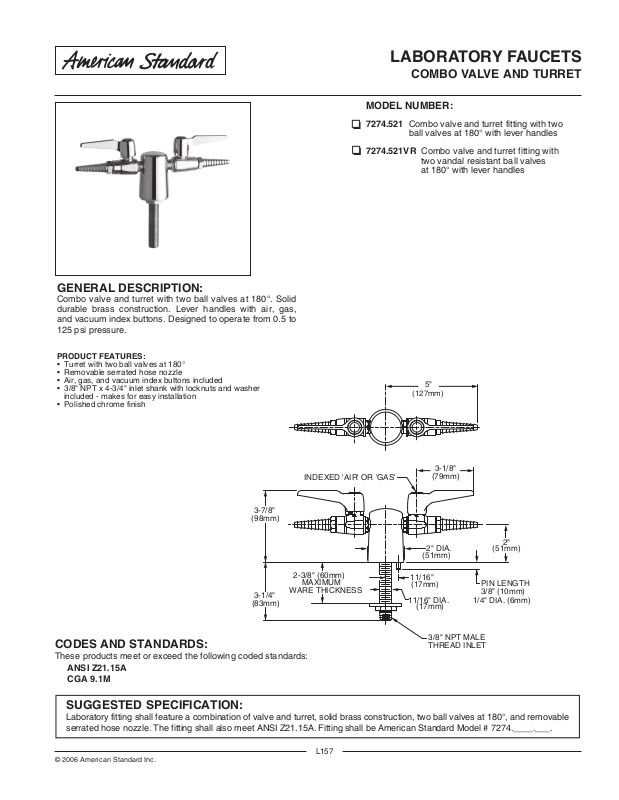

GENERAL DESCRIPTION:

Combo valve and turret with two ball valves at 180°. Solid durable brass construction. Lever handles with air, gas, and vacuum index buttons. Designed to operate from 0.5 to 125 psi pressure.

LABORATORY FAUCETS

COMBO VALVE AND TURRET

MODEL NUMBER:

7274.521 Combo valve and turret fitting with two

ball valves at 180° with lever handles

7274.521VR Combo valve and turret fitting with two vandal resistant ball valves at 180° with lever handles

PRODUCT FEATURES:

• Turret with two ball valves at 180°

• Removable serrated hose nozzle

• Air, gas, and vacuum index buttons included

• 3/8" NPT x 4-3/4" inlet shank with locknuts and washer included - makes for easy installation

• Polished chrome finish

3-7/8"

(98mm)

2-3/8" (60mm)

3-1/4"

(83mm)

WARE THICKNESS

CODES AND STANDARDS:

These products meet or exceed the following coded standards: ANSI Z21.15A

CGA 9.1M

INDEXED 'AIR' OR 'GAS'

MAXIMUM

(127mm)

3-1/8"

(79mm)

2" DIA.

(51mm)

11/16" (17mm)

DIA.

11/16"

(17mm)

3/8" NPT MALE

THREAD INLET

(51mm)

PIN LENGTH 3/8" (10mm)

1/4" DIA. (6mm)

SUGGESTED SPECIFICATION:

Laboratory fitting shall feature a combination of valve and turret, solid brass construction, two ball valves at 180°, and removable serrated hose nozzle. The fitting shall also meet ANSI Z21.15A. Fitting shall be American Standard Model # 7274.____.___.
