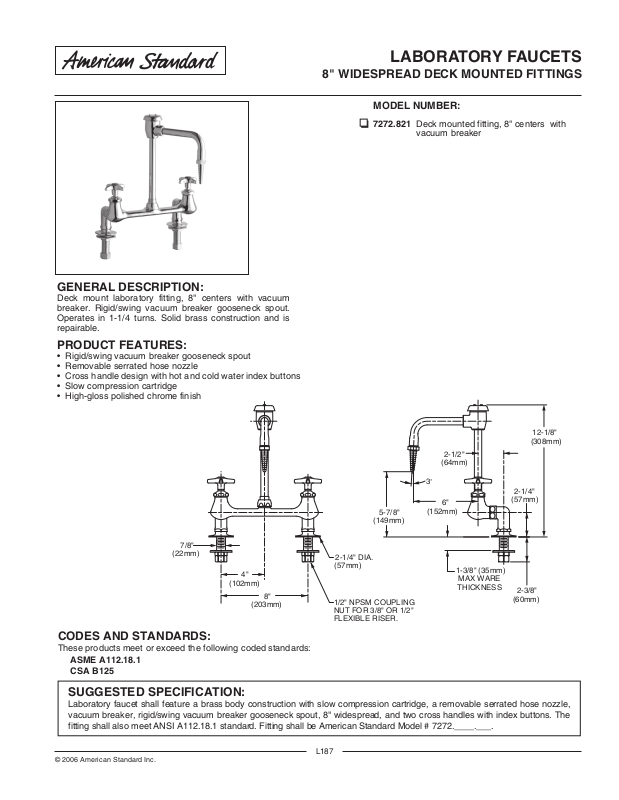

American Standard 7272.821 User Manual

GENERAL DESCRIPTION:

Deck mount laboratory fitting, 8" centers with vacuum breaker. Rigid/swing vacuum breaker gooseneck spout. Operates in 1-1/4 turns. Solid brass construction and is repairable.

PRODUCT FEATURES:

• Rigid/swing vacuum breaker gooseneck spout

• Removable serrated hose nozzle

• Cross handle design with hot and cold water index buttons

• Slow compression cartridge

• High-gloss polished chrome finish

LABORATORY FAUCETS

8" WIDESPREAD DECK MOUNTED FITTINGS

MODEL NUMBER:

7272.821 Deck mounted fitting, 8" centers with

vacuum breaker

12-1/8"

(308mm)

2-1/2"

(64mm)

7/8"

(22mm)

(102mm)

(203mm)

5-7/8"

(149mm)

2-1/4" DIA.

(57mm)

1/2" NPSM COUPLING NUT FOR 3/8" OR 1/2" FLEXIBLE RISER.

(152mm)

1-3/8" (35mm)

MAX WARE

THICKNESS

2-1/4"

(57mm)

2-3/8"

(60mm)

CODES AND STANDARDS:

These products meet or exceed the following coded standards: ASME A112.18.1

CSA B125

SUGGESTED SPECIFICATION:

Laboratory faucet shall feature a brass body construction with slow compression cartridge, a removable serrated hose nozzle, vacuum breaker, rigid/swing vacuum breaker gooseneck spout, 8" widespread, and two cross handles with index buttons. The fitting shall also meet ANSI A112.18.1 standard. Fitting shall be American Standard Model # 7272.____.___.

L18 7
